Core SWX NEO-9S High Output 98wh / 14.8V / 6.6Ah Mini V-Mount Li-Ion Battery Brick


  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.

NEO-9S - Overview

The Hypercore NEO Mini 9 is the most complete 98wh, 14v Lithium Ion battery pack on the market. Encompassing all the original features of the award winning Hypercore line, with additional features exclusive to NEO.

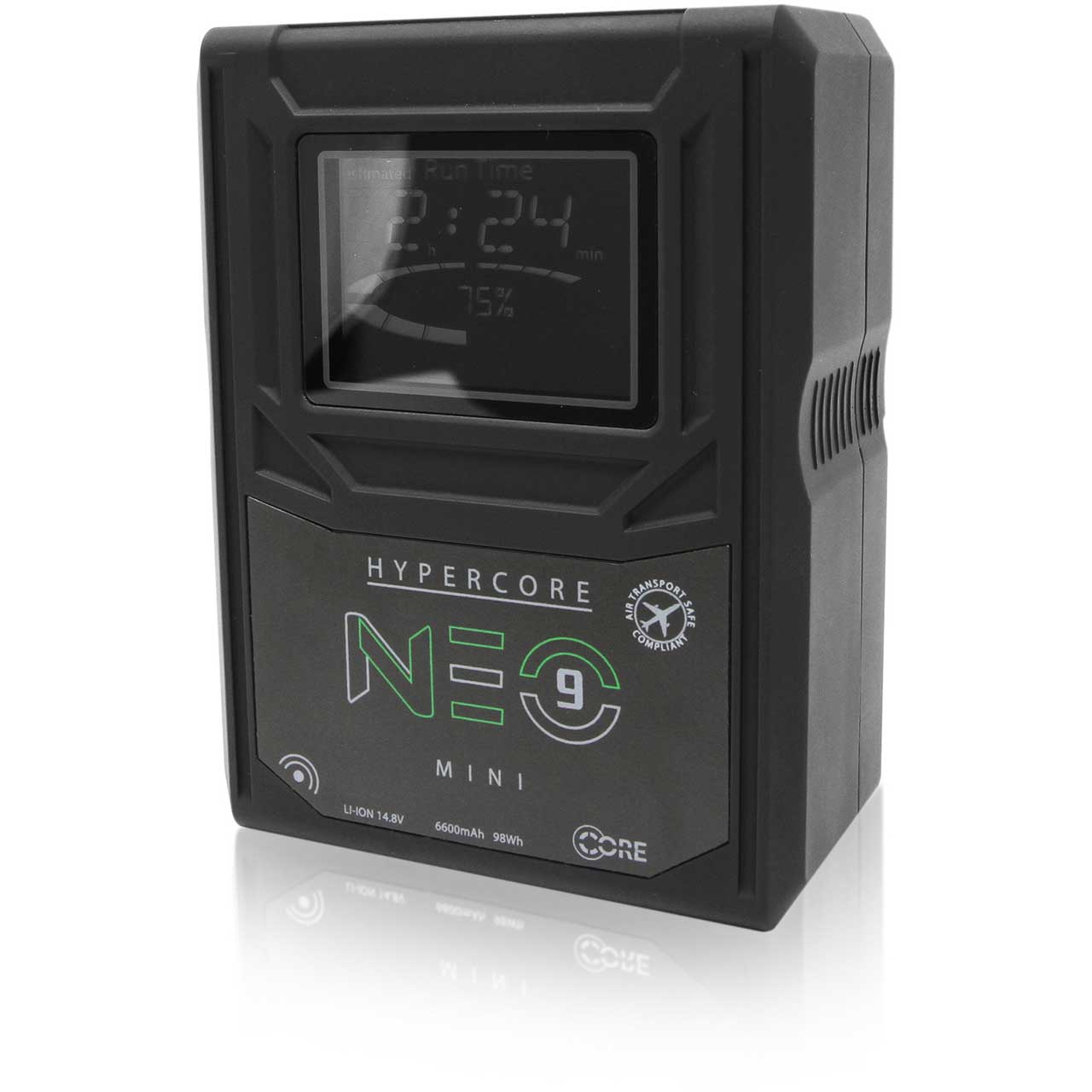

As with Core SWX's other packs, the NEO (NEO-9S) pack is microprocessor-driven, making them safer as well as supporting the transmission of runtime and percentage data to your camera's viewfinder or LCD. That same data can also be viewed on the new multipurpose, intuitive backlit LCD on the front of the battery packs. The LCD is multipurpose as it provides remaining runtime based on a 30W dummy load while not in-use, a remaining down to the minute runtime while connected to the device you're powering, and it even provides remaining charge time while connected to a charger.

Further leveraging the microprocessor, the NEO packs have an RFID transmitter on the front of the packs, so you can easily grab all your battery data stored from the pack on your phone via our VoltBridgeID app available in the app store.

Not only was the NEO line constructed similar to Helix with the new LCD and RFID, it was also constructed in a modular design like Helix, which reduces cabling and maximizes product integrity. The pack is put together like building blocks within a very small battery housing, reducing the chance of a failure due to a drop or multiple drops. The modular design also makes it very easy to service as the components are plug and play.

Knowing 10A load delivery doesn't cut it anymore; the NEO packs have an upgraded cell architecture which can sustain up to 16A peak loads, 12A continuous. In addition, there is SmartTap on the pack allowing you to power any 12vdc device from the p-tap port while also being able to transmit battery data if the device you are using is able to communicate that information. There is also a 5v USB for charging mobile devices, but also offers additional functionality as a fully function firmware upgrade port, so you will never be left be hind as we continue to develop.

Lastly, as with all of our battery packs, they are the most charger compatible on the market. The v -mount offerings will charge on RED, IDX, Sony, etc., and the gold mount offerings will charge on Anton/Bauer chargers.

PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • High Current Delivery - Neo 16 amp peak with 12 amp draw.
    • Firmware Upgradeable - Through USB Neo packs are now firmware upgradeable.
    • UN38.3 Certified - UN38.3 certified & travel safe battery pack to make customers traveling experience go as smooth as possible.
    • RFID - View your battery vitals from mobile app or RFID reader.
    • Modular Build - All Hypercore packs have a modular build design. The design reduces wiring and insures the maximum build integrity.
    • Runtime LCD - New backlit LCD is multipurpose. It provides nominal runtime based off 25w load, remaining runtime once connected to a device, and remaining charge time when on a charger.
    • Storage Mode - To protect self-discharge and help comply with travel regulations, Core SWX incorporated storage mode into all brick battery packs.

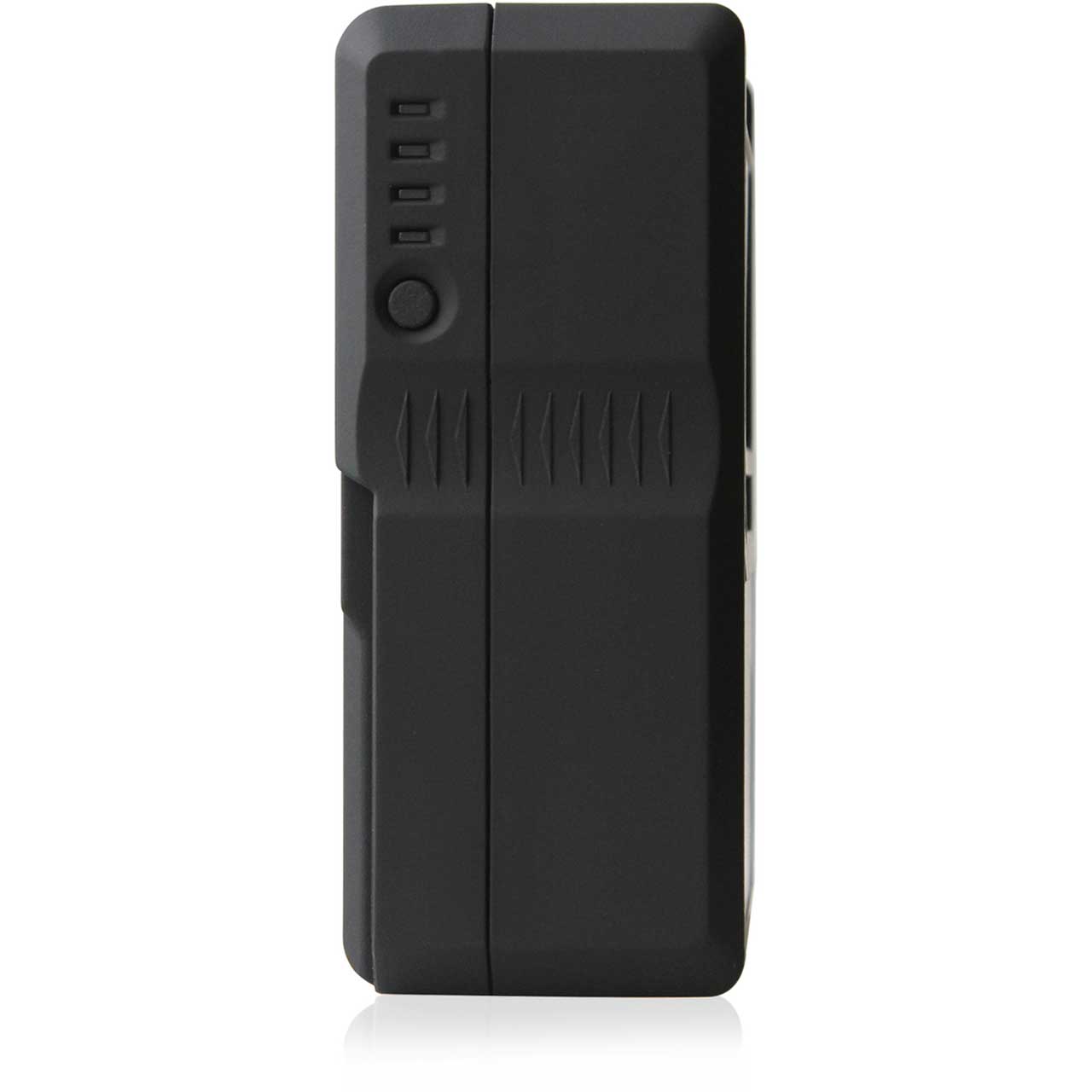

    • LED Gauge - With the display on the side of all brick battery packs, a user can easily glance at remaining battery capacity.
    • Rubberized Housing - The packs are encased in an over-molded, non-slip rubberized housing to help provide cell protection against accidental impacts.
    • 2K Cycles 2year Warranty - Rated for 2K Cycles with a 2 year warranty.
    • Smart Tap - Integrated "Smart" p-tap connector to allow users to power any 12cdc device while also receiving all battery data from the port.
    • Camera Communication - Able to communicate to cameras as well as chargers with both one-wire, and two-wire protocols.
    • Compatible Charging - Core SWX's packs are the most charger compatible in the industry which allows with existing charger hardware to continue using their charger.
    • USB Power - NEO battery packs offer a 5v USB port for any accessory on set that may use USB or to even charge mobile devices.
    • Hibernation - The packs go to sleep/hibernate when there is no battery usage or movement after a 48 hour period. Once the battery is picked up, the battery pack awakens.
  • Specifications:

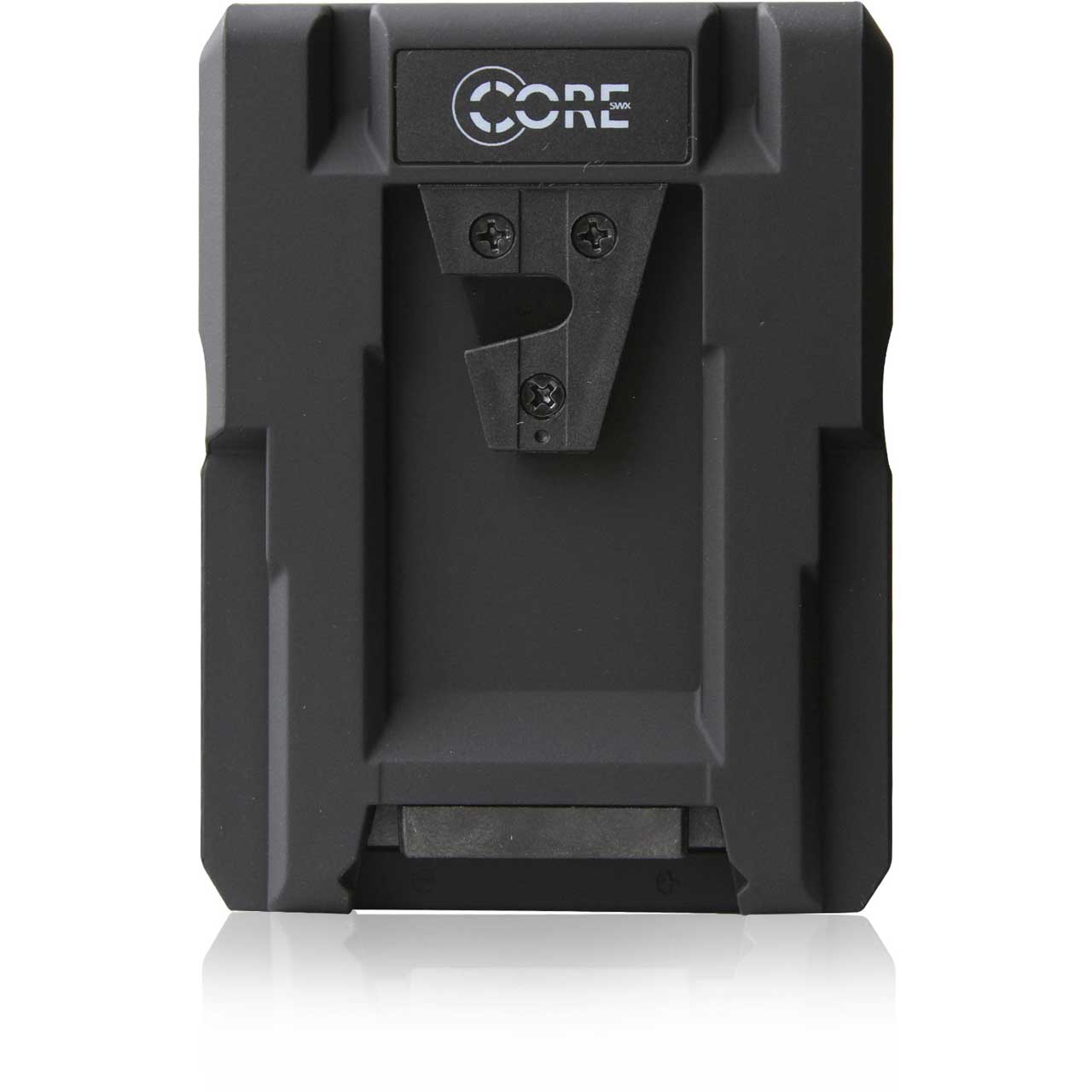

    • Mount: V-Mount
    • Capacity: 98Wh (14.8v, 6.6Ah)
    • Size: 3.54" x 4.65" x 1.90"
    • Weight: 1.4lbs.
    • Normal Runtime: (25w) 3.6hrs.
    • Load: 16A/12A
  • Warranty:

    • 2 Year
  • GTIN:
