Clark Wire & Cable CD7523 Miniature 23AWG 4K Digital Video Coax Cable - 1000 Foot Spool

Name: Clark Wire & Cable CD7523 Miniature 23AWG 4K Digital Video Coax Cable - 1000 Foot Spool
Brand: Clark Wire & Cable
SKU: CWC-CD7523-1000
Price: 419.00 USD
Availability: PreSale

ITEM #: CWC-CD7523-1000 MFG #: CD7523-1000FT

Clark Wire & Cable

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

CD7523-1000FT - Overview

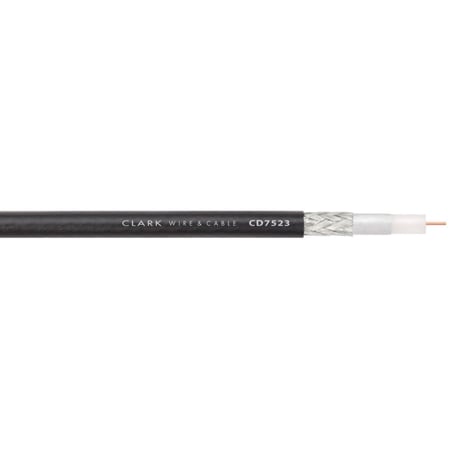

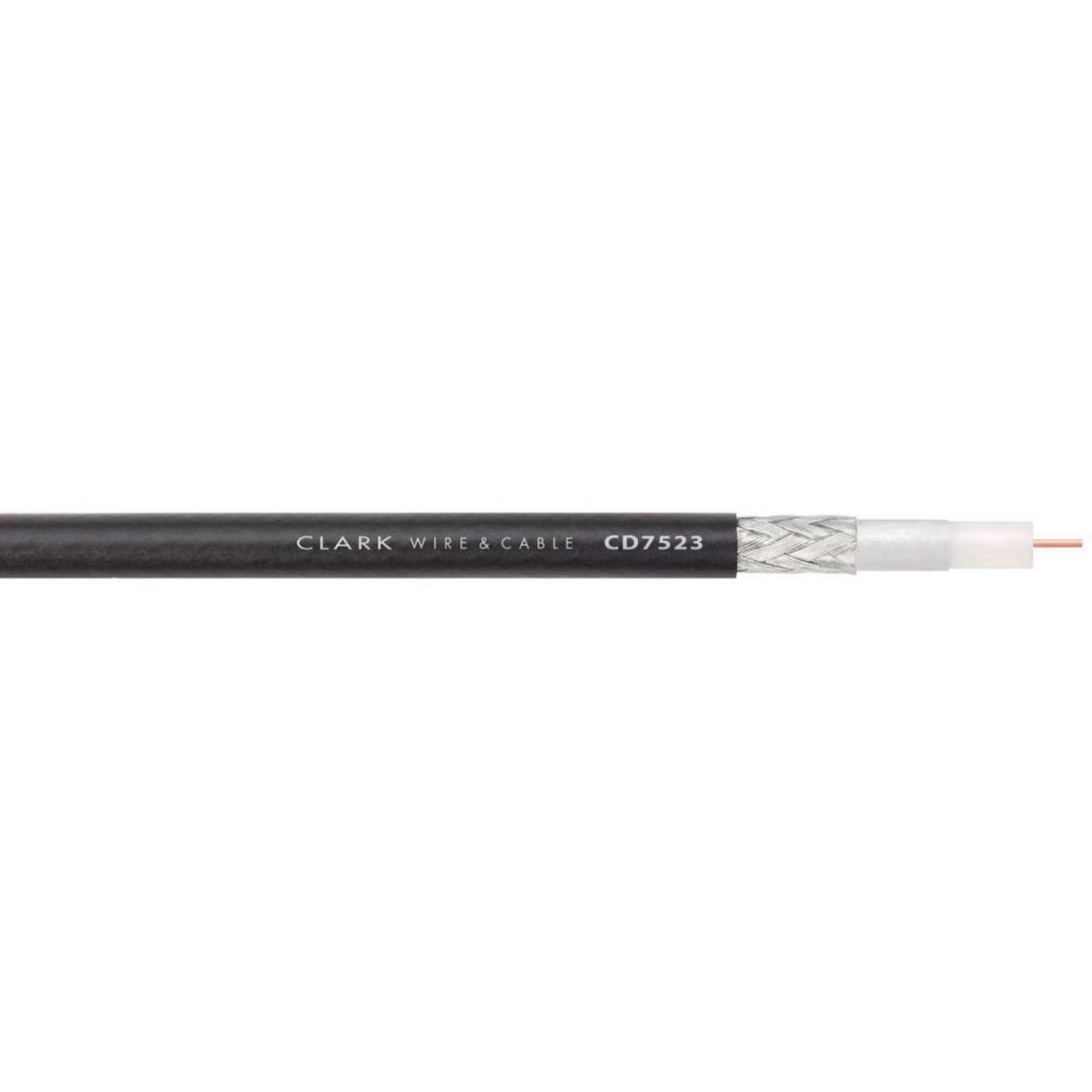

The CD7523 is a precision 6 GHz miniature 23AWG coax for HD/SDI, standard SDI or high resolution video applications. Clark's CD series coax features specifications that meet or exceed SMPTE standards digital video interconnects up to 6 Gb/s. Also built for easy termination, the CD series has an easy-to-strip outer jacket and dielectric that streamline connector termination. UL rated type CMR, the CD7523 can be installed in a variety of permanent installation locations and environments.

Features:
- Thin Profile Diameter - ideal for high density wiring applications in racks, studios or trucks
- 6 GHz Bandwidth - meets or exceeds SMPTE 292M, 424M, ST2081-1, ST2082, ST1081-1 standards
- 100% Sweep Tested- network analyzer quality control for consistitent performance
- Gas-Injected Dielectric - achieves precision electrical performance and mechanical strength
- Foil + Braid Shield - dual layer shieldng for exceptional broadband RF/EMI rejection
- UL Listed Type CMR - for rack or in-wall installations

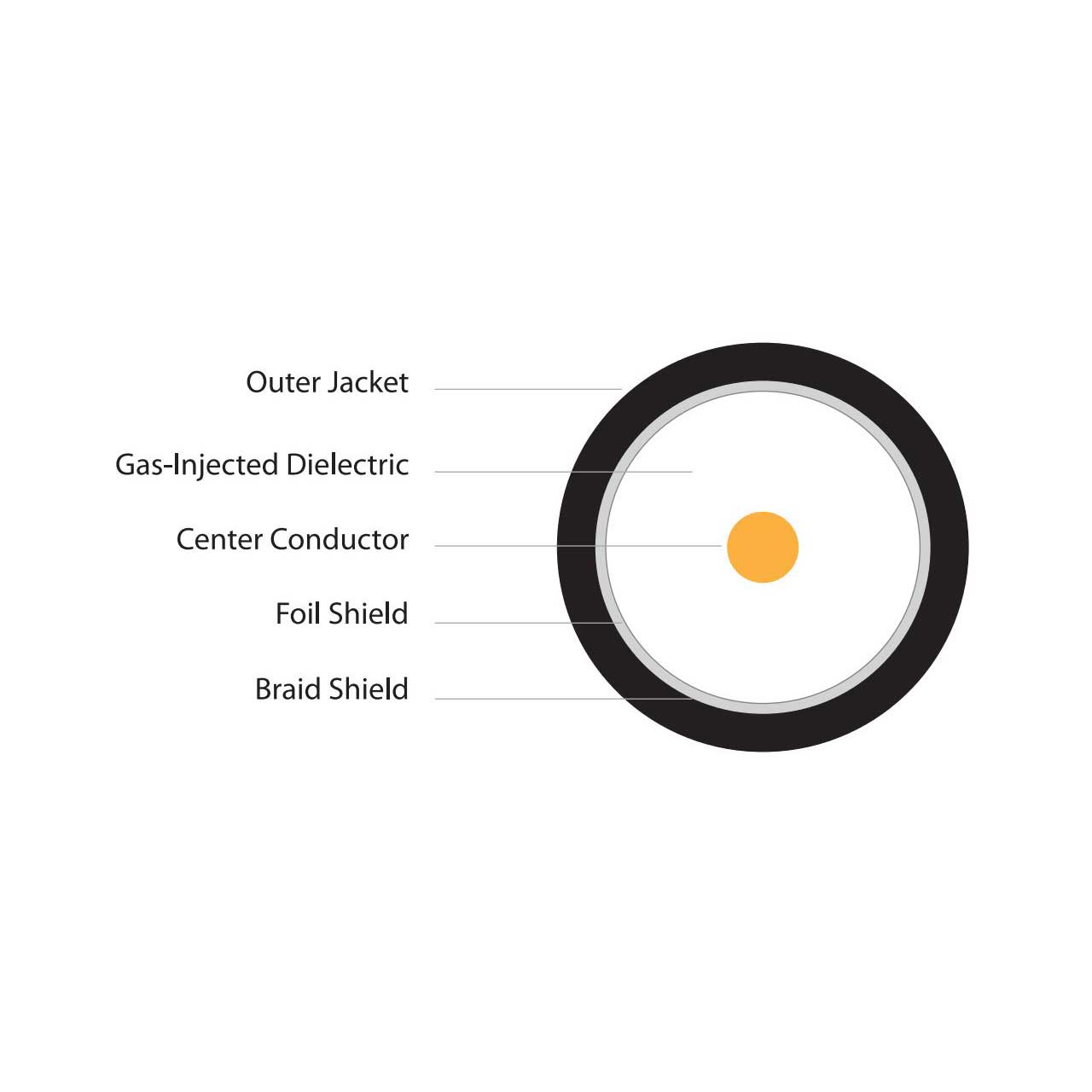

Specifications:
- Center Conductor: 23 AWG Solid BC .023" O.D.
- Dielectric: Gas-Injected Foam PE .100" OD.
- Shield: 100% Aluminum Foil, 95% TC Braid.
- Jacket: Low Pressure, Easy Strip PVC.
- Overall Diameter.159".
