Clark RCC1V2AHDP RG59 Composite A/V and Power Snake - Per Foot
  • Clark RCC1V2AHDP RG59 Composite A/V and Power Snake - Per Foot
  • Clark RCC1V2AHDP RG59 Composite A/V and Power Snake - Per Foot

Questions? Ask a Markertek Expert:
800-522-2025 Email

Clark RCC1V2AHDP RG59 Composite A/V and Power Snake - Per Foot

Manufacturer: Clark Wire & Cable

Item #: CWC-RCC1V2AHDPFT   •   MFG #: RCC1V2AHDP-FT



List Price:$4.45
Our Price:$2.72

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

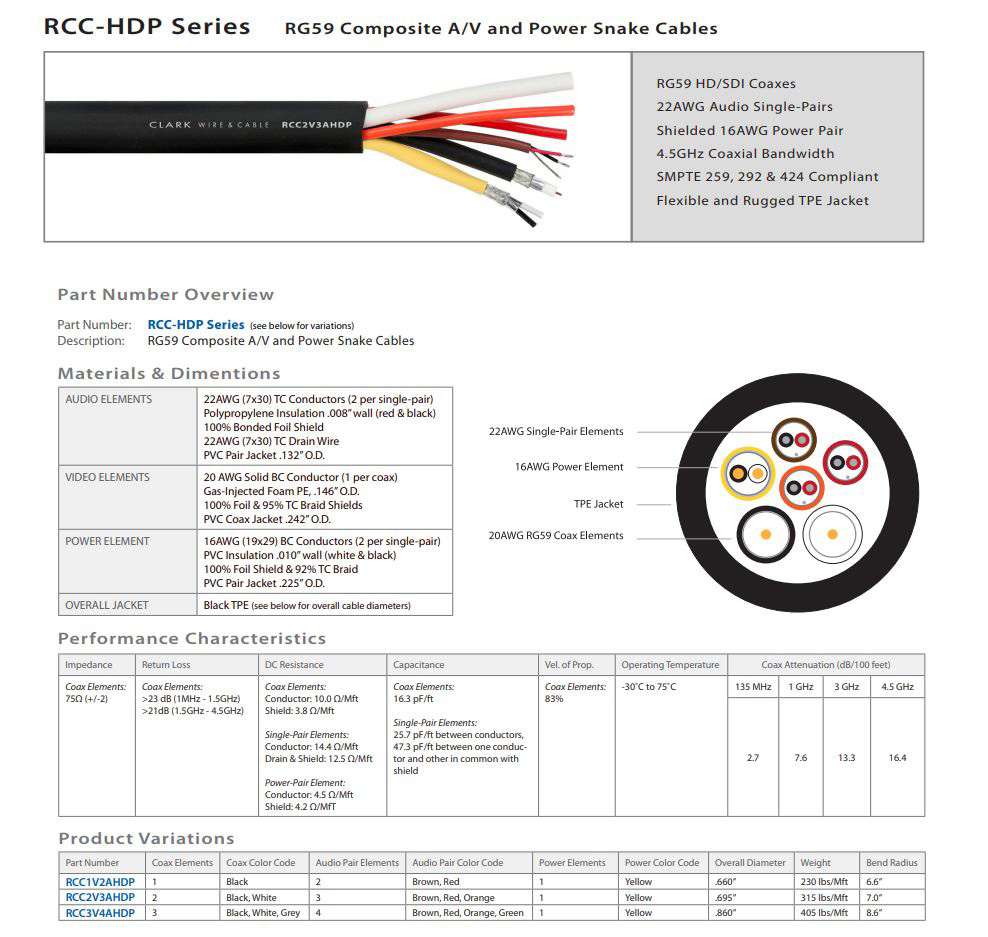

    The RCC-HDP series cables are hybrid audio and video cables with a shielded power element that deliver the convenience of a single cable run for both power and AV signals. Designed for remote broadcast, staging and production environments. Each video element is a CD7559 20AWG RG59 HD/SDI coax cable that is rated to 4.5GHz for high definition SMPTE 424M, 292M and 259M video data transmission. The audio elements are made from Clark’s SPA22GS low-loss 22AWG single-pair cables. Each audio and video element is uniquely color coded for quick identification. The outer jacket is an extra-flexible and abrasion resistant TPE compound.


    • Features

      • RG59 HD/SDI Coaxes
      • 22AWG Audio Single-Pairs
      • Shielded 16AWG Power Pair
      • 4.5GHz Coaxial Bandwidth
      • SMPTE 259, 292 & 424 Compliant
      • Flexible and Rugged TPE Jacket

    • Specifications

      • Audio Elements: 22AWG (7x30) TC Conductors (2 per single-pair), Polypropylene Insulation .008" wall (red & black), 100% Bonded Foil Shield, 22AWG (7x30) TC Drain Wire, PVC Pair Jacket .132" O.D.
      • Video Elements: 20AWG Solid BC Conductor (1 per coax), Gas-Injected Foam PE, .146" O.D, 100% Foil & 95% TC Braid Shields, PVC Coax Jacket, .242"
      • Power Element, 16AWG (19x29) BC Conductors (2 per single-pair), PVC Insulation, .010" wall (white & black), 100% Foil & 92% TC Braid Shields, PVC Pair Jacket, .225"
      • Overall Jacket: Black TPE
