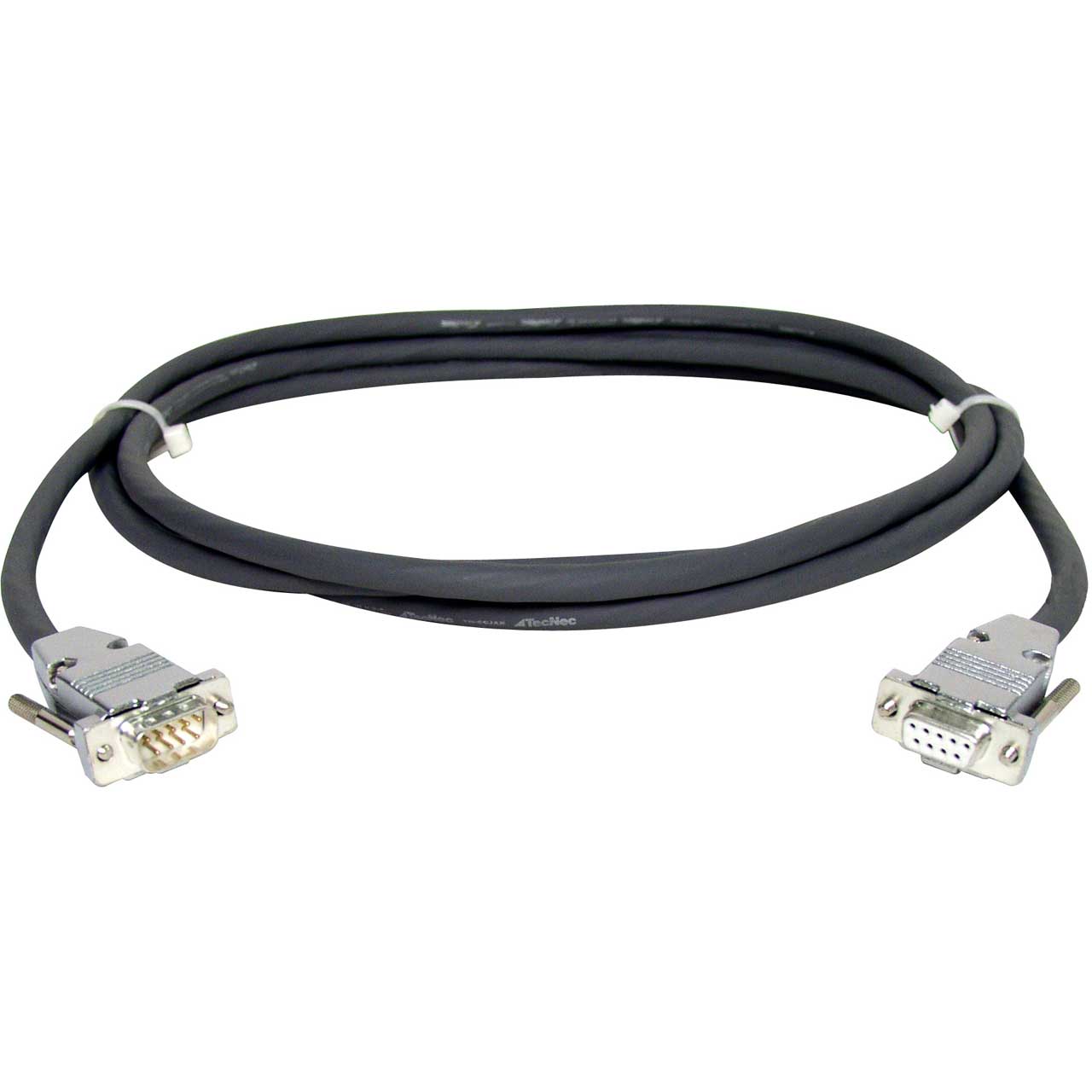

Laird 9-Pin D-Sub Male to Female RS422 Serial Cable - 6 Foot

D9M-F-6 - Overview

• Features:

  • Indoor Rated (Not Riser or Plenum)
  • Semi-Rigid Insulation
  • Pin out according to Sony's standards


• Specifications:

  Belden 9538
  • Number of Elements: 8
  • Conductor AWG: 24 AWG
  • Conductor Stranding: 7x32
  • Conductor Material: Tinned Copper
  • Insulation Material: Polyvinyl Chloride (Semi-Rigid)
  • Insulation Thickness: 0.011" (0.28mm)
  • Insulation Diameter: 0.044" (1.1mm)
  • Outer Shield Type: Tape
  • Outer Shield Material/Coverage: Bi-Laminate (Alum+Poly)/100%
  • Drainwire Type: 24 AWG (7x32) Tinned Copper
  • Outer Jacket Material: Polyvinyl Chloride
  • Outer Jacket Thickness: 0.032" (0.81mm)
  • Outer Jacket Diameter: 0.224" (5.69mm)
  • Overall Cable Diameter: 0.224" (5.69mm)
  • Nom. Conductor DCR: 25Ω/1000ft
  • Nom. Capacitance Cond-to-Cond: 33pF/ft (110pF/m)
  • Nom. Capacitance Cond-to-Other (Conds+Shield): 65pF/ft (210pF/m)
  • Voltage: 300V
  • Temperature: -22°F - 176°F (-30°C - 80°C)
  • Bend Radius:
    • Stationary: 2.7" (69mm)
    • Installation: 2.7" (69mm)
  • Max Pull Tension: 50lbs (23kg)

    9-Pin Male D-Sub
  • Material: Die-Cast Zinc Alloy
  • Plating: Nickel


• Warranty:

  • 1 Year
