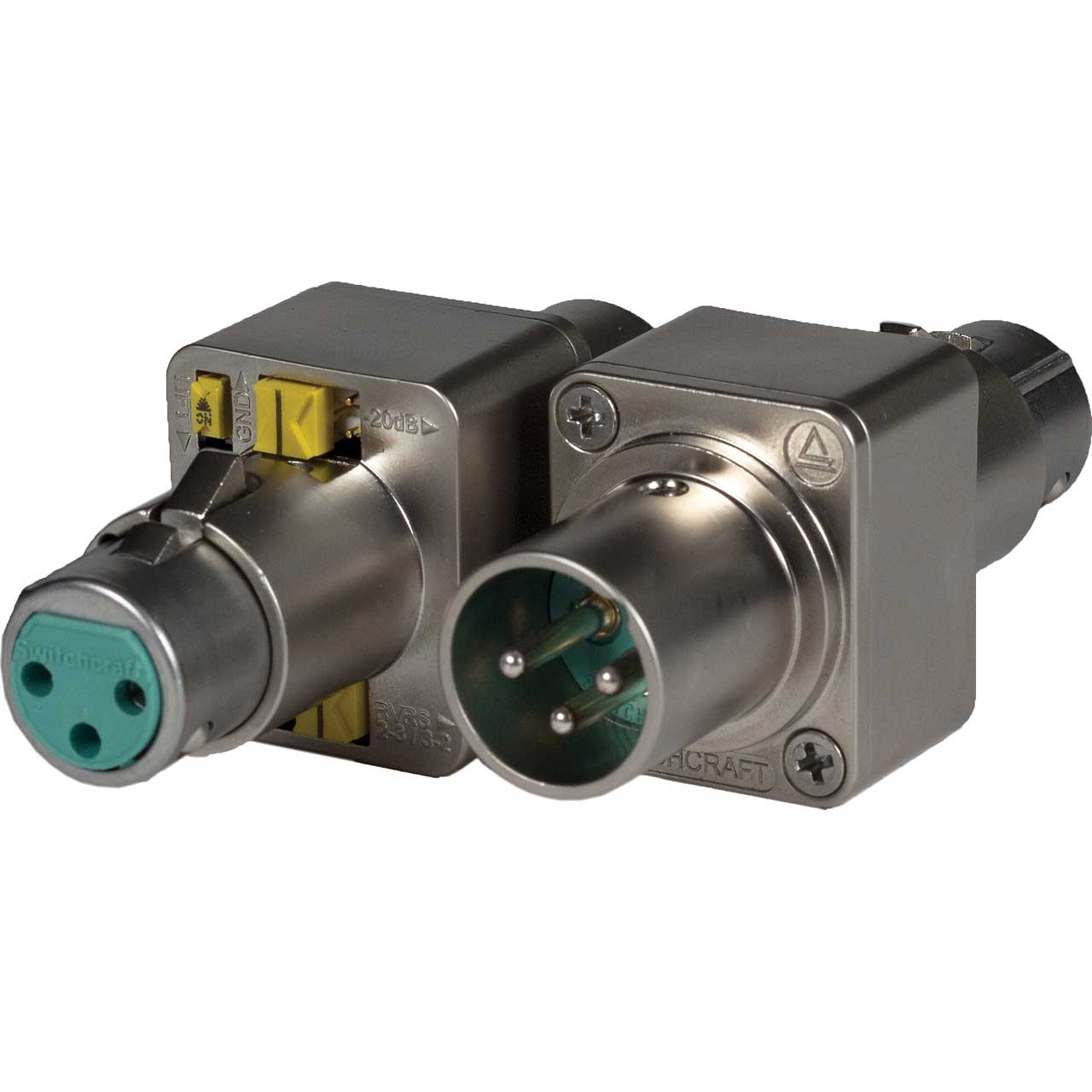

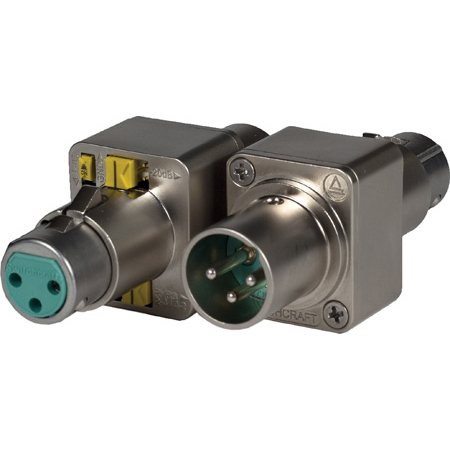

Switchcraft 303 3-Pin Male XLR to 3-Pin Female XLR with -20db Pad - Ground Lift - Phase Inverse

ITEM #: SW-303 MFG #: 303

Primary Image
Switchcraft

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

303 - Overview

The Switchcraft 303 Inline controlled connector provides three easily accessible, switchable control functions. The 303's all metal design that utilizes the durability of Switchcraft male and female XLR connectors, plus easy access, high performance control switches. Fully passive, with latching mechanism on both ends.

  • Specifications:

    • Male 3-Pin to Female 3-Pin XLR with latch.
    • Attenuation: -20dB, switchable.
    • Switches rating: 100 V, 1A (Switching).
    • Changeover Switches type: Non-Shorting BBM.
    • Pad ON input impedance on Female side: 1657 Ohm with 1K Ohm load.
    • Pad ON output impedance on Male side: 167 Ohm with 150 Ohm source.
    • Housing: Nickel plated Zinc Alloy.
    • Dimensions: 2.87" (L) X 1.03" (W) X 1,227" (H)


  • GTIN:

    0853592007250
