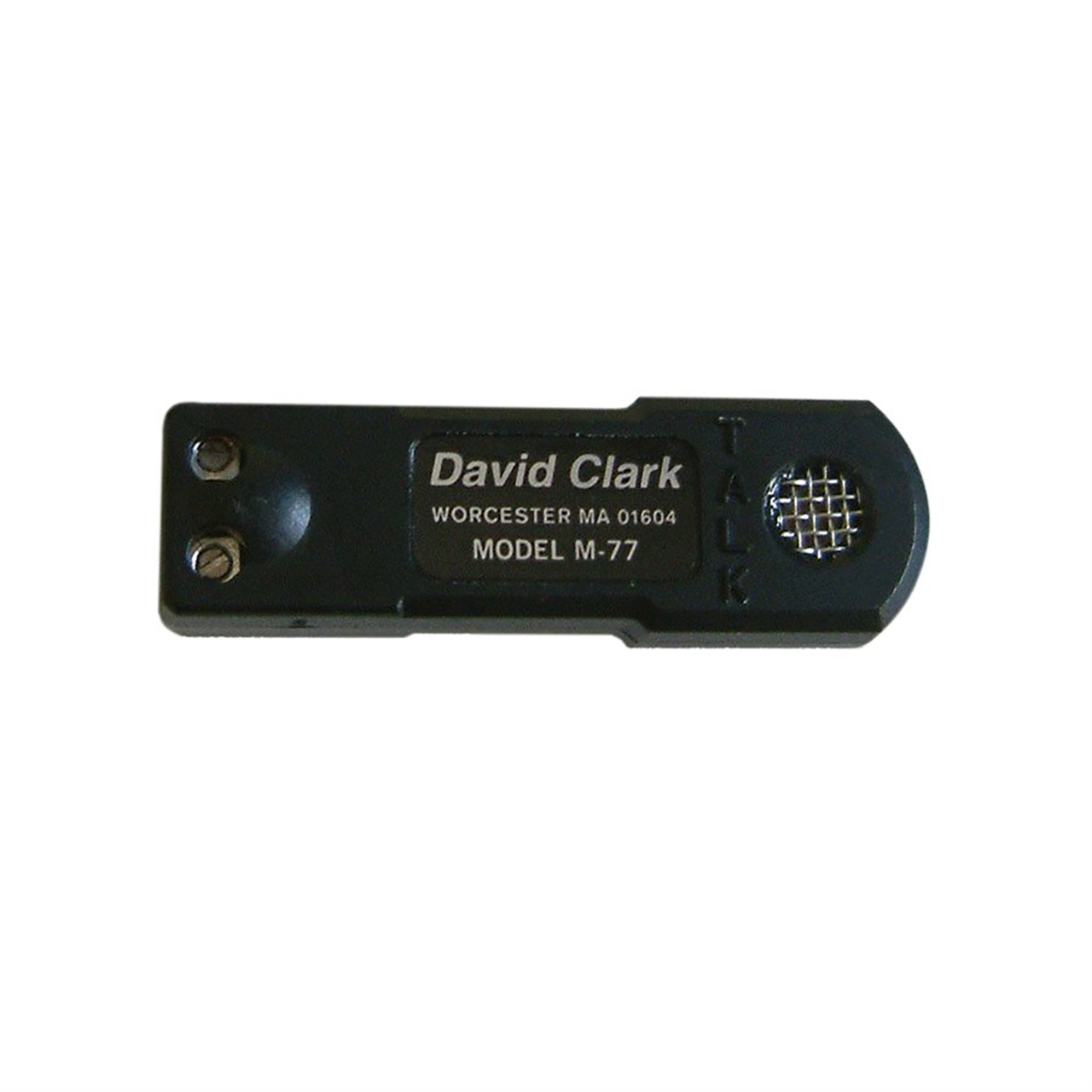

David Clark 09168P-35 Model M-77 Noise Cancelling Electret Microphone for 6000 Series and Computer Headsets

ITEM #: DC-09168P-35 MFG #: 09168P-35

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$45.60

Our Price:

$44.25

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


09168P-35 - Overview

David Clark's Model M-77 is a noise cancelling electret microphone that provides exceptionally clear, crisp voice transmission. This microphone is primarily for David Clark 6000 Series Two-Way Radio headsets and Computer headsets.

Series 6000 Headsets connect to the Series 6000 PTT two-way radio adapter. Headset models should be selected based on the style and features best suited to your application. Headsets are designed for comfort during long periods of use, durability to stand up to rugged use in harsh environments and reliability to provide clear communication for a variety of applications. Heavy duty, 4-conductor cord assemblies are RFI/EMI shielded. All headsets, except single ear and slotted dome models, have noise reduction rating (NRR) of up to 24 dB.

  • Specifications:

    • Sensitivity: 22mv +6/-2dB at 105dBSPL at 1KHz
    • Frequency Response: See typical response
    • Generating Element: Electret condenser
    • Polar Pattern: Bidirectional Noise Cancelling
    • Connect: Mates with U-173/U connector
    • Weight: 0.013lb (6g)
    • Power Requirements: Polarized operation, nominally 240uA at 7.5vdc. 5-15 supply range

  • Item Includes:

    • 1x David Clark 09168P-35 Model M-77 microphone


09168P-35 - Required Accessories
