David Clark U9922-G38 3800 Wireless Intercom Beltpack

ITEM #: DC-U9922-G38 MFG #: U9922-G38

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$947.70

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    U9922-G38 - Overview

    The Series 9900 Wireless Intercom System is the perfect solution for wireless intercom communications in demanding environments, such as fire/rescue apparatus, EMS vehicles, Command and Control vehicles, well-fracturing vans, paint strippers, or any application requiring robust, reliable and secure communications in and around high-noise areas.

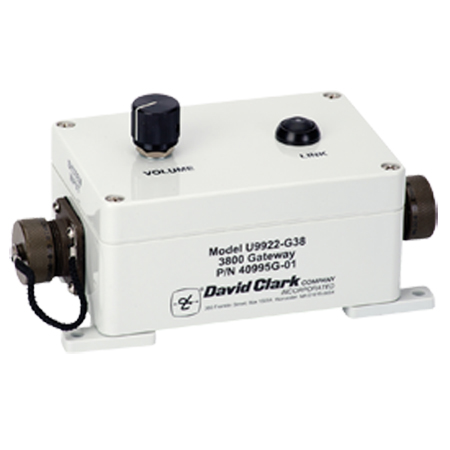

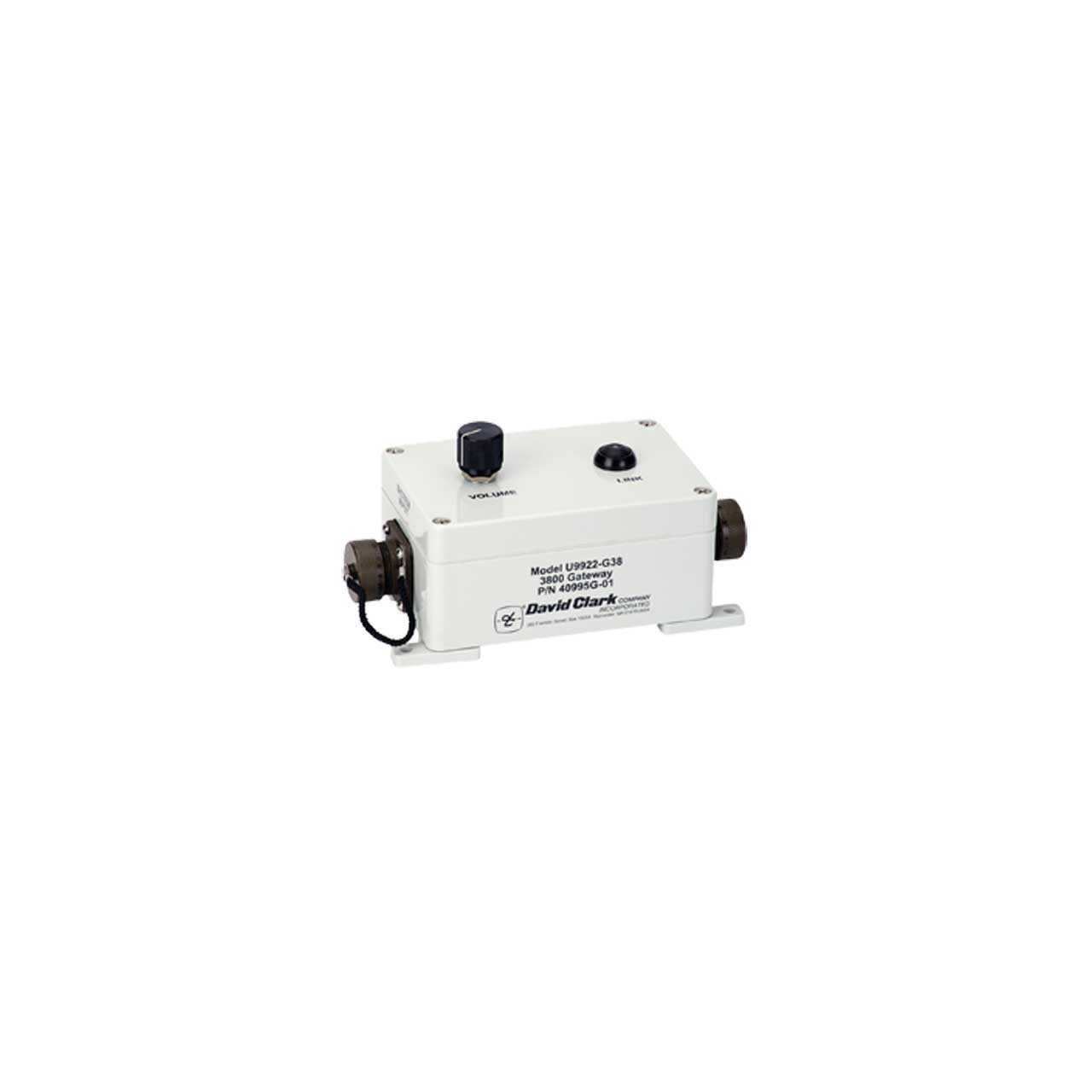

    The U9922-G38 Gateway is designed specifically for seamless integration with an existing Series 3800 wired intercom system. It acts as a relay for all radio and intercom audio between multiple Wireless Belt Station/Headset users and the wired system.

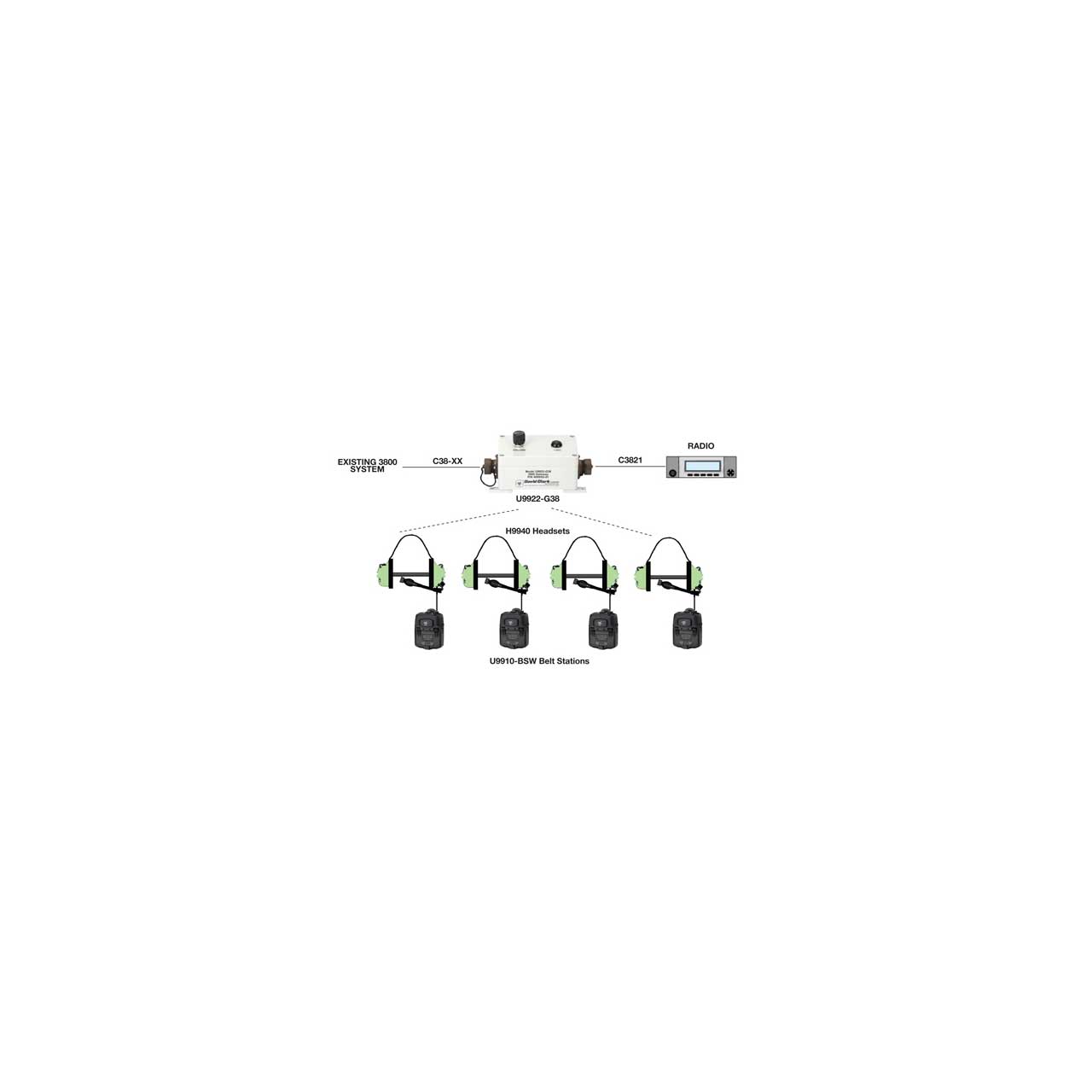

    A single Gateway can accommodate up to four (4) connected wireless users at a time with hands-free, full-duplex intercom and radio transmit/receive. An additional Gateway is Required if more than four active wireless users are required.

    With its RF shielded, weather- and impact-resistant design, superb range and unsurpassed audio clarity, the U9922-G38 is the ideal answer to the problems associated with the typical wired intercom system limitations.

    • Features:

      • Hands-free, full-duplex intercom
      • Provides range of at least 300 feet (line-of-sight) to all linked Belt Stations
      • Several Gateways can be tied to 3800 system for expanded wireless systems
      • Multiple independent Gateways operate in same RF vicinity with no cross-talk
      • Easy, seamless integration to existing 3800 systems
      • Can also be used as a stand-alone intercom system for up to 4 wireless users
      • Radio interface, provides radio monitor and transmit capability for all wireless users via Radio Interface Cord options
      • System In/Out connection for system jumper cord (C38-XX, for 3800 interface) or C99-22PW power cable (stand-alone operation)
      • Link button for close-proximity linking to Belt Stations
      • Volume control provides master gain for all wireless users
      • LED indicator for visual status of comm link and PTT status
      • SMA Antenna connectors (2 each) for whip antenna (included) or remote antenna connection (optional)

    • Specifications:

      • Weight: 13.4oz (386g)
      • Frequency: 1920MHz - 1930MHz
      • Average Power Output: 4mW (100mW peak) in USA
      • Range: 300 Foot line-of-sight, typical
      • Carriers: 5 each - 1,728kHz Spacing
      • Time Slots: 2 x 12 up and down stream
      • Operating Temperature: 14° to 113°F (-10° to 45°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Radio Connection: via C3821 Radio Interface Cable
      • Power Connection (for Radio-Direct only): via C99-22PW Power Cable
      • System Connection: via C99-22MS System Cable
      • U9925 Connection: via C99-20ms System Cable
      • Antenna connection: via SMA coax connector (2 Each)
      • Dimensions (HxWxD): 6-5/8 x 3-9/16 x 3-5/16"


    U9922-G38 - Required Accessories
