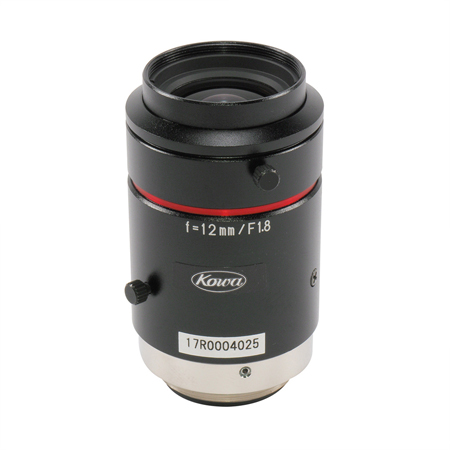

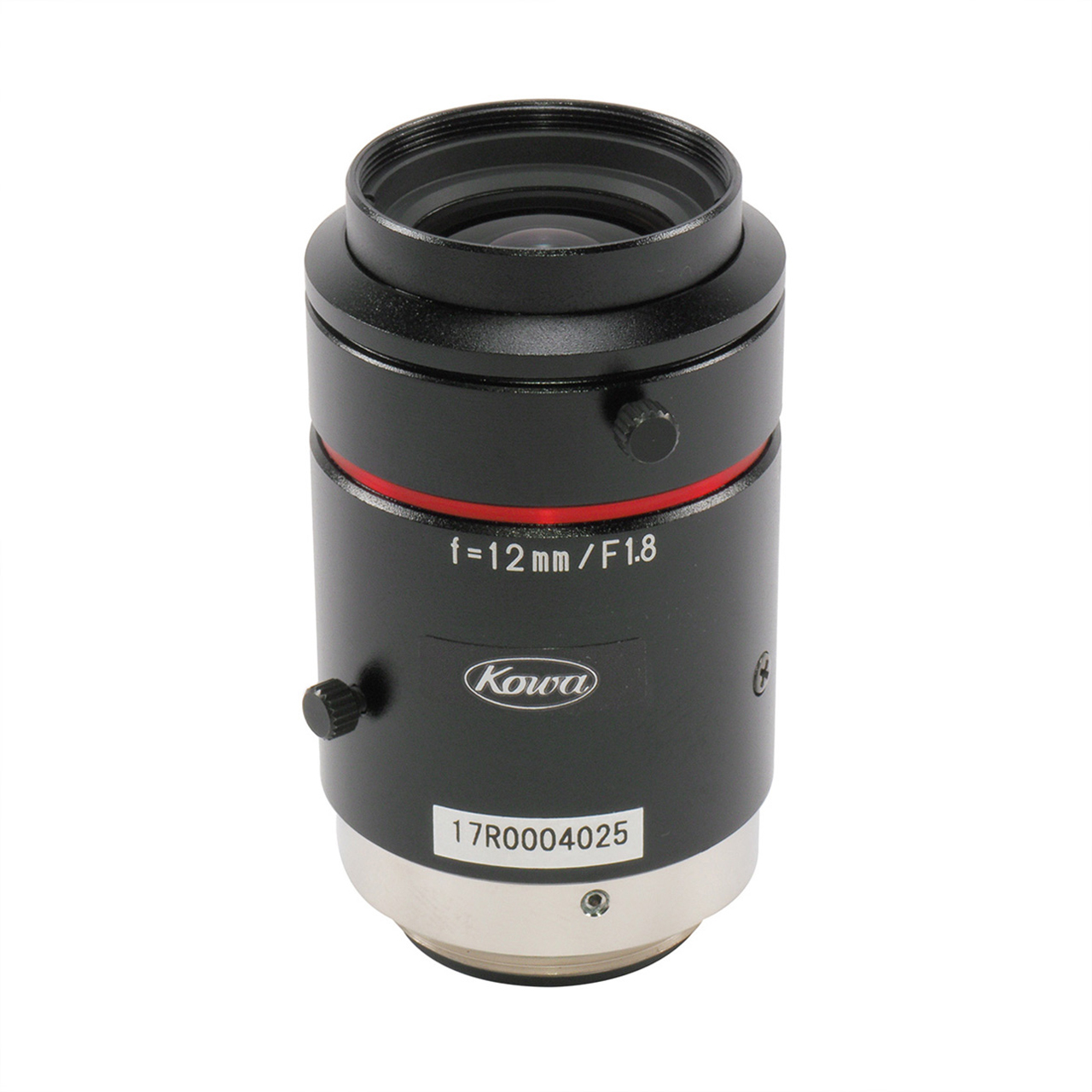

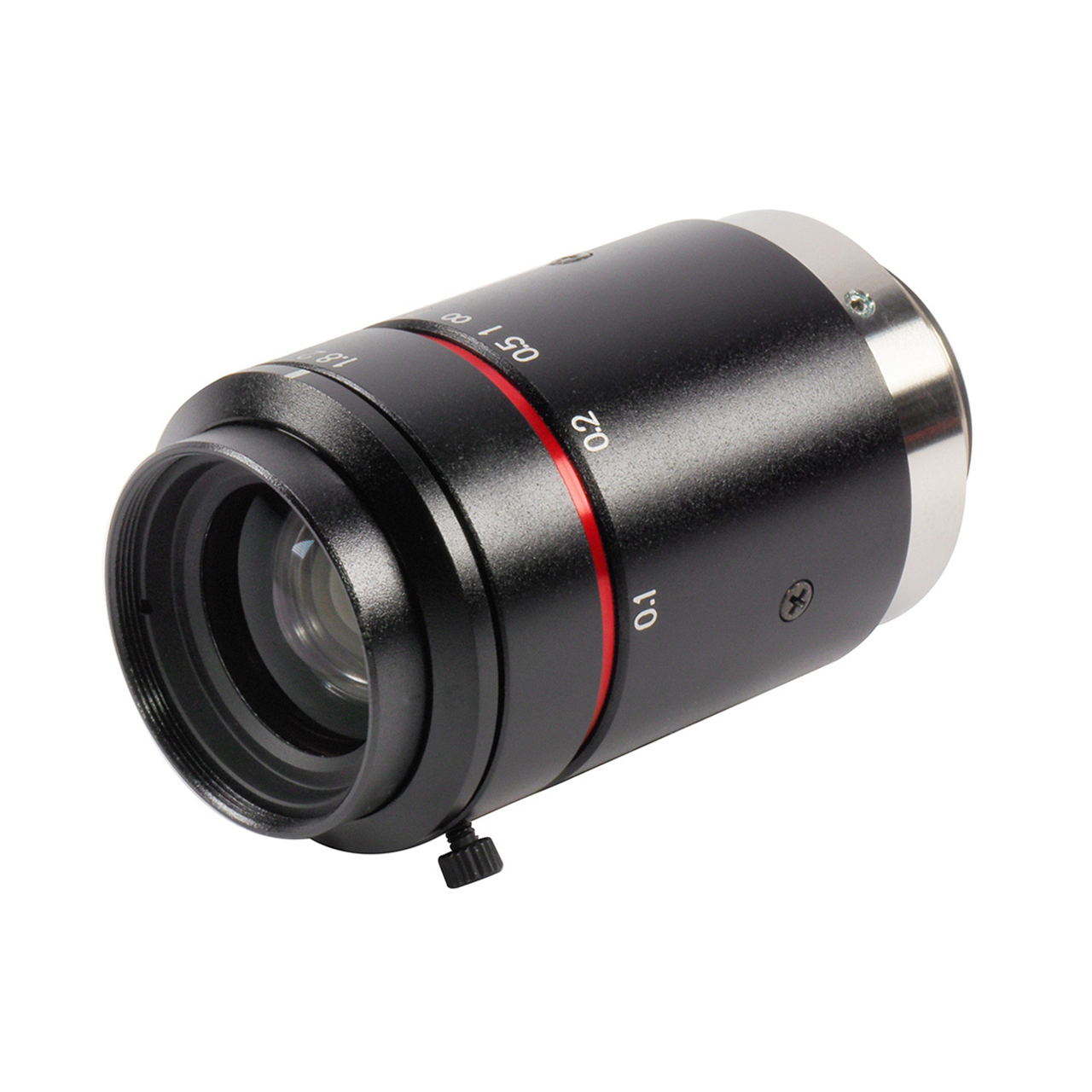

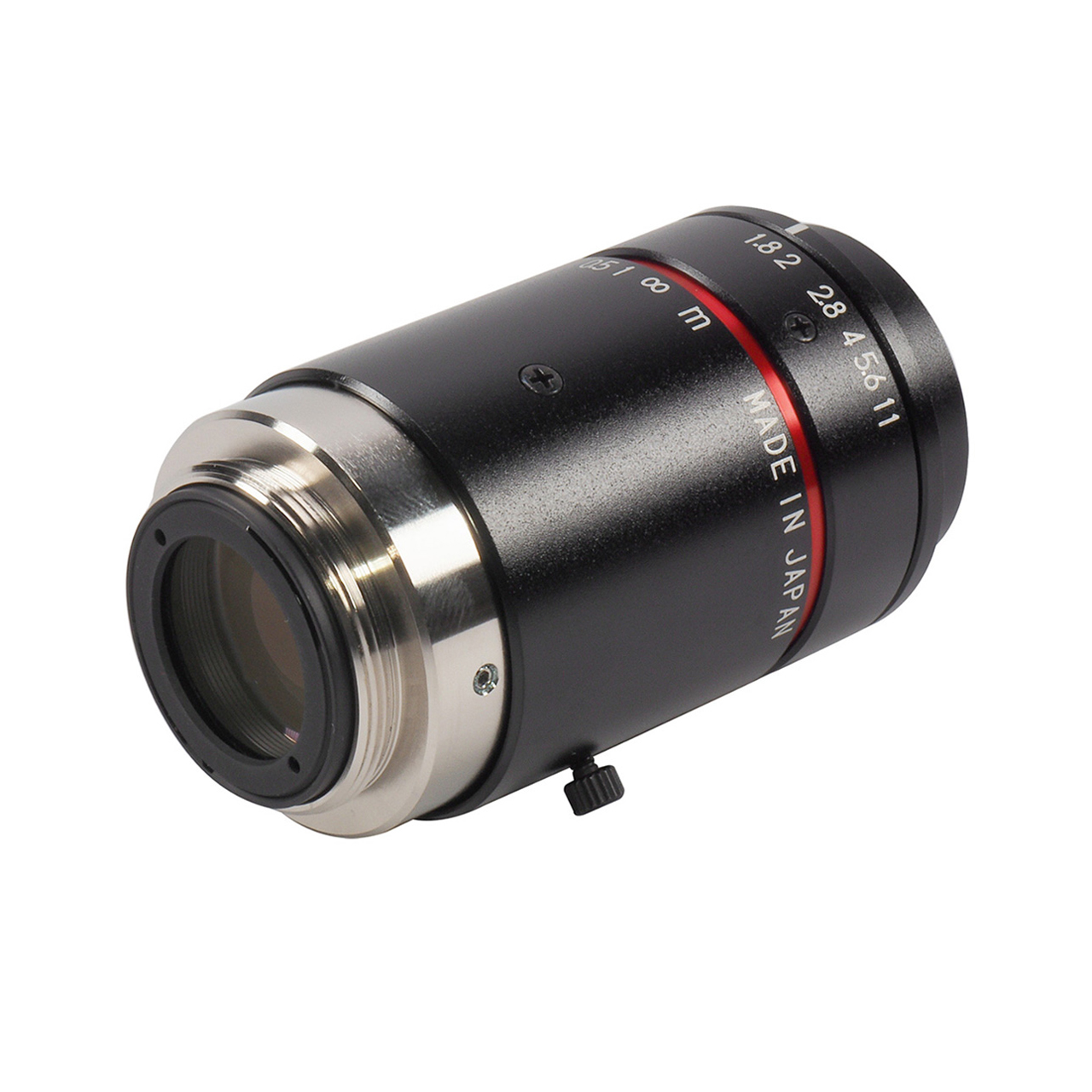

Dream Chip KW-12MM HD Quality C-Mount 12mm Fixed Camera Lens - FOV 47.8 Degrees

KW-12MM - Overview

• Features:

  • 2/3" 10 Megapixel C-mount Industrial Lens
  • Focal length 12mm
  • For sensors with a pixel size from 2.5μm
  • Suitable for Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more
  • Floating mechanism to eliminate optical aberrations
  • Broadband Coating: Transmission from VIS to NIR


• Specifications:

  • Aperture (F-stop): 1.8~11
  • Aperture (control): Manual
  • Application field: Broadcast, Machine Vision
  • Back focus in air: 13.9mm
  • Control (focus): Manual
  • Field of view at minimum working distance:
    - Horizontal: 80.7mm
    - Vertical: 60.2mm
  • Filter size: M25.5mm x P0.5mm
  • Focal length: 12mm
  • Focus range: 0.1-∞
  • Megapixel: 10
  • Mount: C-mount
  • Pixel size: 2.5μm
  • Resolution
    - Center: 200lp/mm
    - Margin: 160lp/mm
  • Sensor size: 2/3"
  • Series: JC10M
  • Size: ø36mm x 56mm
  • TV distortion: -0.31%
  • Temperature range: 14&7deg;F-122 (-10°C~50°C)
  • Type of lens: Fixed Focal Lens
  • Wavelength range: Broad Band Coating (400nm - 1000nm)
  • Weight: 0.23lb (0.105kg)


• Item Includes:

  • 1x Dream Chip KW-12MM fixed camera lens


• Warranty:

  • 2-Year Limited Warranty
