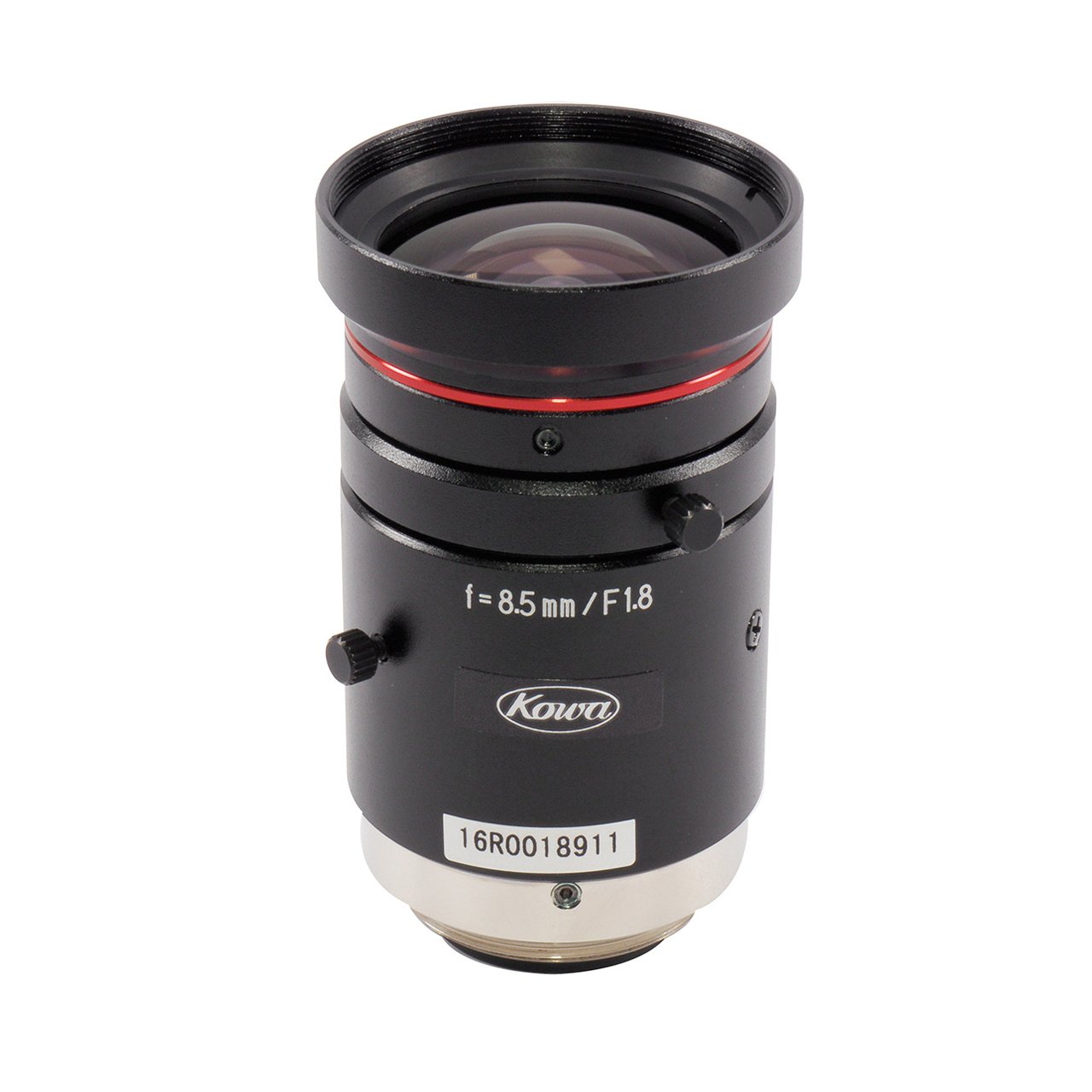

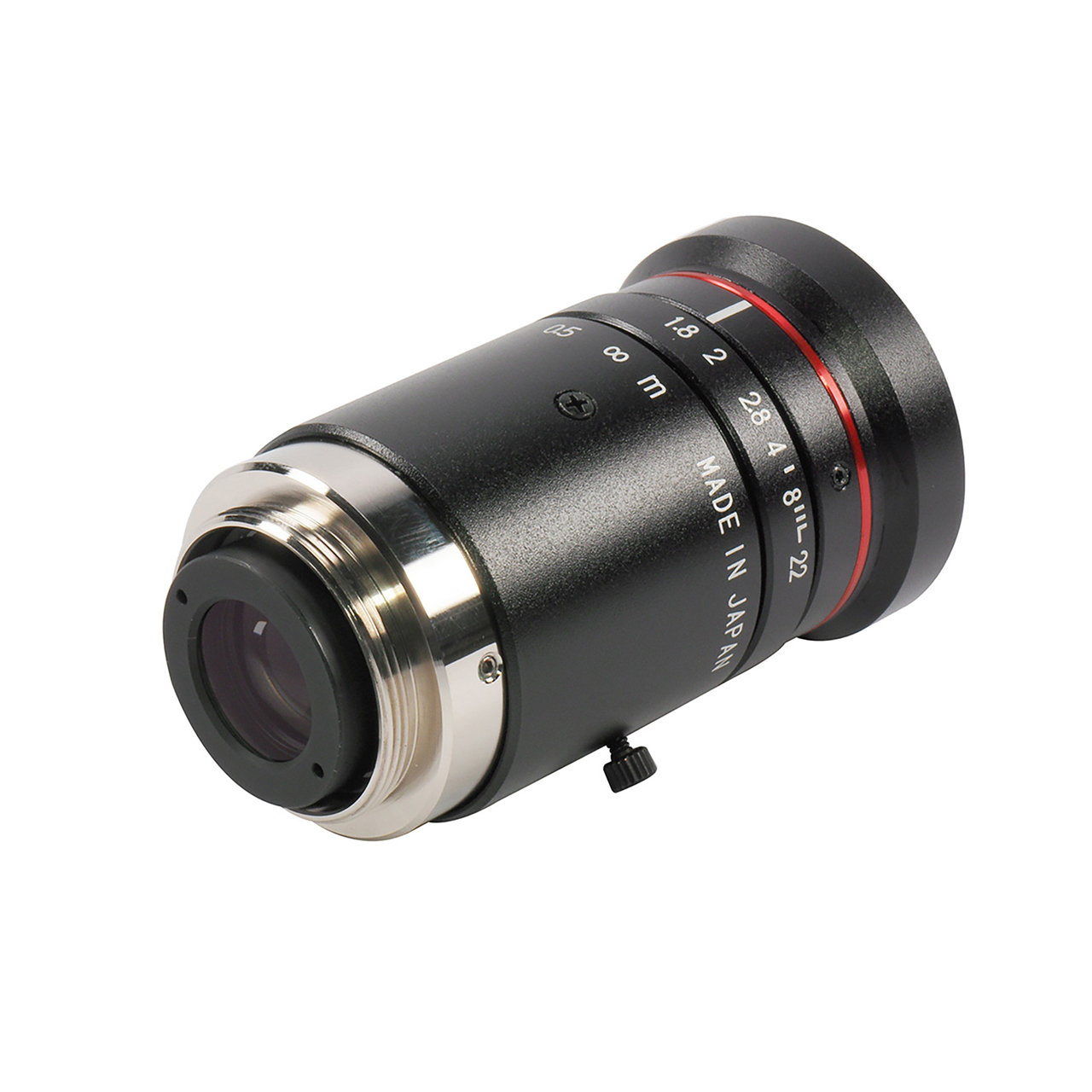

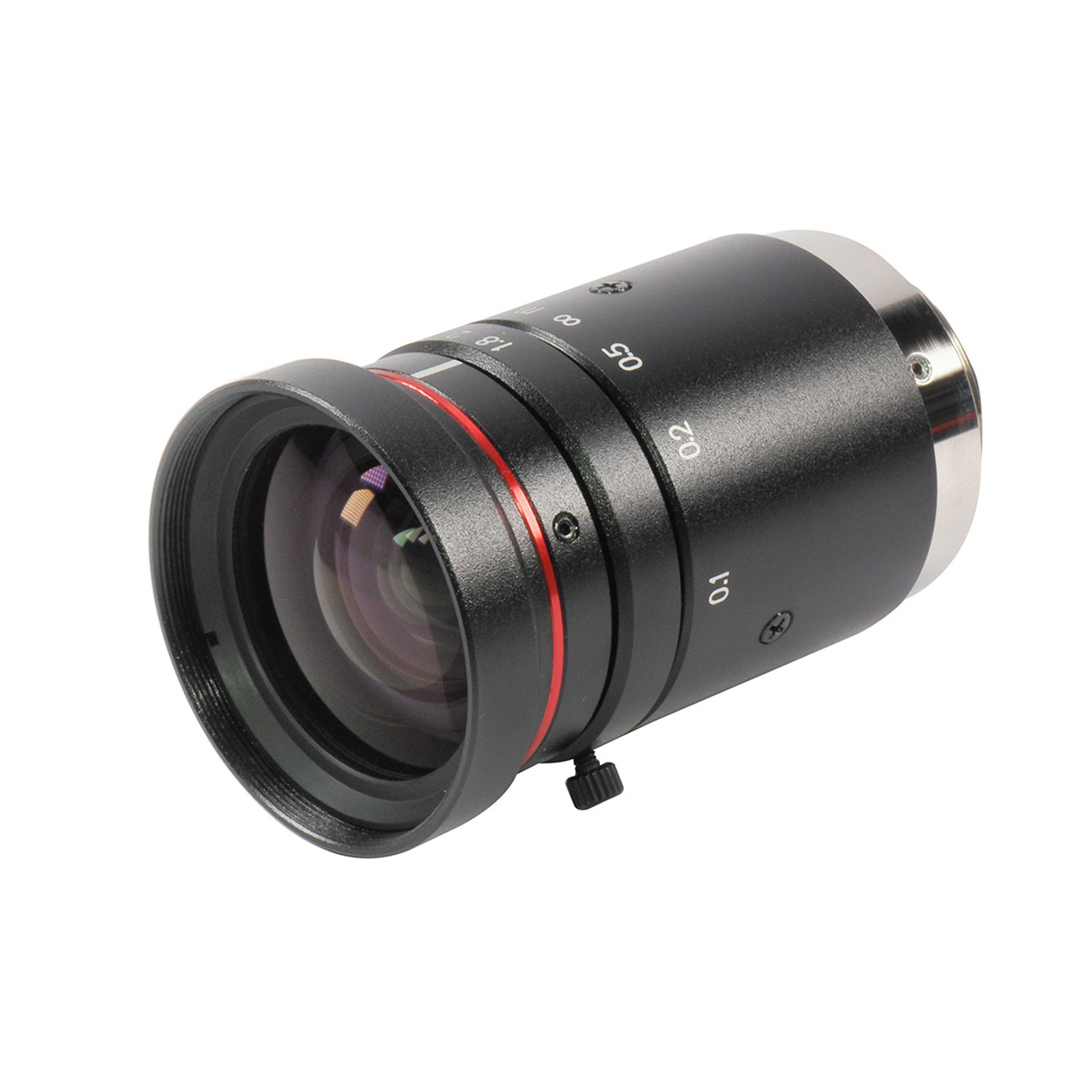

Dream Chip KW-8MM HD Quality C-Mount 8.5mm Fixed Camera Lens - FOV 64.6 Degrees

KW-8MM - Overview

• Features:

  • 2/3" 10 Megapixel C-mount Industrial Lens
  • Focal length 8mm
  • For sensors with a pixel size from 2.5μm
  • Suitable for Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more
  • Floating mechanism to eliminate optical aberrations
  • Broadband Coating: Transmission from VIS to NIR


• Specifications:

  • Aperture (F-stop): 1.8 - 22
  • Aperture (control): Manual
  • Application Field: Broadcast, Machine Vision
  • Back Focus In Air: 12.1mm
  • Control (focus): Manual
  • Field of View at Minimum Working Distance:
    - Horizontal: 133mm
    - Vertical: 99.6mm
  • Filter Size: M344mm x P0.5mm
  • Focal Length: 8.5mm
  • Focus Range: 0.1 - ∞
  • Megapixel: 10
  • Mount: C-mount
  • Pixel Size: 2.5μm
  • Resolution
    - Center: 200lp/mm
    - Margin: 160lp/mm
  • Sensor Size: 2/3"
  • Series: JC10M
  • Size: ø36mm x 56mm
  • TV Distortion: -0.31%
  • Temperature Range: 14°F - 122°F (-10°C - 50°C)
  • Type of Lens: Fixed Focal Lens
  • Wavelength Range: Broad Band Coating (400nm - 1000nm)
  • Weight: 0.23lbs (0.115kg)


• Item Includes:

  • 1x Dream Chip KW-8MM fixed camera lens


• Warranty:

  • 2 Year Limited Warranty
