Defender DEF-85103 Base for 85100 5-Channel Cable Protector

ITEM #: DEF-85103 MFG #: DEF-85103

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$74.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    DEF-85103 - Overview

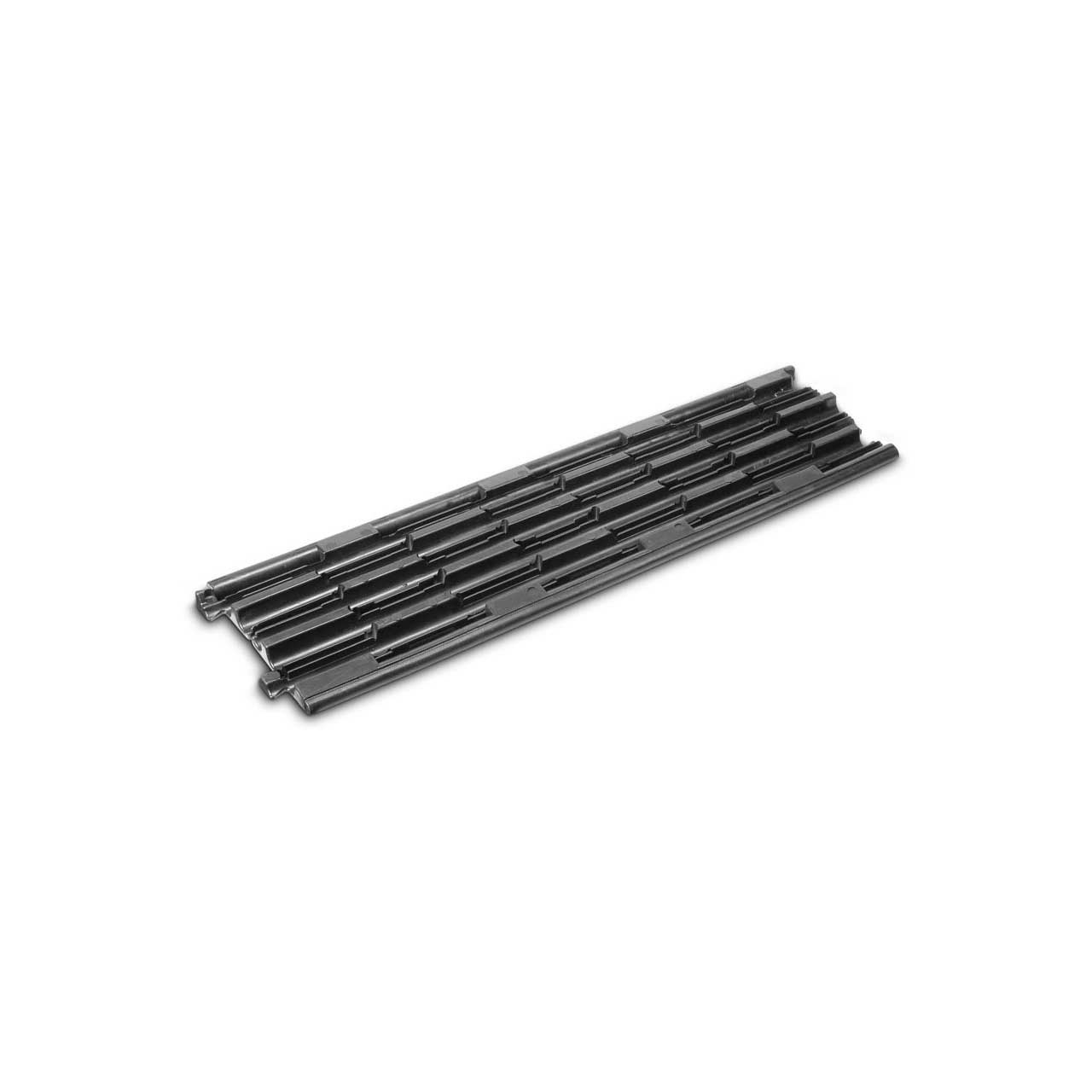

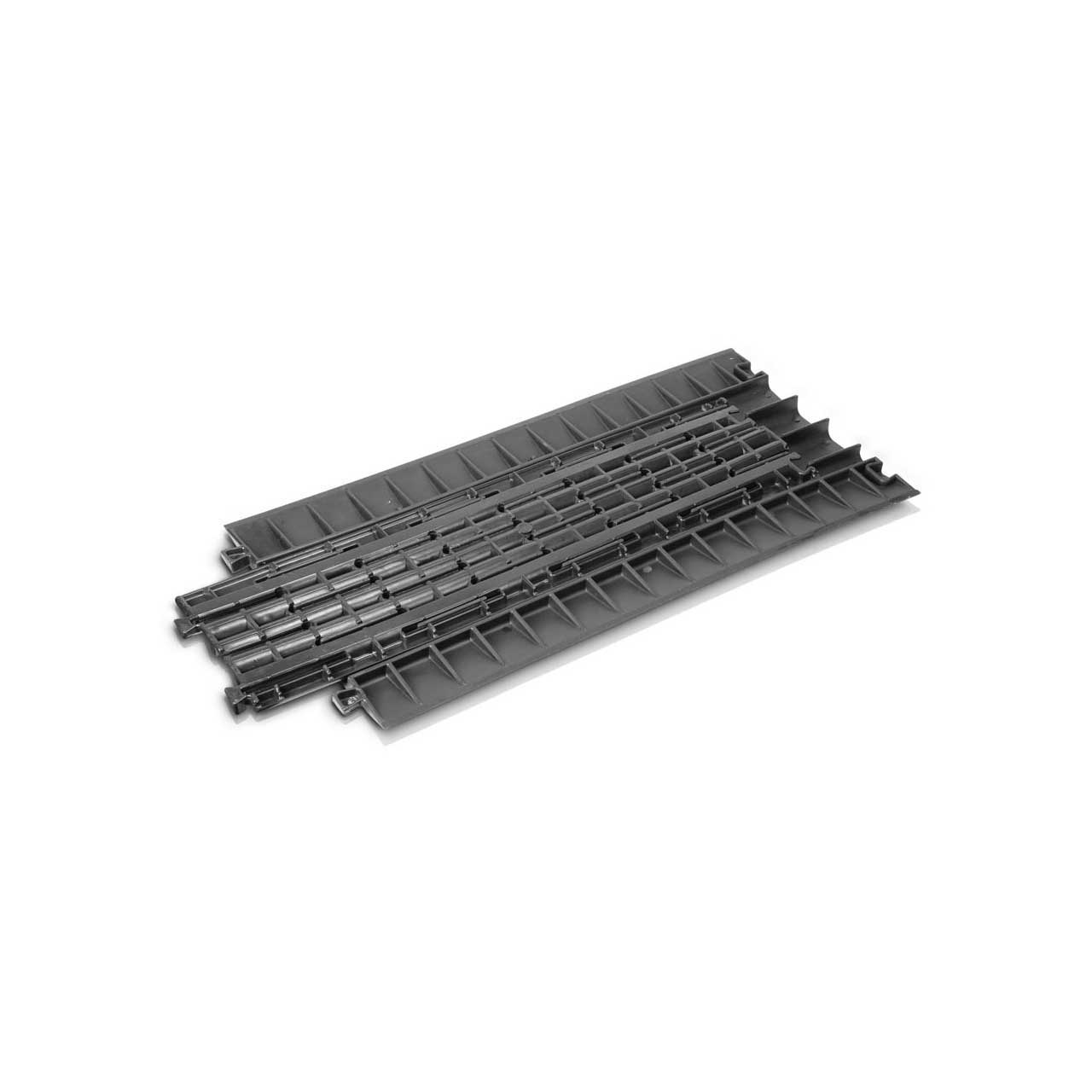

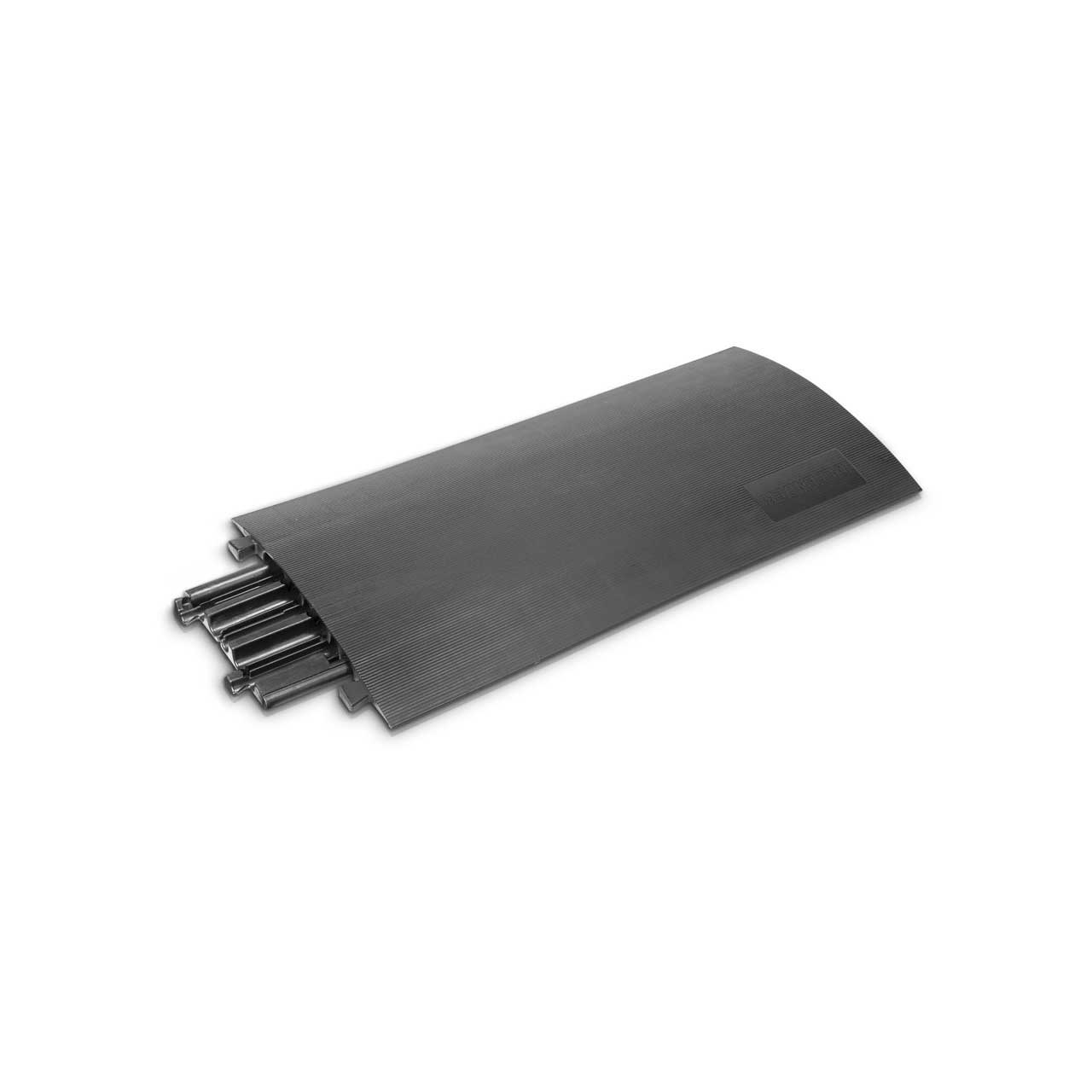

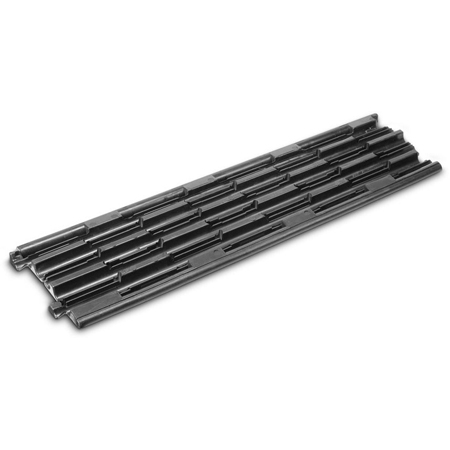

    Defender® Compact with Base
    Attached to the optional 5-channel base the Defender® COMPACT DEF-85103 drop-over cable protector transforms into a heavy-duty guard with high load capacity to support trucks, forklifts and other vehicles. The ribbed surface provides excellent traction while integrated connectors on the base and drop-over facilitate lining up to form a rigid continuous protection system. The range of applications includes construction sites, carnivals, fairs, trade shows, exhibitions, warehouses, shopping malls and music events.

    • Features:

      • Fire resistance class B2 (DIN 4102)
      • Resistant to oil, acids, solvents, and petrol
      • Dimensions 80 x 43 x 4 cm
      • Reliable protection for cables and personnel for indoor and outdoor use
      • Suitable for higher loads such as forklifts and lifting trucks
      • Channels with base: 5 channels 22 x 21 cm
      • Weight with base: 7 kg
      • Not suitable for vehicular traffic
      • TUV SUD certified

    • Specifications:

      • Product type: Cable Protector Accessories
      • Type: 5-channel
      • Type: Bases
      • Length: 804 mm
      • Height: 37 mm
      • Width: 241 mm
      • Channels: 5
      • Width channel 1: 22 mm
      • Height channel 1: 21 mm
      • Width channel 2: 22 mm
      • Height channel 2: 21 mm
      • Width channel 3: 22 mm
      • Height channel 3: 21 mm
      • Width channel 4: 22 mm
      • Height channel 4: 21 mm
      • Width channel 5: 22 mm
      • Height channel 5: 21 mm
      • Material: Polyurethane
      • Max load: Fork lift, lifting truck
      • Chemical resistance: Oil-resistant
      • Chemical resistance: Petrol-resistant
      • Weight: 1,9 kg

    • Warranty:

      • 5 Years

    • GTIN:

      4049521015458
