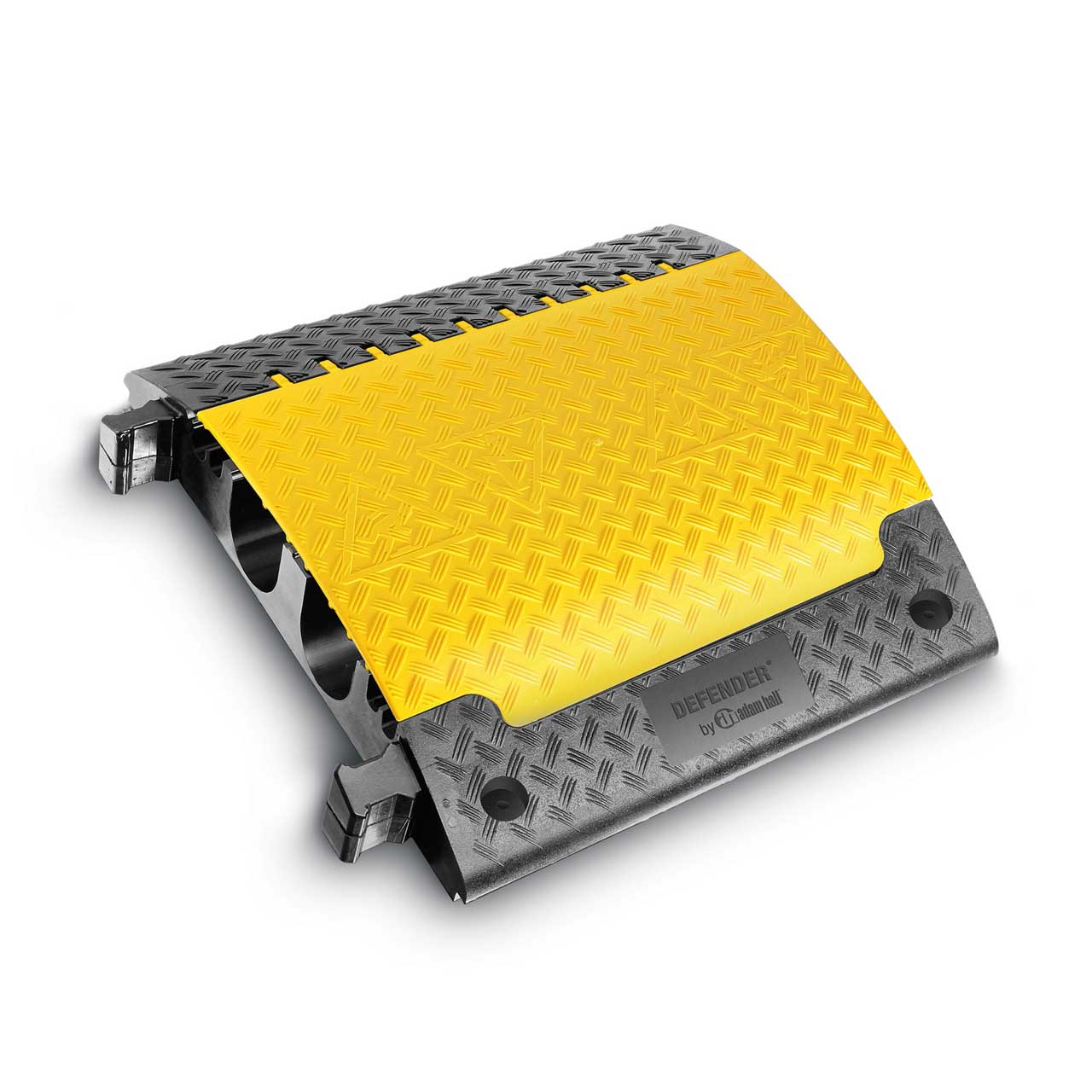

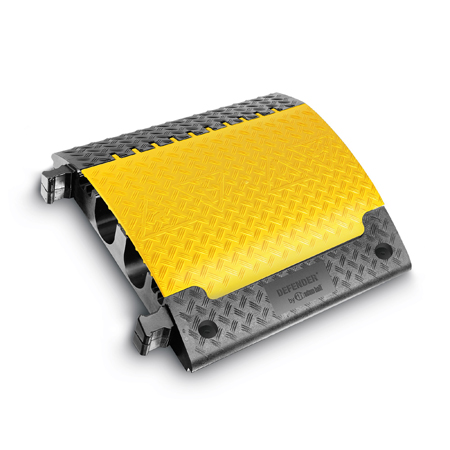

Defender DEF-85601 Ultra L2 2 + 4 Channel Heavy Duty Cable Protector - Yellow/Black - 28x31x5.5 Inch / 67lbs

ITEM #: DEF-85601 MFG #: 85601

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$449.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    85601 - Overview

    2 extra-large cable crossovers - the heavy-duty giant
    Defender® Ultra L 2 heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels of 108 x 110 mm plus four channels with a diameter of 25 mm, as well as integrated connector plugs for easy coupling of several elements. The load bearing capacity is approx. 5 tons on a 25 x 30 cm surface area. This makes Ultra L 2 cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnivals and music events, as well as other applications involving particularly heavy use. They are equipped with all essential fixation holes for street installation.

    • Features:

      • Heavy duty cable protector made of black, recyclable polyurethane for demanding applications
      • Non-slip, yellow polyurethane lid with high warning effect and secure closure
      • Patented, self-cleaning lidmaker hinge

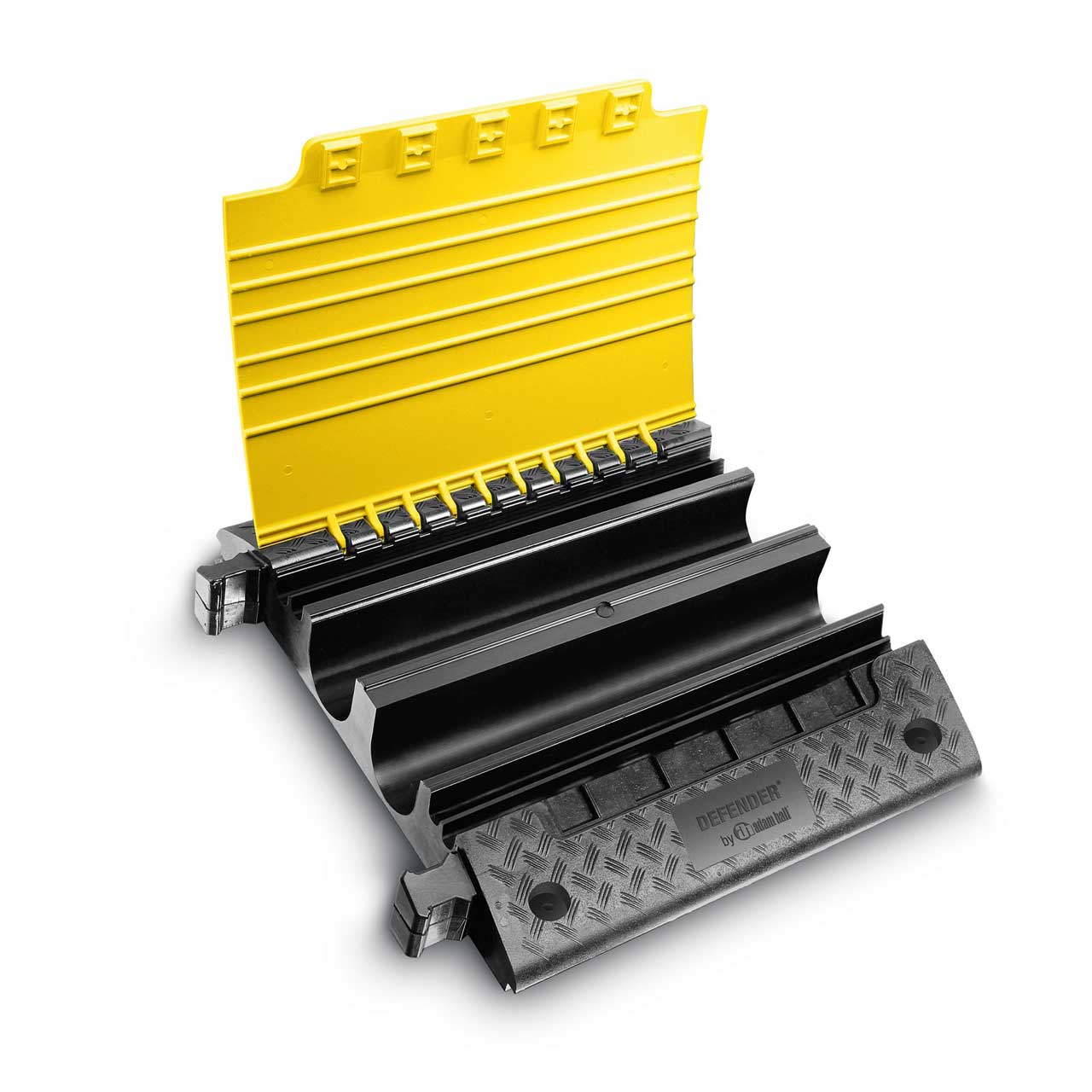

      • 6 channels: 2 channels 108 x 110 mm, 4 channels 25 mm in diameter
      • Two channels suitable for A-suction hoses and multipin connectors
      • Load bearing capacity approx. 5 t / 25 x 30 cm
      • Fire resistance class B2 (DIN 4102)
      • Resistant to oil, acids, solvents, and petrol
      • Dimensions 28 x 31 x 5.5 Inch
      • Weight 60lbs
      • Reliable protection for cables, hoses, and personnel for indoor and outdoor use
      • 4 fixation holes for street mounting with 10 mm Ø
      • TUV SUD certified

    • Specifications:

      • Type: 6 Channels
      • Length: 27.7"
      • Width: 30.1"
      • Height: 4.72"
      • Channels: 6
      • Width channel 1: .98"
      • Height channel 1: .98"
      • Width channel 2: .98"
      • Height channel 2: .98"
      • Width channel 3: 4.25"
      • Height channel 3: 4.33"
      • Width channel 4: 4.25"
      • Height channel 4: 4.33"
      • Width channel 5: .98"
      • Height channel 5: .98"
      • Width channel 6: .98"
      • Height channel 6: .98"
      • Material: Polyurethane
      • Max load: Approx. 5 t on a surface area of 25 x 30 cm
      • Chemical resistance: Oil-resistant, Petrol-resistant
      • Hardness range: 88 ± 4 Shore
      • Fire protection class: B2
      • Temperature range: -30 - 60 °C
      • Weight: 60lbs
      • Special feature: 4 fixation holes for street mounting with 10mm Ø
