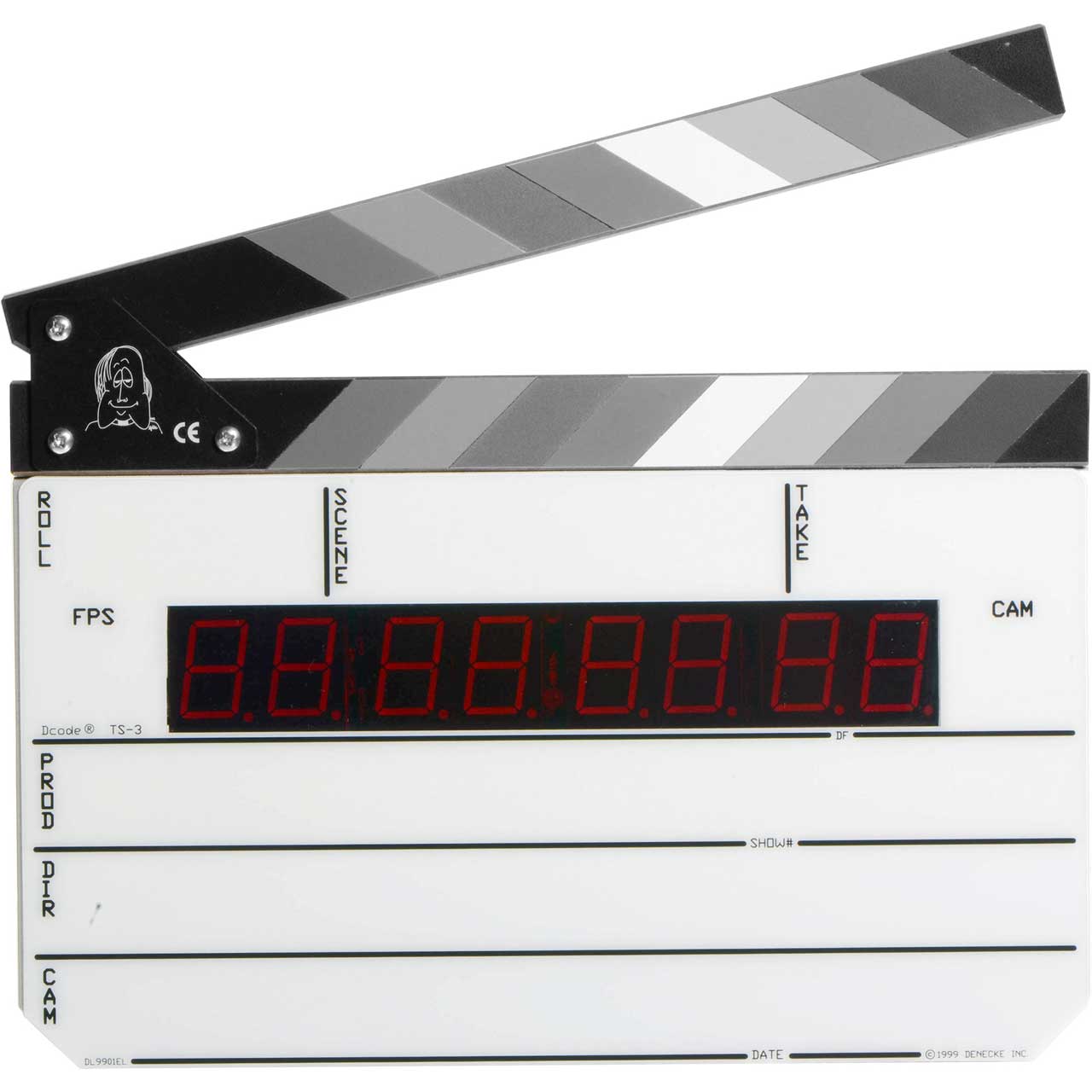

Denecke TS-3BW Time Code Slate with Black & White Sticks (Non-Backlit)

ITEM #: DKE-TS3BW MFG #: TS3 B AND W STIC

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,485.00

Our Price:

$1,410.75

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    TS3 B AND W STIC - Overview

    The Denecke TS-3BW reads and displays SMPTE/EBU time code for your film and/or TV production and has a "Clap Activated" display. It has a removable plate for camera logs and an internally mounted SB-2 Syncbox Time Code Generator. It jams to all standard frame rates, including 30 df. User bits jam automatically when the time is set. The high stability TCXO (Temperature Compensated Crystal Oscillator) ensures low drift for extreme temperature ranges and comes standard on TS-3 time code slates.

    Choose between your standard time code slates with either Black & White sticks (TS-3BW) or Color sticks (TS-3C) OR get the Electro-Luminescent backlit time code slate with Color sticks (TS-3ELC).

    • Features:

      • Light weight - Fits in a frontbox

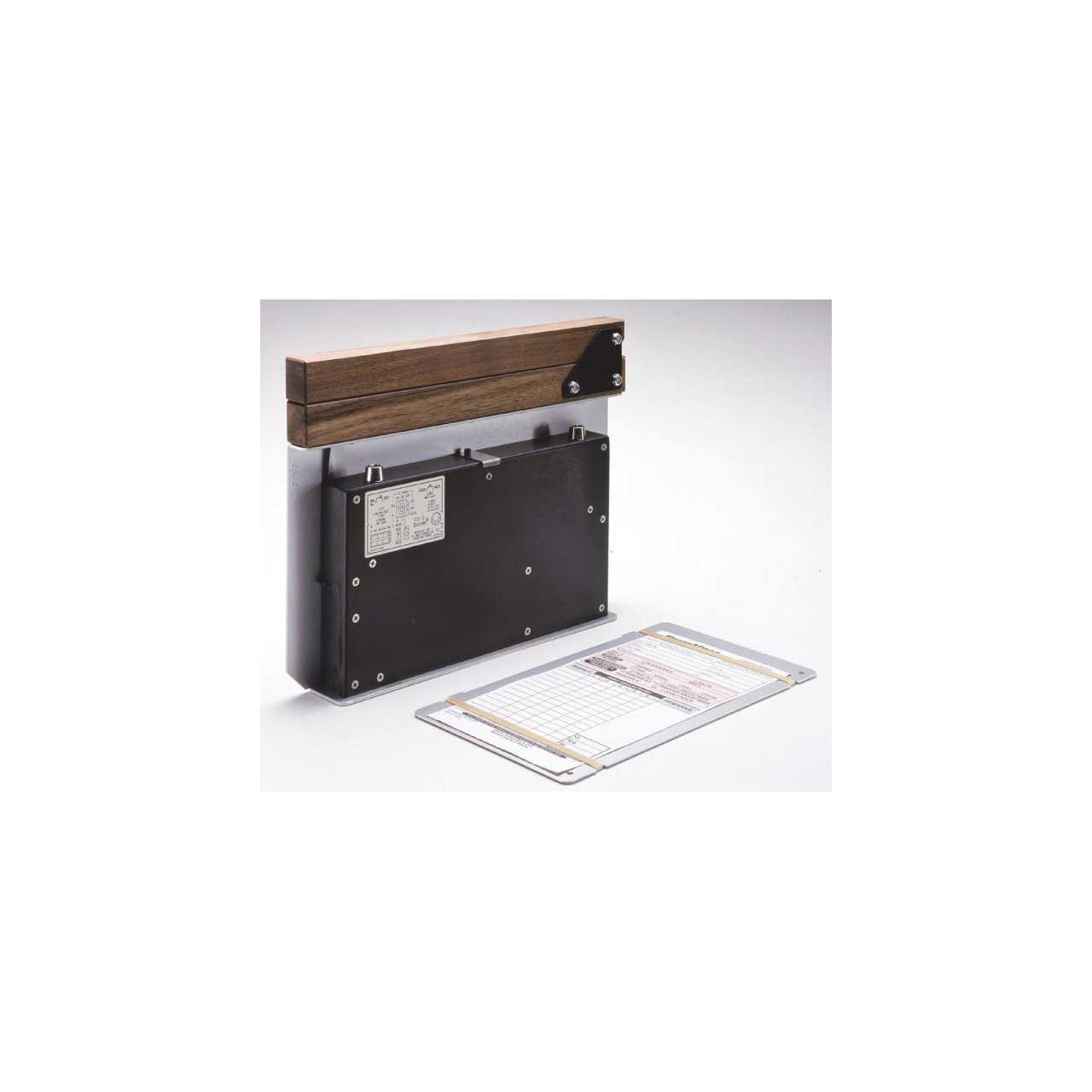

      • Flat Back with a removable plate for camera logs
      • Battery voltage and low battery warning readout
      • Sliding access door to controls and quick load battery pack
      • Sync error warning of different frame rates
      • Auto set to incoming frame rates
      • Blinking LED jam indicator
      • Scroll back of the last 16 time code claps for logging

    • Specifications:

      • Size: 8.25" x 11" x 1.3" (21cm x 28cm x 3.3cm)
      • Weight: 2.35lbs (1.05kg); 2.7lbs (1.25kg) with batteries
      • TCXO: ±1ppm @ -22°F - 167°F (-30°C - 75°C)
      • Input: -15dB @ 4.7k 1/4" phone jack
      • Power: 5.7V - 16V DC
      • Battery: 6 alkaline "AA" batteries
        NOTE: Remove batteries when using external power
