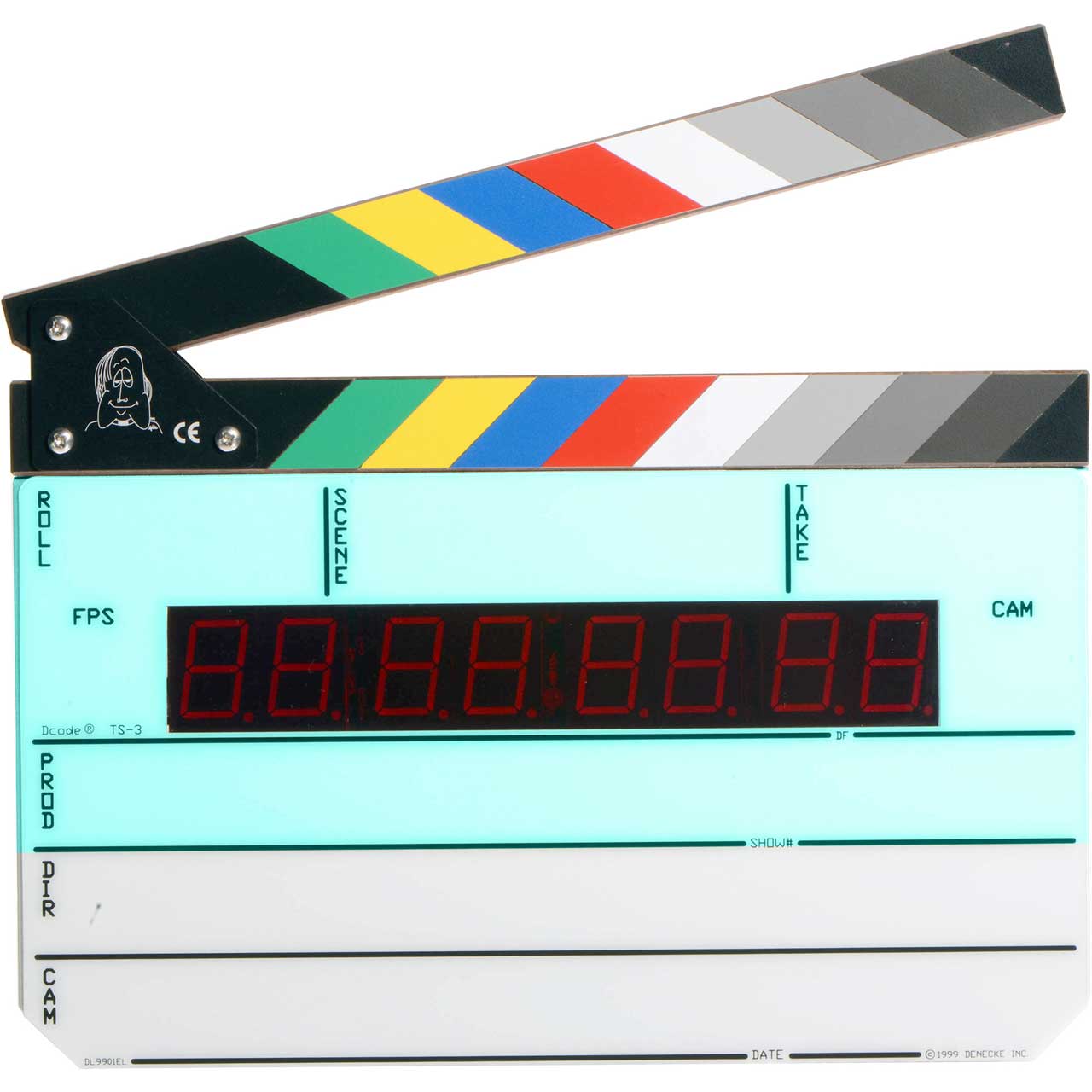

Denecke TS-3ELC Backlit Display Time Code Slate with Color Sticks

ITEM #: DKE-TS3ELC MFG #: TS3ELC

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,760.00

Our Price:

$1,672.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    TS3ELC - Overview

    The Denecke TS-3ELC reads and displays SMPTE/EBU time code for your film and/or TV production and has a "Clap Activated" display. It has a removable plate for camera logs and an internally mounted SB-2 Syncbox Time Code Generator. It jams to all standard frame rates, including 30 df. User bits jam automatically when the time is set. Another cool feature is the Electro-Luminescent backlit display which is great for night shoots, which illuminates the Scene, Take and Production areas of the slate for easy visibility. The high stability TCXO (Temperature Compensated Crystal Oscillator) ensures low drift for extreme temperature ranges and comes standard on TS-3 time code slates.

    Choose between your standard time code slates with either Black & White sticks (TS-3BW) or Color sticks (TS-3C) OR get the Electro-Luminescent backlit time code slate with Color sticks (TS-3ELC).

    • Features:

      • Light weight - Fits in a frontbox

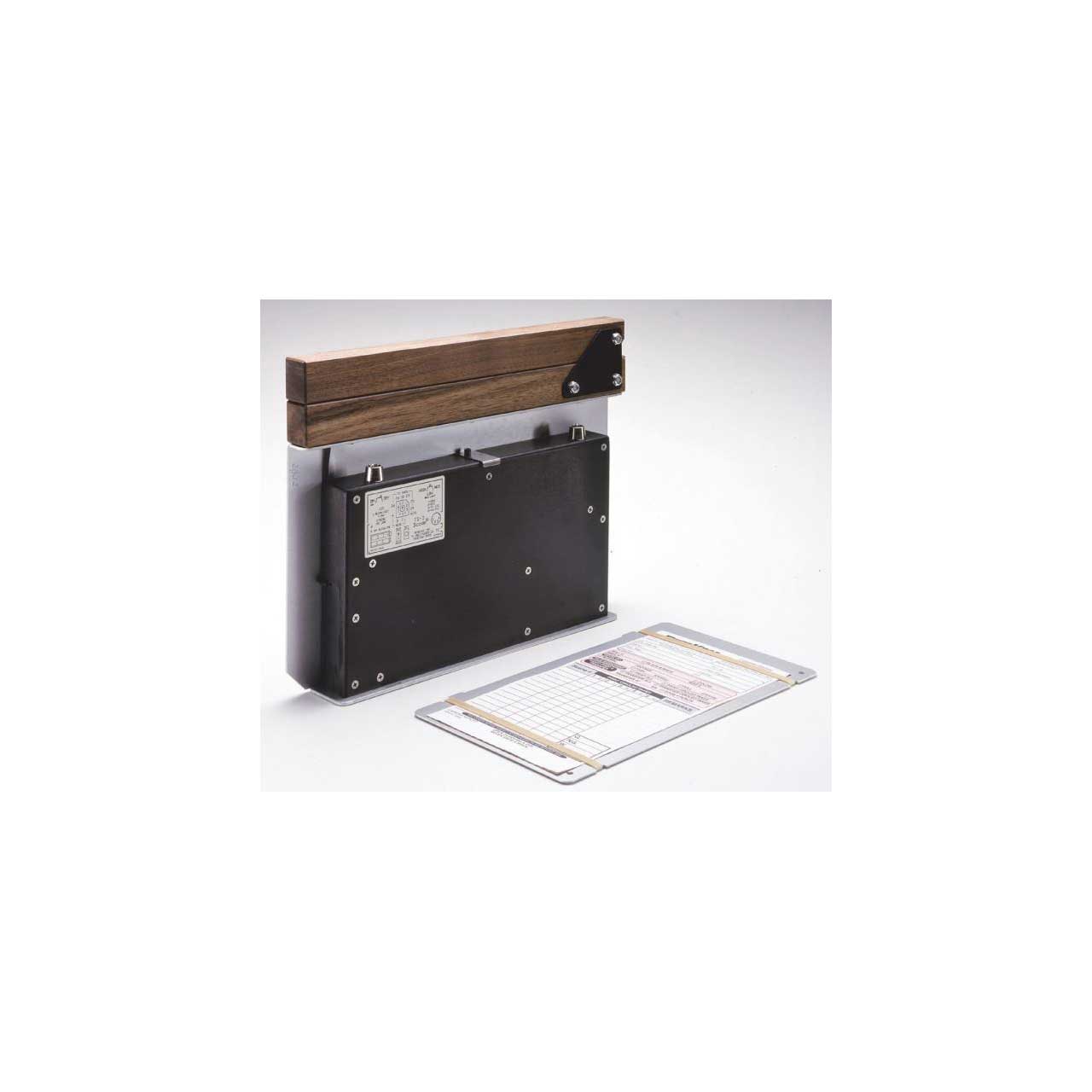

      • Flat Back with a removable plate for camera logs
      • Electro-Luminescent (EL) backlit display behind Scene, Take and Production
      • Battery voltage and low battery warning readout
      • Sliding access door to controls and quick load battery pack
      • Sync error warning of different frame rates
      • Auto set to incoming frame rates
      • Blinking LED jam indicator
      • Scroll back of the last 16 time code claps for logging

    • Specifications:

      • Size: 8.25" x 11" x 1.3" (21cm x 28cm x 3.3cm)
      • Weight: 2.35lbs (1.05kg); 2.7lbs (1.25kg) with batteries
      • TCXO: ±1ppm @ -22°F - 167°F (-30°C - 75°C)
      • Input: -15dB @ 4.7k 1/4" phone jack
      • Power: 5.7V - 16V DC
      • Battery: 6 alkaline "AA" batteries
        NOTE: Remove batteries when using external power
