DPA 2017 Super-Cardioid Condenser Shotgun Microphone

ITEM #: DPA-2017 MFG #: 2017

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$995.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    2017 - Overview

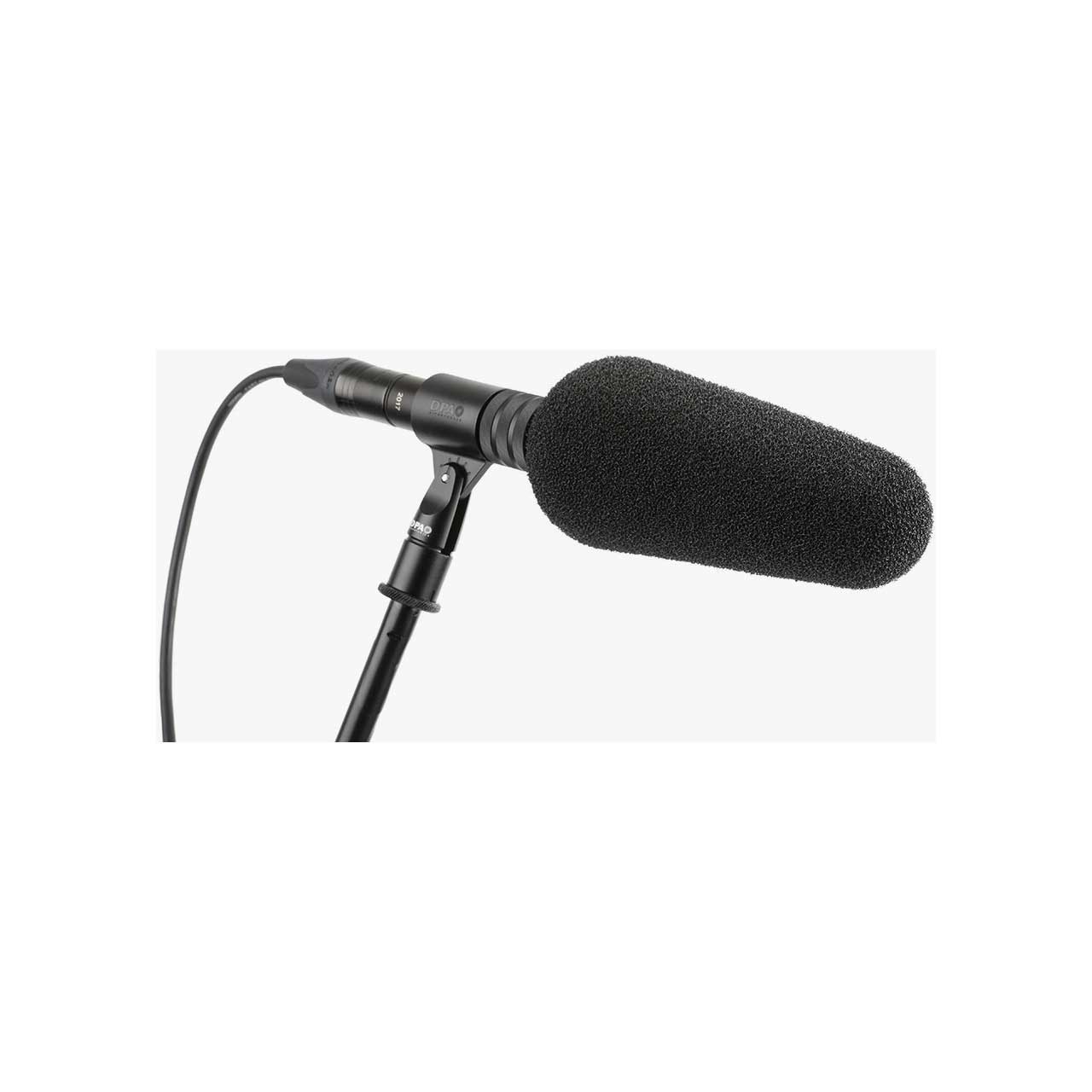

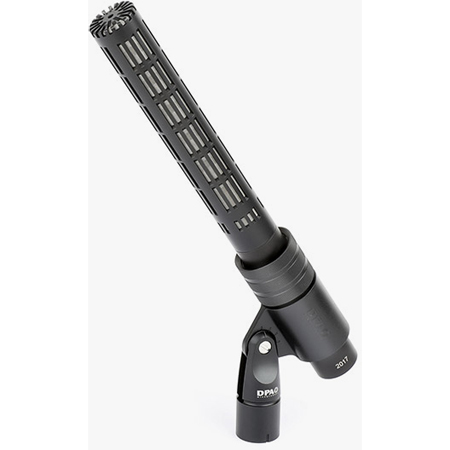

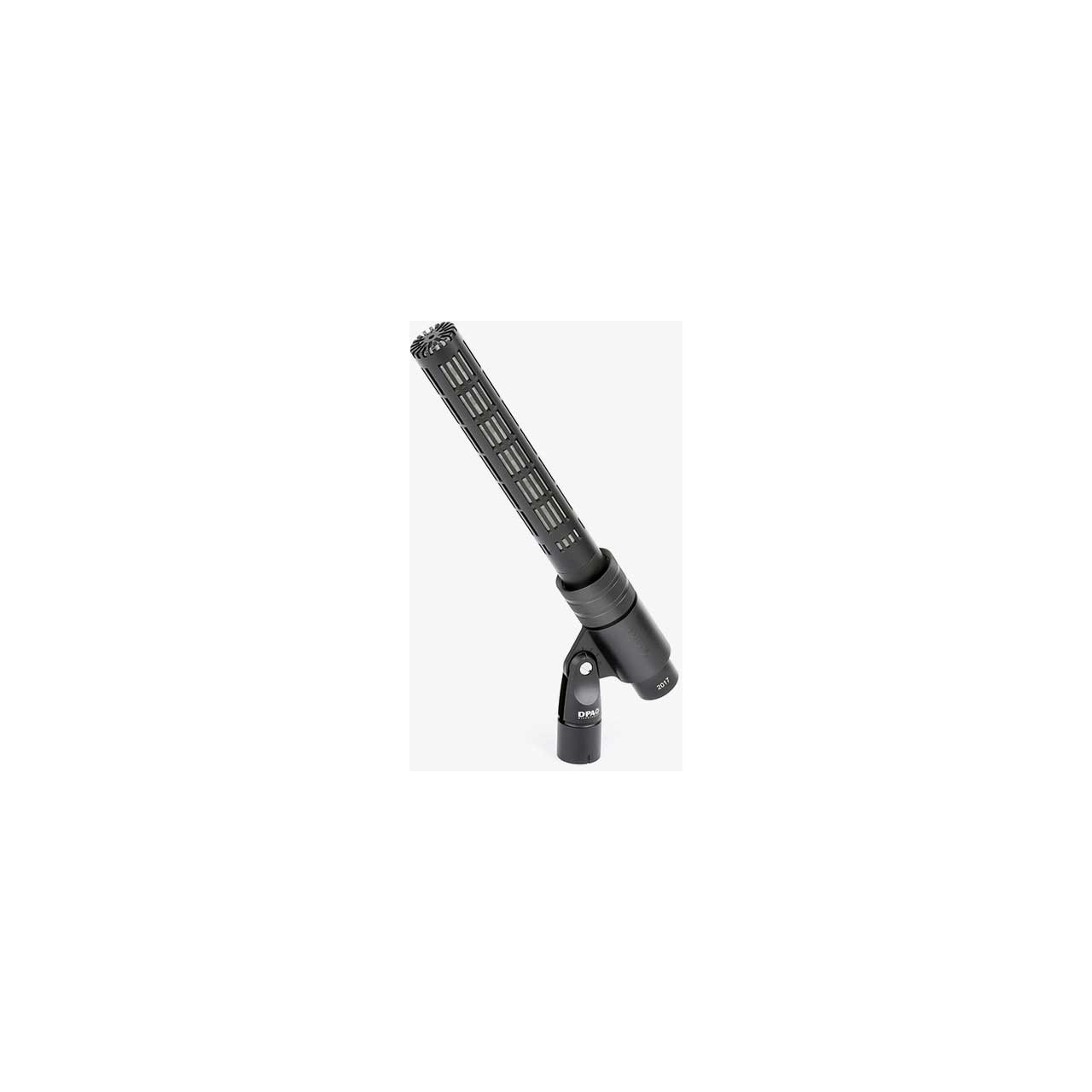

    The 2017 Shotgun Microphone is an extremely directional mic that combines crystal clear, authentic sound and stable, consistent performance under harsh conditions.

    Its acoustical performance sets it apart from any competition. It has efficient off-axis rejection combined with an off-axis frequency response that is much more linear than most similar shotgun mics on the market. These are exactly the capabilities that result in authentic sound.

    In addition, the 2017 performs consistently in a variety of conditions, like cold weather and humid environments as well as in generally harsh situations.

    Finally, although the interference tube surrounding the capsule is quite long, the entire mic is contained in a shorter, lighter mic housing than many other mics that it outperforms. This makes the 2017 a practical choice in a wide range of applications.

    • Features:

      • Accurate, clean sound from the primary sound source combines effortlessly with natural sound captured off-axis
      • Extraordinary durability, with reinforced construction to perform in challenging environments, including high humidity
      • Outstanding off-axis rejection for optimal isolation of the desired sound source
      • Extremely directional pick-up pattern, with an effective interference tube in a compact housing
      • Easy to set up, position and use in fixed positions, on booms and on camera systems
      • Low self-noise, for excellent performance in quiet environments or with many open microphones

    • Specifications:

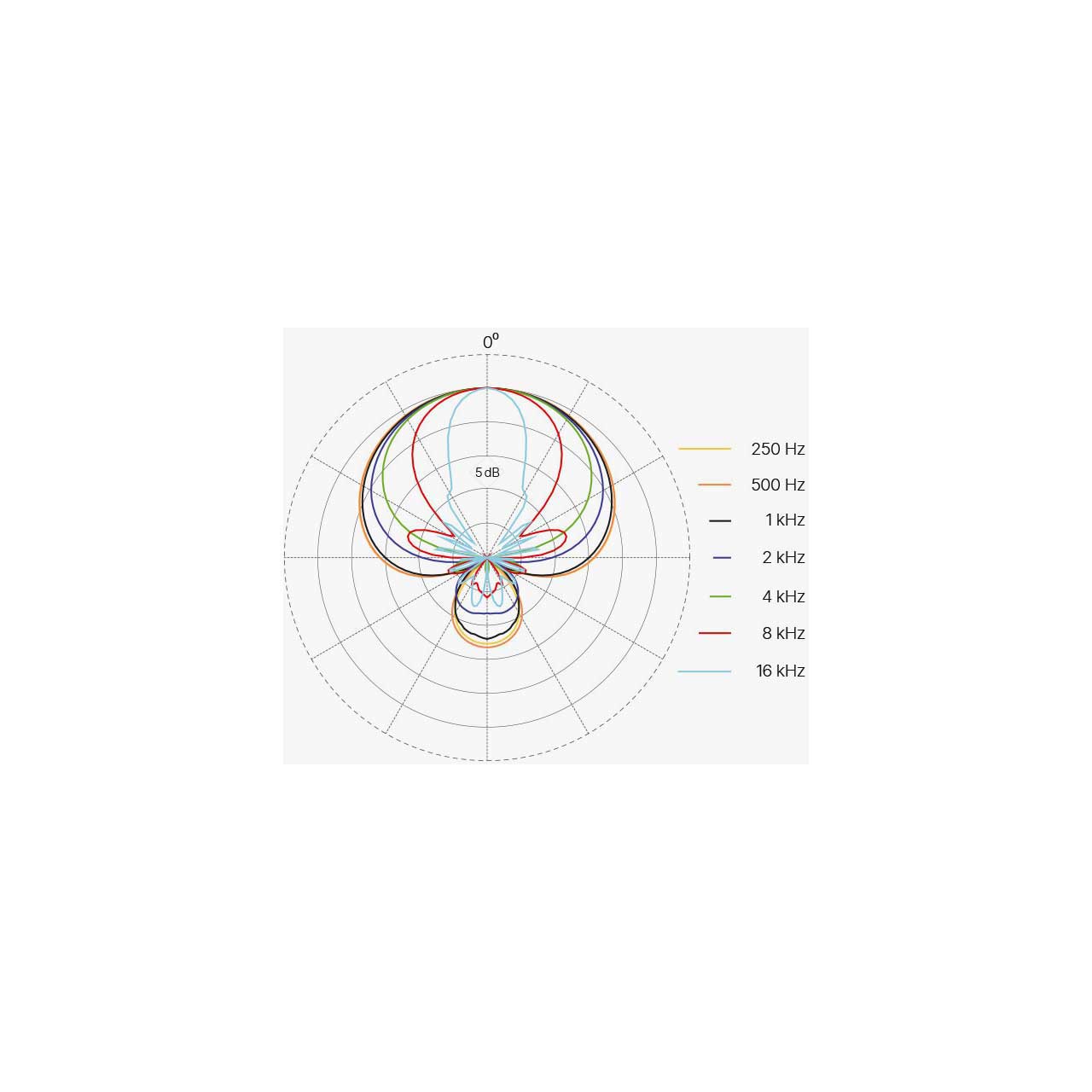

      • Directional pattern: Supercardioid at 1 kHz
      • Principle of operation: Pressure gradient
      • Cartridge type: Pre-polarized condenser

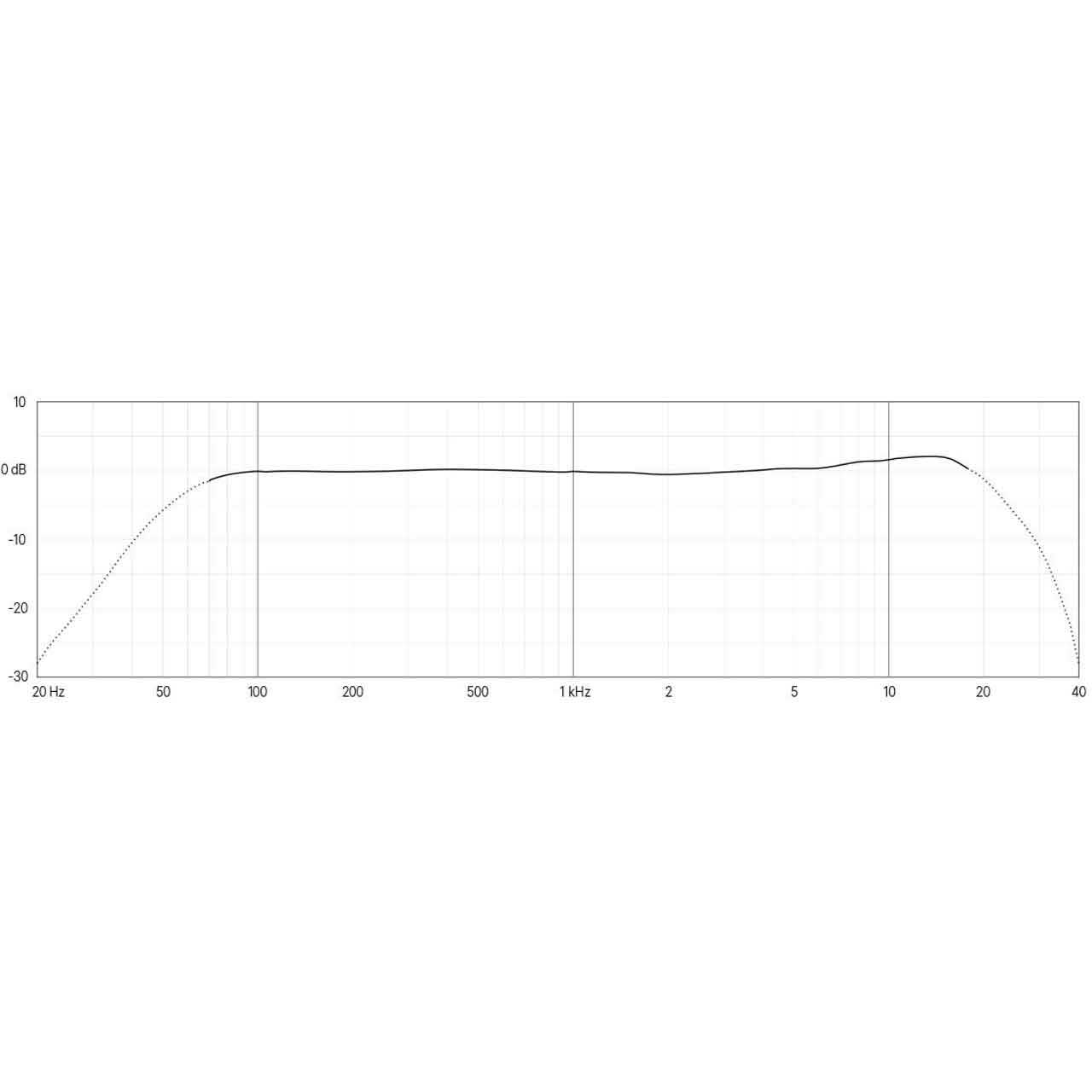

      • Frequency response: 20 Hz - 20 kHz
      • Effective frequency range, ±2 dB, at 60 cm (23.6 in): 70 Hz to 18 kHz with typ. 2 dB soft boost at 15 kHz
      • Sensitivity, nominal, ±2 dB at 1 kHz: 25 mV/Pa (± 2 dB)
      • Equivalent noise level, A-weighted: Typ. 13 dB(A) re. 20 æPa (max. 15 dB(A))

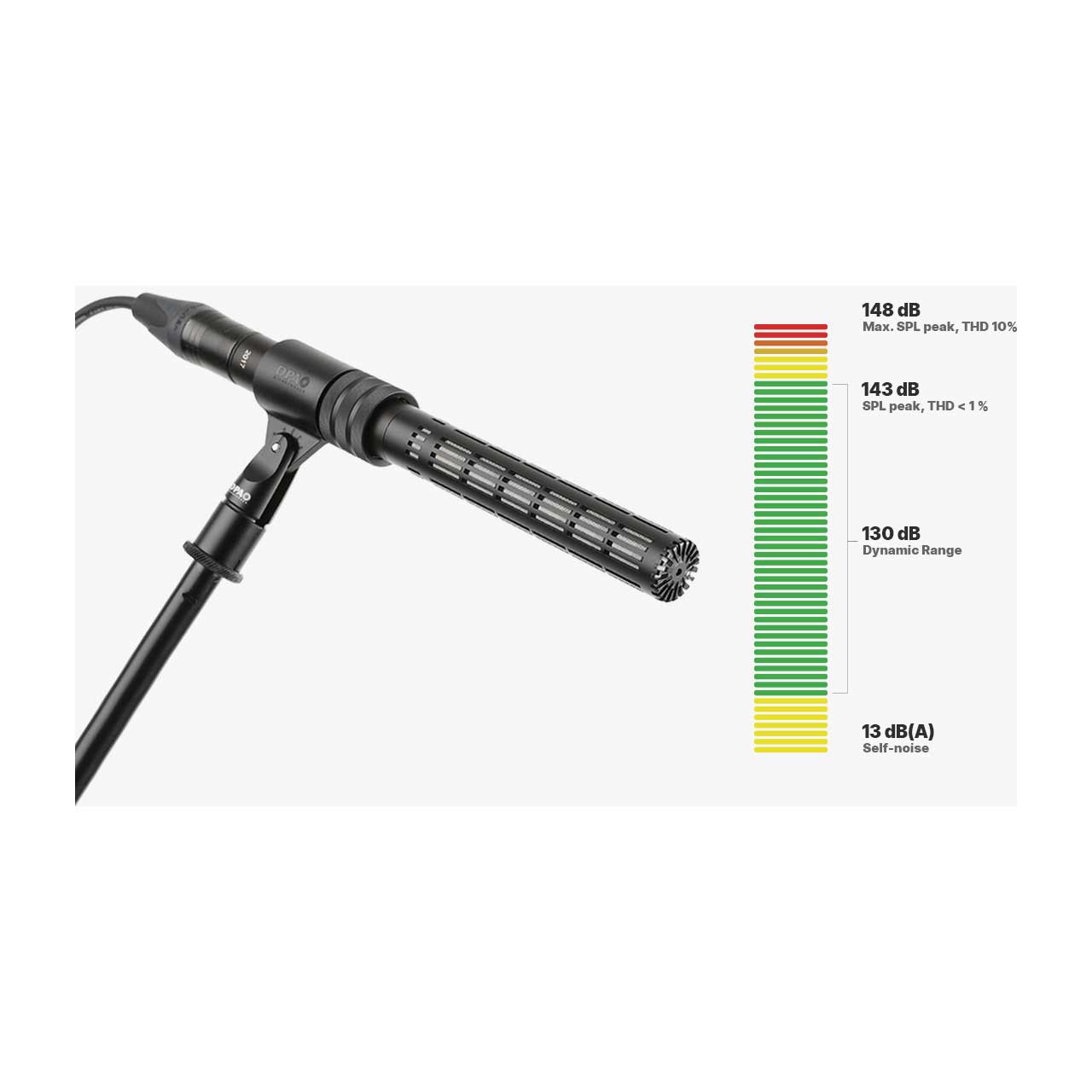

      • Distortion, THD < 1%: 140 dB SPL (143 dB SPL peak)
      • Dynamic range: Typ. 130 dB
      • Max. SPL, THD 10%: 145 dB SPL (148 dB SPL peak)
      • Rated output impedance: 60 Ω
      • Minimum load impedance: 2 kΩ
      • Cable drive capability: 100 m (328 ft)
      • Output balance principle: Impedance balancing with Active Drive
      • Common mode rejection ratio (CMRR): > 60 dB
      • Power supply (for full performance): P48 (Phantom Power)
      • Current consumption: 1.8 mA
      • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
      • Color: Black
      • Weight: 115 g
      • Microphone diameter: 19 mm (0.75 in)
      • Capsule diameter: 17 mm (0.67 in)
      • Microphone length: 184 mm (7.2 in)
      • Maximum output voltage, RMS: 8.7 V (21 dBu)
      • Polarity: +V at pin 2 for positive sound pressure
      • Temperature range: -40°C to 45°C
      • Relative humidity (RH): Up to 90 %

    • Item Includes:

      • 1x UA0961 Microphone Holder for Pencil Microphones
      • 1x DUA0073 Foam Windscreen for Shotgun Microphones

    • Warranty:

      • 2 Years

    • GTIN:

      5713055023621
