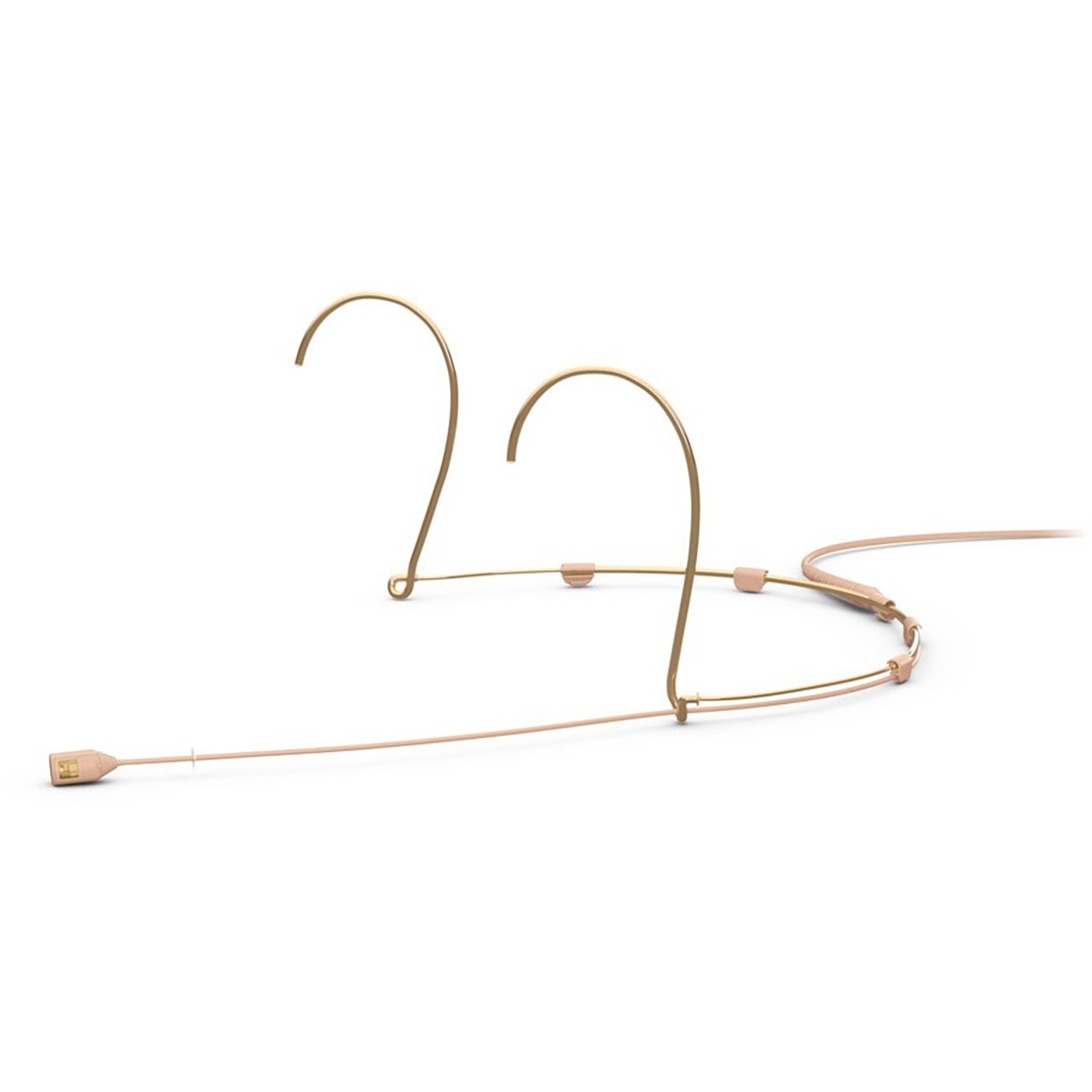

DPA 4088 CORE+ IP58 Directional Cardioid Headset Mic with TA4F Mini-XLR - Beige

ITEM #: DPA-4088DPAF10LH MFG #: 4088-DP-A-F10-LH

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,090.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


4088-DP-A-F10-LH - Overview

DPA's 4088 CORE+ directional headset mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a concern, this microphone will tackle these challenges with ease. The bass response is designed for optimal linearity at 1" from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance - a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback.

The smooth and elegant design of the 4088 Directional Headset Microphone makes it the most invisible head-worn true cardioid microphone in the world. This microphone has a secure, dual-ear design that can be used for various performing talent applications. It has a small .25" diameter, which allows for discreet use. It only weighs 14g (.5 oz) and is very comfortable when worn for long periods. The microphone can be mounted on the right or left side.

The boom is 1" longer than on the omnidirectional version, which matches the need for placement at the corner of the mouth. To avoid "popping" the capsule should not be placed directly in front of the mouth.

Audio Will Never Be The Same
Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

Features of CORE+:
• Effectively negates microphone distortion across the entire dynamic range
• Captures the purest, clearest sound at the source
• Lets sound engineers focus on shaping an extraordinary experience for the audience
• Reduces hassle from unpredictable challenges in the live show environment

Distortion Free..
Microphones with CORE+ deliver crystal clear, distortion-free sound across the entire dynamic range of the microphone. Anyone seeking the highest possible sound quality will appreciate CORE+.

Whether recording or amplifying content, the sound will remain clear and completely undistorted by the microphone, even when the talent speaks or sings at louder volumes.

  • Features:

    • Pristine audio quality
    • Lightweight and flexible
    • Easy mounting to the left or right
    • Resistant to humidity
    • Flexible adapter system fits most professional wireless systems

  • Specifications:

    • Directional Pattern: Cardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20 Hz - 20 kHz
    • Sensitivity, Nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)
    • Equivalent Noise Level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
    • Distortion, THD < 0.5%: 137 dB SPL RMS, 140 dB SPL peak
    • Distortion, THD < 1%: 139 dB SPL RMS, 142 dB SPL peak
    • Dynamic Range: Typ. 116 dB
    • Max. SPL, THD 10%: 147 dB SPL peak
    • Rated Output Impedance: 30 - 40 Ω
    • Cable Drive Capability: Up to 984 ft (300 m) with DAD9001 XLR Adapter
    • Power Supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD9001: P48 (Phantom Power). Will work from 12 V
    • Current Consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
    • Connector: TA4F Mini-XLR
    • Weight: 14 g (0.5 oz) incl. Cable and MicroLock connector
    • Microphone Diameter: 0.21" (5.4 mm)
    • Microphone Length: 0.5" (11 mm)
    • Cable Length: 3.9 ft (1.2 m)
    • Cable Diameter: 0.06" (1.6 mm)
    • Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
    • Temperature Range: -40°F to 113°F (-40°C to 45°C)
    • Relative Humidity (RH): Up to 90%

  • Item Includes:

    • 1x DPA 4088 CORE+ IP58 Directional Headset Mic with TA4F Mini-XLR - Beige

  • Warranty:

    • 2 Year

  • GTIN:

    5713055030452
