DPA 4097-DP-F-B01-120 CORE+ Supercardioid Choir Mic with 48-Inch Boom and Floor Stand - Black

ITEM #: DPA-4097DPFB0112 MFG #: 4097-DP-F-B01-120

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,485.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


4097-DP-F-B01-120 - Overview

Optimized for Speech, CORE+ is a Revolutionary Leap Ahead in Microphone Design

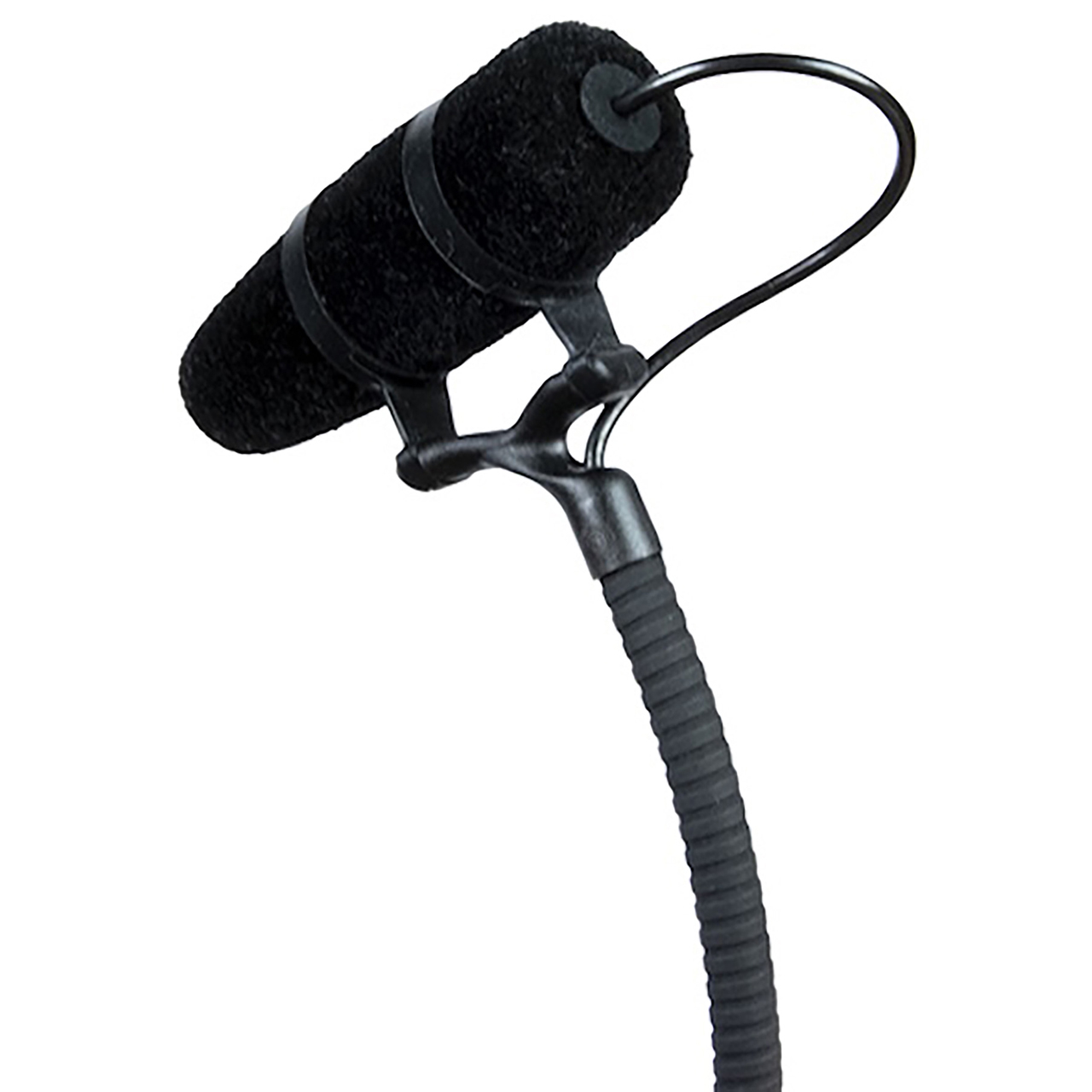

An inconspicuous floor stand solution specifically designed to capture the natural sound of a choir, the DPA 4097-DP-F-B01-120 CORE+ is unlike any Choir Mic available on the market. Each part of the solution has been specifically designed and tested to ensure it meets the needs of a wide range of choir situations. As a supercardioid mic, the 4097 offers a highly-directional pick-up pattern as well as low self noise and high sensitivity. Due to CORE+ technology, the 4097 is capable of handling extremely high SPL's which allows the mic to deliver undistorted natural sound, even when the choir sings loudly.

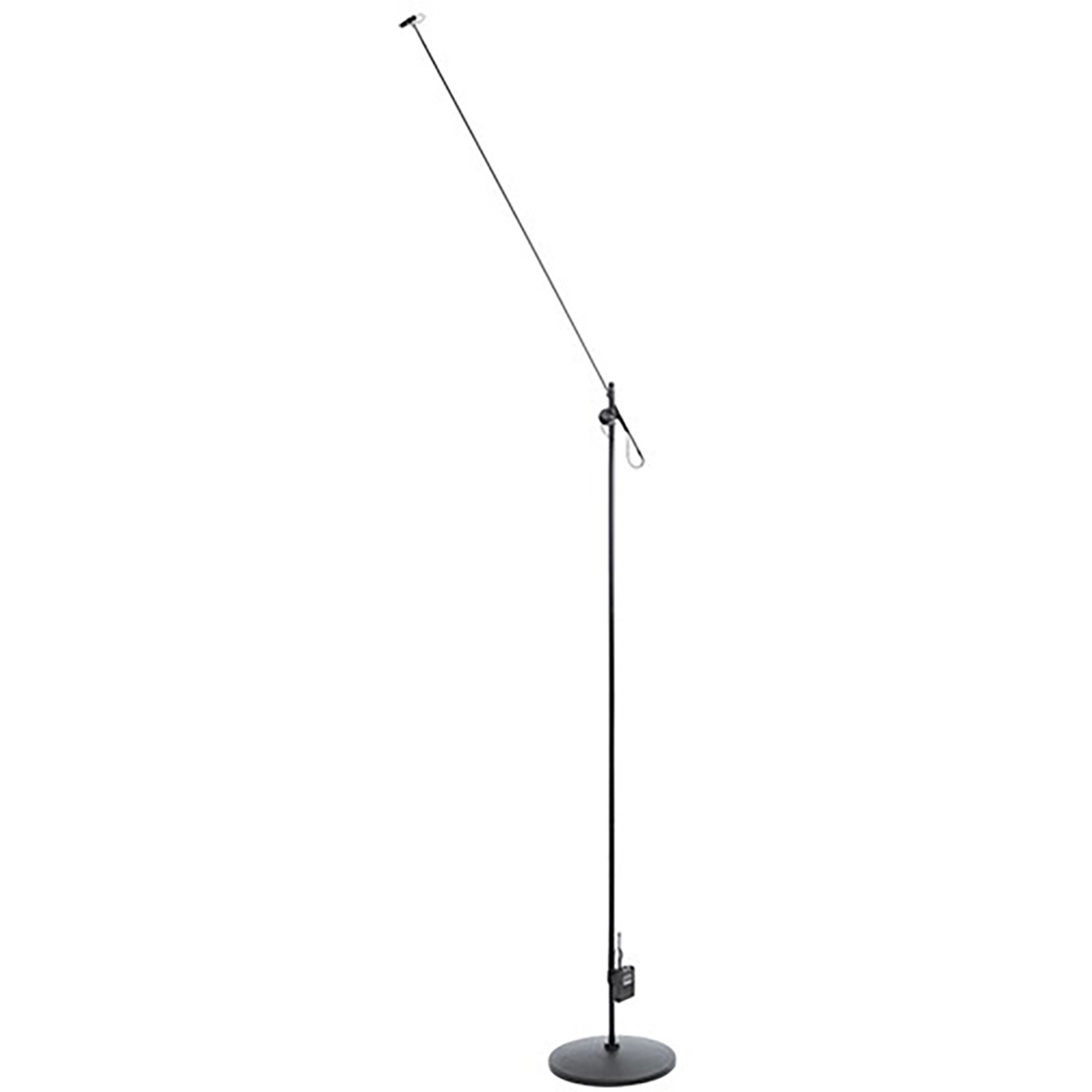

The 4097 has a more stable construction than any other dedicated choir mic on the market. The shorter active boom pole is very quick to stabilize if accidently bumped. The three built-in shock mounts - in the microphone capsule, the swivel joint and the floor base - combine to decrease rumble if bumps happen. The unobtrusive, yet, balanced floor base contains an integrated shock mounting solution, which helps stabilize the entire construction. The vertical pole that attaches to the base consists of three individual pieces that can be used to adjust the total height of the system. Simple, yet secure thread screws hold the three pieces together.

  • Features:

    • Exceptional isolation and off-axis rejection: The supercardioid pattern combined with advanced acoustic design provides superior side and rear attenuation, making it ideal for stage, broadcast, and live performance environments.
    • Compact, discreet, and elegant design: the slim design allows flexible placement while remaining visually unobtrusive in demanding production settings.
    • Enhanced vibration and handling noise control: the optimized capsule suspension and microphone body construction improve isolation from mechanical vibrations and structure-borne noise, resulting in a cleaner and more stable signal
    • Rapidly stabilizing mic boom pole and integrated shock-mounting in the floor base.
    • Reliable MicroLock® connector: allows for a detachable cable and reliable connection with a wide range of wireless systems.

  • Specifications:

    • Dimensions (L x W x H): 4.72" x 5.98" x 2.17"
    • Weight: .5 lbs
    • Directional Pattern: Supercardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-Polarized Condenser
    • Cable Drive Capability: Up to 984 FT (300 m) with DAD9099 XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 XLR Adapter

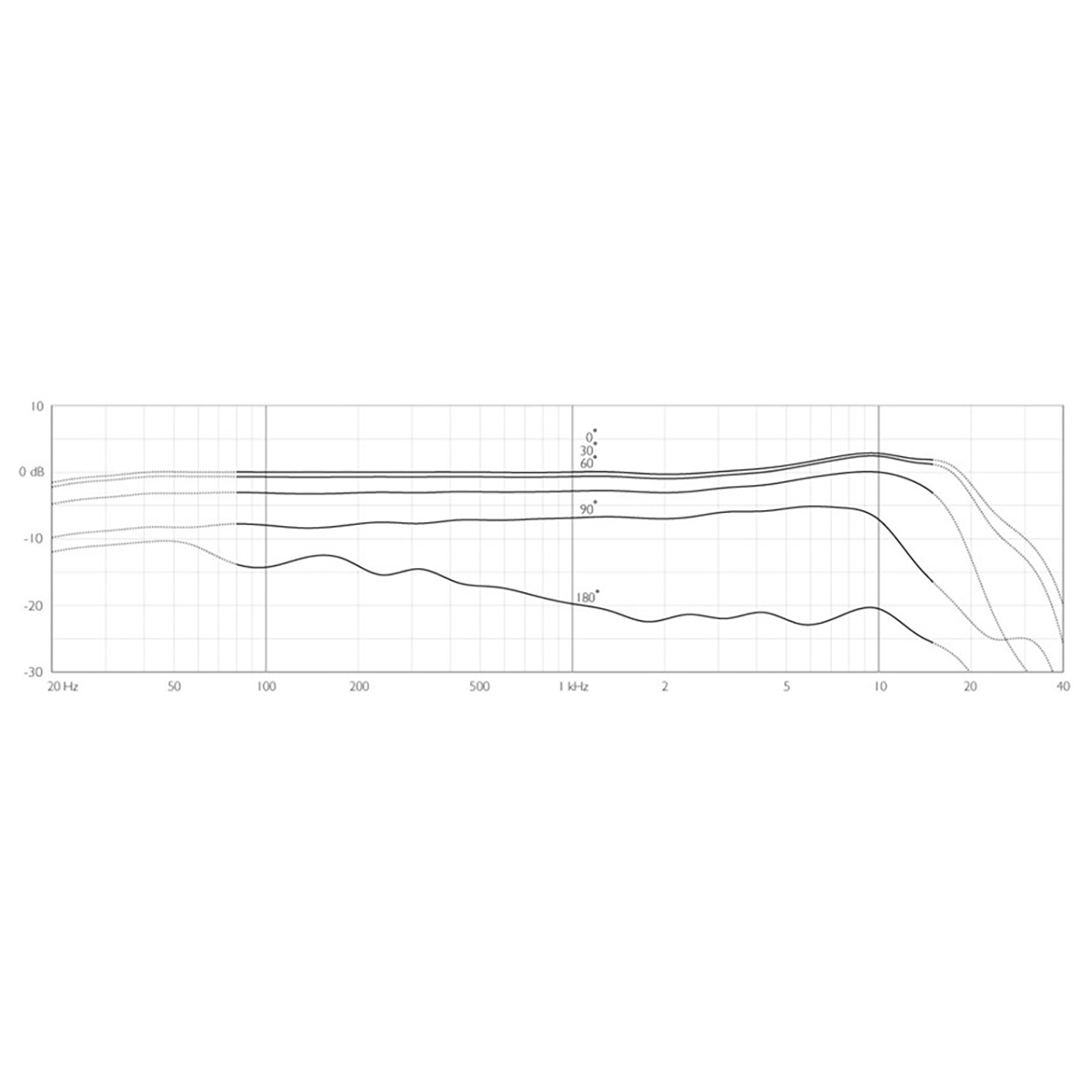

    • Frequency Response: 20 Hz - 20 kHz
    • Sensitivity, Nominal ±3 dB at 1 kHz: 16 mV/Pa; -36 dB re. 1 V/Pa
    • Equivalent Noise Level A-weighted: Typ. 23 dB(A) re. 20 μPa (max 26 dB(A))
    • Equivalent Noise Level ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
    • Connector: MicroLock XLR via supplied DAD9099 adapter
    • Color: Black
    • Temperature Range: -40°F to 113°F (-40°C to 45°C)
    • Relative Humidity (RH): Up to 90%
    • Dynamic Range: Typ. 110 dB
    • Max. SPL, THD 10%: 135 dB SPL peak
    • Cable Drive Capability: Up to 300 m (984 ft) with DAD9099-BC XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099-BC XLR Adapter
    • Distortion, THD < 1%:
      - 130 dB SPL RMS
      - 133 dB SPL peak
    • Effective Frequency Range ±2 dB at 7.9 in (20 cm):
      - 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
      - Second order low-cut filter at 80 Hz with DAD9099-B
    • Rated Output Impedance:
      - From MicroDot: 30 - 40Ω
      - From DAD9099-BC XLR Adapter: 100Ω
    • Power Supply (for full performance):
      - For wireless systems Min: 5V - max: 10V through DPA adapter
      - With DAD9099: P48 (Phantom Power) Will work from 12V
    • Current Consumption:
      - Typ. 1.5 mA (microphone)
      - 3.5 mA with DAD9099 XLR Adapter

  • Item Includes:

    • 1x 4097 CORE Micro Shotgun Mic 48" Boom, Floor Stand, Choir Mic
    • 1x 5.9 ft (1.8 m) CM1618B90 MicroLock Extension Cable
    • 1x 20" (50 cm) 4097 Vertical pole
    • 1x 9.8" Floor Base
    • 1x Adapter Holder
    • 1x Swivel Joint

  • Warranty:

    • Limited 2 Year Warranty
