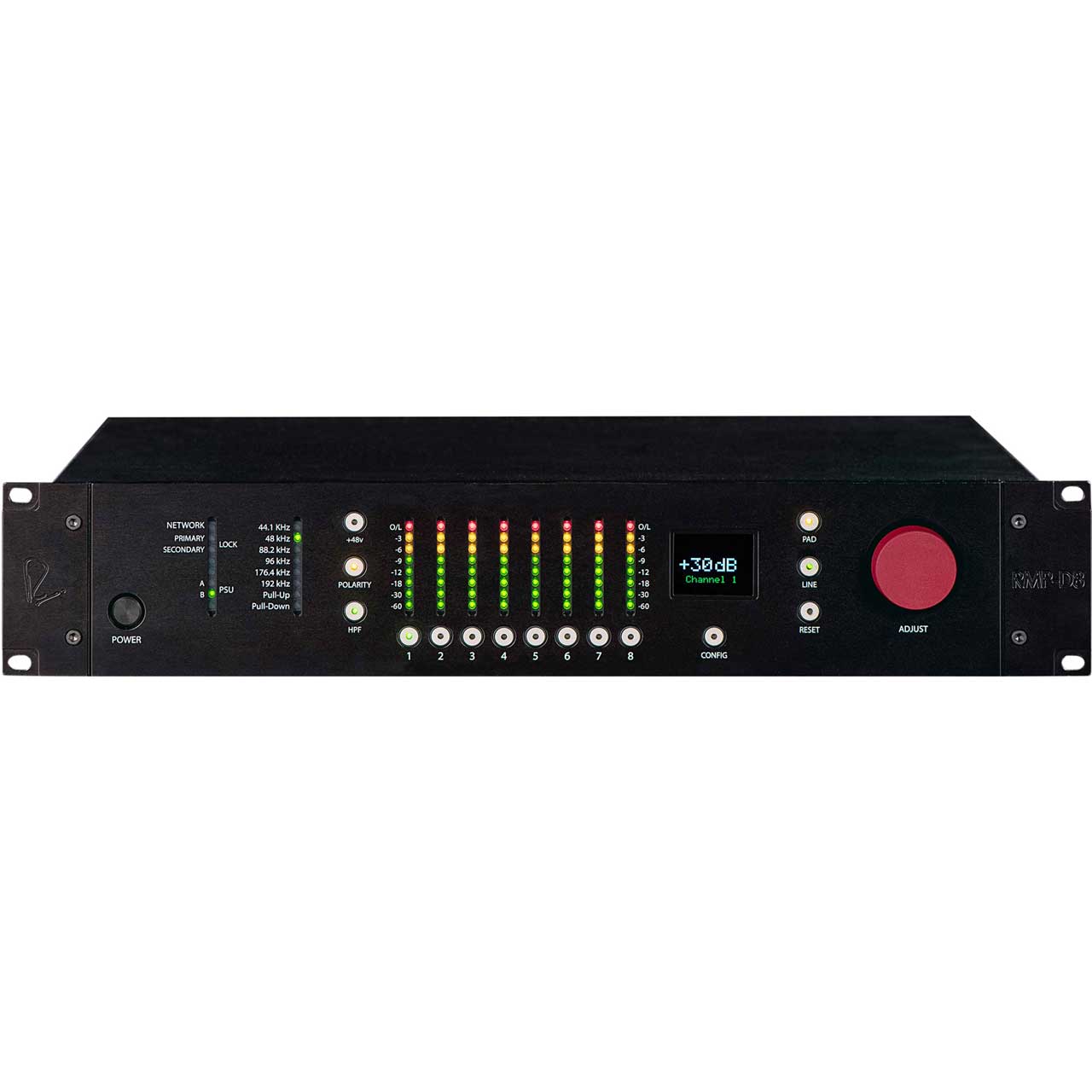

Rupert Neve Designs RMP-D8 8-Channel Dante Mic Preamp

ITEM #: RUP-RMP-D8 MFG #: RMP-D8

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$5,999.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    RMP-D8 - Overview

    The massive weight & tone of classic Rupert Neve Designs studio microphone preamps: Now available for your stage!

    For the last decade, the world's leading live sound engineers have chosen Rupert Neve Designs as some of the only analog equipment to accompany their digital touring rigs. With mastering-grade 24-bit 192kHz converters and full Dante integration, the RMP-D8 finally offers the live sound world something that studios have always coveted: the sound of Rupert Neve Designs.

    The heart of the RMP-D8 lies in the modular mic preamp cards featuring Mr. Rupert Neve's custom transformer designs. Unlike other integrated Dante mic preamp designs that rely primarily on a single IC for gain & tone, each channel on the RMP-D8 has a fully-realized class-A microphone preamplifier feeding a custom transformer, maintaining the high standards of Rupert Neve Designs' standalone preamplifiers.

    Mastering-Grade Conversion
    Where converters are often an afterthought on combination devices, the 24-bit/192kHz converters in the RMP-D8 are a product of years of careful listening. The precision-controlled internal clocking and enhanced jitter reduction enable capture of the full breadth of performance from the mic preamplifiers or the line inputs; with the RMP-D8, there is no weak link in the audio path.

    The New Dante Standard
    Dante audio networking uses standard IP networks to transmit high-quality, uncompressed audio with near-zero latency. It's the most flexible, reliable, and easy-to-manage audio networking solution available, and provides the lowest cost of ownership by dramatically reducing cabling and labor costs. Dante is the audio networking choice of nearly all professional audio manufacturers, making it the industry standard for digital audio networking.

    The RMP-D8's audio signal will work with any Dante device across settings ranging from concert halls to arenas, clubs, studios, houses of worship, and educational facilities.All in all, the RMP-D8 brings the classic sound of Rupert Neve Designs into the Dante-connected world.

    Note: A Gigabit Ethernet switch should be used to make all Dante network connections.

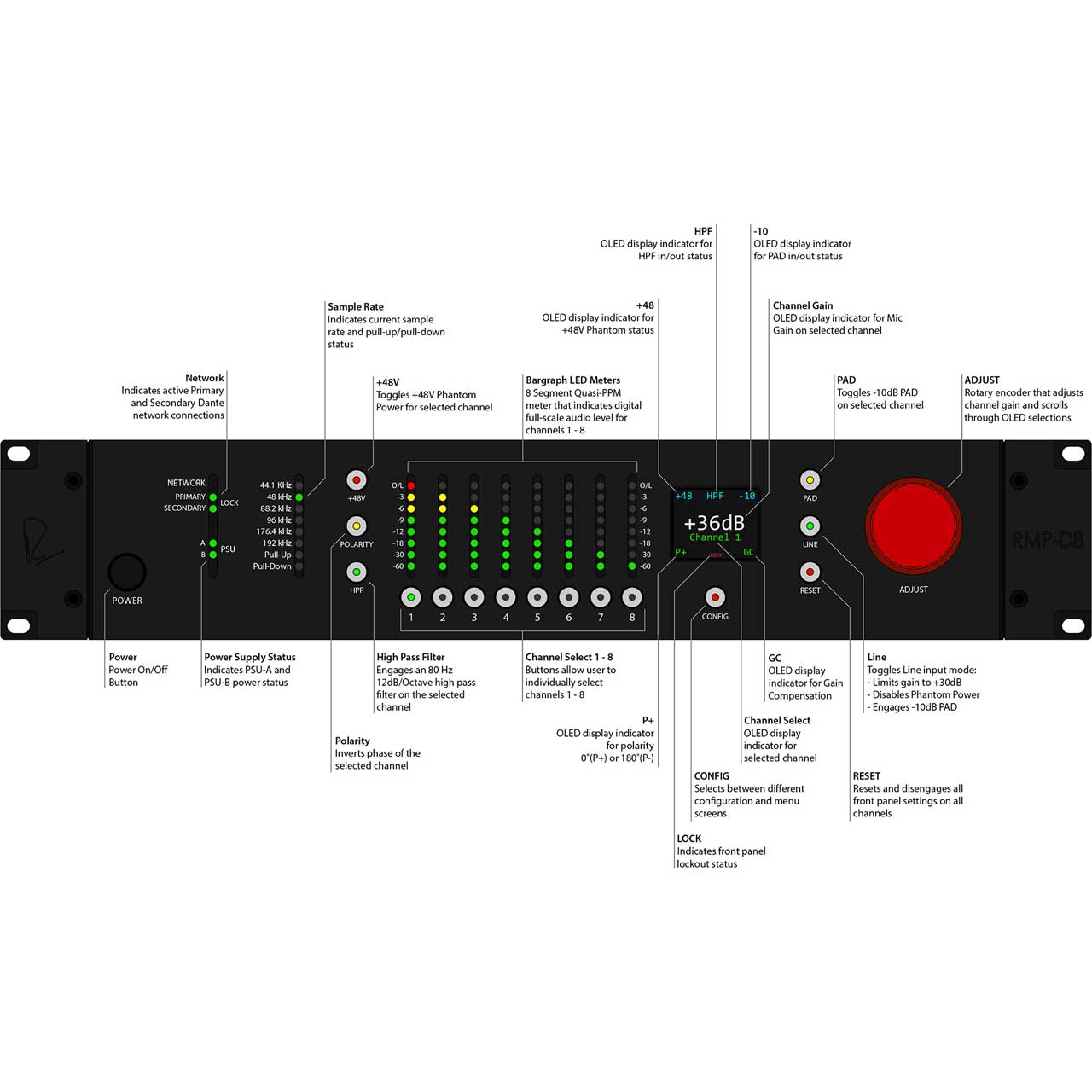

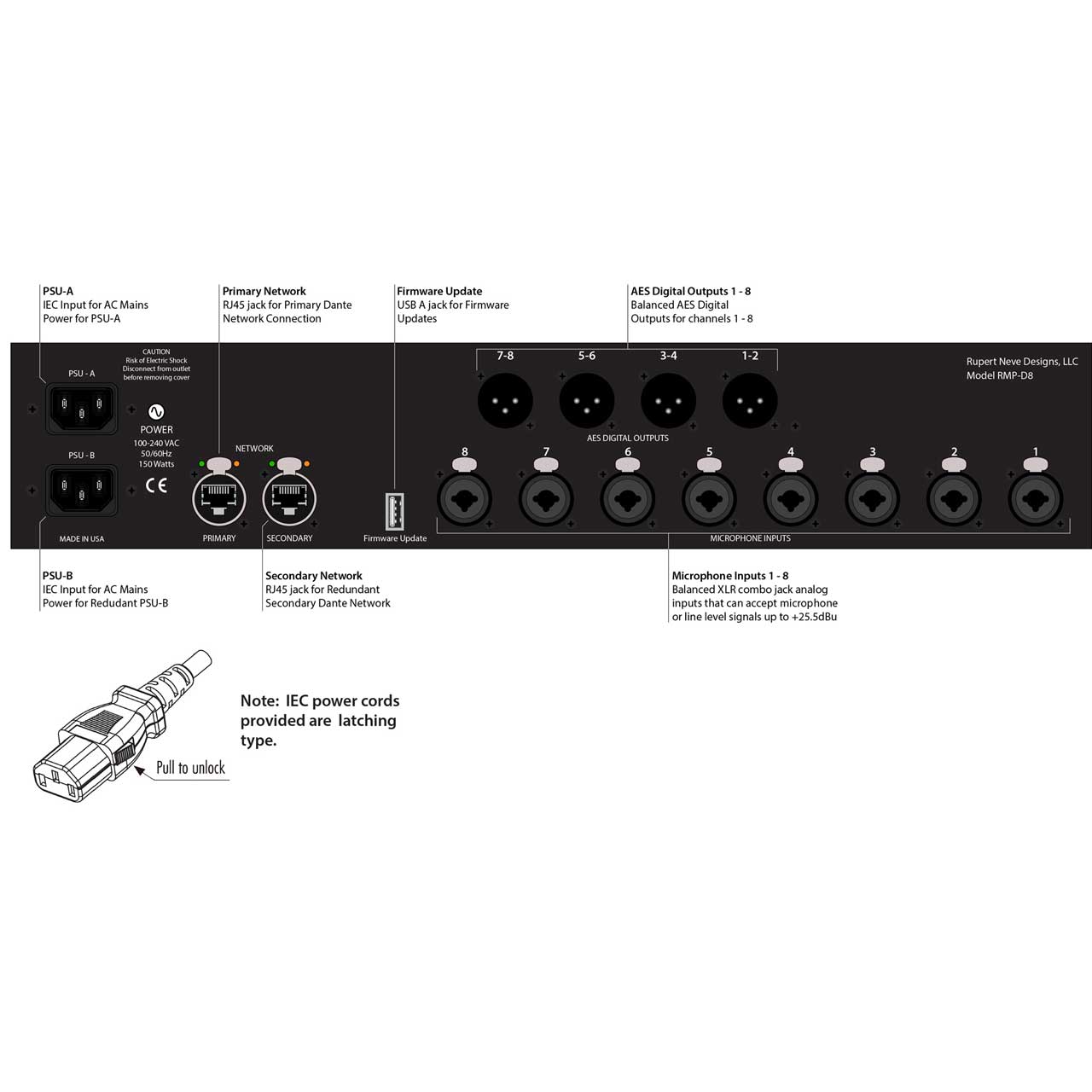

    • Features:

      • 8 mic / line inputs with 48V phantom power, polarity reverse, input pad & high-pass filter controls
      • 1dB-stepped class-A mic preamplifiers with 60dB gain and remote control capability
      • Custom Rupert Neve Designs transformers for the larger-than-life tone of Rupert's classic modules
      • 24-bit / 192kHz Mastering-Grade Converters with precision-controlled internal clocking and enhanced jitter reduction
      • Ultra-reliable, redundant power supplies capable of operating anywhere in the world
      • Dante integration with redundant network ports for reliability
      • Gain-compensated secondary output
      • 4 dual-channel AES outputs on XLR connectors
      • Large OLED display with full local control - accurate and easy-to-read meters
      • Compatible with Dante Virtual Soundcard and Dante Via for direct computer integration
      • Reinforced steel chassis for enhanced RF shielding and rugged touring use in challenging environments

    • Specifications:

      • Noise:
        150 Ohm Balanced Source, AES Output, 22 Hz to 22 kHz, un-weighted+60dB Gain
        -91 dBFS
      • Unity Gain: -110 dBFS
      • Frequency Response:
        0dBu , Unity Gain, 96Khz
        30Hz to 45kHz +/- 0.2 dB
        10Hz -3 dB
      • Input Impedance: 5.5 kOhms
      • Gain: 0 to 60 dB in 1 dB steps
      • High Pass Filter: -3dB @ 80 Hz, 12 dB/Octave Slope
      • Pad: -10 dB
      • Signal to Noise Ratio: 84.4 dB
      • Dynamic Range: 110 dB
      • Maximum Input Level: +25.5 dBu
      • Shipping Weight: 17.6 lbs. (8 kg)
      • Shipping Dimensions: 22" (W) x 18" (D) x 9" (H) 55.9 cm (W) x 45.7 cm (D) x 22.9 cm (H)
      • Power Cord Type: IEC Standard 3 Pin 18AWG Latching Type

    • Item Includes:

      • 1x RMP-D8 8-Channel Dante Mic Preamp
      • 1x Latching IEC Power Cord

    • Warranty:

      • 1 Year

    • GTIN:

      0752423657421
