DPA 4099 CORE+ IP58 Supercardioid Instrument Mic with Clip for Violin - Loud SPL

ITEM #: DPA-4099-DP1199V MFG #: 4099-DP-1-199-V

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$760.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


4099-DP-1-199-V - Overview

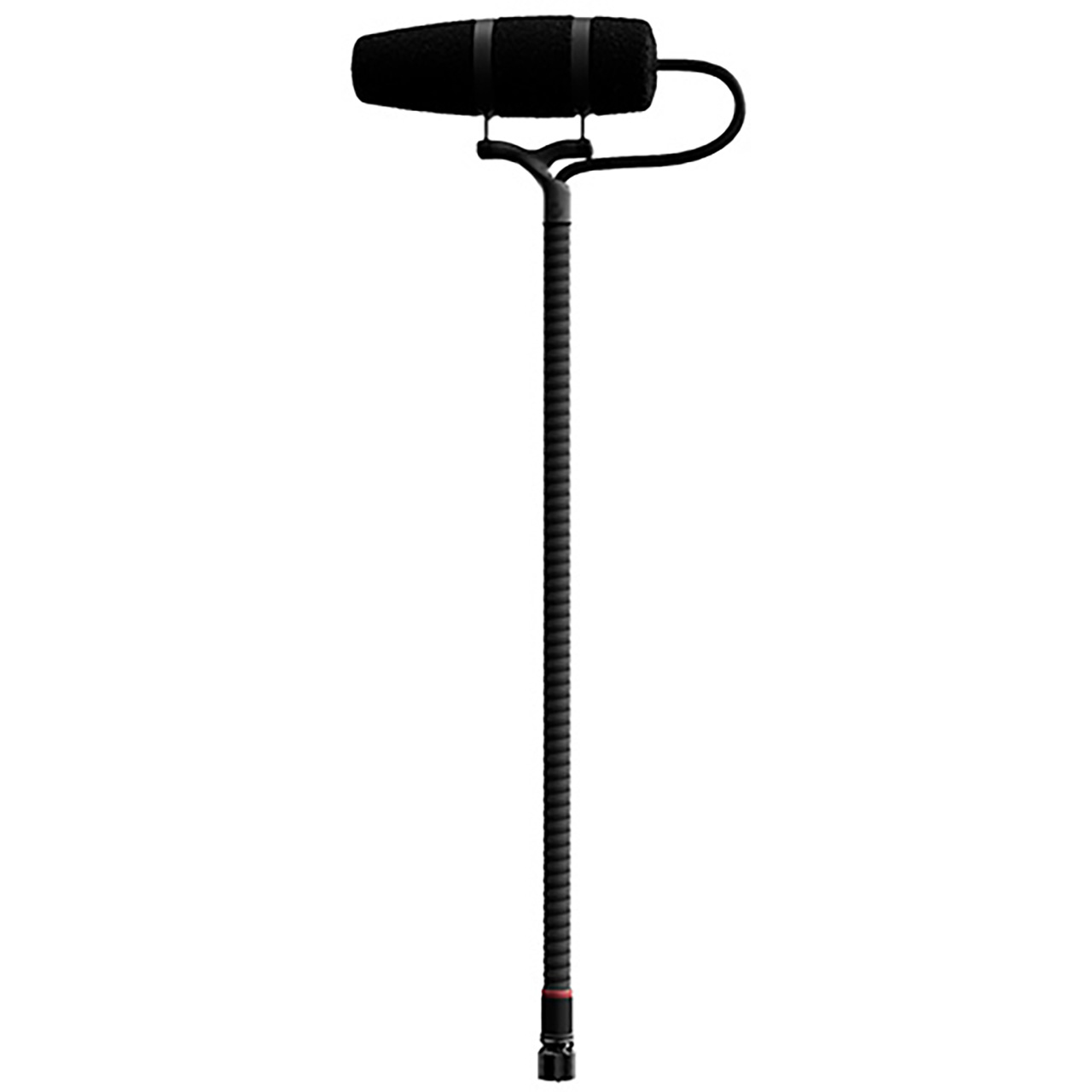

DPA 4099 CORE+ Instrument Microphone delivers pristine, natural and undistorted sound with exceptional isolation and off-axis rejection for any live or studio setting. Fitted with MicroLock® and a series of upgraded instrument clips, the 4099 CORE+ provides even better stability and flexibility on any type of instrument.

(The 4099 CORE+ is fully backwards compatible with all generations of DPA instrument clips and with accessories featuring MicroDot connector, ensuring seamless integration with your existing setup.)

CORE+ captures an instrument's true voice - picked up or amplified with DPA's renowned authenticity. With CORE+ technology inside, the 4099 captures every nuance with pristine clarity, ensuring that the character of the instrument remains untouched, both on-axis and in the surrounding soundscape.

Well-balanced isolation - from surrounding instruments due to the supercardioid polar pattern and linear off-axis response
Lightweight, discreet design - ensures that the 4099 blends seamlessly into performances
Superior Microphone Suspension - from enhanced shock mount and microphone body design. Improves isolation from instrument vibrations and stage noise, ensuring a cleaner signal and a more homogenous sound
Reliable MicroLock® Connector - detachable cable and connection with a wide range of wireless systems

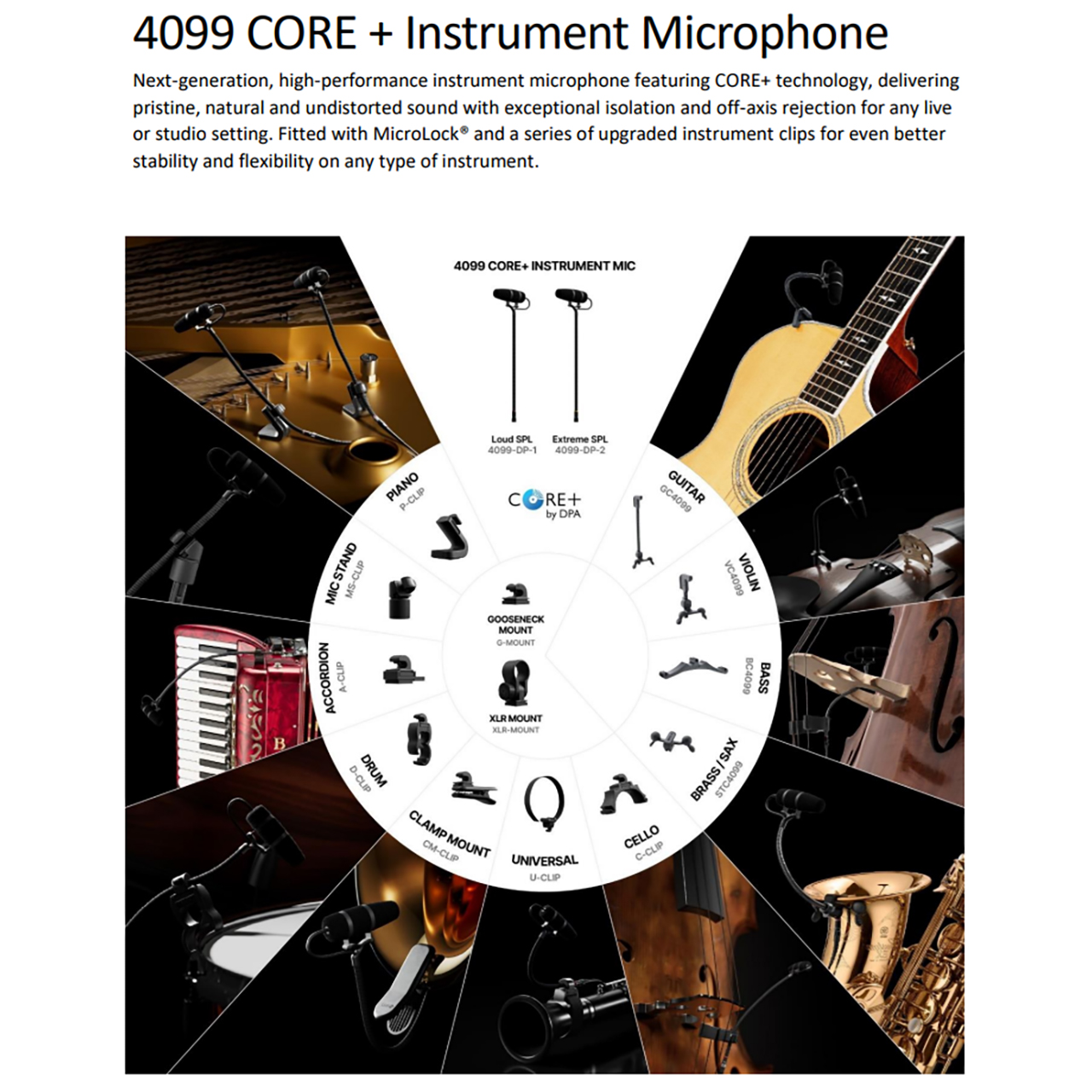

One Microphone, ∞ Possibilities
From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly.

DPA's versatile and practical instrument clip system has been a key selling point since the launch of the original 4099 in 2008. The principle of attaching the clip to the gooseneck has proven highly effective in both classical and rock applications, offering secure and flexible mounting solutions.And now, we have enhanced the clip system - improving not only the acoustic performance of the microphone but also the security, reliability and efficiency of the mounting process. These refinements make it easier to close-mic instruments and adjust capsule positioning for optimal performance.

  • Features:

    • CORE+ technology
    • Loud SPL handling
    • Wide dynamic range
    • Supercardioid pick up pattern
    • Superior gain before feedback
    • MicroLock® connector
    • IP58 certified
    • Advanced, flexible clip program

  • Specifications:

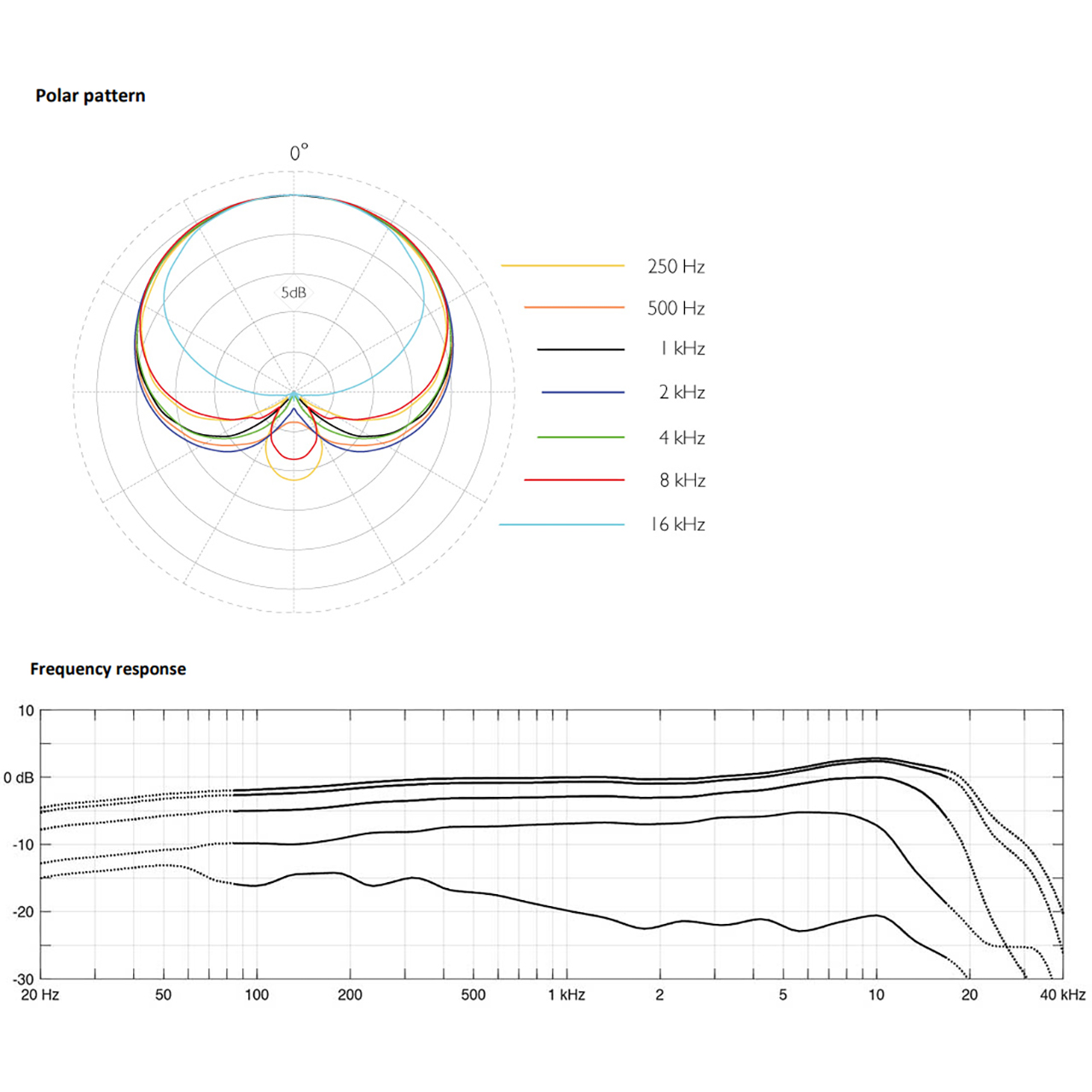

    • Directional Pattern: Supercardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20 Hz - 20 kHz
    • Effective Frequency Range ±2 dB, at 20 cm (7.9 in): 80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
    • Sensitivity, Nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
    • Distortion, THD < 0.5%: 135 dB SPL RMS, 138 dB SPL peak
    • Distortion, THD < 1%: 138 dB SPL RMS, 141 dB SPL peak
    • Dynamic Range: Typ. 118 dB
    • Max. SPL, THD 10%: 145 dB SPL peak
    • Rated Output Impedance: From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
    • Cable Drive Capability: Up to 984 ft (300 m) with DAD9001/DAD9099 XLR Adapter
    • Output Balance Principle: Signal balanced with DAD9099 or DAD9001 XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
    • Power Supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
    • Current Consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
    • Connector: MicroLock

      Physical
    • Weights:
      - Microphone: 0.63 oz (18 g)
      - Clamp Mount Microphone Clip: 0.56 oz (16 g)
      - Microphone Stand Clip: 0.85 oz (24 g)
      - Universal Microphone Clip: 0.53 oz (15 g)
      - Violin and Mandolin Clip: 10 g (0.35 oz)
    • Microphone Diameter: 0.22" (5.7 mm)
    • Microphone Length: 1.97" (50 mm)
    • Cable Length: 5.9 ft (1.8 m) (not included with 4099-DP-1 and 4099-DP-2)
    • Cable Diameter: 0.06" (1.6 mm) / 0.09" (2.2 mm)
    • Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
    • Temperature Range: -40°F to 113°F (-40°C to 45°C)
    • Relative Humidity (RH): Up to 90%
    • Gooseneck Length: 5.5" (140 mm)
    • Sensitivity Selection Tolerance (at 1 kHz): ±1 dB
    • Colors: Black

  • Item Includes:

    • 1x 4099 CORE+ Instrument Microphone
    • 1x Gooseneck Lock
    • 1x DAD9001 MicroLock to 3-pin XLR Adapter with Belt Clip (or 1 x DAD9099 MicroLock to XLR with Low Cut for -G, -S,-T and -V variants)

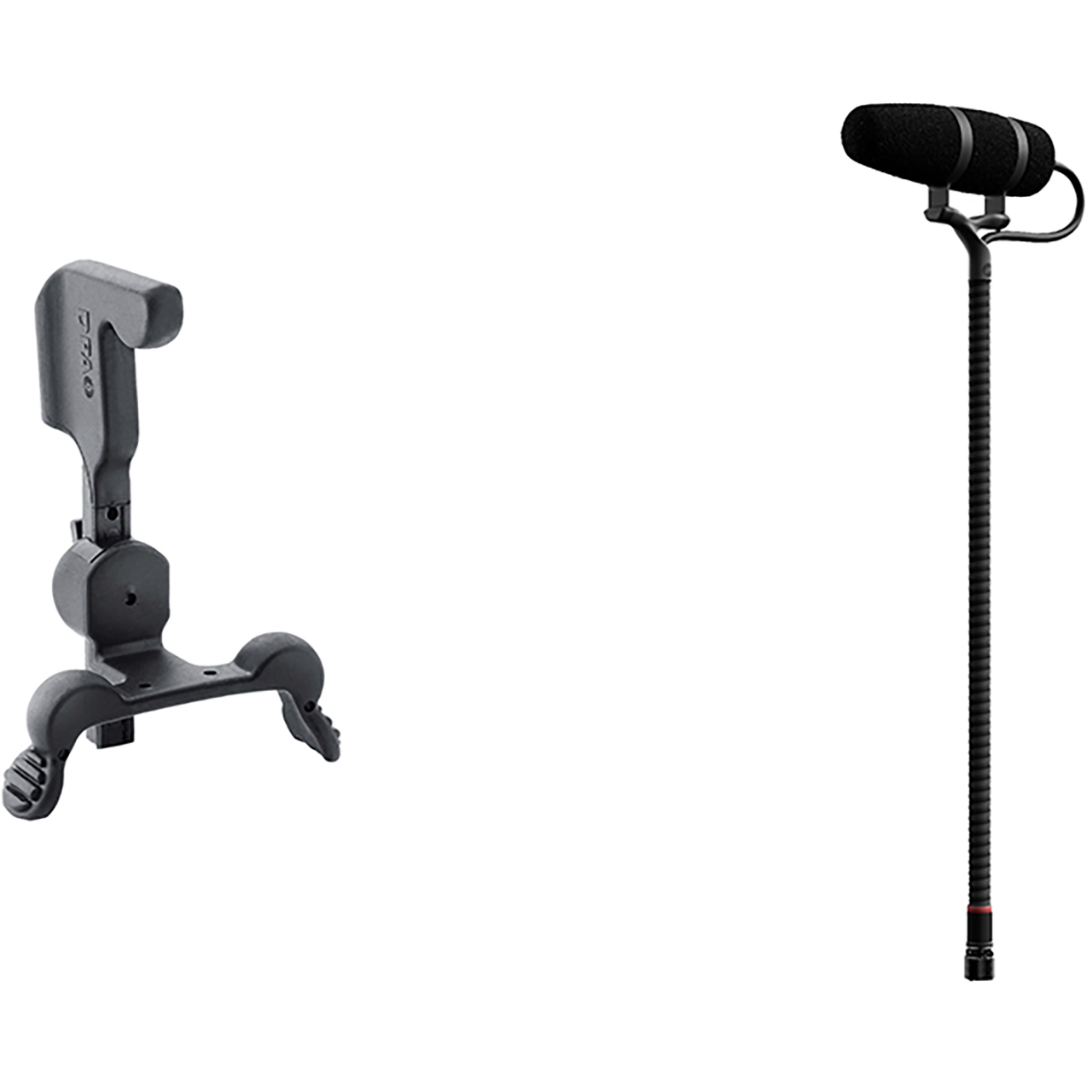

    • 1x Microphone Clip for the respective instrument
    • 1x CM1618B90 MicroLock Extension Cable, 1.6 mm, 1.8 m (5.9 ft), Black (or 1 x CM2218B90 MicroLock Extension Cable, 2.2 mm for -B, -C
    • and -D variants)
    • 1x Zip pouch
    • 1x Zip case

  • Warranty:

    • 2 Year

  • GTIN:

    0571305503175
