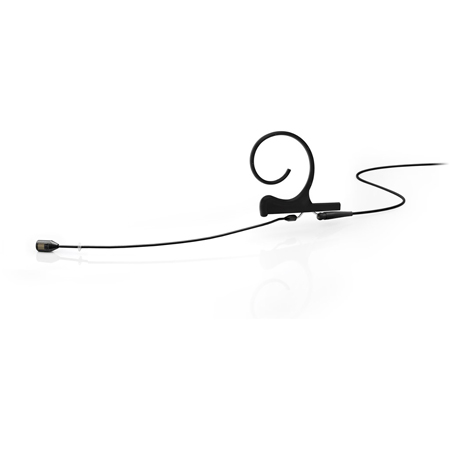

DPA 4288 CORE+ IP58 Directional Flex Cardioid Earset Mic with 100mm Boom and MicroLock - Black

Name: DPA 4288 CORE+ IP58 Directional Flex Cardioid Earset Mic with 100mm Boom and MicroLock - Black
Brand: DPA Microphones
SKU: DPA-4288DPFB90ME
Price: 980.00 USD
Availability: InStock

ITEM #: DPA-4288DPFB90ME MFG #: 4288-DP-F-B90-ME

DPA Microphones

Our Price:

$980.00

Add to Wish List Leasing Options

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

4288-DP-F-B90-ME - Overview

Combining the legendary sound of the 4088 Directional Capsule with the lightweight single earset system, the DPA 4288 CORE+ is ideal for both spoken word and vocal performance applications. It offers accurate and natural voice intelligibility and very high-SPL capabilities - users can both speak and sing into the mic with no hint of distortion

Audio Will Never Be The Same
Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

Distortion Free..
Microphones with CORE+ deliver crystal clear, distortion-free sound across the entire dynamic range of the microphone. Anyone seeking the highest possible sound quality will appreciate CORE+.

Whether recording or amplifying content, the sound will remain clear and completely undistorted by the microphone, even when the talent speaks or sings at louder volumes.

Features:
- CORE+ technology
- Pristine audio quality
- Lightweight and flexible
- Easy mounting to the left or right
- Minimal visual impact
- Resistant to humidity
- Flexible adapter system fits most professional wireless systems
- Effectively negates microphone distortion across the entire dynamic range
- Captures the purest, clearest sound at the source
- Lets sound engineers focus on shaping an extraordinary experience for the audience
- Reduces hassle from unpredictable challenges in the live show environment
Specifications:
- Directional Pattern: Cardioid
- Principle of Operation: Pressure gradient
- Cartridge Type: Pre-polarized condenser

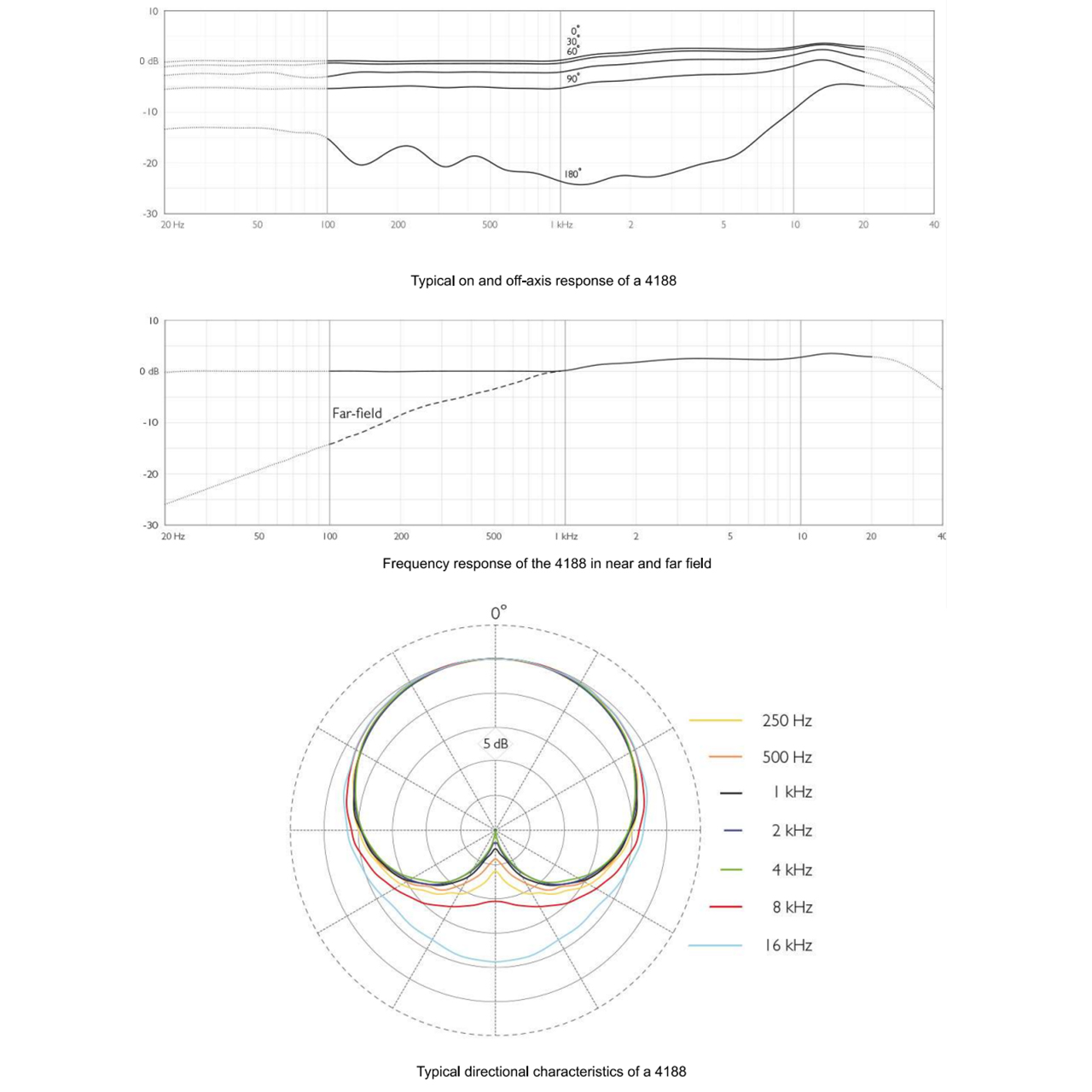

- Frequency Response: 20Hz - 20kHz
- Sensitivity, Nominal, ±3dB at 1kHz: 6mV/Pa; -44dB re. 1V/Pa
- Equivalent Noise Level, A-weighted: Typ. 26dB(A) re. 20µPa (max. 28dB(A))
- Equivalent Noise Level, ITU-R BS.468-4: Typ. 38dB (max. 40dB)
- Distortion, THD < 0.5%: 137dB SPL RMS, 140dB SPL peak
- Distortion, THD < 1%: 139dB SPL RMS, 142dB SPL peak
- Dynamic Range: Typ. 116dB
- Max. SPL, THD 10%: 147dB SPL peak
- Rated Output Impedance:
  - From MicroLock: 30Ω - 40Ω
  - From DAD9001: 100Ω
- Cable Drive Capability: Up to 984ft (300m) with DAD9001 XLR Adapter
- Output Balance Principle: Signal balanced with DAD9001 XLR Adapter
- Common Mode Rejection Ratio (CMRR): > 60dB from 50Hz - 15kHz with DAD9001 XLR Adapter
- Power Supply (for full performance):
  - For wireless systems min. 5V - max. 10V through DPA adapter
  - With DAD9001: P48 (Phantom Power). Will work from 12V.
- Current Consumption:
  - Typ. 1.5mA (microphone)
  - 3.5mA with DAD9001 XLR Adapter

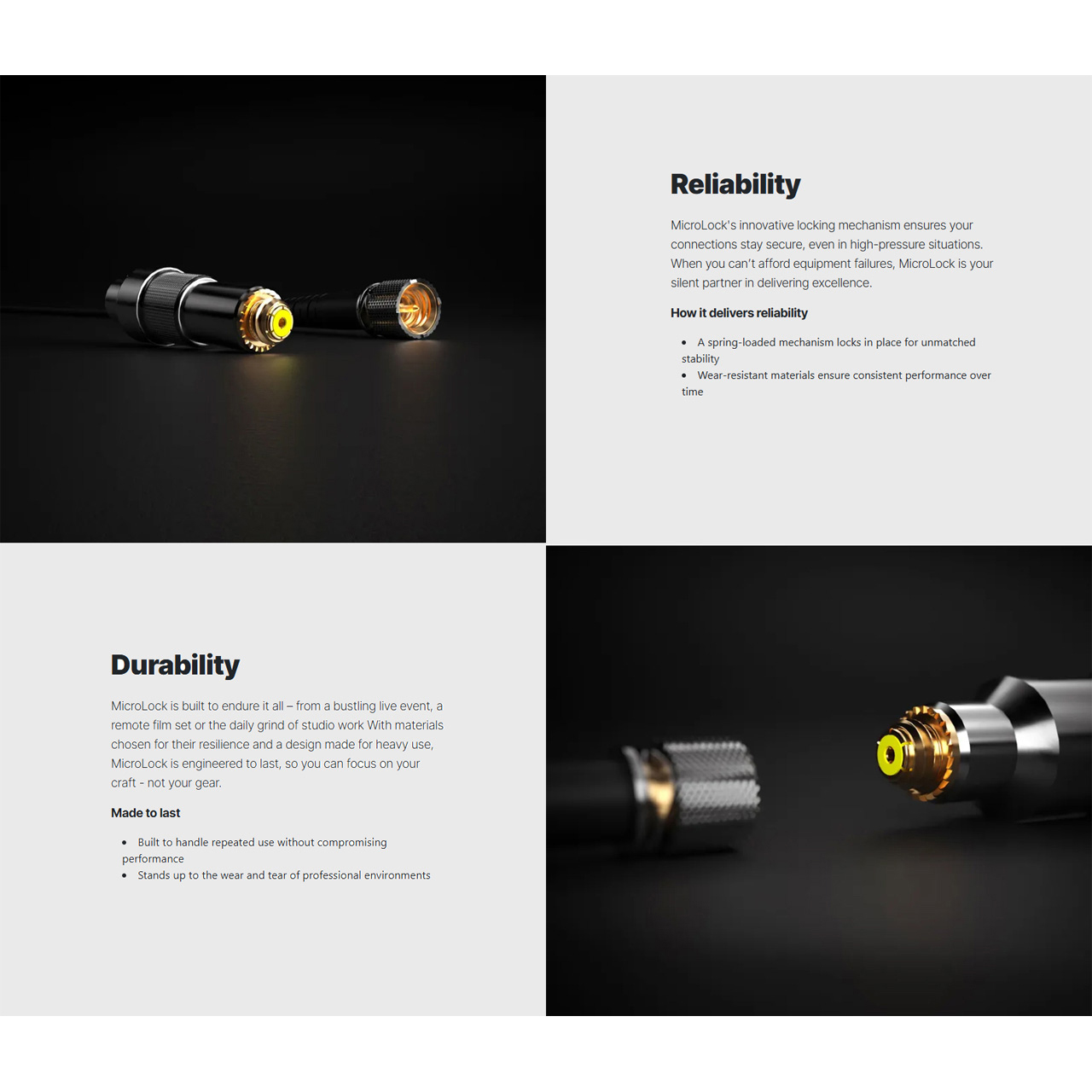

- Connector: MicroLock
- Physical:
  - Single Ear: 0.35oz (10g)
  - Microphone Diameter: 0.21" (5.4mm)
  - Microphone Length: 0.5" (12.7mm)
  - Cable Length: 4.1ft (1.25m)
  - Cable Diameter: 0.06" (1.6mm)
- Polarity: Positively increasing sound pressure produces positive-going voltage at MicroLock pin (and pin 2 on DAD9001 XLR adapter)
- Temperature Range: -40°F - 113°F (-40°C - 45°C)
- Relative Humidity (RH): Up to 90%
Item Includes:
- 1x DPA 4288 CORE+ IP58 Directional Flex Cardioid Earset Mic with 100mm Boom and MicroLock - Black
GTIN:
5713055030667
