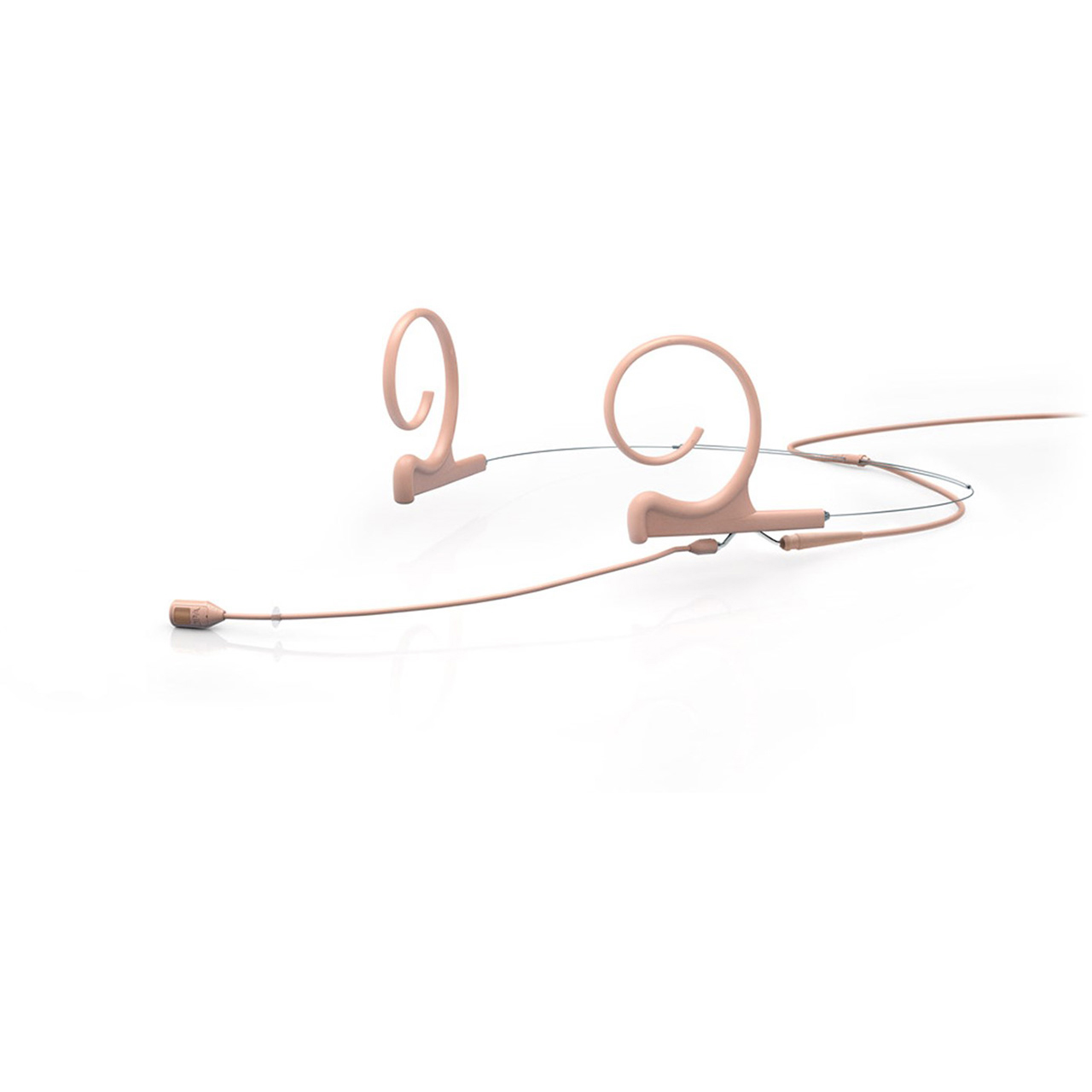

DPA 4288 CORE+ IP58 Directional Flex Cardioid Headset Mic with 100mm Boom and TA4F Mini-XLR - Beige

ITEM #: DPA-4288DPFF10MH MFG #: 4288-DP-F-F10-MH

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,160.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


4288-DP-F-F10-MH - Overview

Combining the legendary sound of the 4088 Directional Capsule with the lightweight single earset system, the DPA 4288 CORE+ is ideal for both spoken word and vocal performance applications. It offers accurate and natural voice intelligibility and very high-SPL capabilities - users can both speak and sing into the mic with no hint of distortion

Audio Will Never Be The Same
Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

Features of CORE+:
• Effectively negates microphone distortion across the entire dynamic range
• Captures the purest, clearest sound at the source
• Lets sound engineers focus on shaping an extraordinary experience for the audience
• Reduces hassle from unpredictable challenges in the live show environment

Distortion Free..
Microphones with CORE+ deliver crystal clear, distortion-free sound across the entire dynamic range of the microphone. Anyone seeking the highest possible sound quality will appreciate CORE+.

Whether recording or amplifying content, the sound will remain clear and completely undistorted by the microphone, even when the talent speaks or sings at louder volumes.

  • Features:

    • CORE+ technology
    • Pristine audio quality
    • Lightweight and flexible
    • Easy mounting to the left or right
    • Minimal visual impact
    • Resistant to humidity
    • Flexible adapter system fits most professional wireless systems

  • Specifications:

    • Directional Pattern: Cardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20 Hz - 20 kHz
    • Sensitivity, Nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
    • Equivalent Noise Level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
    • Distortion, THD < 0.5%: 137 dB SPL RMS, 140 dB SPL peak
    • Distortion, THD < 1%: 139 dB SPL RMS, 142 dB SPL peak
    • Dynamic Range: Typ. 116 dB
    • Max. SPL, THD 10%: 147 dB SPL peak
    • Rated Output Impedance:
      - From MicroLock: 30 - 40 Ω
      - From DAD9001: 100 Ω
    • Cable Drive Capability: Up to 984 ft (300 m) with DAD9001 XLR Adapter
    • Output Balance Principle: Signal balanced with DAD9001 XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9001 XLR Adapter
    • Power Supply (for full performance):
      - For wireless systems Min. 5 V - max. 10 V through DPA adapter
      - With DAD9001: P48 (Phantom Power). Will work from 12 V
    • Current Consumption:
      - Typ. 1.5 mA (microphone)
      - 3.5 mA with DAD9001 XLR Adapter
    • Connector: TA4F Mini-XLR
    • Physical:
      - Single Ear: 0.35 oz (10 g)
      - Microphone Diameter: 0.21" (5.4 mm)
      - Microphone Length: 0.5" (12.7 mm)
      - Cable Length: 4.1 ft (1.25 m)
      - Cable Diameter: 0.06" (1.6 mm)
    • Polarity: Positively increasing sound pressure produces positive-going voltage at MicroLock pin (and pin 2 on DAD9001 XLR adapter)
    • Temperature Range: -40°F to 113°F (-40°C to 45°C)
    • Relative humidity (RH): Up to 90%

  • Item Includes:

    • 1x DPA 4288 CORE+ IP58 Directional Flex Cardioid Headset Mic with 100mm Boom and TA4F Mini-XLR - Beige
    • 1x MicroLock to TA4F Mini-XLR Adapter

  • GTIN:

    5713055030957
