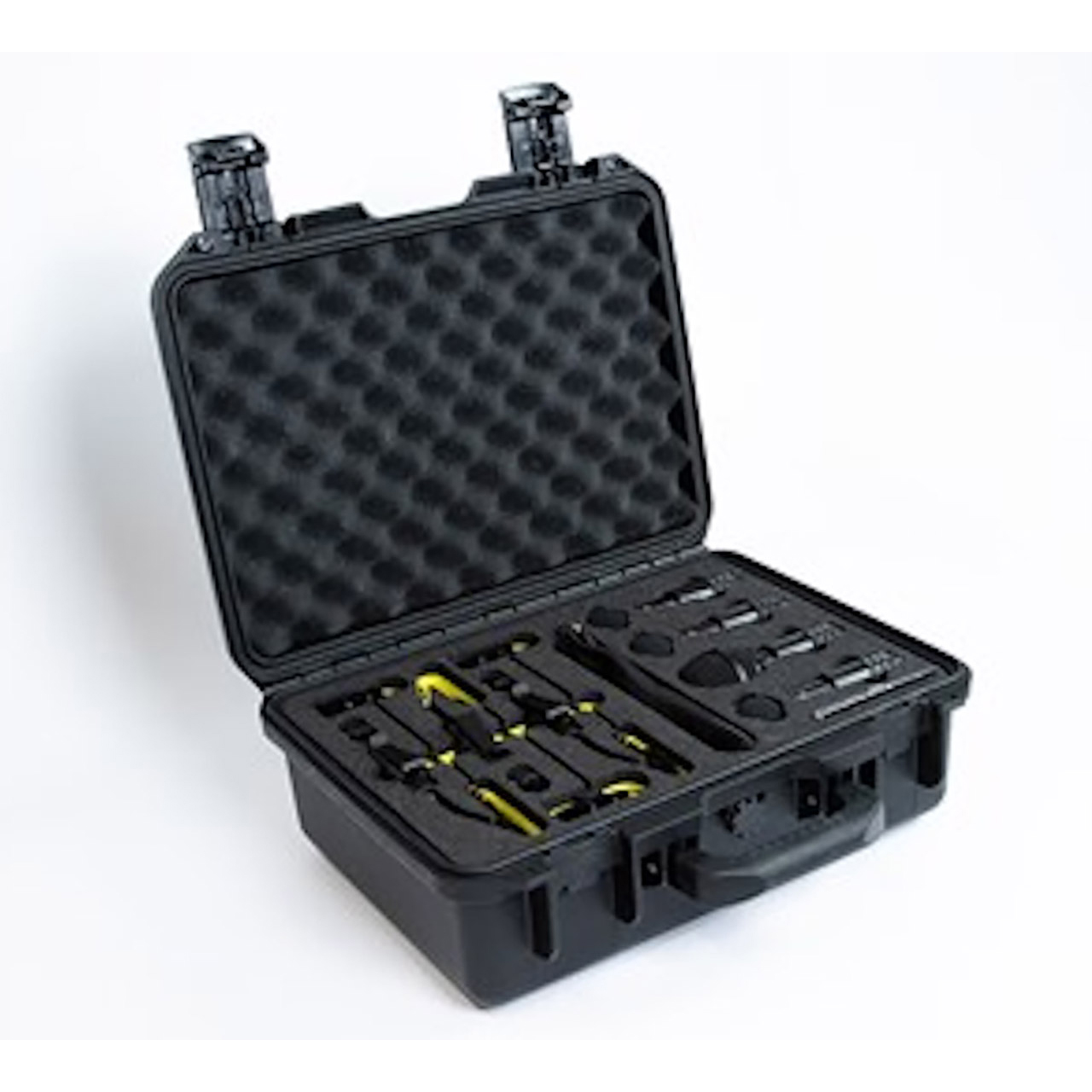

DPA DDK4002 Drum Microphone Kit with Peli Hardcase and 6 Pressure Gradient Microphones

DDK4002 - Overview

Capture the Sublime, Honest Sound with this DPA Drum Mic Kit

• Features:

  • Natural and precise sound reproduction of the entire kit
  • A clean slate to convey the desired mood to the audience
  • Specific mic placements prevent artifacts, bleed, and other shadowing effects
  • Minimum EQ needed, sounds as the drummer hears it
  • Sturdy, upgraded case layout eases use and provides extra storage


• Specifications:

  2012 Compact Cardioid Mic
  • Directional Pattern: Cardioid
  • Cartridge Type: Pre-polarized condenser
  • Freq. Response: 20Hz - 20kHz
  • Effective Freq. Range, ±2dB, at 11.8" (30cm): 40Hz - 20kHz
  • Sensitivity, Nominal, ±2dB at 1kHz: 8mV/Pa
  • Equivalent Noise Level, A-weighted: Typ. 20dB(A) re. 20μPa (max. 22dB(A))
  • Dynamic Range: Typ. 131dB
  • Max SPL (THD 10%): 156dB SPL peak
  • Rated Output Impedance: 60Ω
  • Minimum Load Impedance: 2Ω
  • Cable Drive Capability: 328ft (100m)
  • Output Balance Principle: Impedance Balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR): > 60dB
  • Power Supply: P48 (Phantom Power)
  • Current Consumption: 0.7mA
  • Connector: XLR-3M
  • Weight: 2.9oz (83g)
  • Mic Diameter: 0.75" (19mm)
  • Capsule Diameter: 0.67" (17mm)
  • Maximum Output Voltage (RMS): 8.7V (21dBu)
  • Polarity: +V at pin 2 for positive sound pressure
  • Distortion (THD < 1%):
    - 148dB SPL
    - 151dB SPL peak

    2015 Wide Cardioid Mic
  • Directional Pattern: Wide cardioid
  • Cartridge Type: Pre-polarized condenser
  • Freq. Response: 20Hz - 20kHz
  • Effective Freq. Range, ±2dB, at 11.8" (30cm): 40Hz - 18kHz
  • Sensitivity, Nominal, ±2dB at 1kHz: 12mV/Pa
  • Equivalent Noise Level, A-weighted: Typ. 18dB(A) re. 20μPa (max. 20dB(A))
  • Dynamic Range: Typ. 132dB
  • Max SPL (THD 10%): 153dB SPL peak
  • Rated Output Impedance: 60Ω
  • Minimum Load Impedance: 2Ω
  • Cable Drive Capability: 328ft (100m)
  • Output Balance Principle: Impedance Balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR): > 60dB
  • Power Supply: P48 (Phantom Power)
  • Current Consumption: 0.7mA
  • Connector: XLR-3M
  • Maximum Output Voltage (RMS): 8.7V (21dBu)
  • Weight: 2.9oz (83g)
  • Mic Length: 3.7" (94mm)
  • Mic Diameter: 0.75" (19mm)
  • Capsule Diameter: 0.67" (17mm)
  • Distortion (THD < 1%):
    - 147dB SPL
    - 150dB SPL peak

    4055 Kick Drum Mic
  • Directional Pattern: Open cardioid
  • Cartridge Type: Pre-polarized condenser
  • Freq. Response: 20Hz - 20kHz
  • Effective Freq. Range, ±2dB, at 7.9" (20cm): 40Hz - 18kHz with a 6dB soft boost at 10kHz
  • Equivalent Noise Level, A-weighted: Typ. 27dB(A) re. 20μPa (max. 29dB(A))
  • Equivalent Noise Level (ITU-R BS.468-4): Typ. 39dB (max. 41dB)
  • Dynamic Range: Typ. 132dB
  • Rated Output Impedance: 380Ω
  • Minimum Load Impedance: 2Ω
  • Cable Drive Capability: 328ft (100m)
  • Output Balance Principle: Impedance Balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR): > 55dB
  • Power Supply: P48 (Phantom Power)
  • Current Consumption: 2.0mA
  • Connector: XLR-3M
  • Weight: 8.5oz (241g)
  • Mic Diameter: 2.24" (57mm)
  • Capsule Diameter: 0.67" (17mm)
  • Mic Length: 5.19" (132mm)
  • Maximum Output Voltage (RMS): 9.75V
  • Polarity: +V at pin 2 for positive sound pressure
  • Max SPL (THD 10%): 164dB SPL peak
  • Distortion (THD < 1%):
    - 156dB SPL RMS
    - 159dB SPL peak
  • Sensitivity, Nominal, ±2dB at 1kHz: 2mV/Pa (-54dB re. 1V/Pa)

    4099 CORE+ Mic Loud SPL
  • Directional Pattern: Supercardioid
  • Cartridge Type: Pre-polarized condenser
  • Freq. Response: 20Hz - 20kHz
  • Effective Freq. Range, ±2dB, at 7.9" (20cm): 80Hz - 17kHz with a 2dB soft boost at 10kHz - 12kHz
  • Equivalent Noise Level, A-weighted: Typ. 23dB(A) re. 20μPa (max. 26dB(A))
  • Sensitivity, Nominal, ±3dB at 1kHz: 6mV/Pa; -44dB re. 1V/Pa
  • Dynamic Range: Typ. 118dB
  • Rated Output Impedance:
    - From MicroLock: 30Ω - 40Ω
    - From DAD9099 or DAD9001: 100Ω
  • Cable Drive Capability: Up to 984ft (300m) with DAD9001/DAD9099X

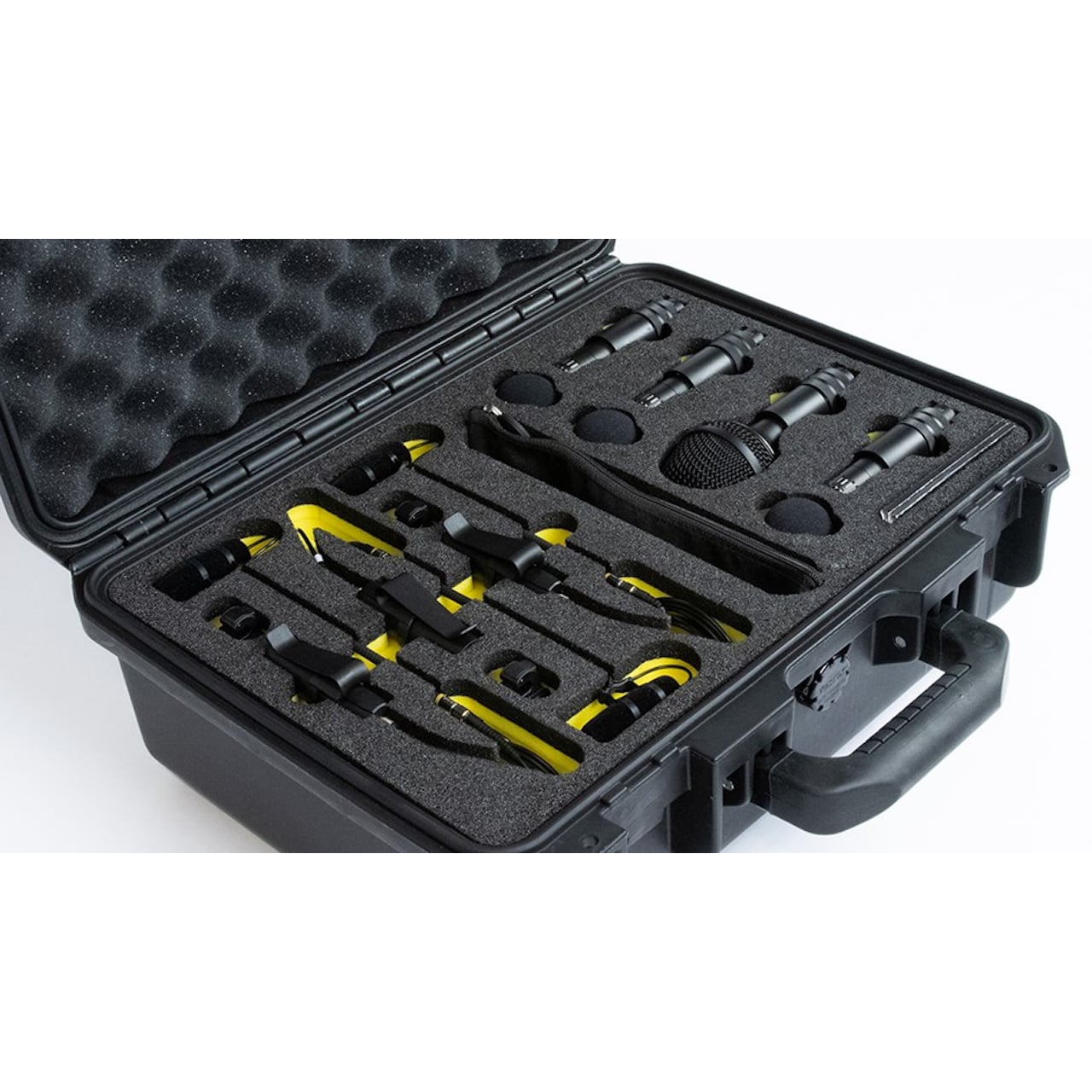

• Item Includes:

  • 1x 2012 Compact Cardioid Mic
  • 2x 2015 Compact Wide Cardioid Mic
  • 1x 4055 Kick Drum Microphone
  • 3x 4099 CORE+ Mic Extreme SPL
  • 4x Microphone Holders
  • 3x DAD9001 Adapter: MicroLock to 3-pin XLR with Belt Clip
  • 3x Microphone Clip for Drum
  • 3x MicroLock Extension Cable 5.9 ft (1.8 m) - Black
  • 3x Foam Windscreen
  • 1x Zip Pouch

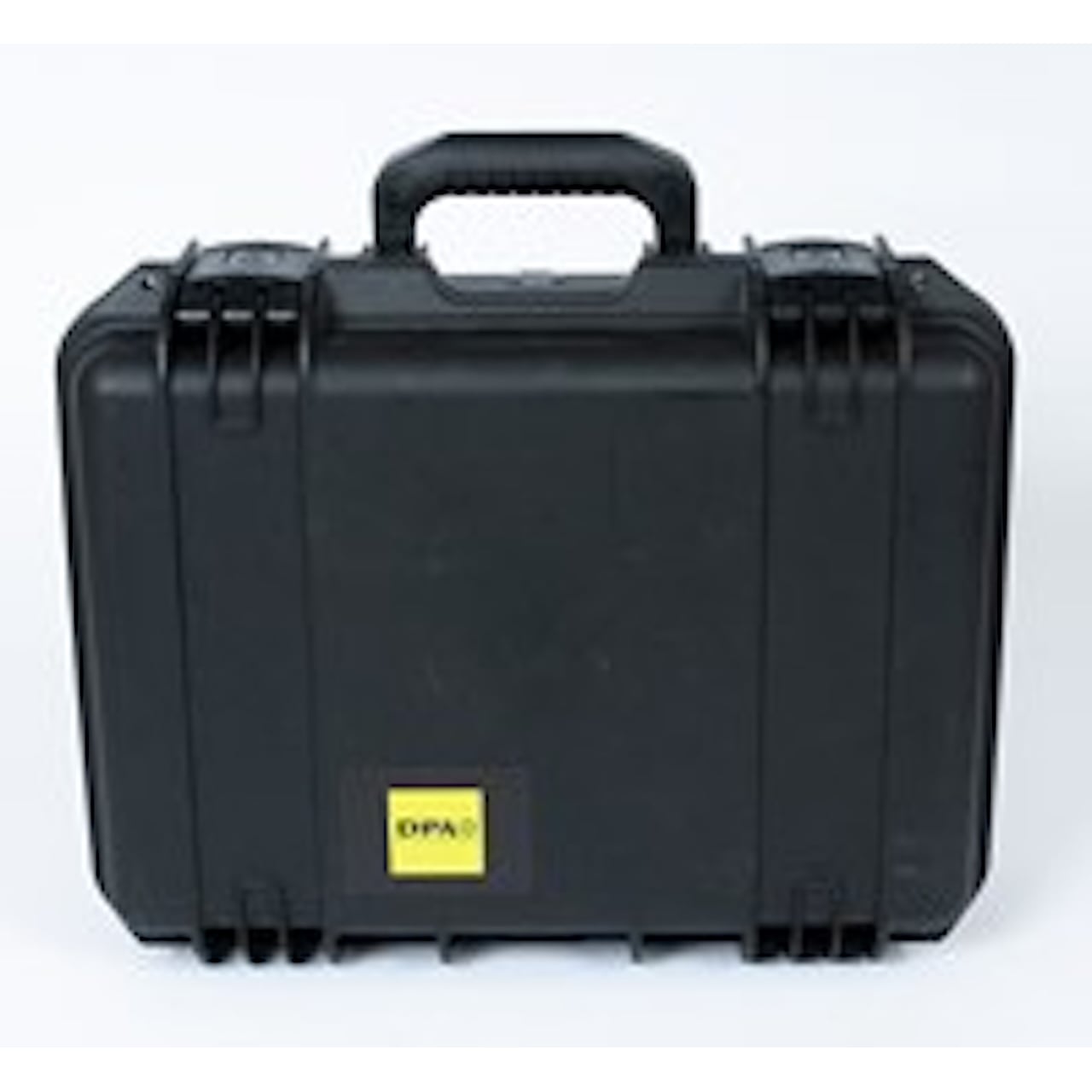

  • 1x Peli Case
