FIO66C00-2 - Overview

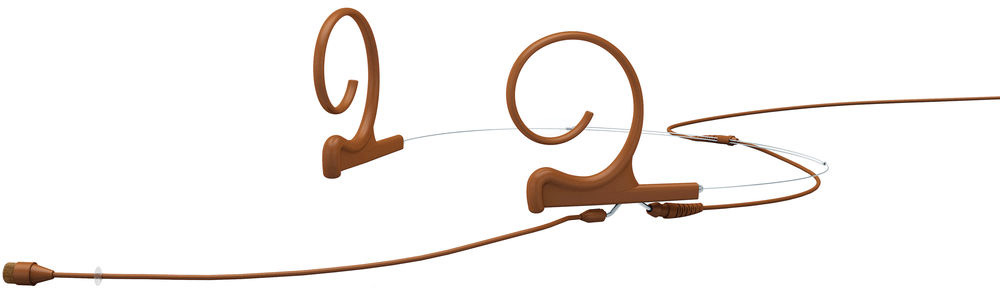

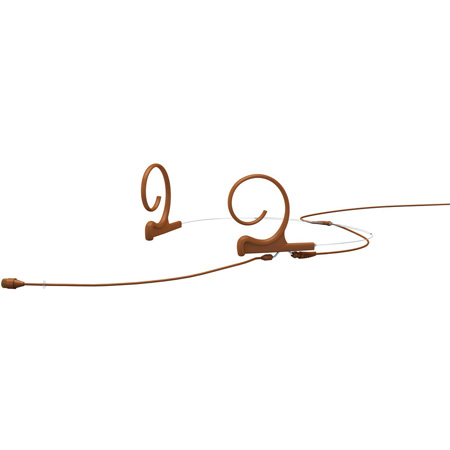

The d:fine™ 66 FIO66C00-2 Headset Microphone combines the legendary 4066 Omnidirectional capsule with the lightweight and flexible d:fine Headset system. Available in black, beige, brown, and lime green, the DPA d:fine has been ergonomically designed to fit easily and seamlessly. It will adjust to fit any ear size and head shape while mounting securely and hardly visible. Just by rotating the boom and the earhook, the microphone can be moved from left to right ear, or into the optimum position. Staying true to the DPA legacy, d:fine offers accurate, natural voice intelligibility and very high SPL capabilities - users can both speak and sing into the mic with no hint of distortion.

  • Features:

    • Pristine audio quality
    • Easy single-ear or dual-ear mounting
    • Minimal visual impact
    • Adapts to all pro wireless systems

  • Specifications:

    • Directional Characteristics: Omnidirectional
    • Principle of Operation: Pressure
    • Cartridge Type: Pre-polarized condenser
    • Frequency Range: 20 Hz - 20 kHz
    • Frequency Range: ± 2 dB: Soft boost grid: 20 Hz- 20 kHz, 3 dB soft boost at 8 - 20 kHz. Optional High boost grid: 20 Hz - 20kHz, 10 dB boost at 12 kHz.
    • Sensitivity, Nominal +/- 3 dB at 1 kHz: 6mV/Pa; -44 dB re. 1 V/Pa
    • Equivalent Noise Level: A-weighted: Typ. 26dB(A) re. 20 µPa (max. 28 dB(A))
    • Equivalent Noise Level: ITU-R BS.468-4: Typ. 38dB (max. 40 dB)
    • S/N Ratio (A-weighted): re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
    • Total Harmonic Distortion (THD): <1 % up to 123 dB SPL peak
    • Total Harmonic Distortion (THD): <1 % up to 120 dB SPL RMS sine
    • Dynamic Range: Typ. 97 dB
    • Max. SPL, Peak Before Clipping: 144 dB

  • Item Includes:

    • Cable clip which anchors the cable to your clothing
    • Five color coded identification rings
    • Three foam windscreens

  • GTIN:

    5713055015015
