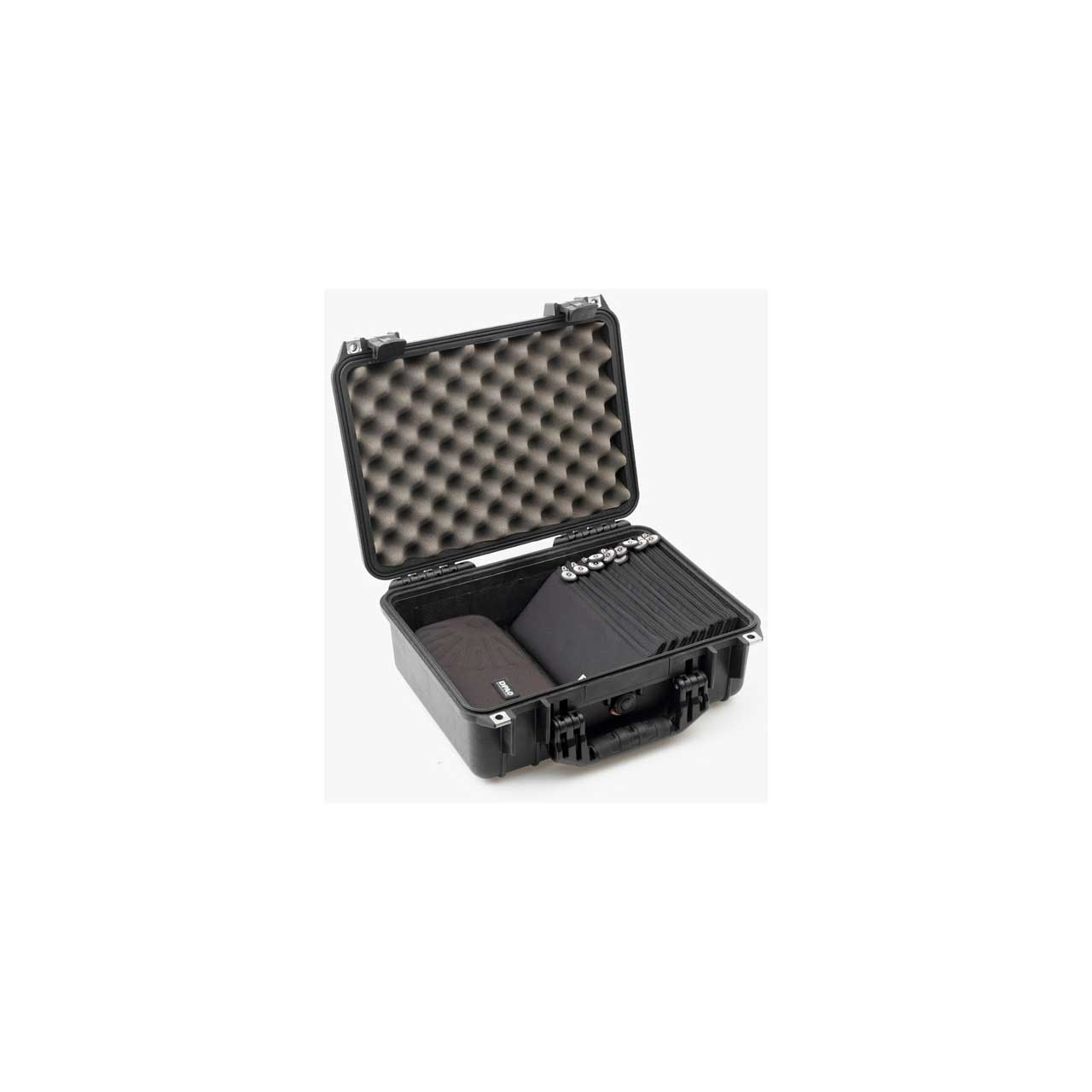

DPA KIT-4099-DC-10C 4099 CORE Classic Touring Kit with 10 Mics and Accessories - Loud SPL in a Pelican Case

ITEM #: DPA-KIT4099DC10C MFG #: KIT-4099-DC-10C

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$6,980.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    KIT-4099-DC-10C - Overview

    A perfect kit for your needs

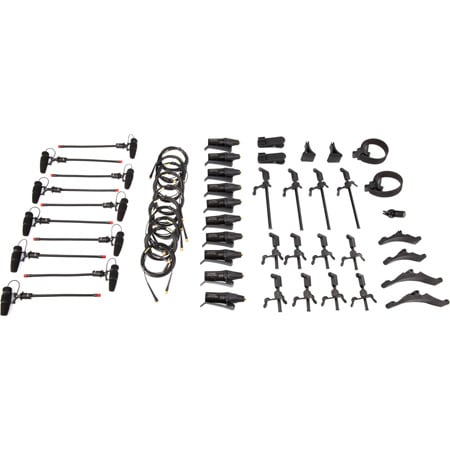

    There are two different types of kits available and they can each be purchases with 4 or 10 microphones. Ready for on-the-road use for rental companies, musicians or theatres, the 4099 Classic Touring Kit offers microphones and a selection of accessories selected for typical use in an acoustic music setting. This kit features a number of 4099 CORE Instrument Microphones for Loud SPL, which are perfect for use on a wide range of instruments - from the flute to the guitar, and everything in between.

    The 4099 Rock Touring Kit offers a number of 4099 condenser microphones and a selection of accessories selected for typical use in a live rock music setting. With a max SPL, peak before clipping of 152 dB, the 4099 CORE Instrument Microphone for Extreme-SPL instruments was designed for use on drums, percussion instruments and other loud instruments, like the trumpet and saxophone.

    About 4099 CORE Instrument Microphones
    Both the Loud- and Extreme-SPL versions of the 4099 CORE have a supercardioid polar pattern for high rejection and superior gain-before-feedback. The mic also retains a uniform off-axis frequency response to ensure a high-energy, clear live performance.

    The 4099 CORE also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble. Cables are available in heavy duty or lightweight versions, depending on the application - both are designed to withstand the rigors of daily use. A versatile, integrated gooseneck extender provides easy and repeatable mounting.

    The mics can be easily unclipped and repositioned or moved to another instrument. The mounting system is designed to never blemish or scratch the finish of your instrument. The flexible design supports a wide variety of mounting and positioning possibilities.

    • Features:

      • CORE by DPA technology inside
      • Supercardioid condenser microphone
      • Handles high SPLs
      • Superior gain-before-feedback
      • Flexible and easy mounting
      • Gentle and easy to mount on the instrument
      • Detachable cable and a versatile gooseneck extender

    • Specifications:

      • Directional Pattern: Supercardioid
      • Principle of Operation: Pressure gradient
      • Cartridge Type: Pre-polarized condenser
      • Frequency Response: 20 Hz - 20 kHz
      • Effective Frequency Range ±2 dB, at 20 cm (7.9"): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC
      • Sensitivity, Nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
      • Equivalent Noise Level, A-Weighted: Typ. 23 dB(A) re. 20 æPa (max. 26 dB(A))
      • Distortion, THD < 1%: 128 dB SPL RMS, 131 dB SPL peak
      • Dynamic Range: Typ. 108 dB
      • Max. SPL, THD 10%: 142 dB SPL peak
      • Rated Output Impedance: From MicroDot: 30 - 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω
      • Cable Drive Capability: Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter
      • Output Balance Principle: Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter
      • Common Mode Rejection Ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter
      • Power Supply (for Full Performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V
      • Current Consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter
      • Connector: MicroDot
      • Color: Black
      • Weight: Microphone: 17g (0.60oz)
      • Microphone Diameter: 5.7mm (0.22")
      • Microphone Length: 45mm (1.8")
      • Cable Length: 1.8m (5.9')
      • Cable Diameter: 1.6mm (0.06") / 2.2mm (0.09")
      • Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter)
      • Temperature Range: -40° to 45°C (-40° to 113°F)
      • Relative Humidity (RH): Up to 90%
      • Gooseneck Length: 140mm (5.5")
      • Sensitivity Selection Tolerance (at 1kHz): ±1dB


    KIT-4099-DC-10C - Required Accessories
