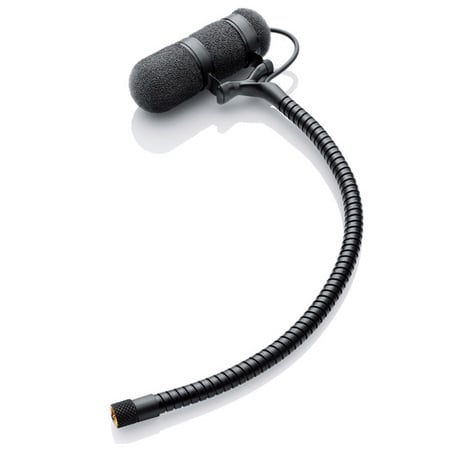

DPA VO4099B d:vote4099 Instrument Mic Kit Supercardioid Bass

VO4099B - Overview

• Features:

  • Superior gain-before-feedback
  • Natural sound – easy to blend with pick-up

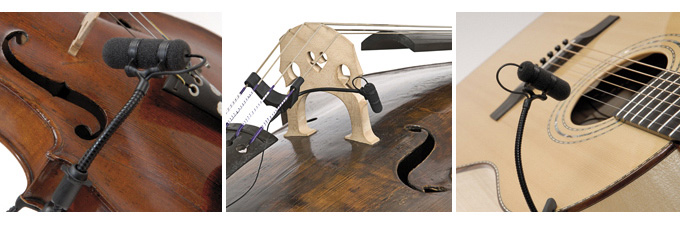

  • Flexible and easy mounting
  • Mount has no impact on acoustic sound
  • Detachable cable and versatile gooseneck extender


• Specifications:

  • Directional characteristics: Supercardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz to 20 kHz
  • Frequency range, ± 2 dB, 20 cm (7.9 in) distance: 80 Hz to 15 kHz with 2 dB soft boost at 10 to 12 kHz
  • Sensitivity, nominal, ±3 dB: 6 mV/Pa; -44.5 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
  • S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 71 dB
  • Total harmonic distortion (THD): < 1 % up to 123 dB SPL peak; < 1 % up to 120 dB SPL RMS sine
  • Dynamic range: 100 dB
  • Max. SPL, peak before clipping: 142 dB
  • Output impedance: From MicroDot: 30 to 40 ohm, from DAD6001: 100 ohm
  • Cable drive capability: 300 m (984 ft) with DAD6001
  • Output balance principle: Signal balanced with DAD6001 XLR adapter
  • Common Mode Rejection Ratio (CMRR): > 60 dB at 50 Hz to 15 kHz with DAD6001 XLR adapter
  • Power supply: Min. 5 V to max. 50 V through DPA adapter for wireless systems; 48 V phantom power ±4 V with DAD6001 XLR adapter
  • Current consumption: 1.5 mA; 3.5 mA with DAD6001 XLR adapter
  • Connector: MicroDot
  • Color: Black
  • Weight: 33 g (1.16 oz)
  • Microphone length: 45 mm (1.8 in)
  • Cable length: 1.8 m (6 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
  • Operating temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative humidity: Up to 90 %
  • Gooseneck, length: 140 mm (5.5 in)


• Item Includes:

  • Supercardioid d:vote 4099 Microphone
  • d:vote Bass mount
  • Heavy Duty MicroDot Cable
  • MicroDot to XLR Adapter
