Draper 139027SAQU Access FIT E 92 Inch HDTV ClearSound White Weave XT900E 110 V w/ Quiet Motor & LVC-IV Low Volt Control

ITEM #: DR-139027SAQU MFG #: 139027SAQU

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DR-139027SAQU

139027SAQU - Overview

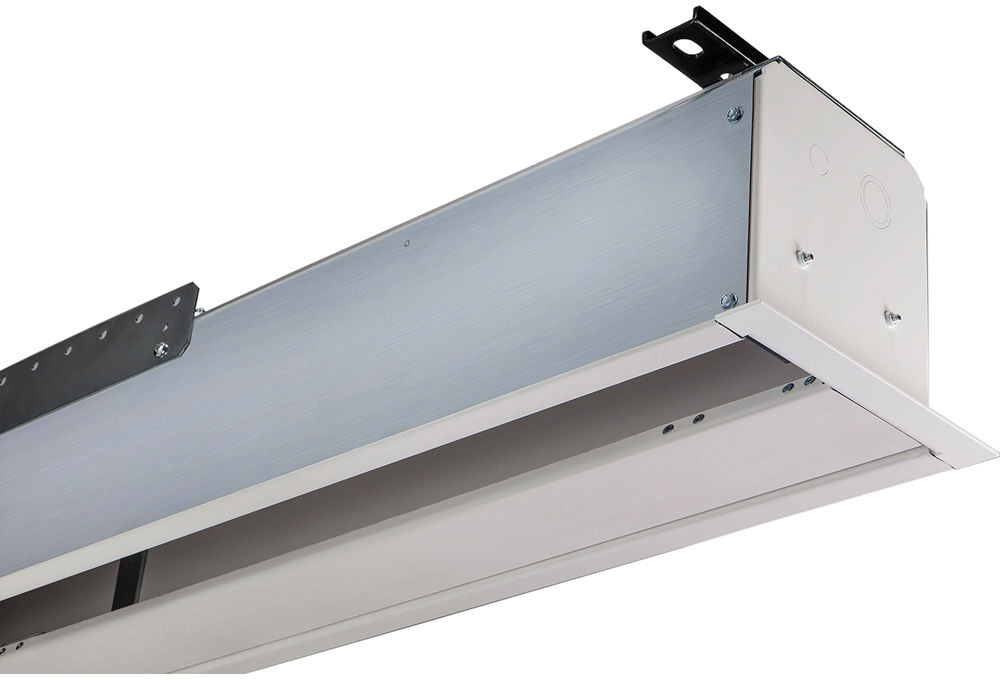

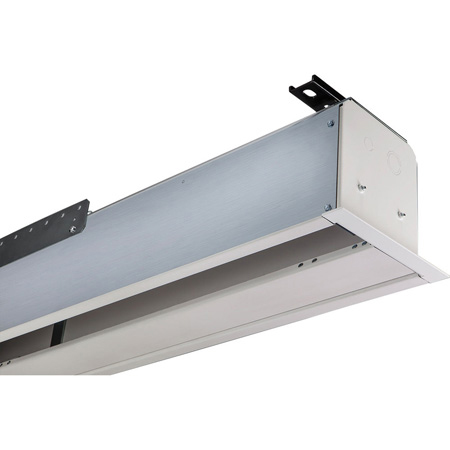

Engineered with compact housing less than 6" tall, the Draper 139027SAQU Access FIT E ceiling-recessed, electric projection screen fits tighter ceiling spaces. This free-hanging, fiberglass-backed projection screen maintains flatness thanks to the weight of the screen and bottom dowel. The bottom closure panel provides access to all components for easier service and maintenance. Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation of the screen at a later time. The Access FIT E is an ideal choice for boardrooms, training rooms, universities, and churches.

  • Features:

    • Maximum image width up to 120" (305 cm) wide, depending on surface selection
    • NTSC, HDTV AND 16:10 format have image area framed with black on all fours sides. Black side borders are available on request for AV format Screens
    • Adjustable or removable hoisting brackets included for easy lifting during installation
    • Sliding brackets on top of the case allow for adjustments for mounting
    • Sliding brackets inside case accommodate different size screens
    • Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance
    • Quick-connect wiring allows for early installation of the case with the addition of the screen later

  • Specifications:

    • Surface material: ClearSound White Weave XT900E
    • Image Format: HDTV
    • Diagonal size: 92"
    • Image/Viewable area: 45" x 80"
    • Overall size: 57" x 83 1/2"
    • Case length: 102"
    • Product weight: 74 pounds
    • Shipping weight: 86 pounds

  • What screen is right for you? Configure Your Screen with the Draper Projection Planner!

    :
