Draper 140038FNU Access FIT V 123 Inch 16:10 Pure White XT1300V 110 V Projection Screen w/ LVC-IV Low Voltage Controller

ITEM #: DR-140038FNU MFG #: 140038FNU

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DR-140038FNU

140038FNU - Overview

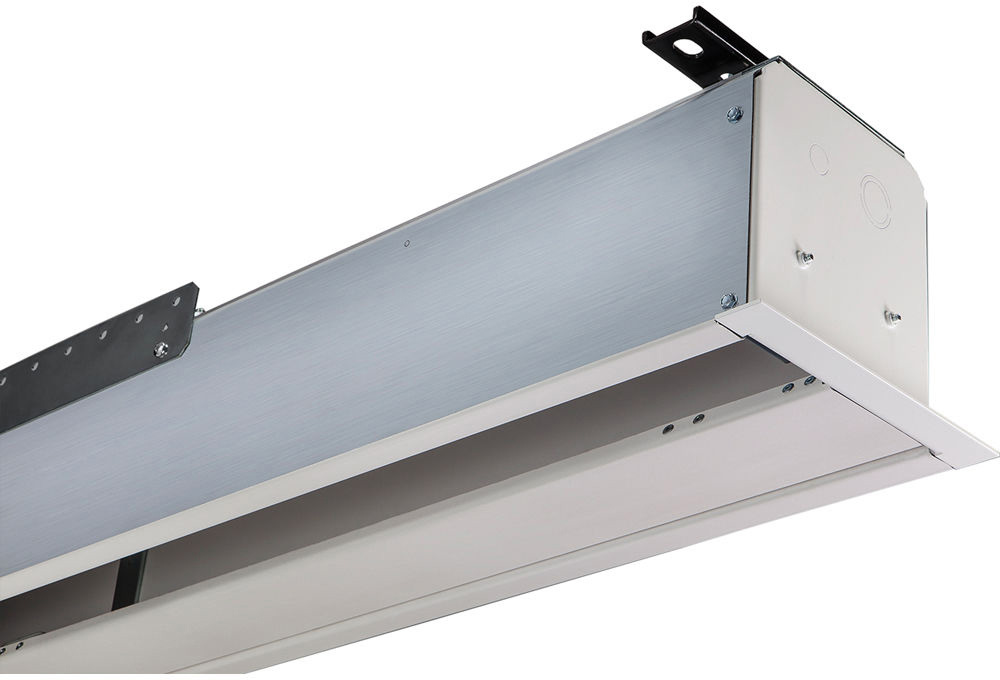

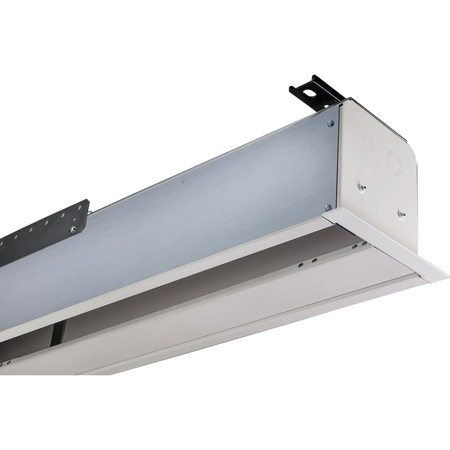

Draper Inc. 140038FNU slim case design of the ceiling-recessed Access FIT V electric projection screen provides easy installation above the ceiling - perfect for small conference or multi-purpose rooms and home theaters. Tab-tensioned screens provide a perfectly flat viewing surface with better image quality. Draper’s RF welded tabs create a more durable seal that eliminates separation and stickiness. Installation of the case during the initial phase of construction eliminates job site damage, allowing for installation of the screen later.

  • Features:

    • Case dimensions are 5-11/16" high x 6-7/16" deep (14 cm x 16 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details
    • Access Fit is recommended when space is at a premium. The standard Access is a good alternative whenever the above-ceiling space permits
    • Maximum image width up to 104" (264 cm) wide, depending on surface selection
    • RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years
    • Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area
    • Adjustable or removable hoisting brackets included for easy lifting during installation
    • Sliding brackets on top of the case allow for adjustments for mounting
    • Sliding brackets inside case accommodate different size screens
    • Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance
    • Quick-connect wiring allows for early installation of the case with the addition of the screen later
    • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available
    • Low voltage, video interface or other controls can be built into housing for below ceiling access
    • White case standard, black available upon request
    • Custom sizes available

  • Specifications:

    • Surface material: Pure White XT1300V
    • Image Format: 16:10
    • Diagonal size: 123"
    • Image/Viewable area: 65" x 104"
    • Case length: 131"
    • Product weight: 85 lbs
    • Shipping weight: 110 lbs

  • What screen is right for you? Configure Your Screen with the Draper Projection Planner!

    :
