Muxlab 500435 5x1 HDMI / HDBT Multimedia Presentation Switch

Manufacturer: MuxLab Inc

Item #: MUX-500435   •   MFG #: 500435


List Price:$1,169.00
Our Price:$800.00

free ship
More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -

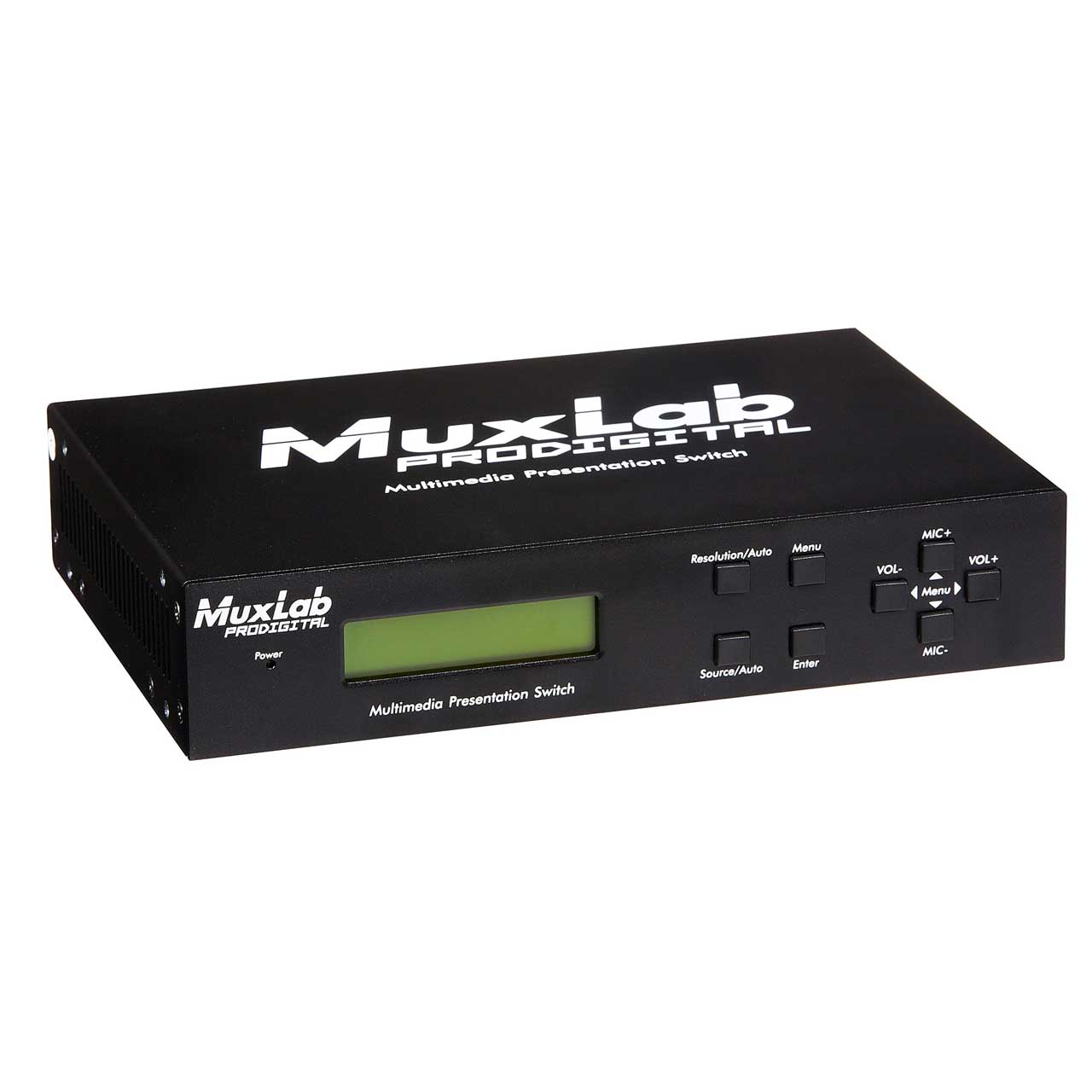

    The 5x1 HDMI / HDBT Presentation switch is a compact scaler switcher with 5 video inputs (3 HDMI, 2 VGA) and 6 audio inputs (3 HDMI audio & 2 VGA with audio switched following the video; 1 MIC audio input). The VGA input supports VGA, Component Video (YPbPr) and Composite Video.

    The 5x1 HDMI / HDBT Presentation switch scales & switches any video signal to HDMI output and HDBaseT output for a transmission over up to 70 m of Cat5e/6 with PoC support.

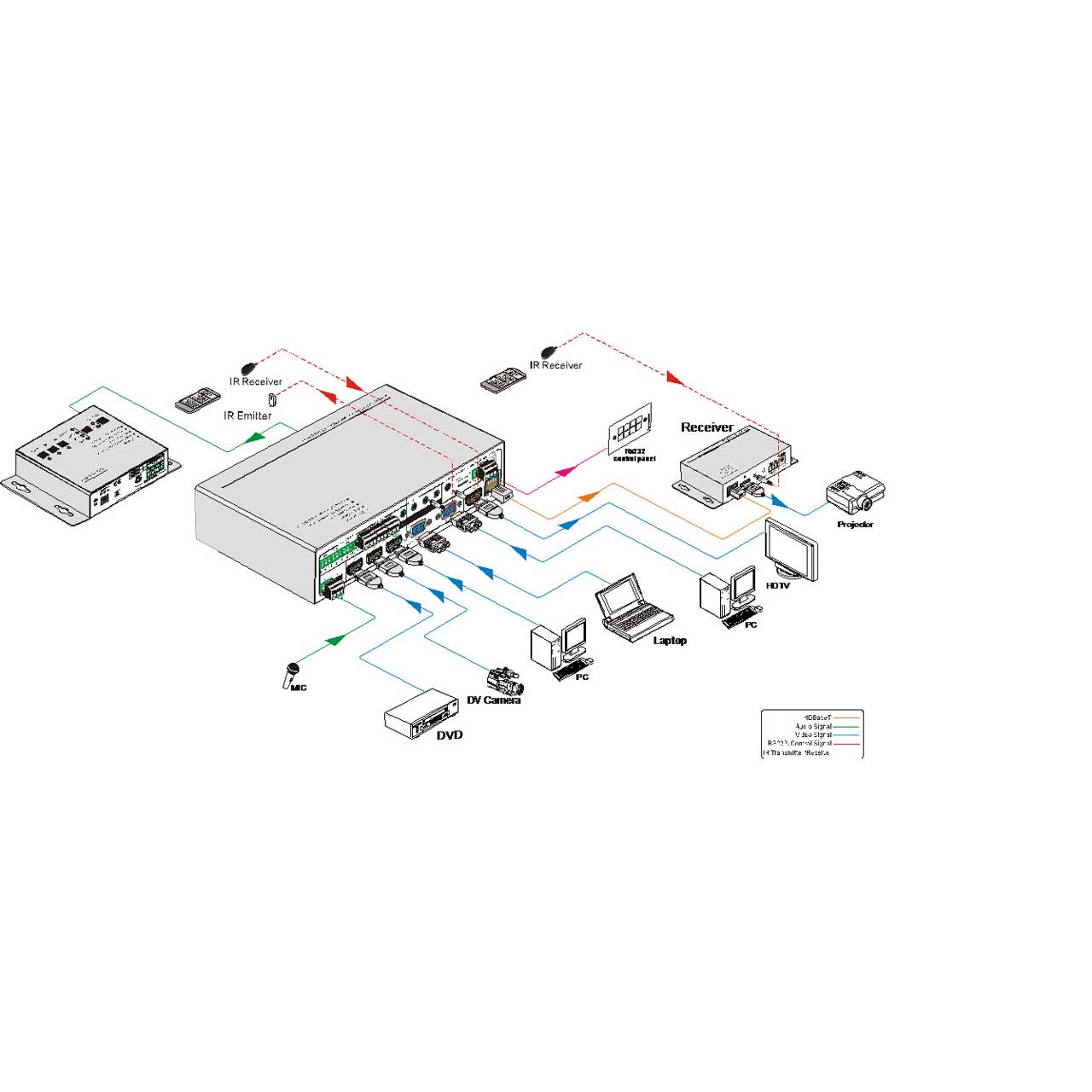

    With 1 IR Sensor, 5 IR Emitters and 1 RS232 port, bidirectional IR & RS232 signals can be transmitted simultaneously between the 5x1 HDMI / HDBT Presentation switch and the HDMI Extender PoC/PoE Receiver.

    Applications: computer realm, monitoring, conference room and conference centres, corporate boardrooms, hotels and hospitality rooms, big screen displaying, television education, command & control centres and smart homes

    • Features

      • Supports video source auto-switching function
      • Bi-directional IR & RS232 control
      • Supports HDMI, VGA, Composite Video, and Component Video (YPbPr)
      • Output resolutions selectable (1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720, 1024x768)
      • Supports CEC, with commands to enable/disable this function
      • Compliant with HDCP
      • Supports online software upgrading
      • MIC port supports balance/unbalance signal, suppress the external noise effectively
      • 48V phantom power to support condenser microphone
      • 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
      • Controllable via button, IR & RS232
      • Powerful OSD function
    • Specifications

      • Environment: HDMI 1.3
      • Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
      • Transmission: Transparent to the user
      • Video Bandwidth
      • HDMI: 4.96 Gbps
      • Composite Video:150 MHz
      • Component Video (YPbPr): 170 MHz
      • VGA: 375 MHz
      • Maximum Pixel Clock: 165 MHz
      • Video Impedance: 75 Ω
      • Video Resolution: 1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720, 1024x768
      • Audio Bandwidth: 20Hz to 20KHz
      • Audio Impedance
      • Input: >10kΩ
      • Output: 70Ω
      • Stereo Channel Separation: >80dB @1KHz
      • Signals: HDMI 1.3a protocol and HDCP

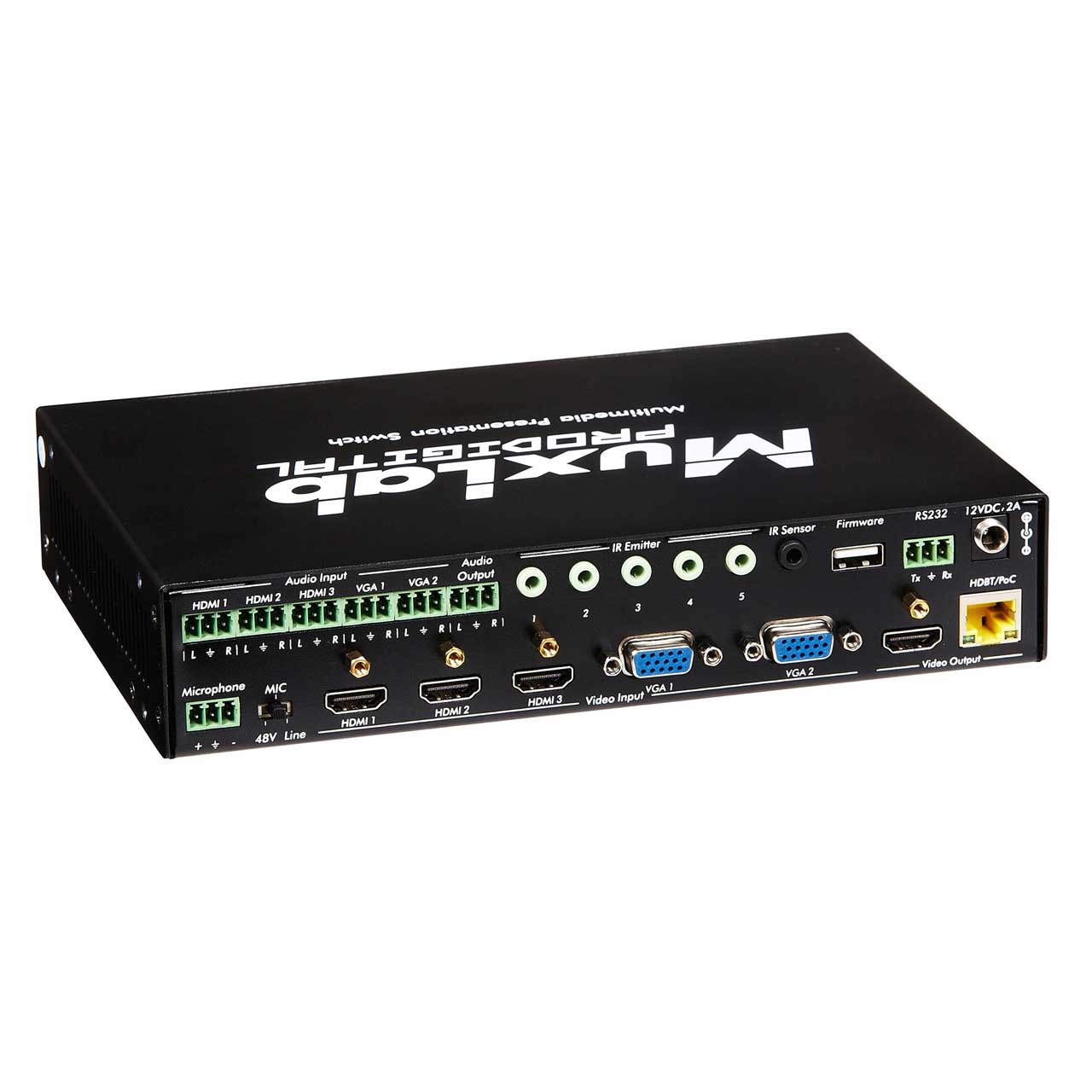

      • Connectors
      • Four (4) HDMI receptacles; Three (3) Inputs& One (1) Output.
      • Two (2) VGA HD-15 receptacles (Inputs).
      • One (1) RJ45Sfor HDBT (output).
      • Six (6) 3-pin terminal block (3.81 mm) for Audio; Five (5) Inputs& one (1) Output.
      • One (1)3-pin terminal block (3.81 mm) for the microphone.
      • Five (5) IR Emitter 3.5mm Mono jacks.
      • One (1) IR Sensor 3.5mm Stereo jack.
      • One (1) 3-pin terminal block (3.81 mm) for RS232.
      • One (1) 2.1mm barrel jack for Power.
      • One (1) USB Type A.
      • Note: HDMI cables not included.
      • Maximum Distance Based on a maximum length of 6.6 ft. (2 m) of HDMI cable per end.
      • Cat 5e/6:230 ft (70 m) up to 1080p
      • Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
      • Cable: One (1) Cat 5e/6 or better twisted pair cable required
      • Compatible Receiver
      • 500451-RX (No Serial Port, No PoE)
      • 500454-RX(With Serial Port, No PoE)
      • 500454-POE-RX(With Serial Port and PoE)
      • Power Supply: One (1) 110-240V/12VDC power supply with interchangeable blades (locking PSU connector)
      • Power Consumption
      • 8 Watts for the 5x1 HDMI / HDBT Presentation switch alone.
      • 16 Watts when the 5x1 HDMI / HDBT Presentation provides PoE power to the HDMI Extender Receiver.
      • Temperature
      • Operating: 0° to 40°CStorage: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Enclosure: Metal
      • Dimensions: 8.66" x 1.73" x 5.83" (220x 44x 148mm)
      • Weight: 3.28lb (1.49kg)
      • Compliance: Regulatory: FCC, CE, RoHS
    • Warranty

      • 2 years
