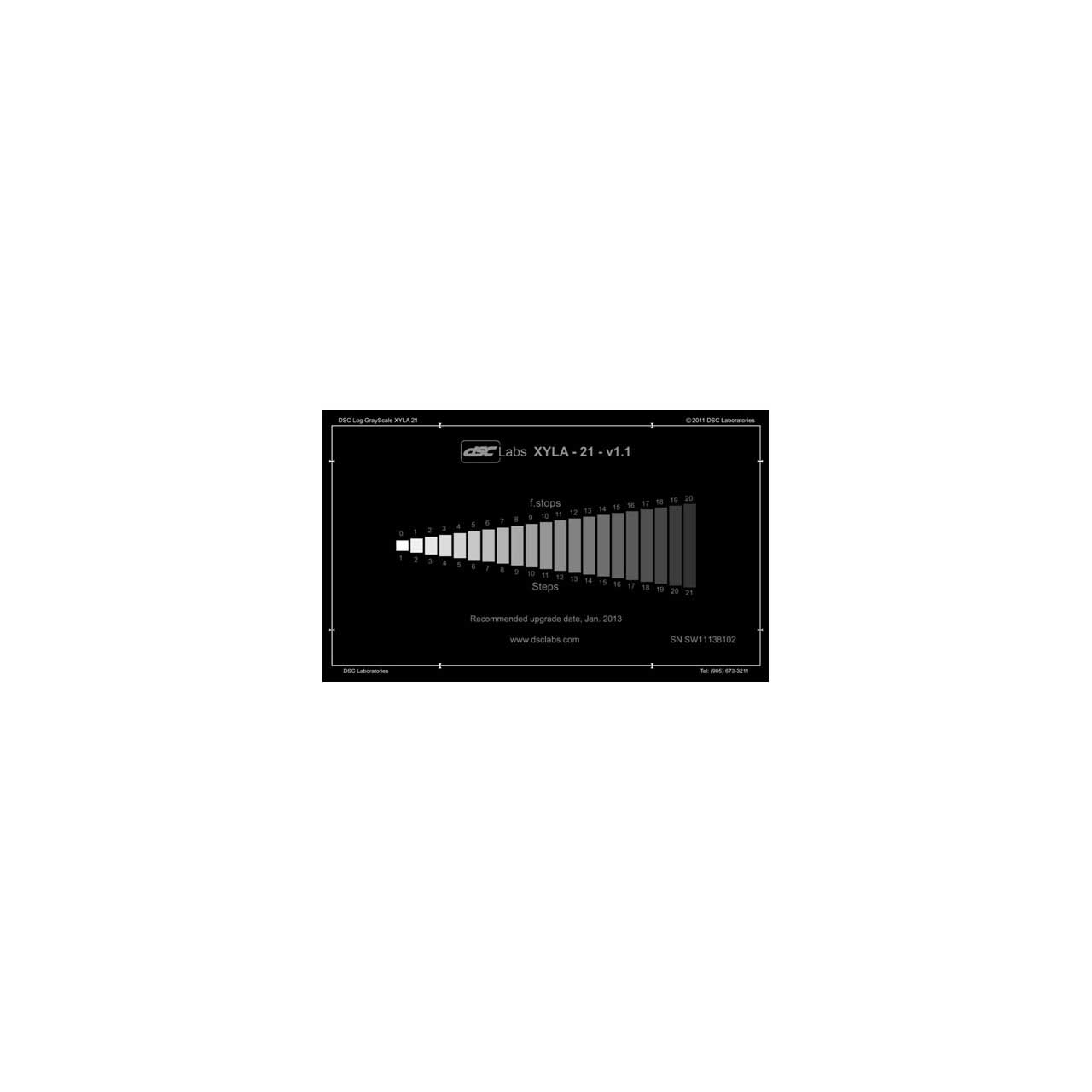

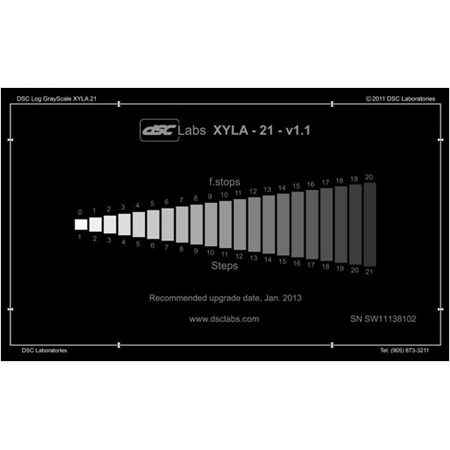

DSC Labs CDX1-81W Xyla 21 - 120dB 21-Step Grayscale with Built-In Light Source - Standard 21.3 x 13 Inches

ITEM #: DSCL-CDX1-81W MFG #: CDX1-81W

free ship

Our Price:

$3,788.00

Availability: Temporarily Out of Stock
iAvailability Description Popup


    CDX1-81W - Overview

    The DSC Labs Xyla has become the defacto international standard for measuring true dynamic range. The self-illuminated Xyla is now available in three versions, providing up to 25 f-stops of dynamic range.

    Dynamic range is an important factor in selecting the best camera for the job. Ensure your camera’s dynamic range is set up accurately with DSC Labs’ latest high dynamic range test system - the Xyla.

    Designed to produce the highest level of accuracy when dealing with finite quantities of light, the Xyla features a unique xylophone shape, specialized isolating shutter panels and a built-in light source. Why all of these features? Because combined they have been shown to effectively minimize errors caused by light leakage, flare and other forms of light contamination that have heavily reduced the accuracy of previous test systems.

    Available with up to 25 f-stops of dynamic range (only 1:300,000,000 of the light passes through on step 26), the Xyla presents more than a challenge for even the most advanced camera systems. There are currently three Xyla models available: the Xyla-15 provides a spread of 14 f-stops, the Xyla-21 offers an amazing 20 f-stops and the Xyla-26 provides a truly amazing 25 f-stops.

    CDX1-81W - Required Accessories

      CDX1-81W - Recommended Accessories
