DataTronix DT-QAM-ENC-4-MPG2 4 Channel HD QAM Encoder Modulator with H.264 and MPEG-2 Encoding Support

ITEM #: DT-QAMENC-4-MPG2 MFG #: DT-QAM-ENC-4-MPG2

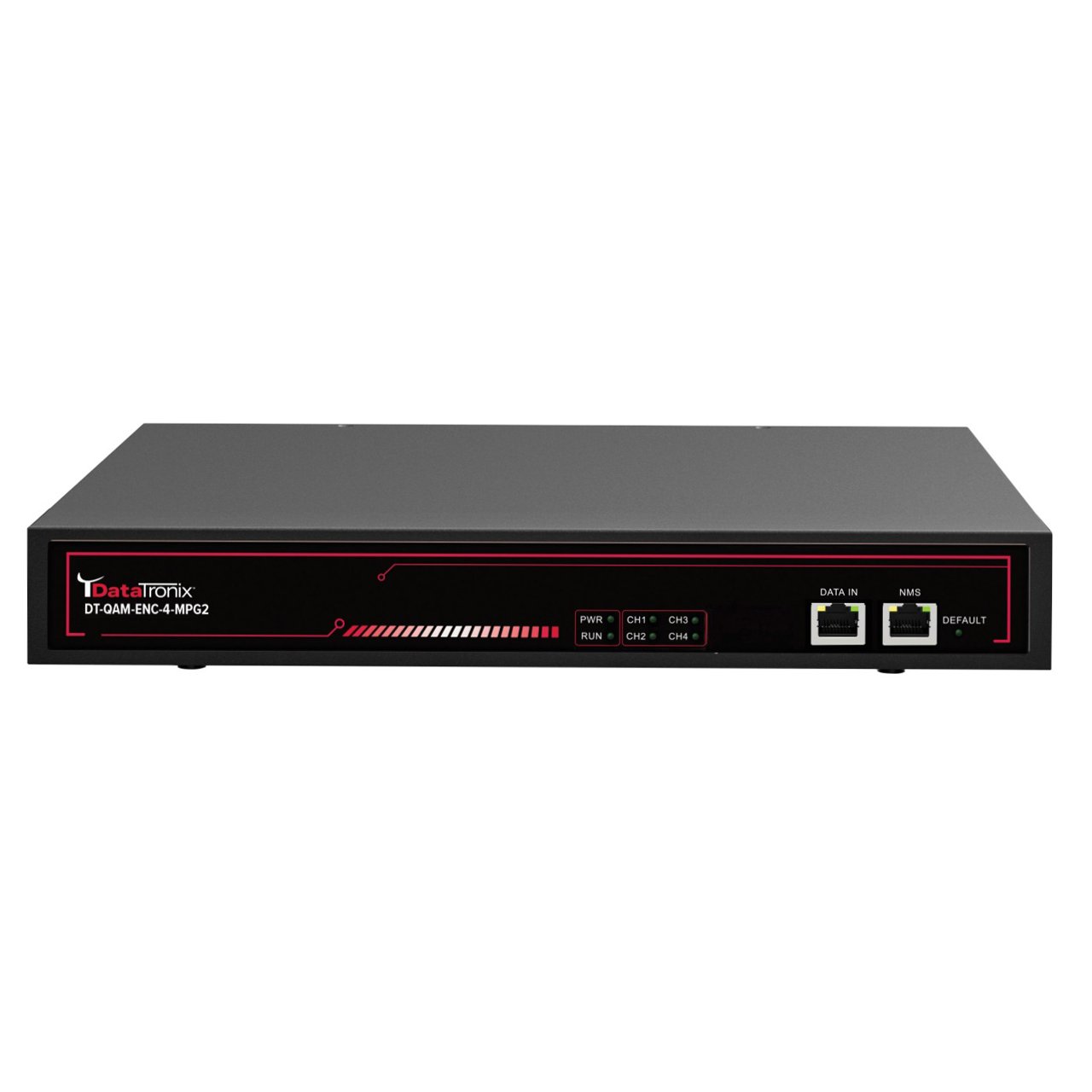

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$3,990.00

Our Price:

$2,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DT-QAM-ENC-4-MPG2 - Overview

The DataTronix DT-QAM-ENC-4-MPG2 is a QAM Encoder Modulator is the ideal solution for smaller-scale HD video distribution projects where reliability and flexibility are crucial. This unit takes up to four video sources, such as satellite receivers, Blu-ray players, or IP cameras, and converts them into QAM channels that compatible televisions can tune into, with no set-top boxes required. Supporting both MPEG-2 and MPEG-4 AVC (H.264) formats, the encoder ensures seamless compatibility with modern TV systems, making it easy to drop into existing infrastructures without hassle. With flexible channel mapping, installers can customize channel lineups to fit each application. Ideal for hospitality, education, healthcare, and commercial AV projects.

  • Features:

    • Dual Codec Support: Simultaneous support for H.264 (AVC) and MPEG-2 video encoding for enhanced system integration and compatibility.
    • Individual Channel Control: Each input can be uniquely encoded and assigned to a separate QAM channel for targeted broadcasting.
    • Easy Management: Includes an intuitive web-based user interface for seamless configuration, monitoring, and firmware updates.
    • QAM Modulation: Built-in QAM modulation for direct integration into existing RF coaxial infrastructures.
    • Broadcast-Quality Output: Delivers high-definition video with stable and reliable RF output for 24/7 operation.
    • Compact Design: Rack-mountable form factor optimizes space in headend installations.

  • Specifications:

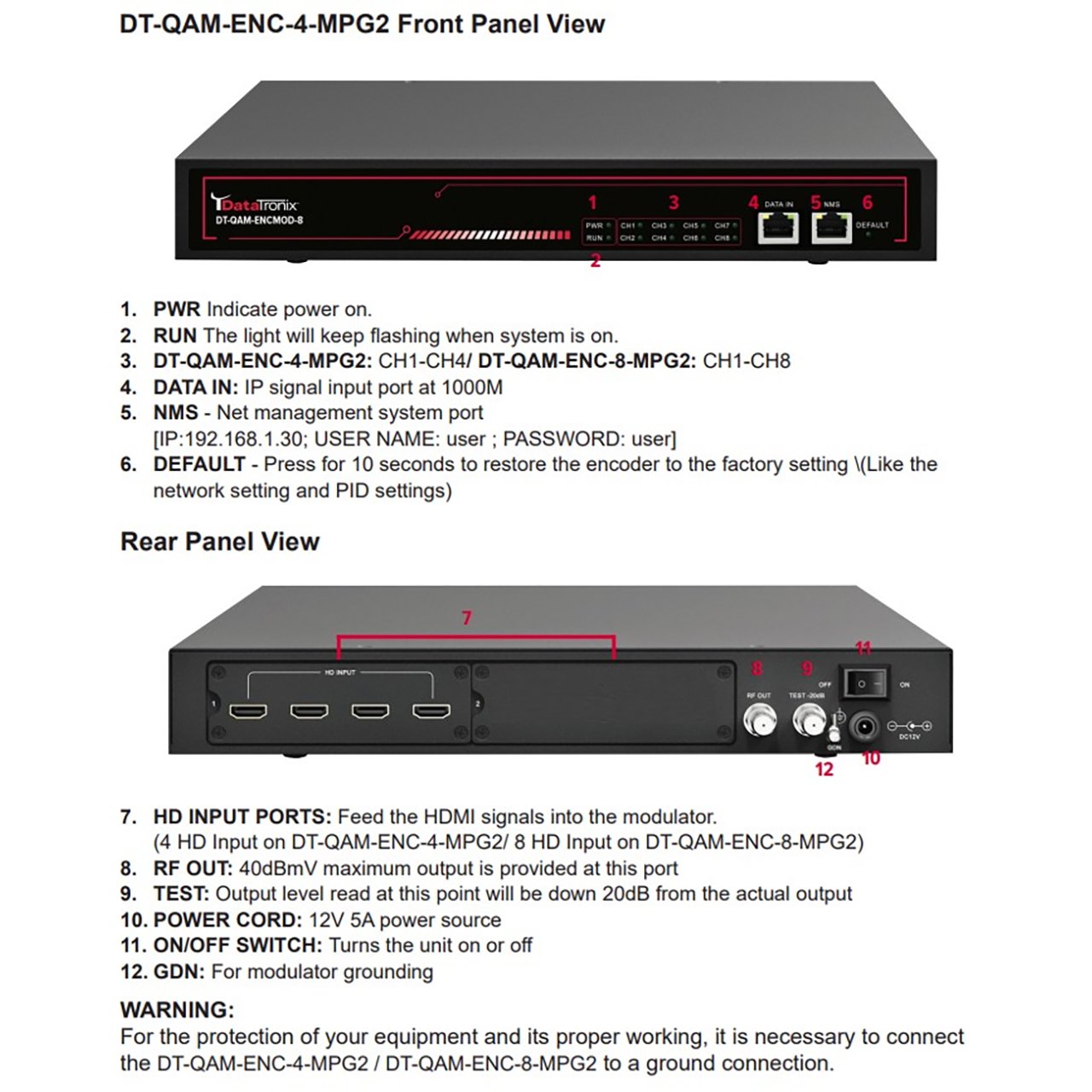

      Ports
    • HDMI: 4x
    • RF Out: 1x
    • Data In: 1x IP signal input port at 1000M
    • Net Management System Port (NMS) 1x

      Output Standards
    • DVB-C:
      - Bandwidth: 6M
      - Constellation: 64 QAM, 256 QAM
    • DVB-T:
      - Bandwidth: 6, 7 or 8M
      - Constellation: QPSK, 16QAM, 64QAM
    • ATSC:
      - Bandwidth: 6M
      - Constellation: 8VSB
    • J.83B:
      - Bandwidth: 6M
      - Constellation: 64 QAM, 256 QAM
    • DTMB:
      - Bandwidth: 6M
      - Constellation: QPSK, 16QAM, 32QAM, 64QAM, QAM_4NR

      RF
    • Output Level: ≥45dBmV
    • Frequency Range: 50-999.999 MHzl
    • Out-band Rejection: ≥60dB
    • MER: Typ. 38dB

      General
    • Power Consumption: 60W
    • Weight: 8.2lbs (3.71kg)
    • Dimensions: 12.52" x 10.24" x 1.73" (318mm x 260mm x 44mm)
    • Language: English

  • Item Includes:

    • 1x 4 Channel HD QAM Encoder Modulator

  • Warranty:

    • 1-Year Limited Warranty


DT-QAM-ENC-4-MPG2 - Required Accessories
