Dataprobe iBoot-G2S 2 Port 10/100 Network Power Switch - Web Power Switch

ITEM #: DTPB-IBOOT-G2S MFG #: IBOOT-G2S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$279.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    IBOOT-G2S - Overview

    Minimize Downtime with iBoot!

    The Dataprobe iBoot-G2S has a built-in 10/100 network switch that makes installation in those hard to reach locations a breeze. No need for a separate cable run or router port to get the cost savings of remote reboot. Perfect for kiosks, media players or wherever a dedicated router port is hard to come by.

    iBoot-G2S will save you time and money by reducing costly downtime. Just point your browser to the iBoot, login and you are one click away from bringing that failed system back to life. iBoot will even detect failed systems and take immediate action.

    Perfect for Existing Installations
    Get the reboot you need without an unnecessary cable run to the wiring closet. With Model iBoot-G2S, the built-in 10/100 switch makes it easy to add the power of iBoot to your existing installation. Perfect for digial signage, kiosks and telemetry systems in those hard to reach areas. Putting the iBoot in-line between the router and the server makes it easy to test both and reboot automatically.

    Free iBoot Cloud Service
    iBoot Cloud Service (iBCS) allows customers with iBoot to access and control multiple iBoots in multiple locations from a single portal with a single sign-on. iBCS will not only make using iBoots easier, by consolidating all units into one sign-on and interface, it will also enhance the number of situations where iBoot can be deployed.

    • Features:

      • Web Browser Power Control: Clean Web page design for immediate status and power control. Auto detects mobile browsers. No special software required. Learn More
      • Built-In 2 Port 10/100 Switch: Eliminate extra cable runs and make installation a snap. Add iBoot to an existing Kiosk or Sign Install without having to add an additional switch and power supply. Learn More

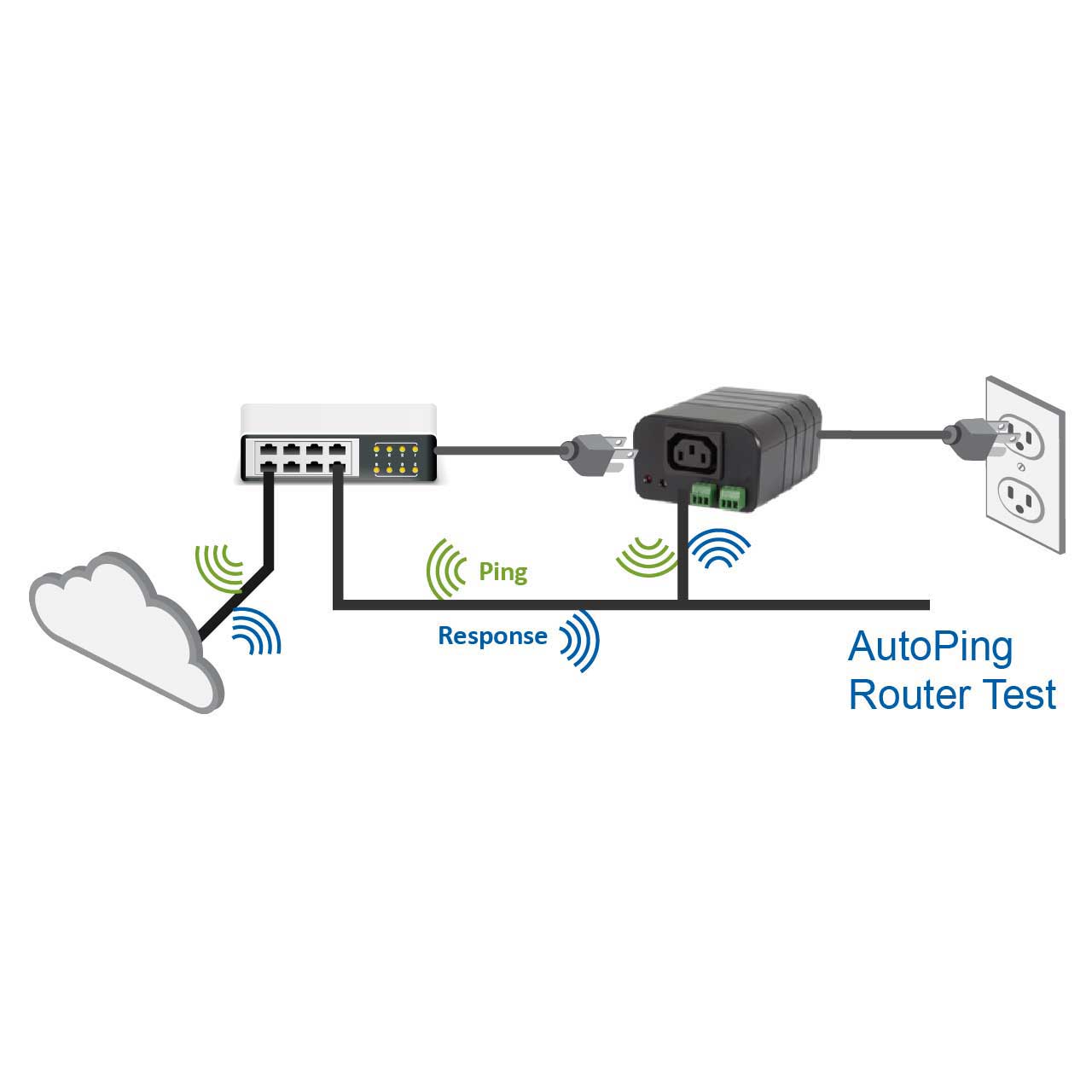

      • Automatic System Restoral: AutoPing and Heartbeat detect network or equipment outage and takes immediate action to restore your network or device. Real time scheduling to have a fresh reboot each morning or minimize power waste at night. Learn More
      • Cloud Control: Manage all your iBoots from a single sign-on. Control power worldwide from any web browser, anytime anywhere. Learn More
      • Graceful Shutdown: Attempts to do a Graceful Shutdown or Restart on Windows platforms prior to hard power switch.
      • Expandable: Add one or two iBoot-EXP expansion units with independent control, and AutoPing. When not used for expansion units, the inputs and outputs can be used for general purpose I/O or as manual power control. Learn More
      • USB Port: Out-of-band management with simple serial commands for status, control and setup.
      • UL Listed: We take your safety seriously. Be confident to pass fire marshal and OSHA inspections. Learn More
      • Dual Password Protected: Separate user and administrator passwords. Deploy iBoots throughout your organization.
      • IP Addressed, 10/100 Base-T: Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.
      • Direct TCP and Software Control: Control iBoot-G2S directly from your software application for the highest degree of power control integration. Simple protocol is freely available. Use iBoot-G2S control program to call power control from any network management system.
      • 110/220 VAC Operation: Auto ranging power input. Deploy iBoot-G2S anywhere in the world. iBoot-G2S uses IEC320 Connectors and includes line and extension cords for North America.
      • 12 Amp Switching: Current for most Servers, Routers, Kiosks, etc. 10 Amps at 220 VAC.

    • Specifications:

      • Power: 105 - 240 VAC Auto Ranging
      • Power Switching: 12 Amps at 105-125 VAC, 10 Amps at 210-240 VAC
      • Power Connectors: Power Inlet: IEC 320 C13 Plug. Line cord for North America Included. 16AWGX3C x 6'/2m Power Out: IEC 320 C14 Receptacle. Extension Cord for N. America Included. 16AWGX3C x 2'/60cm
      • Network: 10/100base-T, Auto sensing Uplink/Downlink Cat 5 Cable Included 6'/2m long - USB Mini-B Com Port 9600 8 N 1
      • Protocols: IP Addressable. DHCP or Static HTTP Web Server built-in, Port Assignable Telnet Server built-in, Port Assignable DxP Messaging Protocol, Port Assignable Auto-Ping TCP Protocol Heartbeat Detector Protocol

        External I/O: Two Inputs, Two Outputs, Screw Terminal Connections:
      • Designator/ Name/ Description
      • V+ / Power Out / This is +12 VDC power out from the iBoot-G2+ Maximum current 100 mA
      • I / Input / Input for status signals. Dry Contact input or Open Collector.
      • G / Ground / Signal Ground for Input and Output
      • O / Output / 2N3904 NPN Transistor. 100 mA Maximum
      • Browser: Form Processing Browser Required Mozilla 3.0 or IE 3.0 or greater
      • Security: Dual Password Protected, User and Admin
      • Physical: H x W x D: 2.0? x 3.2? x 4.2? (60mm x 82mm x 107mm) Operating Temperature 0 to 50 Deg. C
      • Reliability: MTBF 320,000 Hours Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load
      • Compliance: RoHS/WEEE FCC Part 15 Class B AC Versions UL/cUL UL60950 Listed I.T.E File No. E225914 CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC

    • GTIN:

      0700220864139
