Datavideo EPB-2600 Educators Production Bundle for Live Video Instruction with 2x PTZ-140 Cameras and Controller

EPB-2600 - Overview

• Features:

  • HS-2600 8-Ch Portable Streaming Studio
  • 4 Chromakeyers, Built-In Title Generator
  • Built-In 17.3" 1080p TFT LED Monitor
  • Two Autotrack 20x Optical Zoom Cameras
  • RMC-300A Controller for PTZ Cameras
  • Teacher's Guide & Student Activity Books
  • Tally, HDMI, SDI & Cat 6 Cables
  • Hard Case & Two Wheeled Hard Cases


• Specifications:

  HS-2600
  • Video Standard: HD
  • Video Format:
  • - 1080p 50/ 59.94/60Hz
    - 1080i 50/ 59.94/60Hz
    - 720p 50/ 59.94/60Hz
  • Input Routable/Crosspoint: All 8, repeatable
  • Video Input:
    - 4x 3G-SDI
    - 4x HDMI
  • Computer Graphic Interface: 4 via HDMI
  • Video Output:
    - 3x 3G-SDI for PGM (AUX assignable)
    - 1x HDMI 1.4 for PGM (AUX assignable)
    - 3x HDMI 1.4 for PGM
  • Analog Audio Input:
    - 2x XLR/MIC (6.3mm) Combo Socket
    - 1x stereo RCA audio
  • Analog Audio Output: 1x stereo RCA audio
  • Digital Embedded Audio Support: SDI Input/Output 4 channels - HDMI Input/Output 2 channels
  • Audio Delay Calibration: Up to 16 frames
  • A+V Switching: Yes
  • USK: 4
  • DSK: 2
  • Picture in Picture: 4
  • Logo Insertion: 2
  • Title Creator: Yes
  • Built-in Monitor Display: 17.3" HD TFT LED backlit, 1920x1080 pix
  • Streaming: H.264: MAX RES 1080p
  • Streaming Audio Encode: AAC 2CH/16bit 48KHz 192Kbps
  • Streaming Protocol: RTSP/RTMP/SRT
  • Streaming Control: Web browser UI for configuration and control Socket commands
  • Recording File System: FAT32, exFAT
  • Recording File Format: MP4 (H.265+ AAC) or (H.264+ AAC)
  • Streaming & Recording Setting Control: Web UI for system configuration and control
  • Special Features:
    - 4x Chroma-Key Virtual Studio
    - 9x Stinger transition and 4 user preset
    - 1x Built-in CG title overlay system
    - 1x Streaming encoder and recorder
  • Power: DC 12V, 11A
  • Operating Temp Range: 32°F - 104°F (0°C - 40°C)


  PTC-145 PTZ Camera
  • Video Format/Resolution:
    -1080p 60/59.94/50/30/29.97/25
    -1080i 60/59.94/50
    -720p 60/59.94/50
  • Image Sensor: Sony 1/2.8" CMOS
  • Effective Pixels (approx.): 2.07 Mega pixels
  • S/N Ratio: >50dB
  • Min. Illumination: 0.5Lux (F1.8, AGC ON)
  • Electronic Shutter: 1/30 ~ 1/10000s
  • Zoom Ratio:
    - 20x Optical Zoom
    - 8x Digital Zoom
  • Effective Zoom Ratio: 18.12x
  • Iris Control: Auto/Manual
  • Digital Noise Reductions: 3D
  • On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
  • White Balance: Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
  • AGC/Gain Control: Yes
  • Mirror/Flip Image: Yes
  • Focus Mode: Auto/Manual
  • Panning/Tilting Range:
    - Pan: 340°
    - Tilt: +90° - -30°
  • Panning/Tilting Speed:
    - Pan: 0.1~60°/sec
    - Tilt: 0.1~30°/sec
  • Preset: 255 Position
  • Focal Length: f = 5.05mm (wide) to 91.49 mm (tele), F1.8 (Wide) ~ F2.9 (Tele)
  • Field of View (Horizontal, Wide): Approx. 60° (WIDE END)/3.3°
  • Image Compensation: Backlight Compensation
  • Video Output:
    - 1x HDMI
    - 1x SDI
    - 1x RJ-45 PoE
  • Audio Input: 3.5mm Line in
  • Tally LED: Dual color (Red, Green)
  • Lens Filter: M52.0 x 0.75 Thread with UV Protection
  • Control Protocol: Pelco-D/Pelco-P/VISCA, VISCA over IP, DVIP, ONVIF, NDI
  • Remote Control Interface:
    - IR
    - Web GUI
    - RS-422/RS-232/RS-485 (RJ45)
    - DVIP
    - NDI
  • Video Compression Format: H.264/H.265/MJPEG
  • Audio Compression Format: AAC, G711
  • Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
  • HD IP Interface: 10/100/1000M (RJ45)
  • Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT,NDI)(Hx3 (1080p)
  • F/W Update: Via Web GUI
  • IR Control: Yes
  • Camera Control Unit:
    -RMC-2P
    -RMC-180 series
    -RMC-300 series
    -PTZ View Assist APP
  • Tripod Mount: ¼"-20 UNC
  • Optional Accessories: WM-1/WM-10/WM-11
  • Color: Black/White
  • Operating Temp Range: 32°F - 104°F (0°C - 40°C)
  • Power: DC 12V 12W


• Item Includes:

  • 1x Datavideo EPB-2600 Educator's Production Bundle with Advancesd Virtual Studio Features

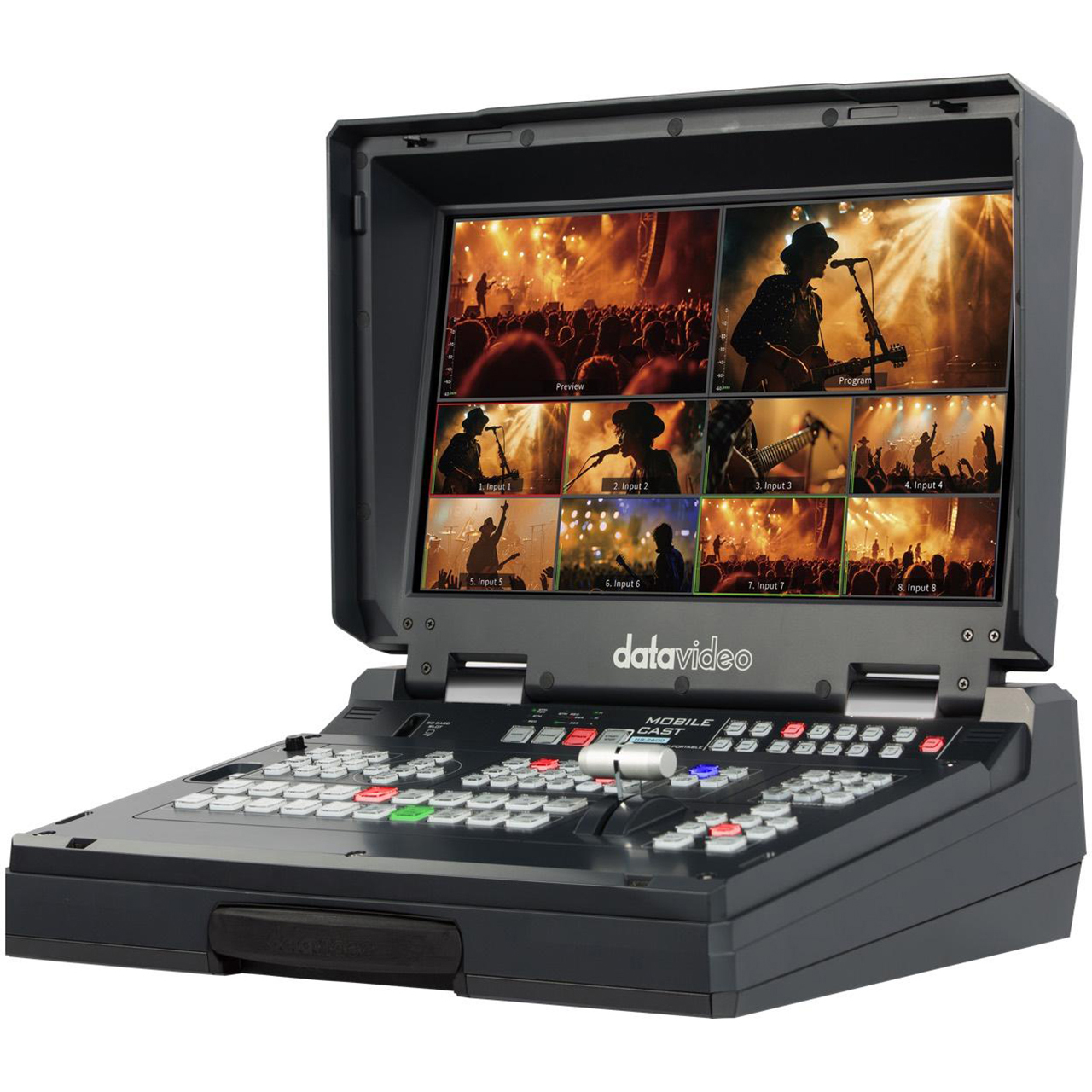

  • 1x Datavideo HS-2600 HD 8-Channel Portable Video streaming Studio
  • 2x Datavideo PTC-145 HD-SDI/HDMI 20x PTZ Camera with Auto Tracking (Black)

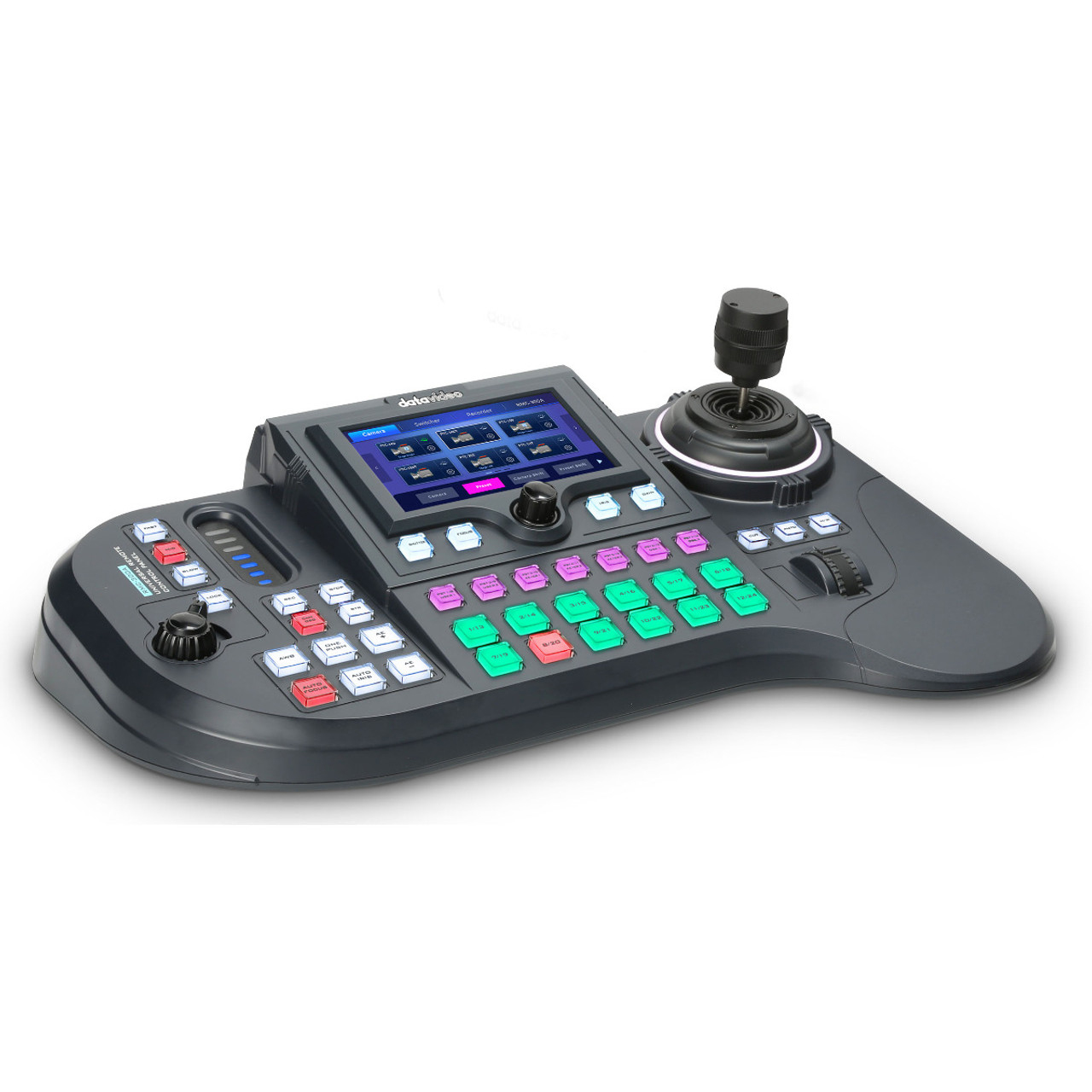

  • 1x Datavideo Universal Remote Control Panel for Datavideo PTZ & Block Cameras
  • 1x TG-200 Video Production Teacher's Guide
  • 1x Student Activity Book

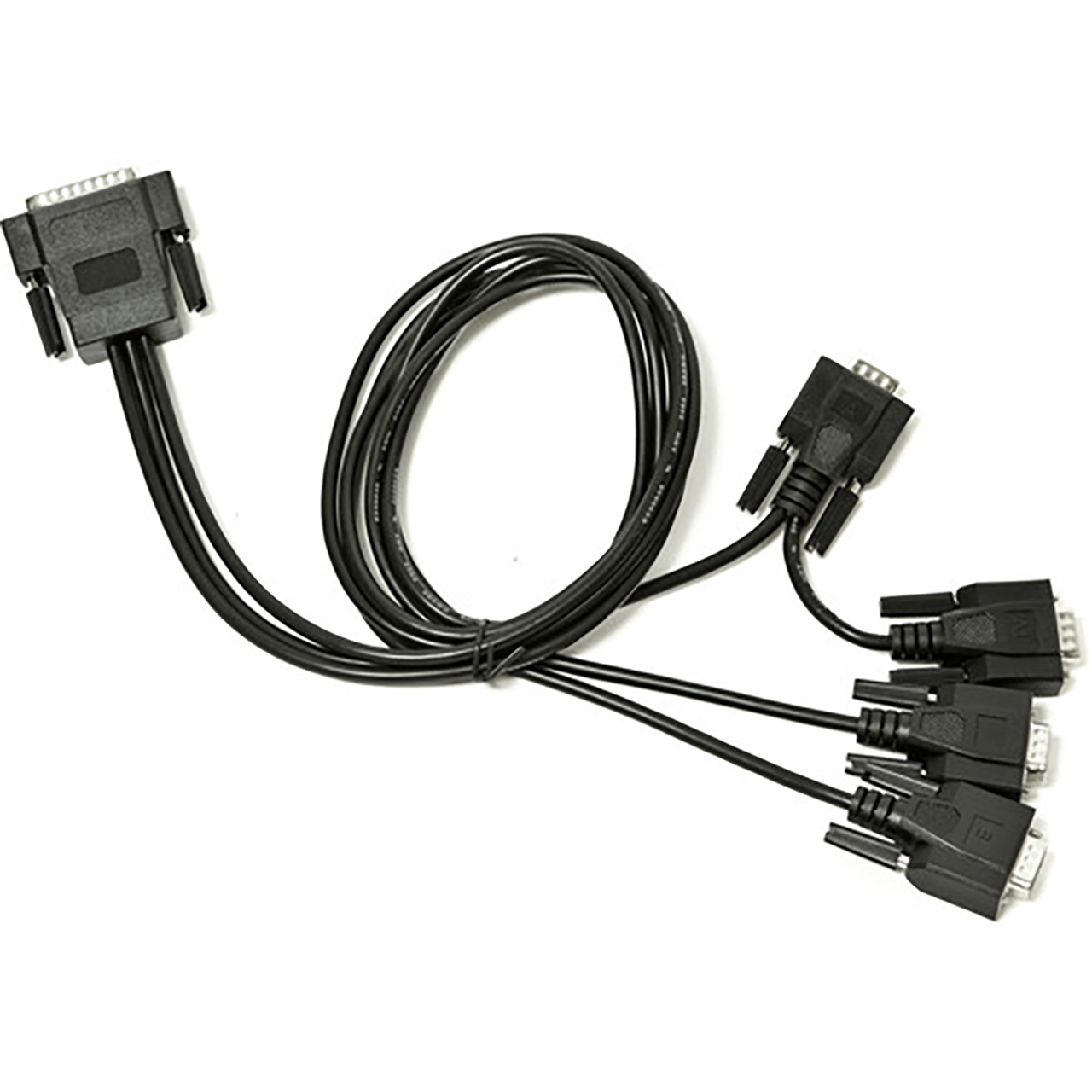

  • 1x Data Video CB-28 Tally Cable for SE-2800 Switcher & ITC-100 Intercom/Tally System (41")
  • 2x Datavideo CASDI50 Male to Male BNC Cable (50')
  • 2x Cat 6 Cable (50')
  • 2x HDMI Cable (10') Hard Case for Controller

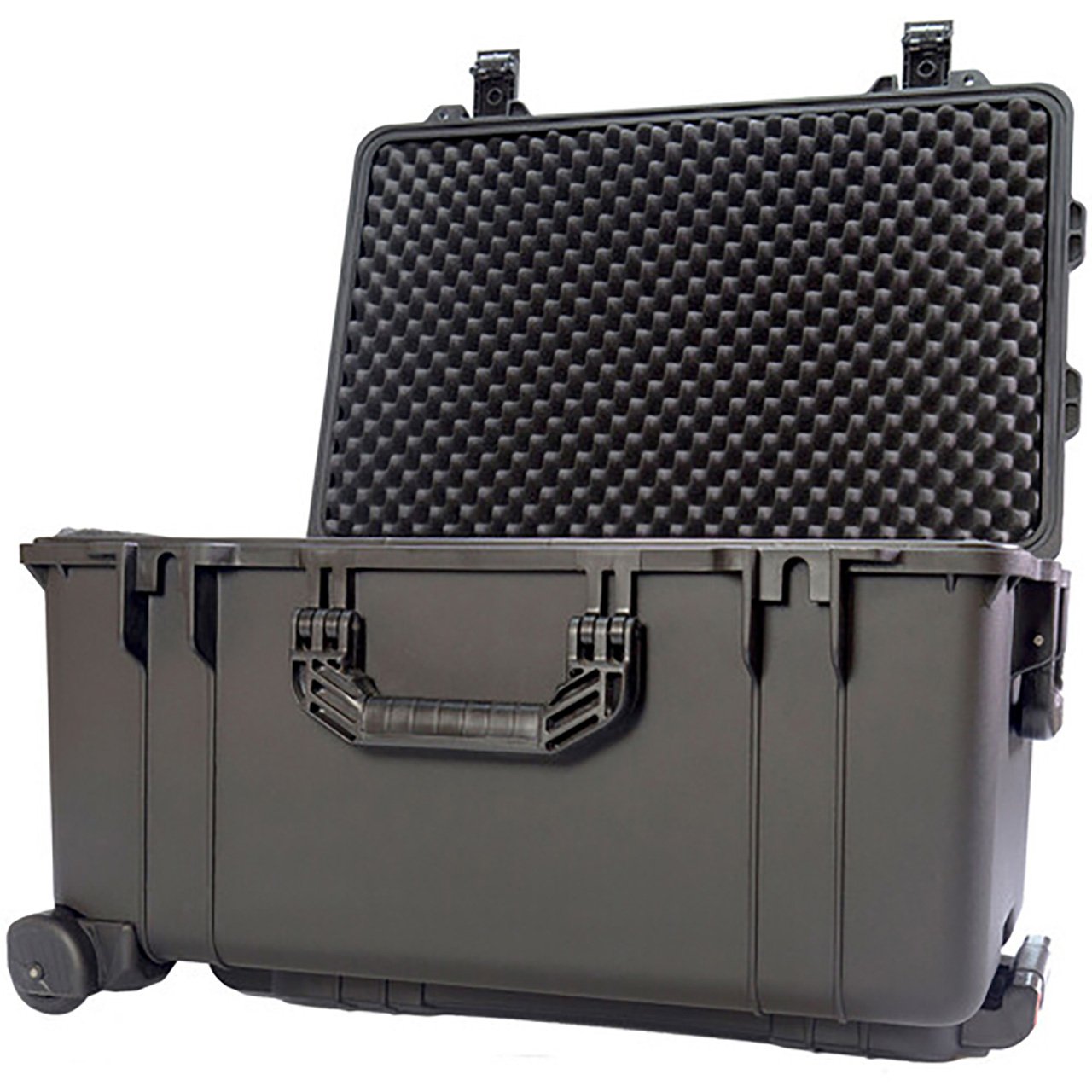

  • 1x Datavideo Wheeled Trolley-Style Water-Resistant Case for 3
  • 1x PTZ Cameras (XXL)
  • 1x Datavideo Wheeled Travel Case for SHOWCAST 100 Switcher
