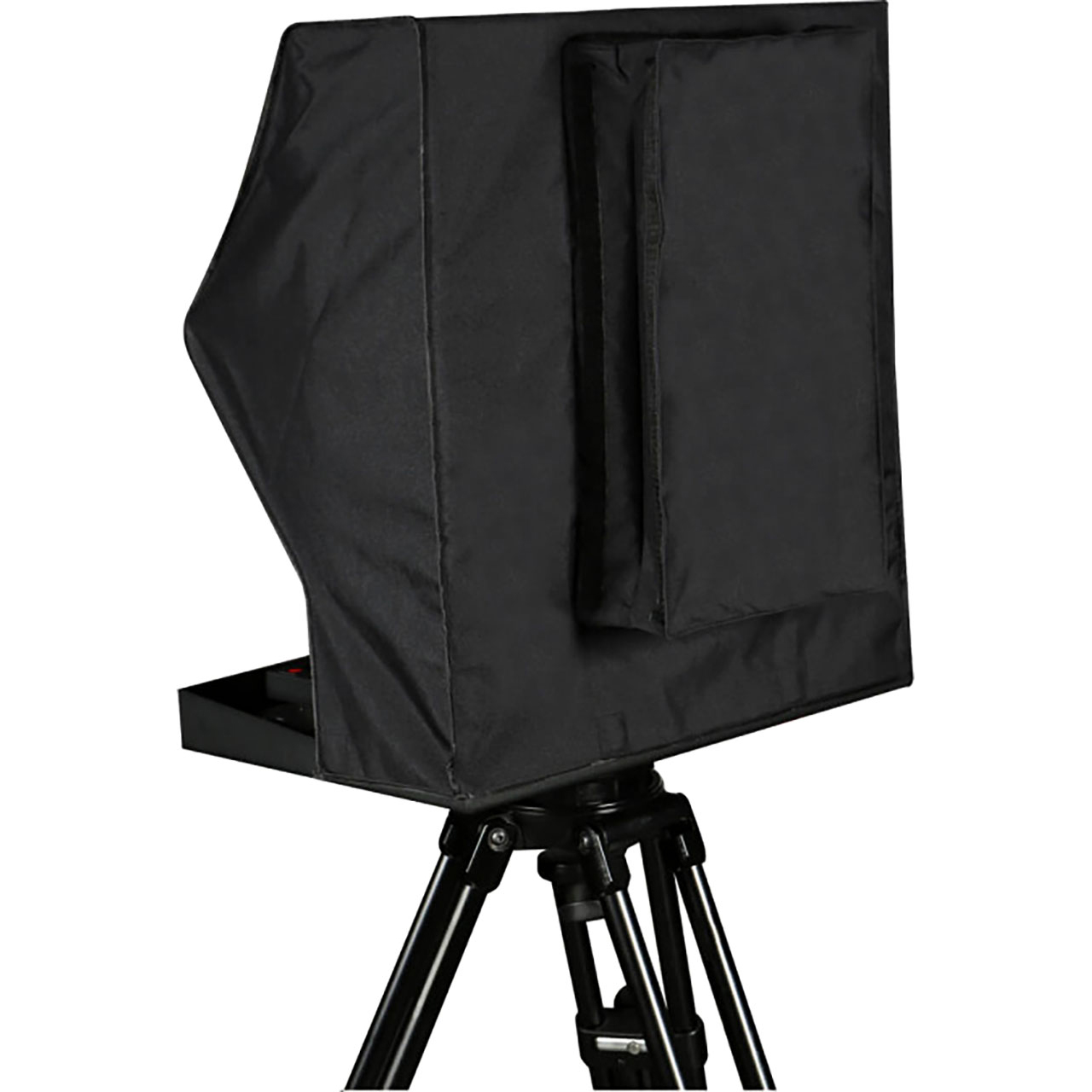

Datavideo EPB-4000 8 input Educators 4K Production Bundle with 2x PTC-285 Tracking PTZ/Controller/Prompter

Name: Datavideo EPB-4000 8 input Educators 4K Production Bundle with 2x PTC-285 Tracking PTZ/Controller/Prompter
Brand: Datavideo
SKU: DV-EPB-4000
Price: 23999.00 USD
Availability: PreSale

ITEM #: DV-EPB-4000 MFG #: EPB-4000

Datavideo

Our Price:

$23,999.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

EPB-4000 - Overview

Educator's Production Bundle
The Datavideo EPB-4000 is a complete workflow that is designed for educators to teach the fundamentals of live 4K video production. With this bundle, students will be able to produce news shows, morning announcements and other live event productions. The included Curriculum which consists of the Teachers Guide and Activity Book with ISTE Standards, offers recommended lesson plans, activities, and step by step how-to tutorials.

A Comprehensive Curriculum for Teaching a Video Production Class
This book provides techiniques on how to operate video and audio equipment, produce live video productions such as morning announcement news shows, learn to write a news script, learn interviewing skills and streaming basics.

The Teacher's Guide as well as the Video Production Activity Book will reference the ISTE Student Standards. Each chapter in the Teachers Guide and every activity in the Video Production Activity Book will reference at least one of the ISTE standards.

Specifications:
- Video Standard: 4K & HD
- Video Format:
  -3840x2160p: 60/59.94/50/30/29.97/25
  -1080p: 60/59.94/50/30/29.97/25
  -1080i: 60/59.94/50
- Input Routable / Crosspoint: Yes
- Video Input: Total 8 live inputs (select 8 from 12)
  - 8 x 12G-SDI
  - 4 x HDMI
- Computer Graphic Interface
  -4 via HDMI
- Down-converted Output: Yes
- Video Output:
  -4 x 12G-SDI / 1 x HDMI
- All Assignable : Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12
  - 2 x HDMI PGM only
  - 1 x HDMI Multiview
- Analog Audio Input:
  - 4 x Balanced XLR
- Analog Audio Output:
  - 2 x Balanced XLR
- Digital Embedded Audio Support:
  - Input 4 channels
  - Output 4 channels
- Audio Delay Calibration: Up to 16 frames
- A+V Switching: Yes
- USK: 4
- DSK: 2, support Lumakey & Linear key(Key / Fill)
- Picture in Picture: 2
- Logo Insertion: 2
- Title Creator: Yes (Coming soon by firmware update)
- Built-in Audio Mixer: Yes
- Built-in Monitor Display: 17.3" 4K TFT LED backlit, 3840x2160 pix
- Streaming
  - H.264: MAX RES: HD@60 420 8bit codec
  - H.265: MAX RES: 4K@60 420 8bit codec
- Streaming Audio Encode: AAC/2CH/16bit/48KHz/192Kbps
- Streaming Protocol: RTMP/SRT
- Web browser UI for configuration and control Socket commands
- Recording File System: FAT32, exFAT
- Recording File Format: MP4 (H.265+ AAC) or (H.264+ AAC)
- Streaming & Recording Setting Control
- Web UI for system configuration and control
- Special Features
  - 5 Inch Touch Panel
  - 17.3 Inch 4K Monitor
  - 4 Chroma-Key Virtual Studio
- Power: DC 56V, 4.46A
- Operating Temp. Range: 32 to 104°F( 0~40 °C)

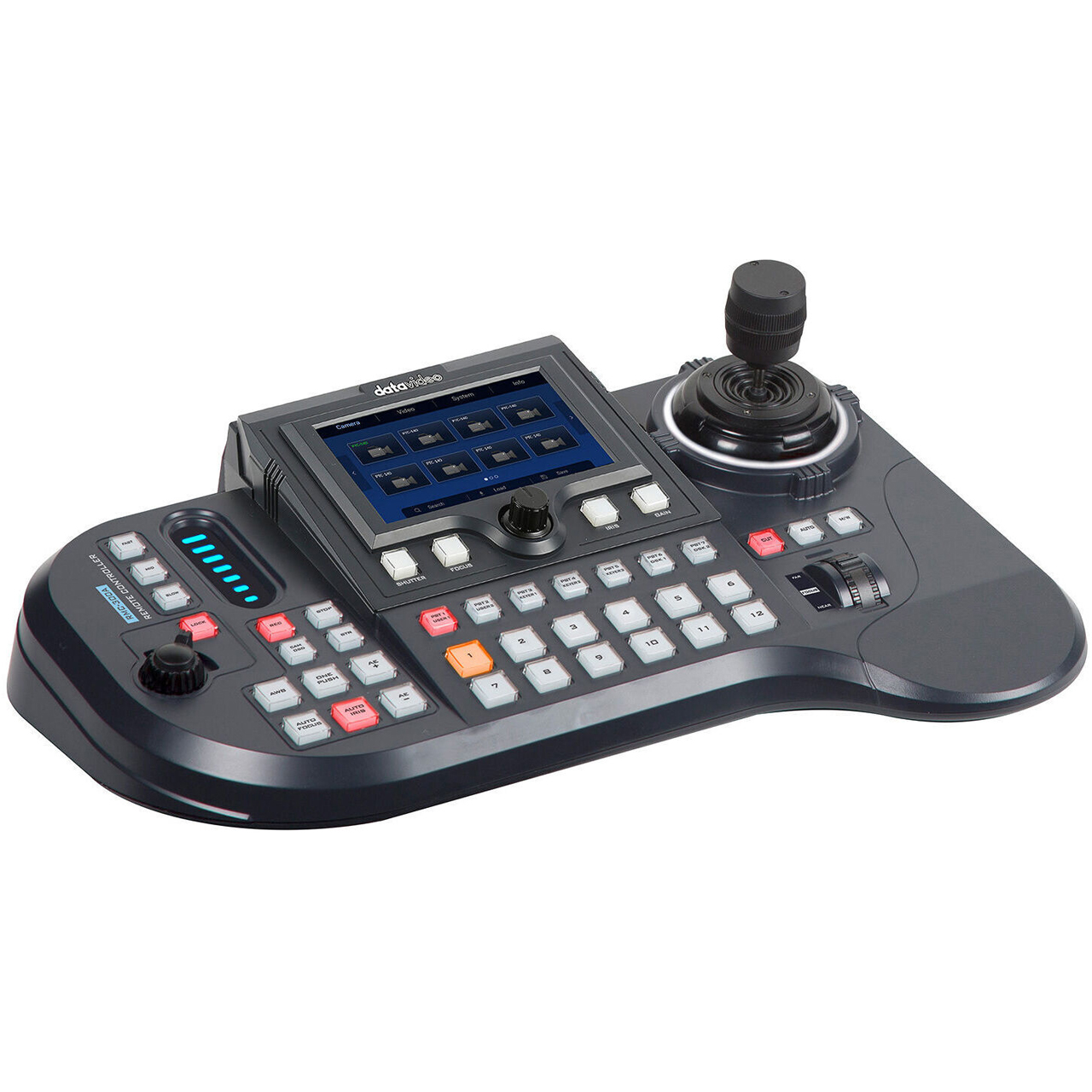

  RMC-300A
- Model Number: RMC-300A
- Maximum Camera Control: 24 Datavideo cameras over DVIP, up to 8 Datavideo cameras over serial RS-422
- Preset (Position): 14 for each Datavideo camera
- Control Protocol: Sony VISCA, VISCA over IP-S, VISCA over IP-C, Datavideo DVIP
- Connection to Cameras: RS-422, Ethernet
- Input/Output:
  - USB 2.0 x2
  - 10/100Mbps Ethernet (RJ-45 connector) x1
  - RS-422 (RJ-45 connector) x8
- Build-in Control Panel: Size: 5"
- Resolution: 1280 x 720
- Operating Humidity: 10° to 80° (non-condensing)
- Power: DC 12V, 19W

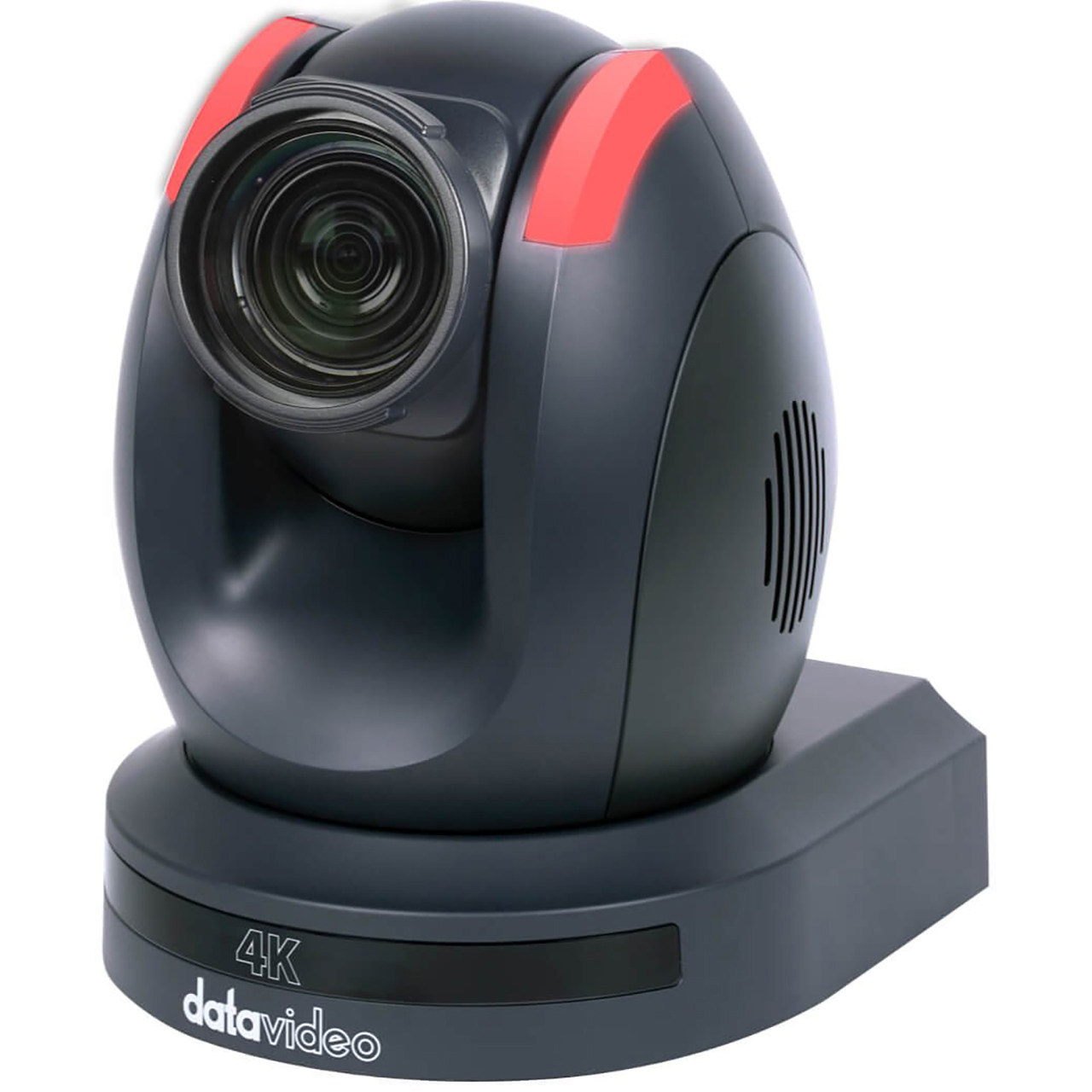

  PTC-285
- Video format/Resolution
  - 2160p60/59.94/50/30/29.97/25
  - 1080p60/59.94/50/30/29.97/25
  - 1080i60/59.94/50
  - 720p60/59.94/50
  - 2160p60/59.94/50 YUV 4:2:2
- Image Sensor: 1/2.8" CMOS
- Effective Pixels (approx.): 8.51Mega Pixels
- S/N Ratio: ≥55dB
- Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- Zoom Ratio: 12x Optical, 16x Digital Zoom
- Iris Control: Auto / Manual
- Digital Noise Reductions: 3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
- AGC/Gain Control: Yes
- Mirror/Flip Image: Yes
- Focus Mode: Auto/Manual
- Panning/Tilting Range:
  - Pan: 300°
  - Tilt: +130° to -15°
- Panning/Tilting Speed:
  - Pan: 0.876°/s~43°/s
  - Tilt: 0.693°/s ~21.32°/s
- Preset: 255
- Focal Length: 12x, f = 4.4mm ~52.8mm, F1.8 ~ F2.6
- Field of View (Horizontal, Wide): 80°
- Image Compensation: Back light compensation
- Video Output:
  - HDMI 2.0 x1
  - 3G-SDI x1
  - 10/100/1000M RJ45 (PoE) x1
- Audio Input: 3.5 mm x1 (mic in/line in) switch from Web UI
- Tally LED: Yes
- Video Compression Format: H.264/H.265/MJPEG
- Audio Compression Format: AAC
- Audio Bitrate: 96Kbps, 128Kbps
- Streaming Protocols: TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
- Video Bitrate: 32Kbps ~ 50Mbps (Single Stream)
- Video Bitrate Mode: VBR, CBR
- Camera Control Unit: RMC-180 series/RMC-300 series/PTZ View Assist APP
- Tripod Mount: 1/4-20 UNC
- Color: Black
- Operating Temp. Range: 32~104 °F
- Power: DC 12V 21W
Item Includes:

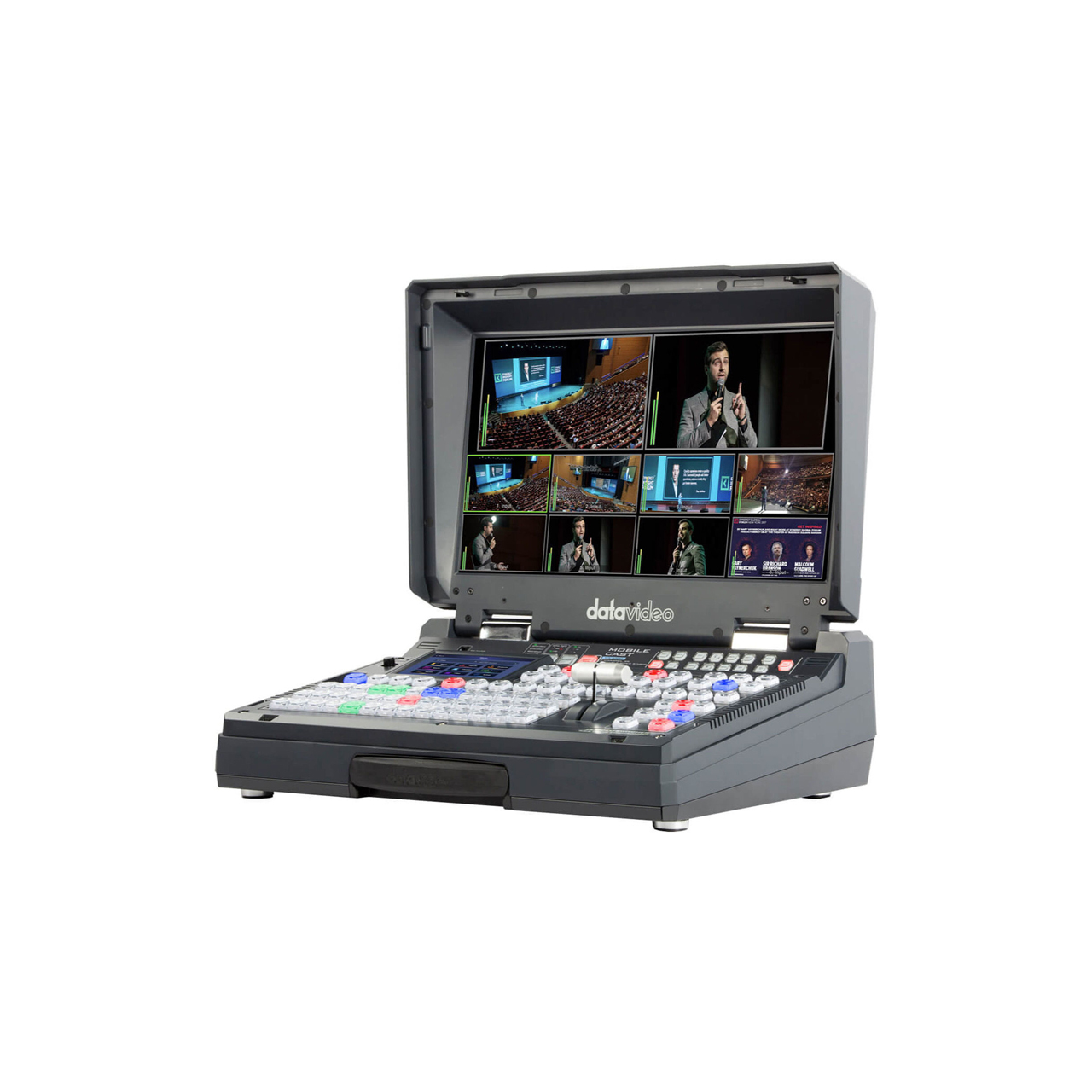

- 1 x HS-2600 HD 8-Channel Portable Video Streaming Studio
- 2 x PTC-145 (2) PTZ HD Camera 20x Optical Zoom
- 1 x RMC-300A PTZ Camera Controller
- 1 x HC-800FS / HC-GO-300 / HC-850 Hardcases for
- equipment
- 1 x Video Production Teacher's Guide
- 1 x A comprehensive guide for teaching video
- production w/ activity book
