Datavideo SHOWCAST100 All-In-One 4K 4 Channel Production/ 14 Inch Touch Panel Switcher w/ Switcher Functions

ITEM #: DV-SHOWCAST100 MFG #: SHOWCAST100

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$5,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SHOWCAST100 - Overview

Innovative/ Compact/ Easy to Use and All-in-One

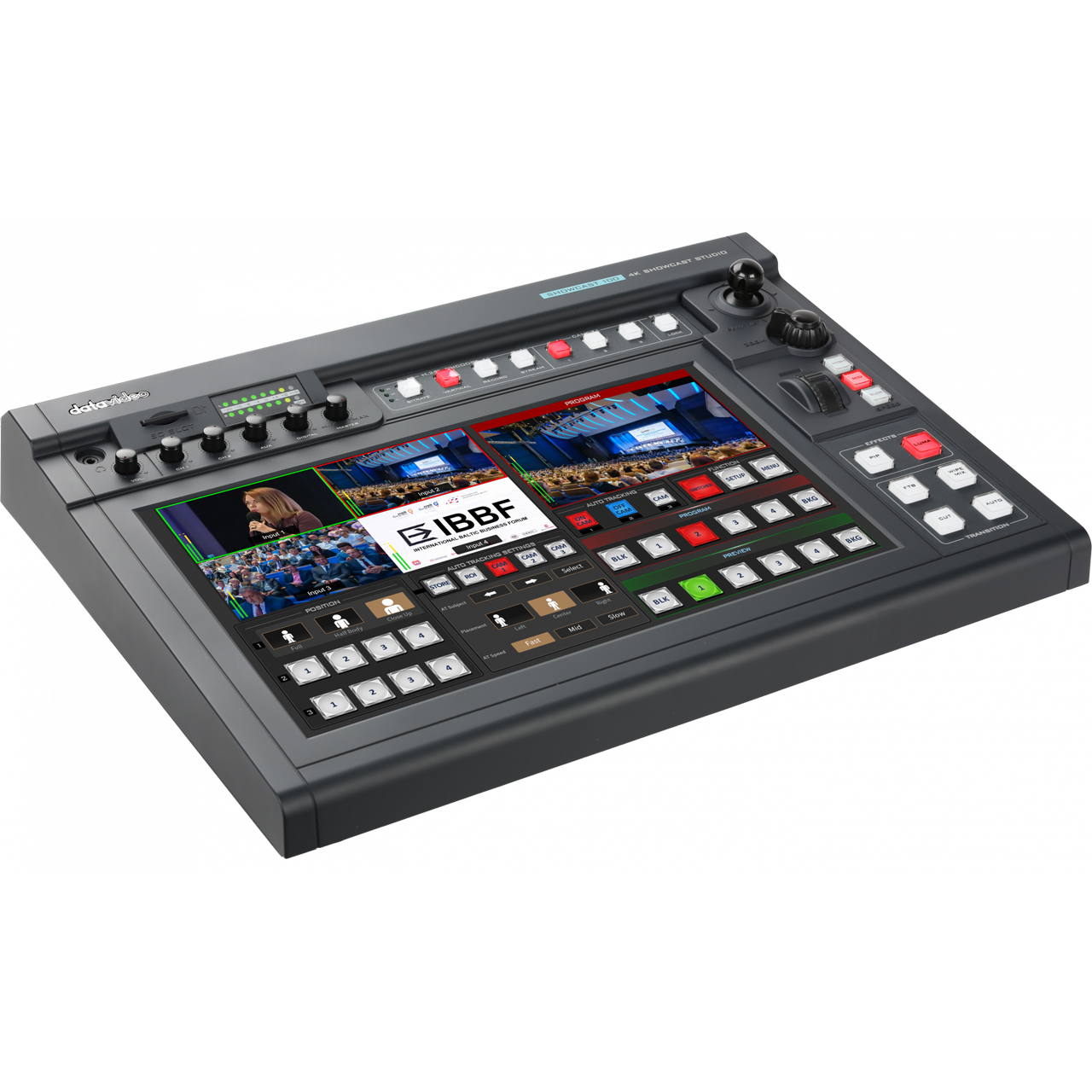

The Datavideo SHOWCAST 100 is a brand new 4K 4-Channel All-in-one Productio Studio that features 7 major functions. It can switch video, overlay text and graphics, control cameras, live stream, record, and mix audio all from a single unit. Similar to a tablet, the 14-inch touch panel allows easy and intuitive access to switcher functions.

4K60p 4-Channel Touchscreen Switcher

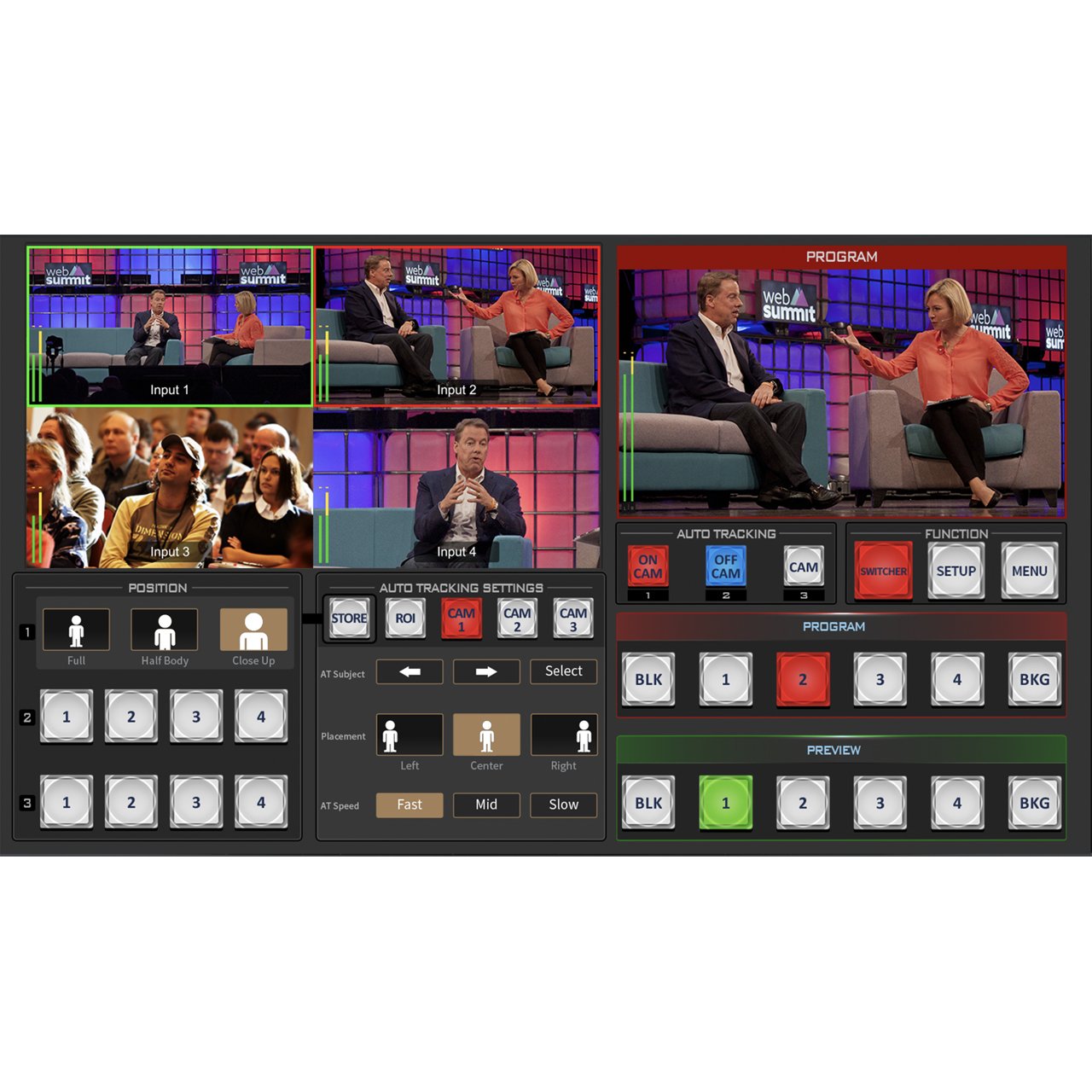

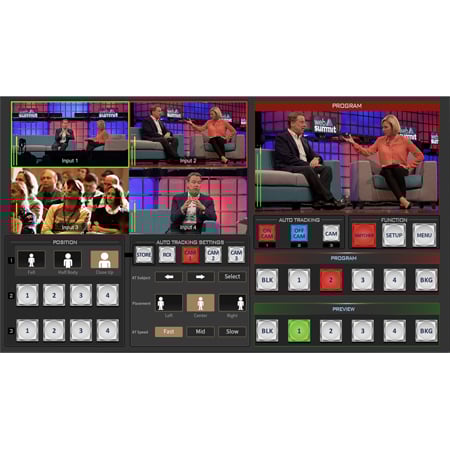

The touch panel allows easy and intuitive access to a variety of switcher functions. The SHOWCAST 100 has many functions with easy setup.The unique all-in-one design streamline your video production workflow by reducing the number of external devices that you need to connect. SHOWCAST100 is light and compact. Its mobility makes it ideal for any live production environment.

Direct Access to Auto Tracking Features
Gain immediate access to the auto tracking feature using a range of external controllers. Beyond traditional camera controls, activating auto tracking on SHOWCAST 100 is also straightforward and convenient.

Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

  • Features:

    • 12 Input-4-Channel Video Plus Stills
    • SD/HD/3G-SDI-RGB/Component-HDMI Inputs
    • 4-Channel Digital Audio Mixer
    • 14.0 Inch Touch-Screen Display
    • Multi-View Output Through HDMI
    • Stream Live Through USB Connection
    • Supports 2 Layers for Composites

  • Specifications:

    • Video Format: 4K & HD
    • Input:
      -3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
      -1080p: 60/59.94/50/30/29.97/25/24/23.98
      -VGA, XGA (1024 x 768), SXGA (1280 x 1024),
      -UXGA (1600 x1200), WUXGA (1920 x 1200)
    • Output:
      -3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
      -1080p: 60/59.94/50/30/29.97/25/24/23.98
      -720p: 60/59.94/50
    • Video Processing:
      -YUV4:4:4 8bit, YUV 4:2:2 8/10bit, YUV 4:2:0 8bit, RGB 4:4:4 8bit
      -4K30
      -YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, YUV 4:2:0 8bit,
      -RGB 4:4:4 8/10/12bit
      -HD
      -YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, RGB 4:4:4 8/10/12bit

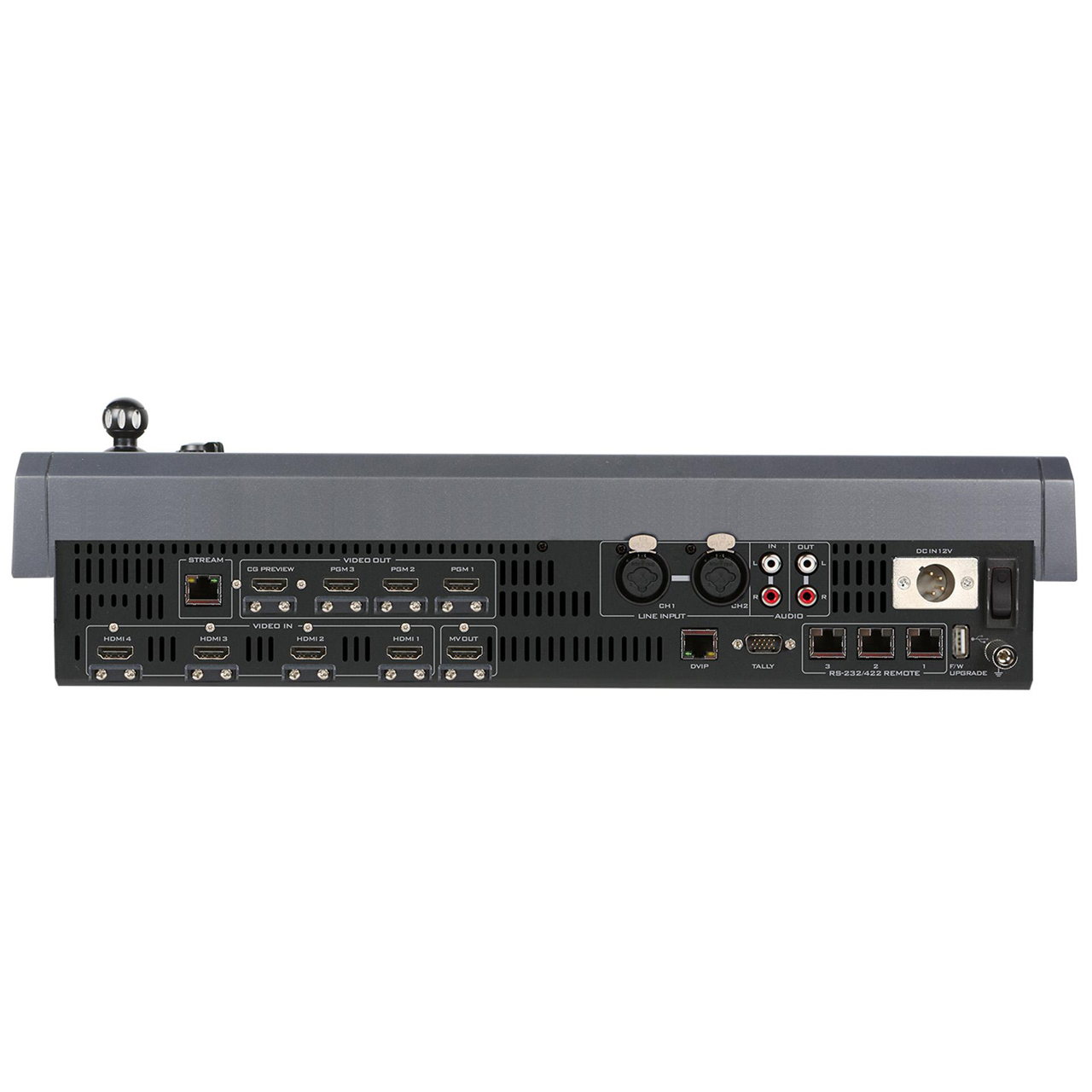

    • Video Input: 4 x HDMI 2.0
    • Computer Graphic Interface: 4 via HDMI
    • Video Output: 3 x HDMI 2.0 for PGM/1 x HDMI for CG Preview
    • Down-converted Output: Yes
    • Built-in Multi-view Monitoring Out: On 14" Touch Panel
    • Analog Audio Input: 2 x 3 Pin XLR / 1/4" (6.3mm) Combo Socket / 1 x Stereo RCA set (L/R)
    • Audio Input Switch: Stereo / Mono
    • Analog Audio Output: 1 x Stereo RCA set (L/R)
    • Switching: Yes
    • Title Creator: Web GUI
    • USK: Lumakey
    • Picture in Picture: 1
    • Effects: Seamless Cut, WIPE, Mix
    • Sync / Reference In/Out: Built-in Genlock (internal)
    • Tally Output: D-Sub -15 Male connector
    • PC Remote Control: Web browser UI for configuration and control Socket commands
    • Camera Control: DVIP/ RS-422/ RS-232
    • Built-in Audio Mixer: Yes
    • Storage: 1 x SD Card Slot Supports SD, SDHC and SDXC card (UHS-I) (Class 10 above)
    • Recording File System: FAT, NTFS, exFAT
    • Recording File Format: MP4
    • Video Encode: H.264 / AVC, Main/ High Profile
    • Record Only: Up to 16Mbps (1080p 50/60)
    • Stream Only: Up to 10Mbps (1080p 50/60)
    • Audio Encode: AAC-LC Configurable bit rate range from 32Kbps to 384Kbps
    • Sample rate: 48KHz, 16bit
    • Streaming Protocol: TS over TCP/UDP (unicast & multicast)RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
    • RTMP (Publish)
    • Firmware Update: USB
    • Special Features: 14.0 Inch Touchscreen Display
    • Chassis: Unibody
    • Dimension(LxWxH): 1.48 x 12.99 x 3.79Inches (437.6 x 330.5 x 96.5mm)
    • Weight: 11.9Ib (5.4kg)
    • Power: DC 12V 82W
    • Operating Temp Range: 32 to 104°F (0~&; 40°&;C)

  • Item Includes:

    • 1 x Showcast 100 Production Studio
    • 1 x AD Switch DC 12V with AC Cord
