Dynacord TPC-1 High Definition Digital Signage Touch Panel Controller - 720x1440 - 5.7-Inch

ITEM #: DYN-TPC-1 MFG #: TPC-1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,610.00

Our Price:

$1,095.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TPC-1 - Overview

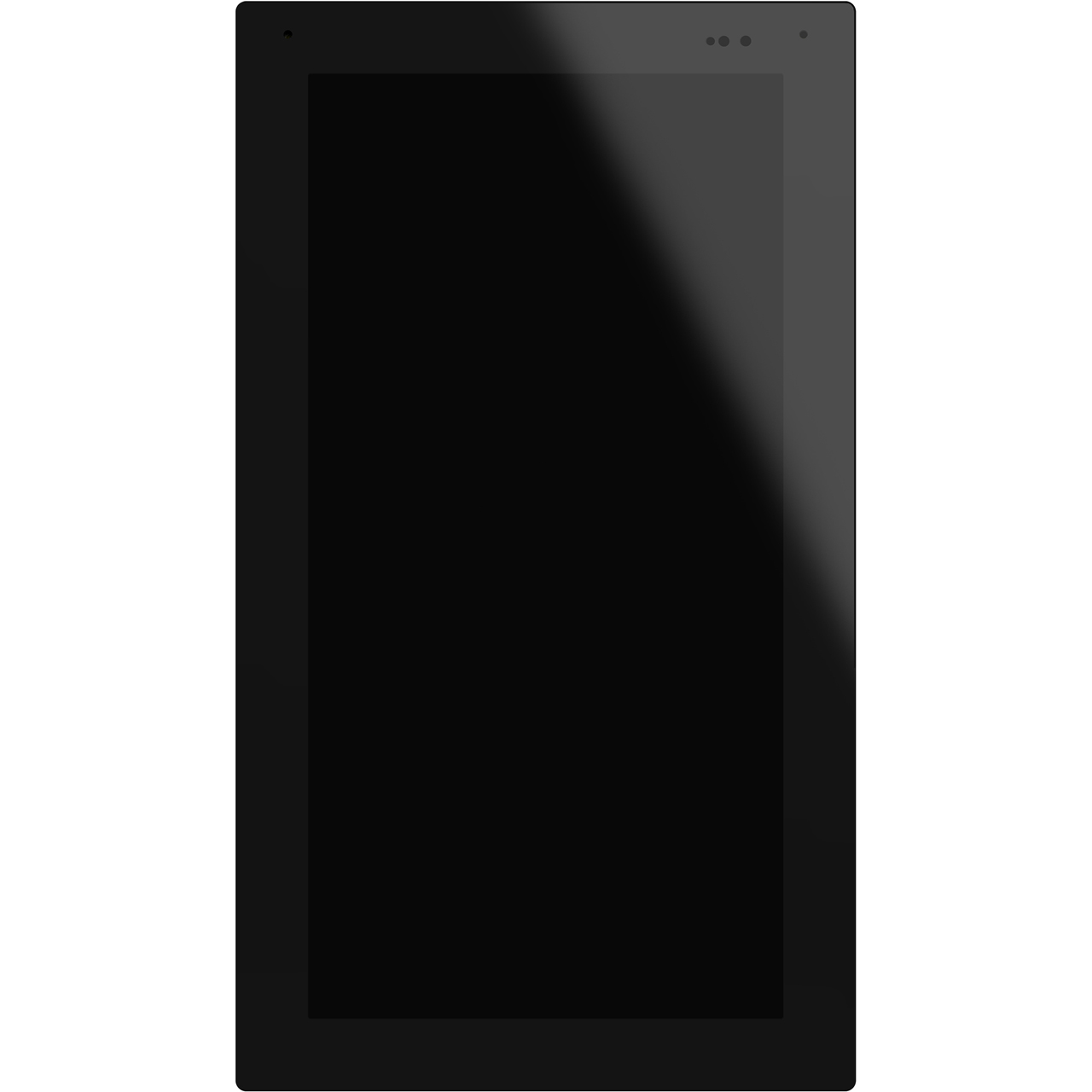

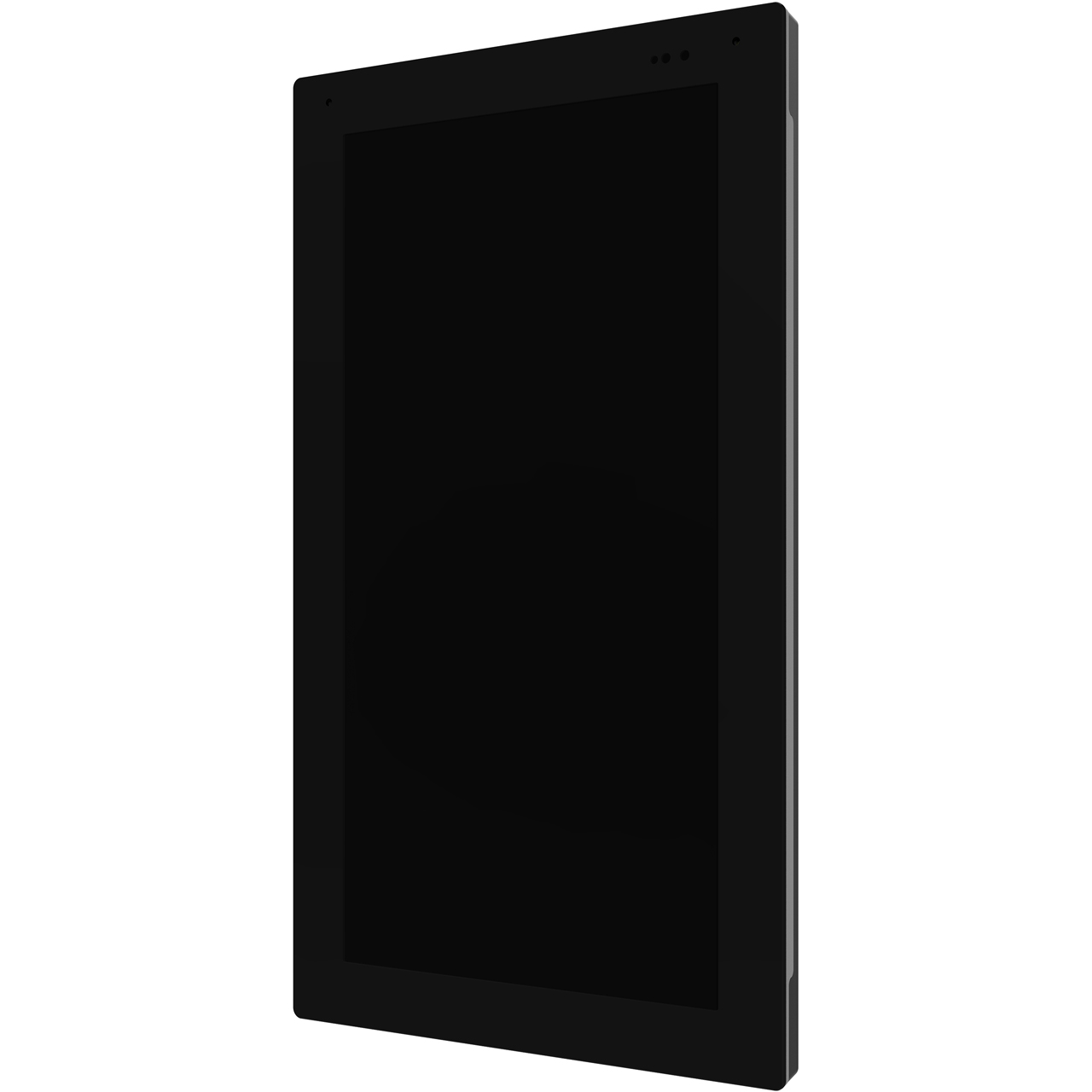

The Dynacord TPC-1 touch panel controller allows the system integrator to provide customized apps to control MXE series audio matrices. Featuring a high definition 5.7" display, the super slim in wall profile and universal mounting for EU, UK, or US mounting boxes with Power over Ethernet (PoE) makes it easy to install, even in shallow wall spaces. TPC-1 features theft protection by a secured mounting plate. The TPC-1 interface is freely configurable in SONICUE sound system software, allowing custom images and text in local languages to be added to control elements.

  • Features:

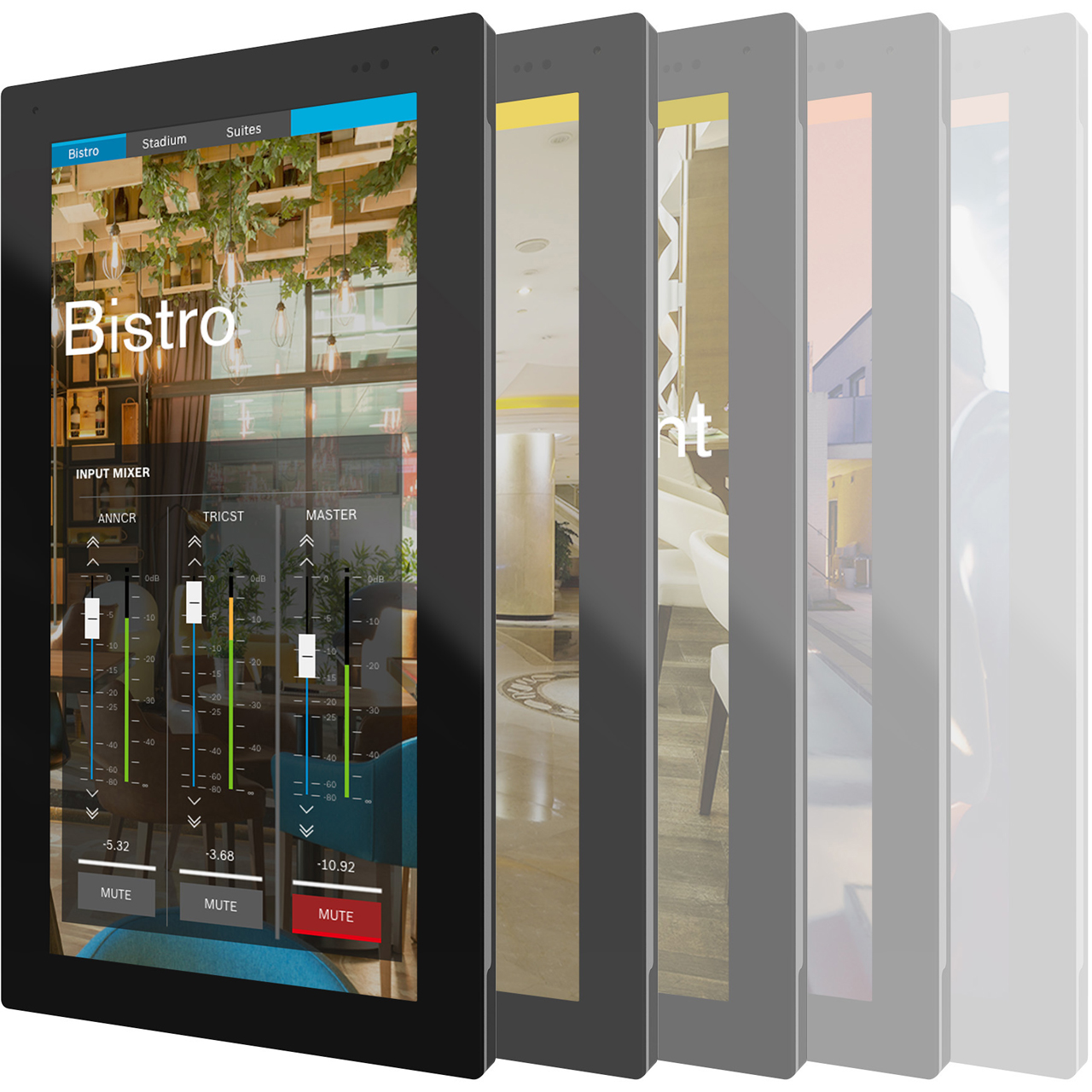

    • Customized user control apps with SONICUE
    • High Definition (720x1440) IPS 5.7" display with 450 nits of brightness
    • PoE, compatible with US single gang, EU and UK wall boxes

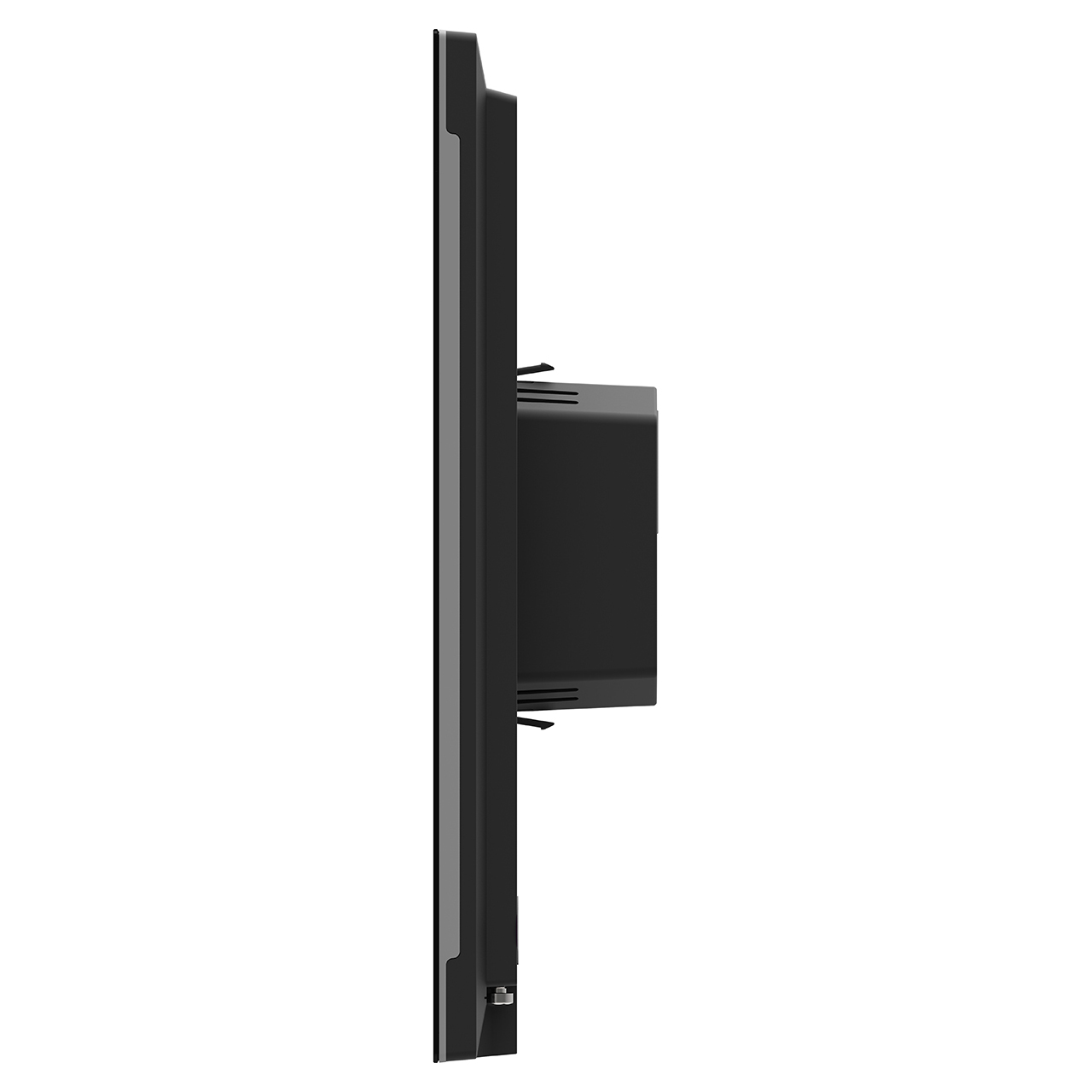

    • Only 1" (25.4mm) installation depth in wall

  • Specifications:

    • Display: IPS 5.7" LCD
    • Resolution: 720 x 1440
    • Color: 16.7 million
    • Aux Power Length: 12mm
    • Power Consumption:
      - Typical: 6W
      - Maximum: 8W
    • USB: USB 2.0 on the back, for maintenance & service
    • Installation: Wall-mount; single gang US, UK, European/International IEC/EN60670
    • Certifications: CE, FCC Part 15 Class B, RoHS/WEEE compliant
    • Operating Temperature: 32°F - 113°F (0°C - 45°C)
    • Storage/Transport Temperature: -4°F - 158°F (-20°C - 70°C)
    • Relative Humidity: Max 95%, No condensation
    • Dimensions (WxHxD): 3.4" x 5.9" x 0.5" (85.5mm x 150.3mm x 12.2mm)
    • Color: Black
    • Weight: 0.36lbs (166g)
    • Shipping Weight: 1lb (0.4kg)
    • Brightness: 450 nits
    • Processor: NXP iMX8, 64-bit Armv8 A Quad symmetric-core ARM Cortex-A53 processor @ 1.8GHz
    • Proximity Sensor (max. range): 47.24" (120cm)
    • Proximity Sensor (capture angle): 25° horizontal, 25° vertical
    • Wire Network: IEEE1588 Gigabit Ethernet

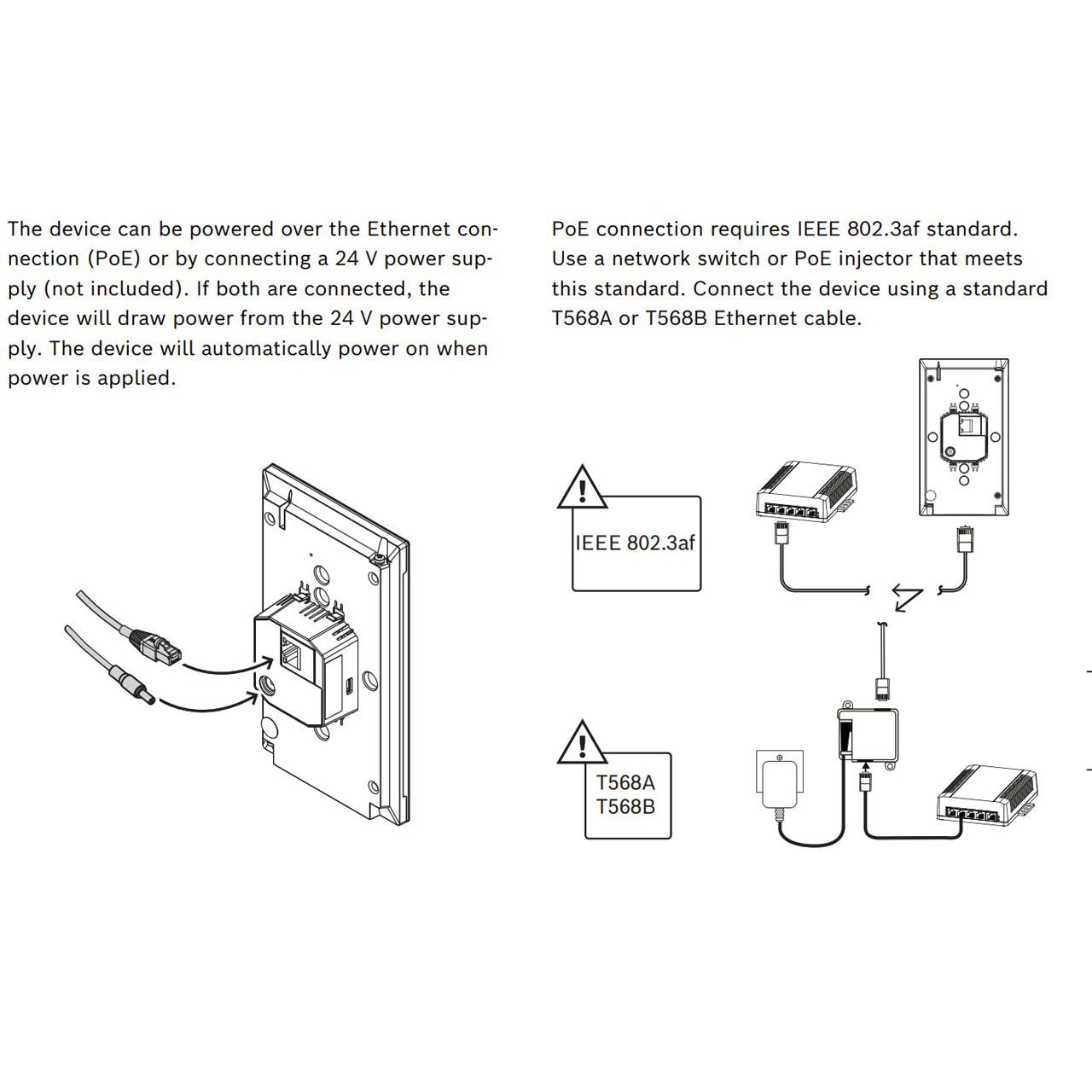

    • Power over Ethernet: IEEE PoE 802.3af compliant, via LAN port 48V DC (range: 37V - 57V DC)
    • Aux Power: 24V DC (Range: 24V - 30V DC), Power supply not included
    • Aux Power Barrel Diameter: 0.22" x 0.01" (5.5mm x 2.5mm)

  • Item Includes:

    • 1x TPC-1 5.7" Touch Panel Controller
    • 1x Quick installation guide
    • 1x Mounting bracket set
