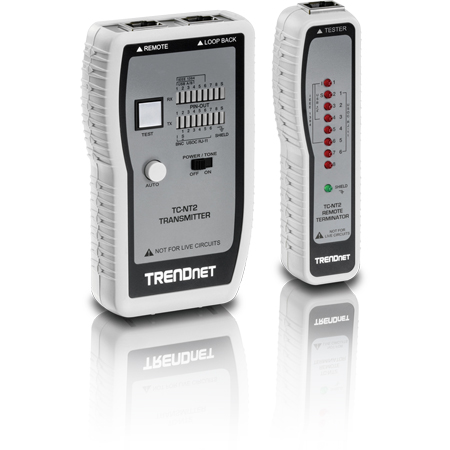

TRENDnet TC-NT2 Version v1.1R Ethernet / USB & BNC Cable Network Tester - NDAA Compliant

TC-NT2 - Overview

• Features:

  • Comprehensive cable tester for network professionals
  • Tests Ethernet, USB, and BNC cables
  • Accurately test pin configurations for cable lengths up to 984ft (300m)
  • Identifies severed, short circuit, and cross connected pins
  • Continuous scan and manual scan modes
  • Includes BNC to Ethernet converters
  • Handy travel case


• Specifications:

  • Tone Frequency: 600Hz - 800Hz

    Test Pin Configuration
  • 10/100/1000 Base-T, 10 Base-2 (Coax)
  • RJ11/RJ12/RJ45
  • EIA/TIA-356A/568A/568B
  • Token ring cables

    Compatible Cables*
  • Cat 7, 6, 6e, 6a, 5, 5e, 4, 3, 3e
  • Coax cable
  • USB and 1394 cable (with TC-NTUF)
    *Not designed for live wires. Connecting tester to a live wire may damage the tester.

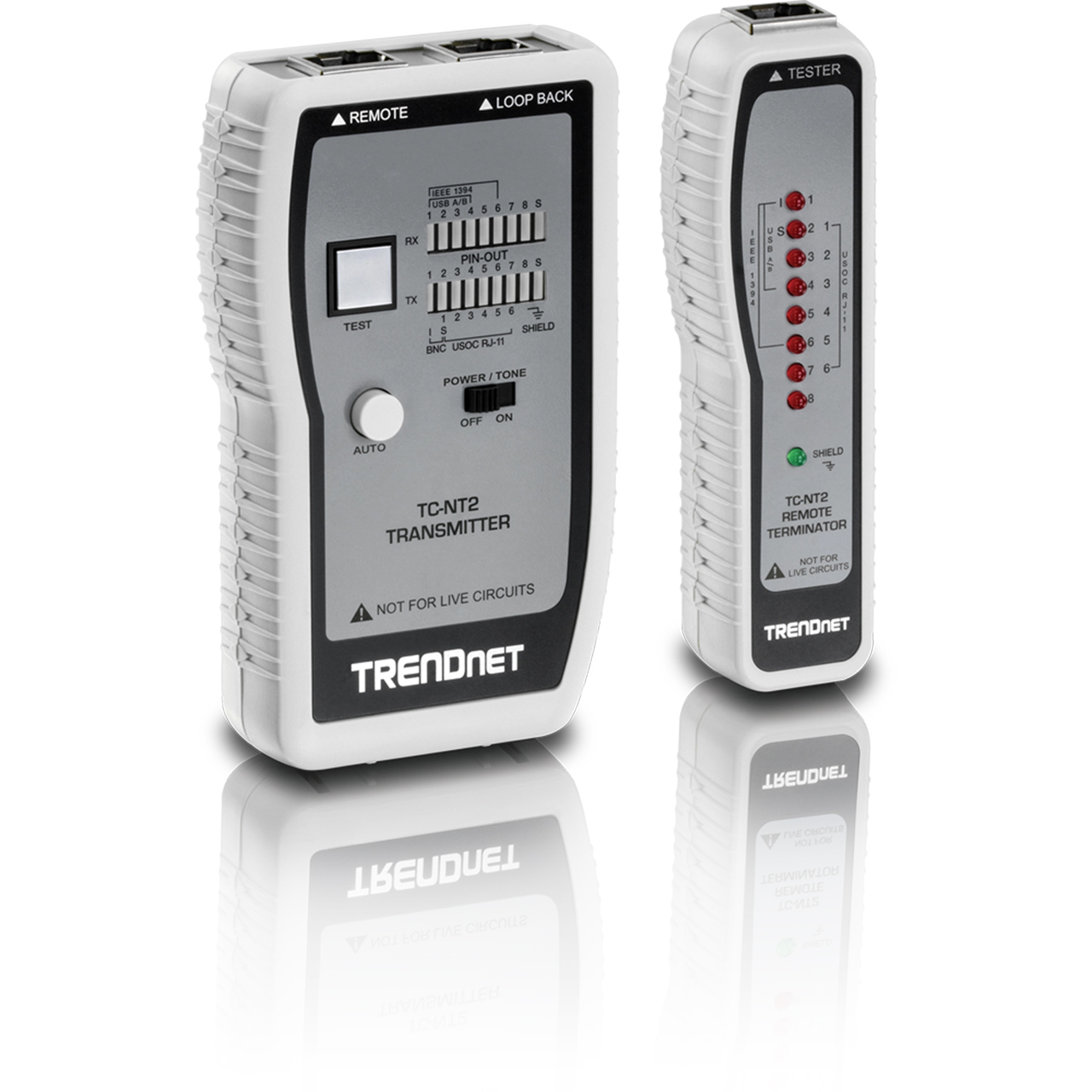

    Transmitter Unit Interface
  • 2x test ports
  • Manual test button
  • Auto test button
  • Power/tone switch
  • LED indicators

    Receiver Unit Interface
  • Test port
  • LED indicators

    Special Features
  • Test grounding of shielded (screened) cable
  • Identifies proper, severed, short circuit, and cross connected pins
  • Build-in tone generator for tracing cable with standard Tone Probe (TC-TP1)
  • Test USB and IEEE 1394 cables with optional adapters (TC-NTUF not included)

    Power Source
  • Transmitter: 9V DC battery (not included)
  • Receiver: Powered by master transmitter via connected cable

    Physical
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Operating Humidity: Max. 95% non-condensing
  • Dimensions:
    - Transmitter: 4.6" x 2.6" x 1.1" (117mm x 67mm x 27mm)
    - Receiver: 4.6" x 1.3" x 1.1" (117mm x 32mm x 27mm)
  • Weight:
    - Transmitter: 3.8oz (108g)
    - Receiver: 1.6oz (44g)


• Item Includes:

  • 1x TC-NT2
  • 1x Quick Installation Guide
  • 2x RJ45-to-BNC adapter
  • 1x Network patch cable
  • 1x Carry pouch


• Warranty:

  • 1 Year Limited Warranty
