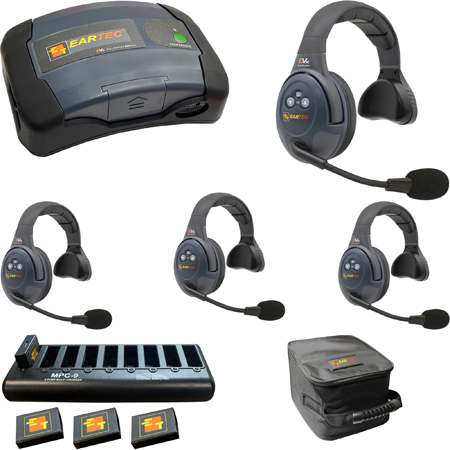

Eartec EVADE EVX4S-CM Full Duplex Dual Channel Light Industrial Wireless Intercom System with 4 Single-Ear Headsets

ITEM #: EAR-EVX4S-CM MFG #: EVX4S-CM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,125.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


EVX4S-CM - Overview

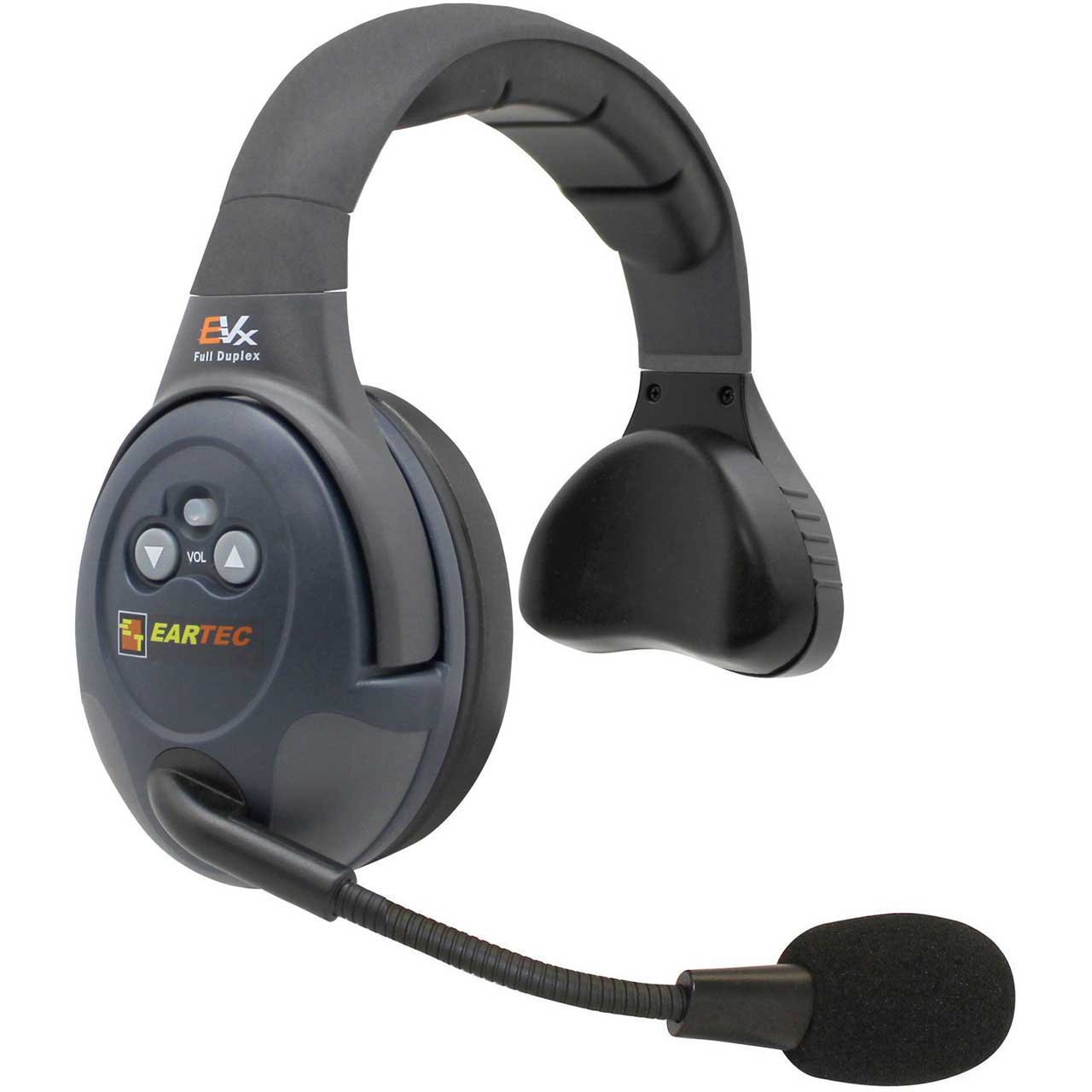

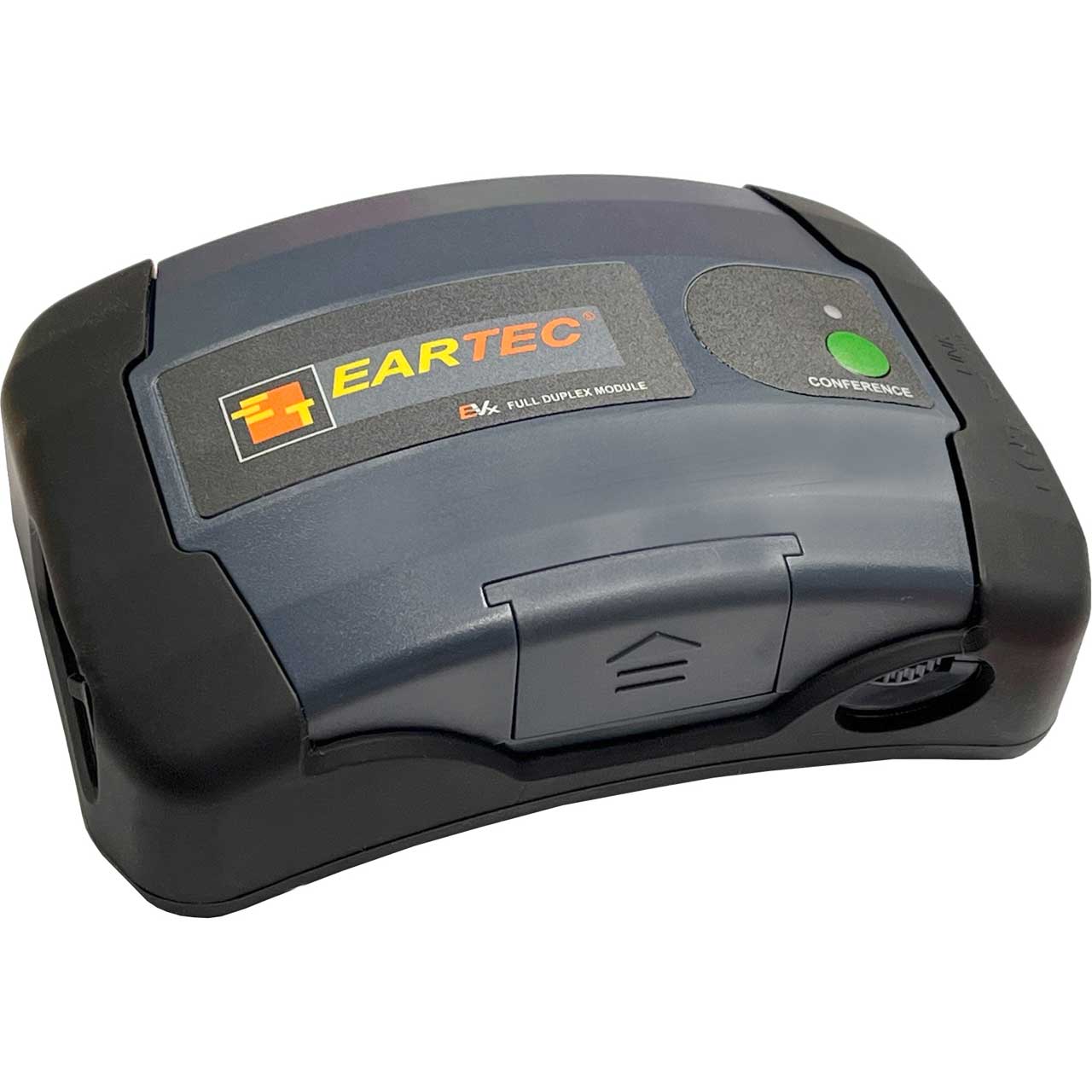

Eartec has been supplying specialty headset solutions for over six decades. They have long recognized the need for a Light Industrial wireless that is both comfortable yet built rugged. With this in mind the new EVADE Single is sure to become Eartec's most popular team communication headset. EVADE Single operate in full duplex mode allowing crew to talk simultaneously and hands free just like on a regular telephone. Designed specifically for professional crews the EVADE Single features a deluxe padded ear that can be worn on left or right side leaving one ear open. With all electronics including a compact radio and rechargeable battery built inside the ear cups the EVADE Single are not only affordable but reliable too. EVADE wireless owe their name to a digital operating system called Frequency Hopping. The compact digital radio built into the earcup continuously monitors the environment and automatically switches to channels that are clear whenever necessary to easily avoid interference. This smart engineering is a military technique that dodges or "evades" other wireless systems and provides crystal clear communication. The Conference Module (included) provides a staff conference with a single touch of a button

  • Features:

    • Excellent performance - Range up to 1/2 mile Radio installed inside earcup, no wires or beltpacks
    • Li-Poly Batteries - Provide continuous 8 hr operation and are field replaceable
    • Auto Mute Boom - Mute when in UP position
    • Volume Control - Simple up / down push button adjustment Sealed for use outdoors in inclement conditions
    • Light Industrial Design - Wear comfortably for an 8 hour work shift
    • Field Programmable - Start small and add to your system as needed

  • Specifications:

    • Frequency Range: 2407MHz-2475MHz
    • Data Rate: 1MBPS
    • Bandwidth: 150KHz
    • Channel Spacing: 1MHz
    • Modulation Type: GFSK
    • Gain of Antenna: 0db
    • Duplexing: Time Division Duplex (TDD)
    • Speech Encoding: ADPCM/16kbit/s
    • RF Accessing: Time Division Multiple Access (TDMA)
    • Power Supply: Rechargeable Li-polymer Battery @ 3.7v/1000mAH
    • RF Output Power: 80mw
    • Operating Temperature: 0 - +50° C
    • Operating Relative Humidity Range: 30% - 90%
    • Operation Current: 110mA
    • Operation Time: 8h
    • Range: 1/2 mile (open field)
    • No FCC License Required

  • Item Includes:

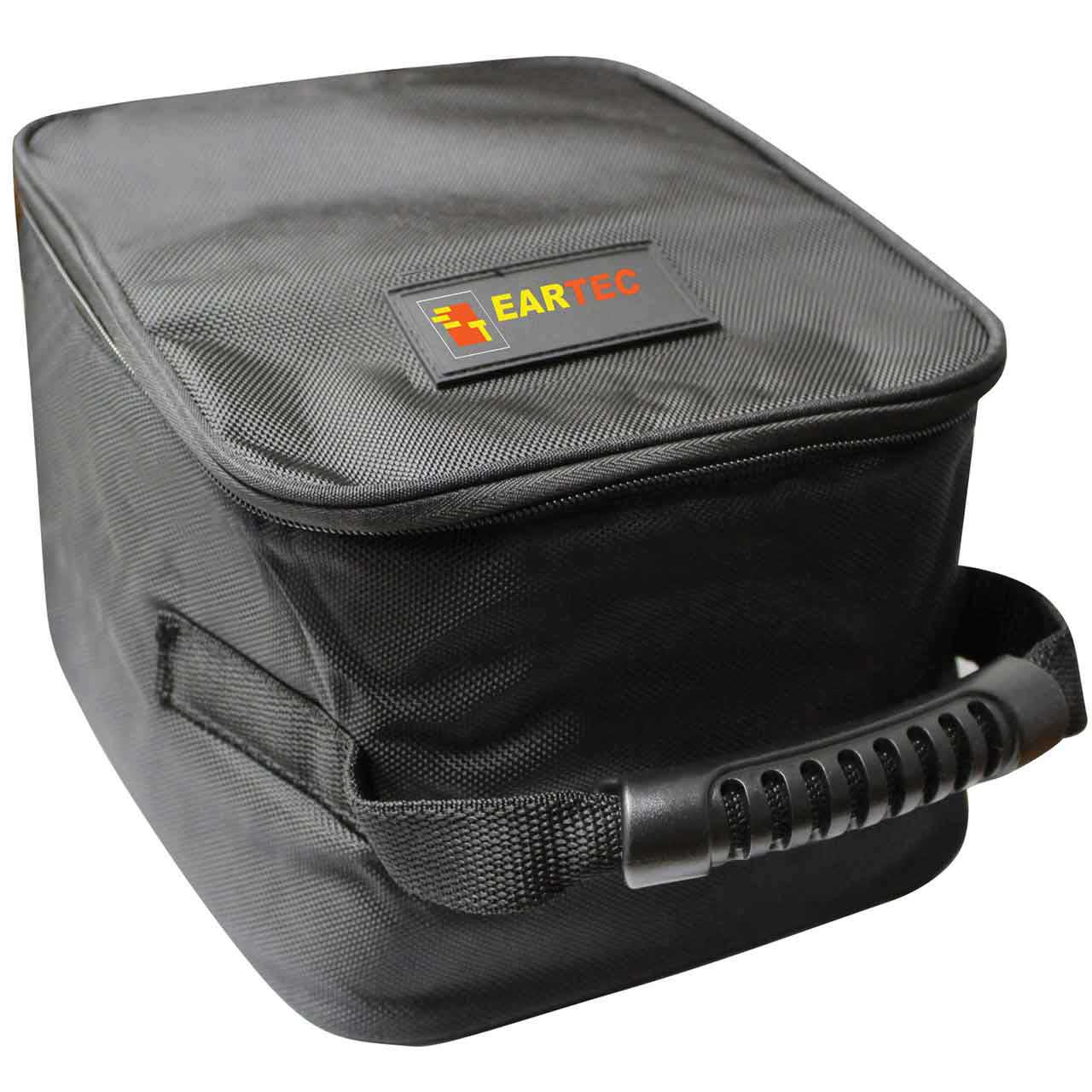

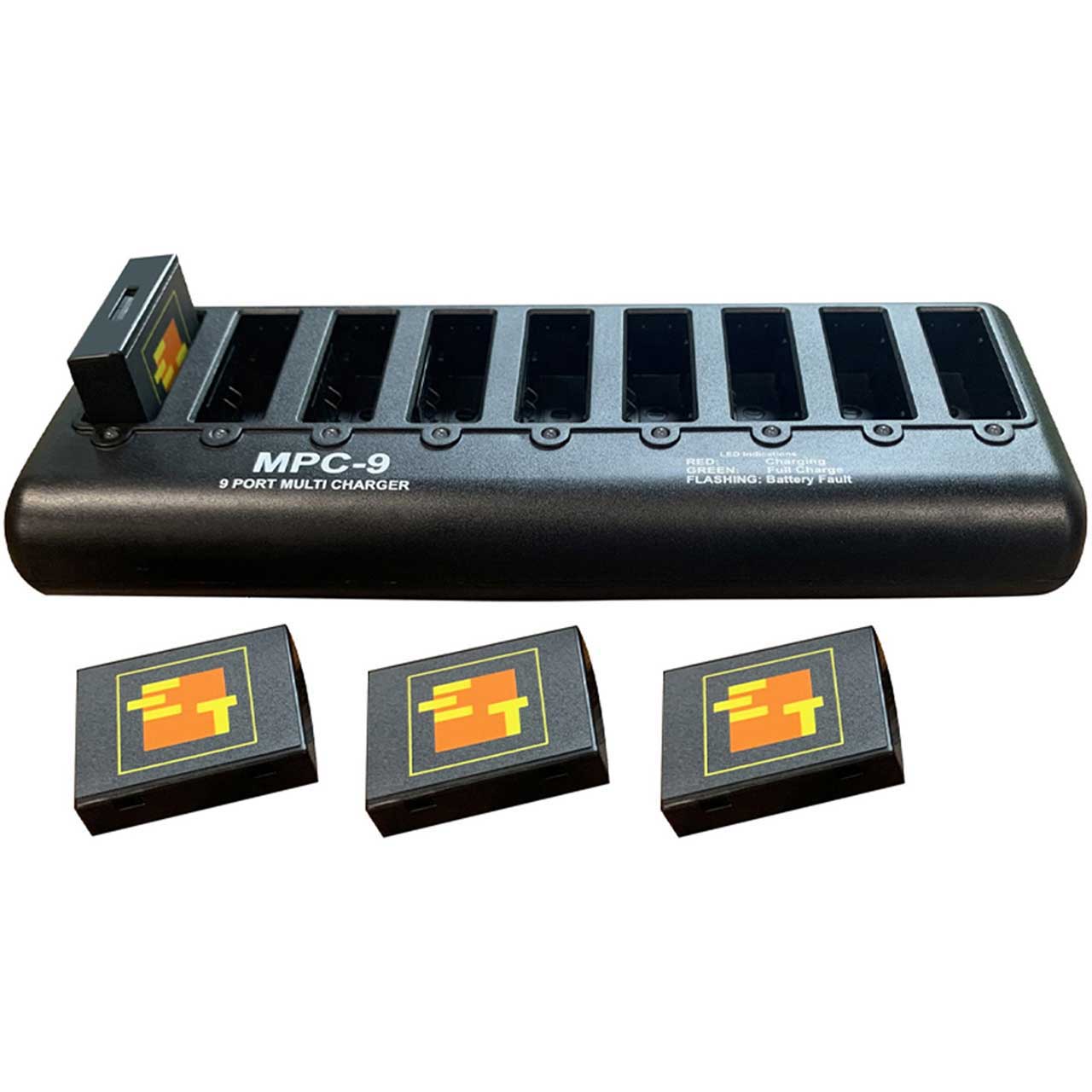

    • 1x EVADE C-MOD 1x EVADE Single-Ear Main Headset 3x EVADE Single-Ear Remote Headset 1x 9-Port Charger w/ Adapter 1x Large Soft Padded Case 4x X Lithium-Polymer Batteries
