Eartec HUB Full Duplex Wireless Intercom System Mini Base Station

ITEM #: EAR-HUB MFG #: HUB

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$495.00

Availability: In Stock
iAvailability Description Popup


    HUB - Overview

    Hands-Free, Open Line Talking Pattern

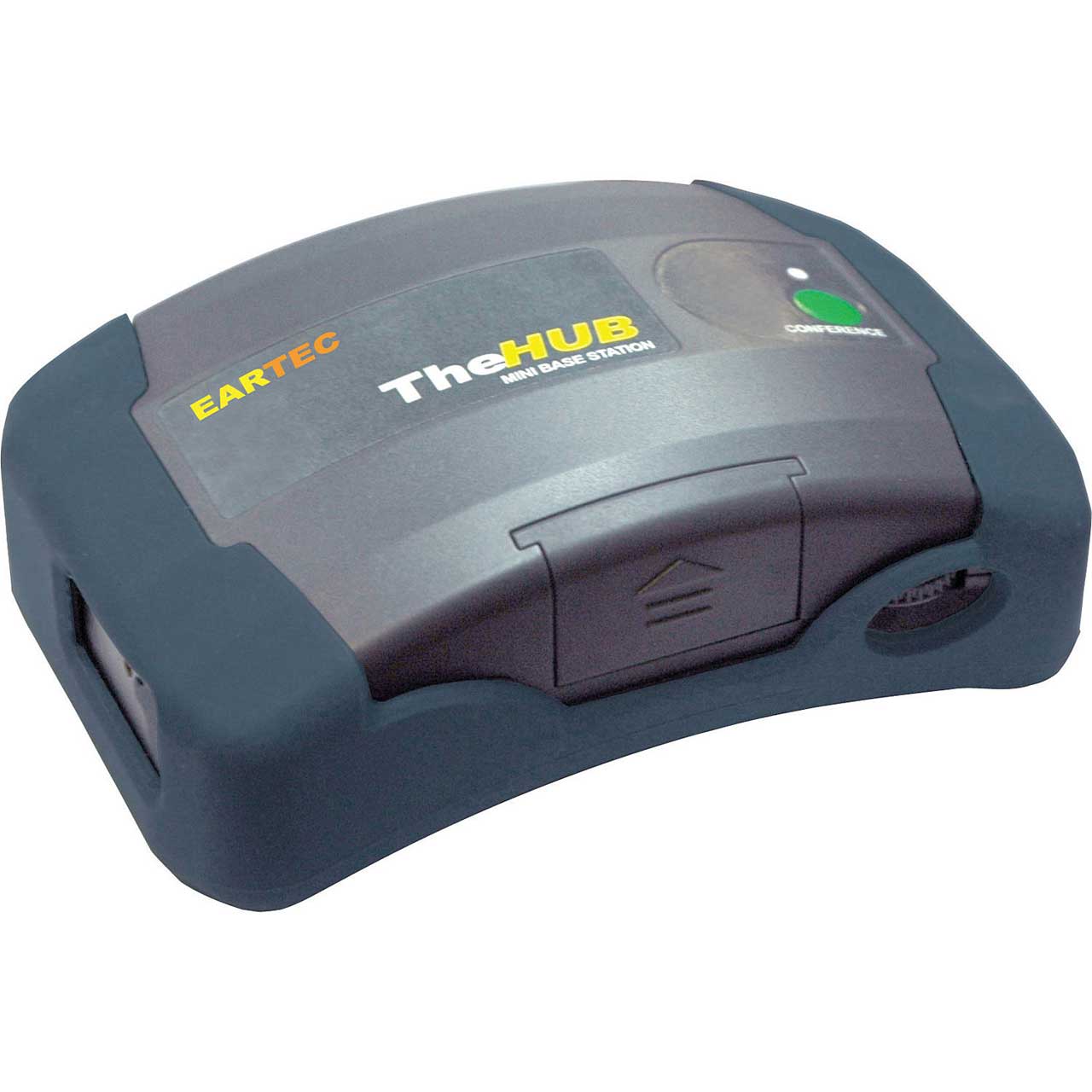

    The Eartec HUB is a wearable mini-Base that expands the capacity of UltraLITE wireless headsets for larger crews that need to communicate and work with their hands. This compact transceiver weighs only 9 oz and can either be placed in a strategic position when "on location" or can be belt worn. When clipped comfortably to the user's waist it moves seamlessly with your group allowing UltraLITE headsets to remain connected in full duplex. Each HUB mini-base can accommodate up to 8 UltraLITE remote headsets and 1 wired headset. Please note once you have added a HUB and one of the 3 wired headsets to your UltraLite system, the HUB becomes the "MAIN", all other communication can only be transmitted by using "REMOTES".

    • Features:

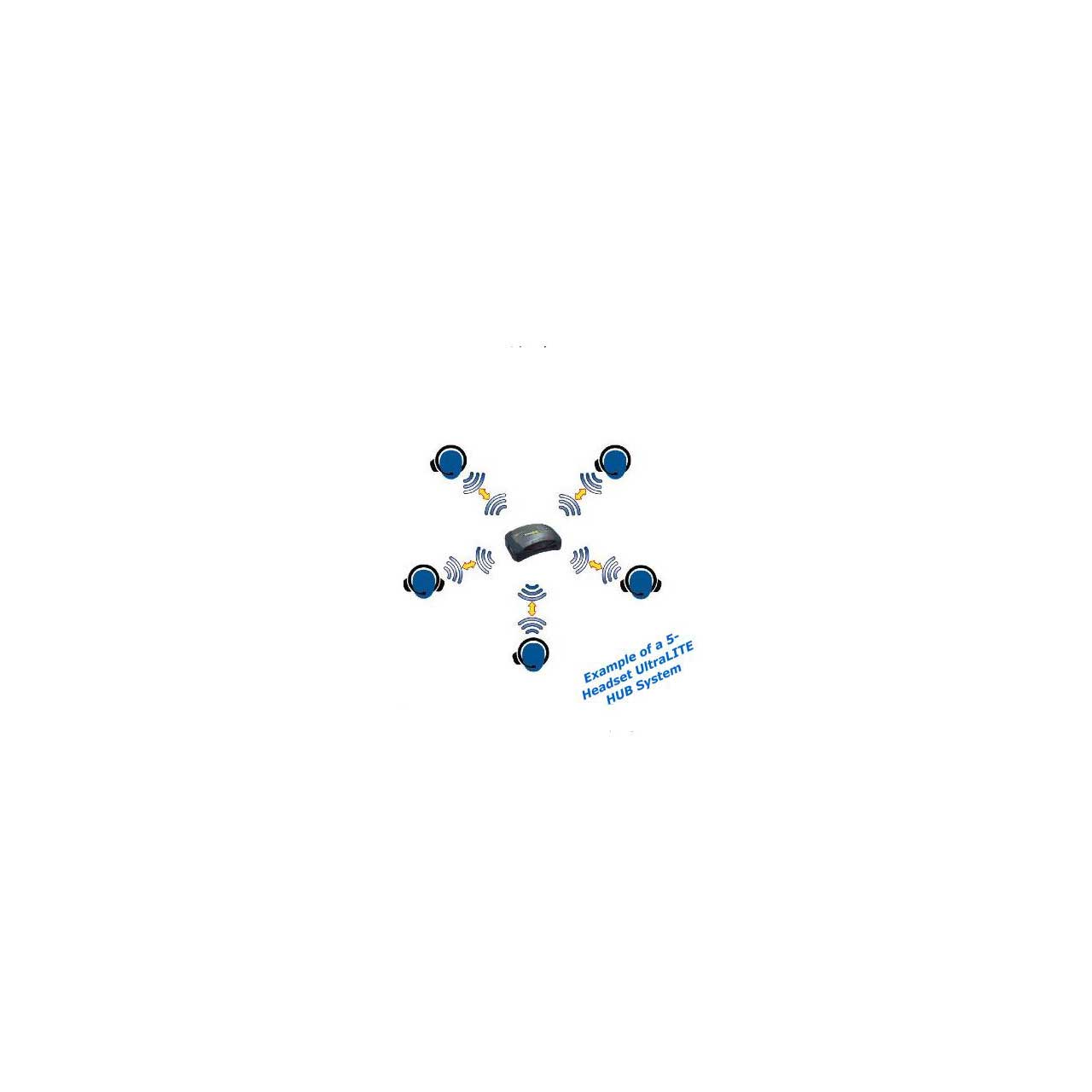

      • Hands Free: communication for up to 7 people
      • Connect Up To Six Wireless: UltraLITE wireless, use the HUB (plugged in) as the 7th full duplex transceiver
      • Range: 1/4 mile range in all directions
      • Full Duplex for up to 7: Two channels of communication
      • Centrally Locate: for stationary "On location" use, OR clip to waist for total mobility
      • UltraLITE Headsets: Wear on the left or right
      • Mic Boom Swivels 270 degrees: shuts off when in "UP" position
      • Self-Contained Design: No Beltpacks Required!
      • Simple Adjustments: Silicone Sealed ON/OFF, Volume
      • Field Programmable: Instantly and Easily Add Headsets
      • No FCC License Required

    • Specifications:

      • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
      • Frequency: 1920-1930MHz (USA)
      • Euro Frequency: 1800-1900MHz (EURO)
      • Weight: 4 oz
      • Connector: 2.5mm 3.5mm plug-in
      • Dimensions: 5.5"w x 1.5" d x 3.75" h
      • Channel Bandwidth: 1.728 GHz
      • Modulation Type: GFSK
      • Transmission Speed: 1.152 Mbps (Baud Rate)
      • Duplexing: Time Division Duplex (TDD)
      • Speech Encoding: ASPCM/ 32bit/s
      • RF Accessing: Time Division Multiple Access (TDMA)
      • Range: 400m in open space
      • Headset Power Supply: Rechargeable Lithium, 3.7 V/800 mAh 3.0 Wh
      • Charger Power Supply: AC/adapter: INPUT 110-40Vac
      • Charge Time: 3 hours
      • Operation Time: 4 hours
      • Normal Condition of Use: 0 C to 10 C
      • Storage Temperature: -10 C to 60 C

    • Warranty:

      • 1 Year
