HUB4D - Overview

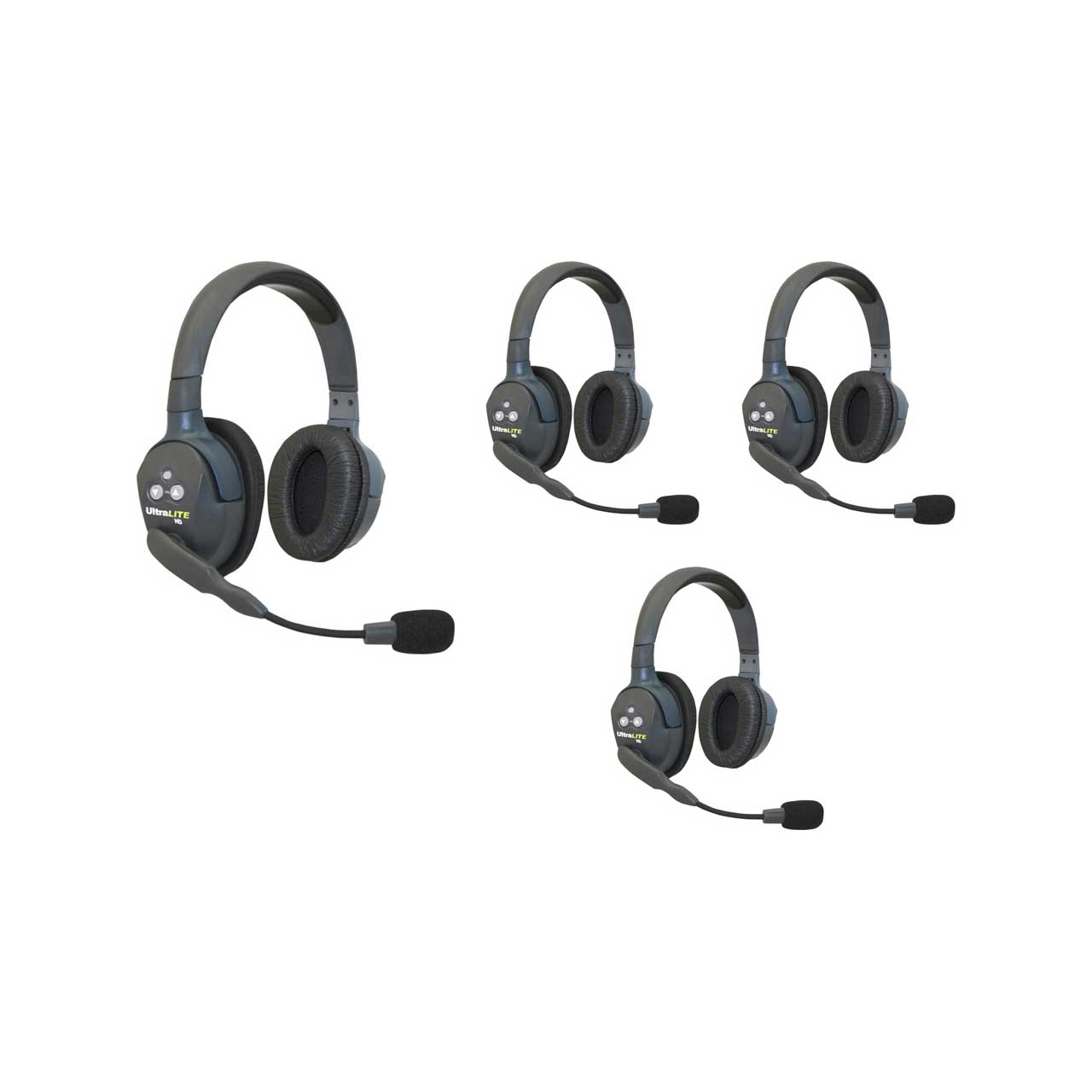

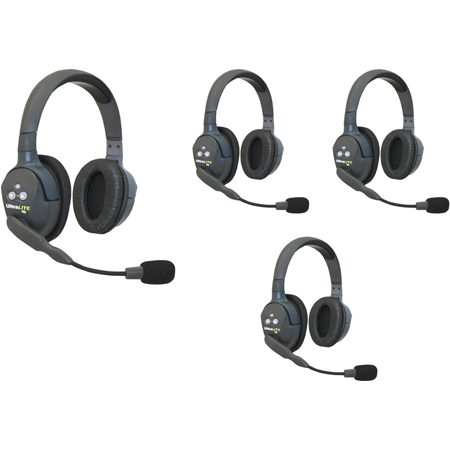

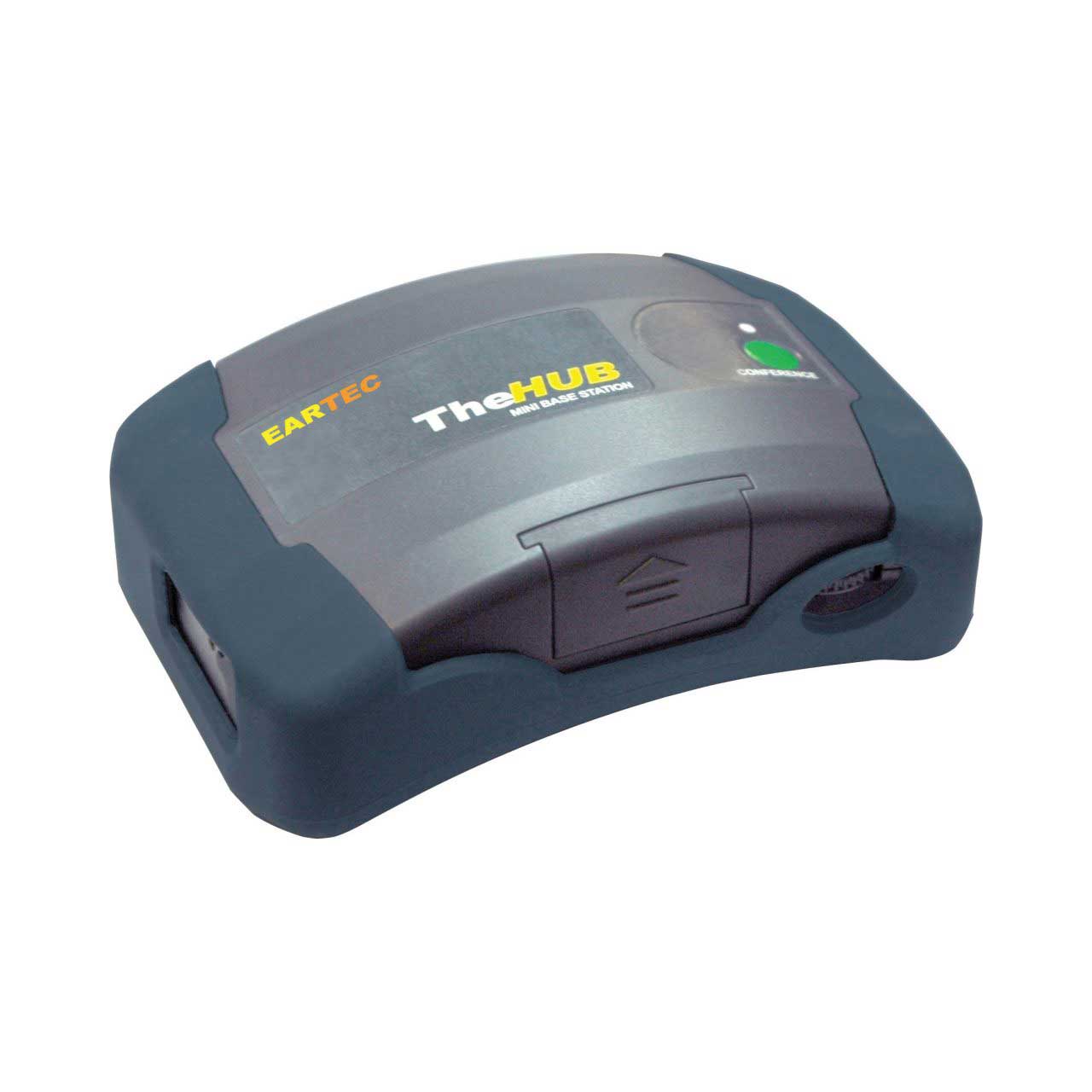

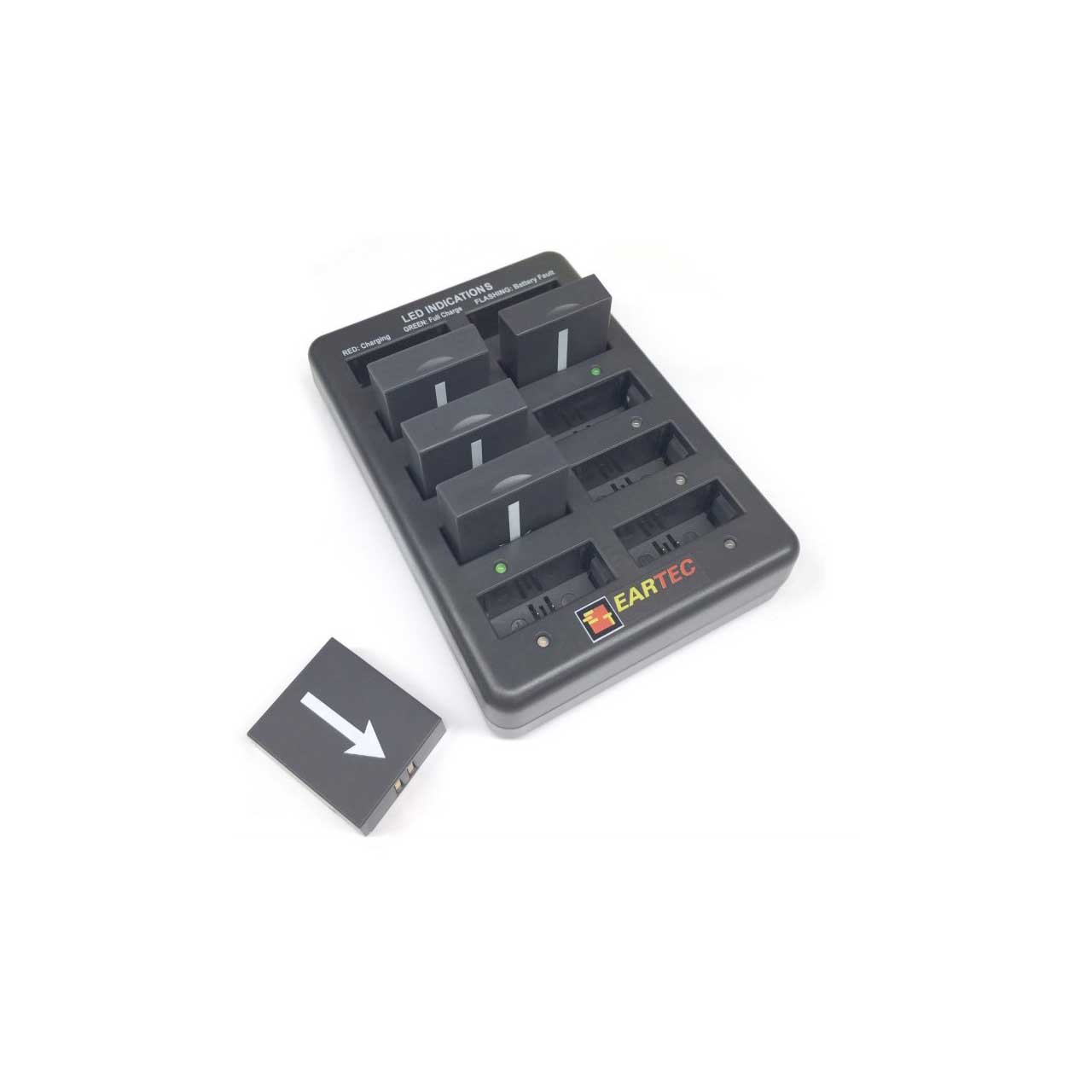

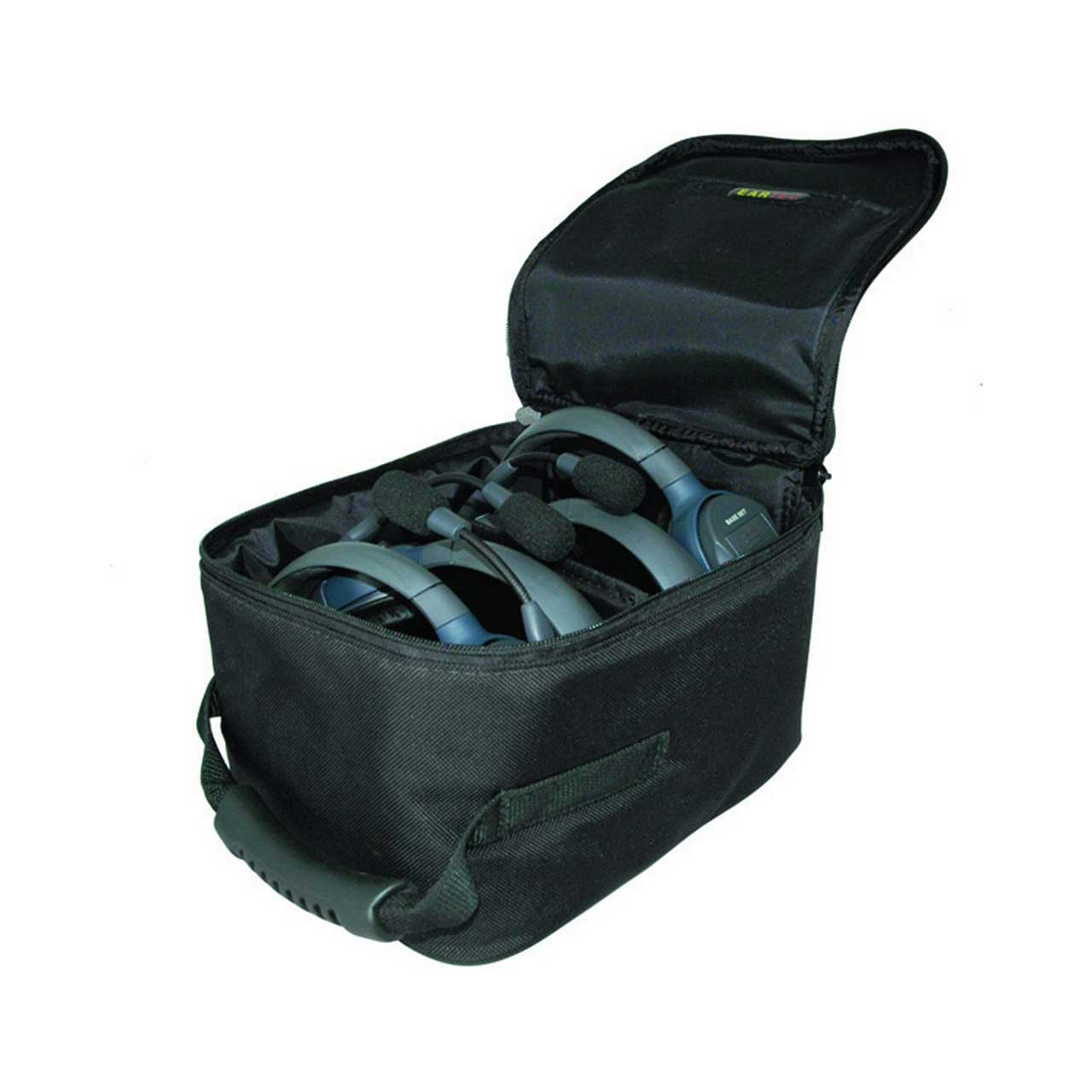

The Eartec HUB4D is a professional Full Duplex Wireless Intercom System for 4 people that need to communicate and work with their hands. This compact system features the HUB Mini base and 4 UltraLITE wireless headsets that utilize Digital Enhanced Cordless Technology (DECT) on the 1.9 GHz band. This provides professional, simultaneous wireless communication within a 1/4 mile range line-of-sight. The HUB is a revolutionary mini base station that expands the capacity of the UltraLITE linking up to 8 wireless headsets, with a wired headset jack to accommodate larger production crews. Weighing only 9 oz. the HUB can either be placed strategically "on location" or belt worn so your crew can remain in constant full duplex voice contact with the freedom of mobility. The UltraLITE headset provides breakthrough technology with all electronics, including the battery/circuit board/antennas being built right inside the earcup of the headset eliminating wires/belt-packs being exposed. The complete Eartec HUB-4D includes 1 HUB mini-base/4 UltraLITE double headsets/batteries/charger/adapter and carrying case.

  • Features:

    • Portable Mini Duplex Repeater
    • Clip to waist for total team mobility
    • Protective Neoprene shell
    • Two channels or conference
    • Expandable to 16 users
    • DECT / Digital 1900 MHz band
    • Range up to ¼ mile
    • Dual Power Option Rechargeable Li Poly Battery 7 AC Adapter (Both incl.)
    • Integrated Volume Control
    • Dual Pin Headset Jack

  • Specifications:

    • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
    • Frequency: 1920 - 1930MHz (USA)
    • Euro Frequency: 1880 - 1900MHz (EURO)
    • Weight: 4 oz
    • Connector: 2.5mm 3.5mm plug-in
    • Dimensions (WxDxH): 5.5 x 1.5 x 3.75"
    • Channel Bandwidth: 1.728 GHz
    • Modulation Type: GFSK
    • Transmission Speed: 1.152 Mbps (Baud Rate)
    • Duplexing: Time Division Duplex (TDD)
    • Speech Encoding: ADPCM / 32bit/s
    • RF Accessing: Time Division Multiple Access (TDMA)
    • Range: 400m in open space
    • Headset Power Supply: Rechargeable Lithium 3.7 V/ 800 mAh 3.0 Wh
    • Charger Power Supply: AC / adapter: INPUT 110-40Vac OUTPUT 5.0V - 1000mA
    • Charge Time: 3 Hours
    • Operation Time: 4 Hours
    • Operating Temperature: 32° to 50°F (0° to 10°C)
    • Storage Temperature: 14° to 140°F (-10° to 60°C)
    • No FCC License Required

  • Item Includes:

    • 1x Eartec HUB4D UltraLITE/HUB 4-Person Full Duplex Wireless Intercom System - 1x HUB Mini-base/4x UltraLITE Double Headsets
