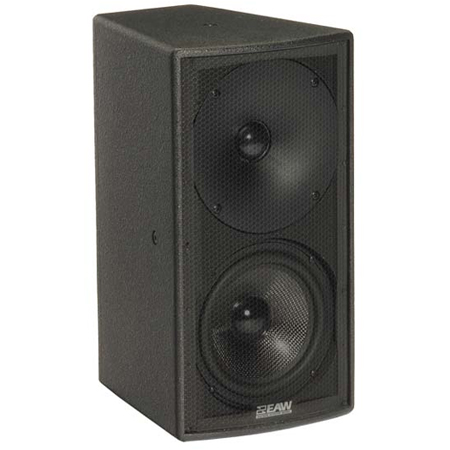

Eastern Acoustic Works JF60z Passive Two-Way Ultra Compact Loudspeaker - Trapezoidal Enclosure - Black

ITEM #: EAW-JF60Z-BK MFG #: JF60Z-BK

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EAW-JF60Z-BK

JF60Z-BK - Overview

The Eastern Acoustic Work JF60z is an ultra compact loudspeaker, engineered for exceptional, near-field performance. It provides surprisingly high output and exceptional fidelity for foreground and background music applications. It's speech projection capabilities also make it very effective as a fill or delay element in larger audio systems. Unlike many compact loudspeakers, the JF60z produces the high impact, high definition sound projection expected in professional PA applications. Its wide angle projection makes audience coverage easy in a variety of situations. While the JF60z is well suited as is for many applications, the addition of a subwoofer can expand its capabilities for more demanding applications.

Foam-backed grilles hide the drivers from view for pleasing aesthetics. Top, bottom and side mounting points allow enclosures to be mounted in virtually any configuration using eyebolts or accessory brackets. Additional mounting points accept an OmniMount 30.0 Series or similar bracket and a third-party, external, stand adapter for pole mounting, such as the K&M 195/8 or Ultimate Support BMB-200K. Standard colors are black and white. Other colors can be specified as a special order items.

The diverse applications for the JF60z include: band PA, multimedia systems, retail spaces, presentation suites, shopping malls, smaller houses of worship, theatres, auditoriums, lecture halls, and theme parks. Fill/delay applications include arenas, stadiums, concert halls, theatres, and houses of worship.

  • Features:

    • Compact loudspeaker with no compromise in sound quality
    • For portable use or permanent installation
    • 100° conical beamwidth
    • Passive crossover for single amplifier operation

  • Specifications:

    • Operating Mode
    • Amplifier Channels: LF/HF
    • External Signal Processing: HPF

      Performance
    • Operating Range: 83 Hz to 20 kHz
    • Nominal Beamwidth: Horz: 100° Vert: 100°
    • Axial Sensitivity: LF/HF: 88dB - 83Hz to 20 kHz
    • Input Impedance: Nominal: 8 Minimum: 7.4 @ 220Hz
    • Input Taps: 70 V: LF/HF - 64 W / 32 W / 16 W 100V: 64 W/ 32 W
    • High Pass Filter: =>70 Hz, 12 dB Octave
    • Accelerated Life Test (Whole Space SPL - 6dB Crest Factor): Average: 111 dB Peak: 117 dB
    • Max SPL Output(Whole Space SPL - 12dB Crest Factor): 123 dB

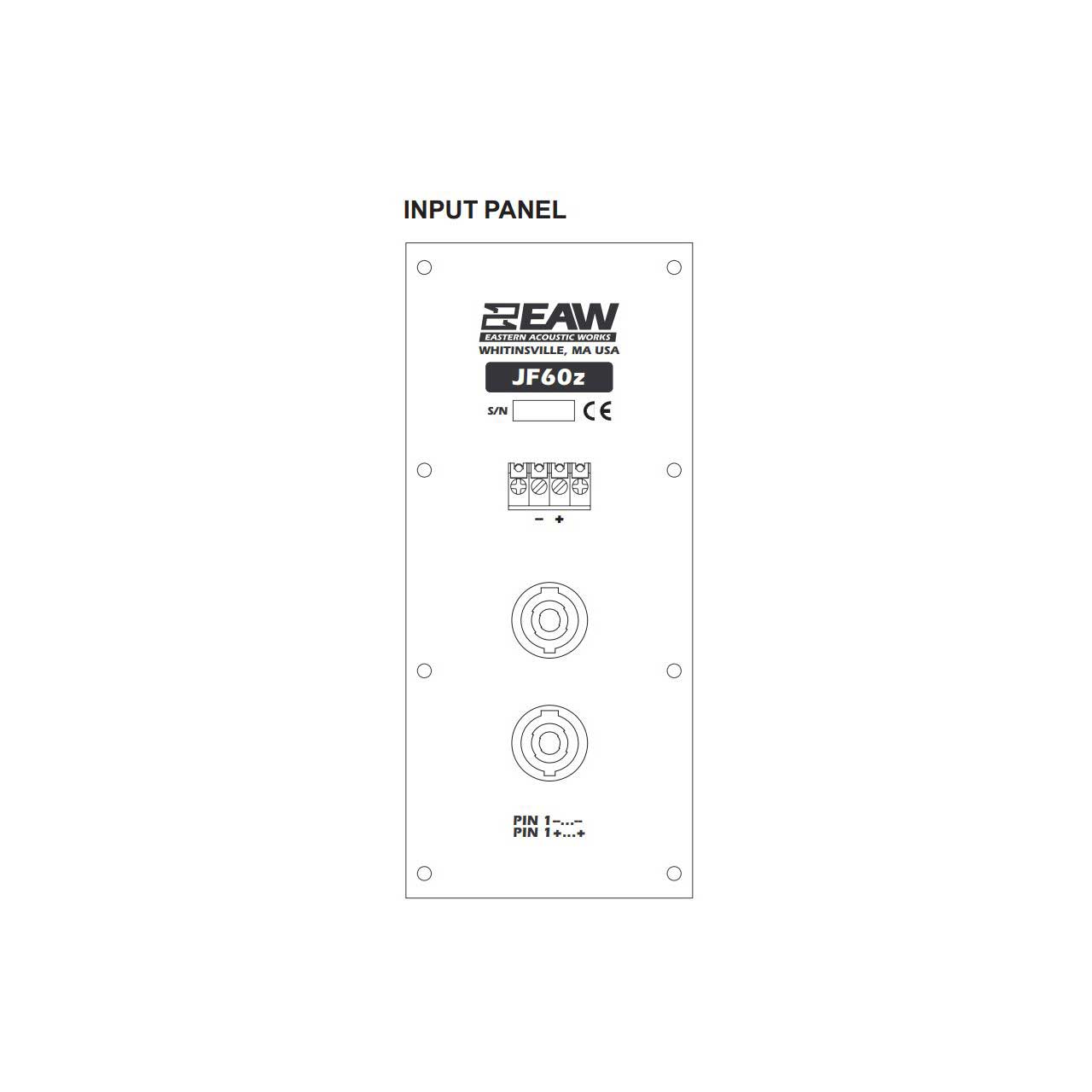

      Connections:
    • Barrier Strip
    • NL4 Input/Loop

      Power Handling
    • Full Range: 200W @ 8ohms

  • Item Includes:

    • 1x Eastern Acoustic Work JF60z

  • Warranty:

    • 6 Year Limited Warranty

  • GTIN:

    0609385888816
