MKC120 - Overview

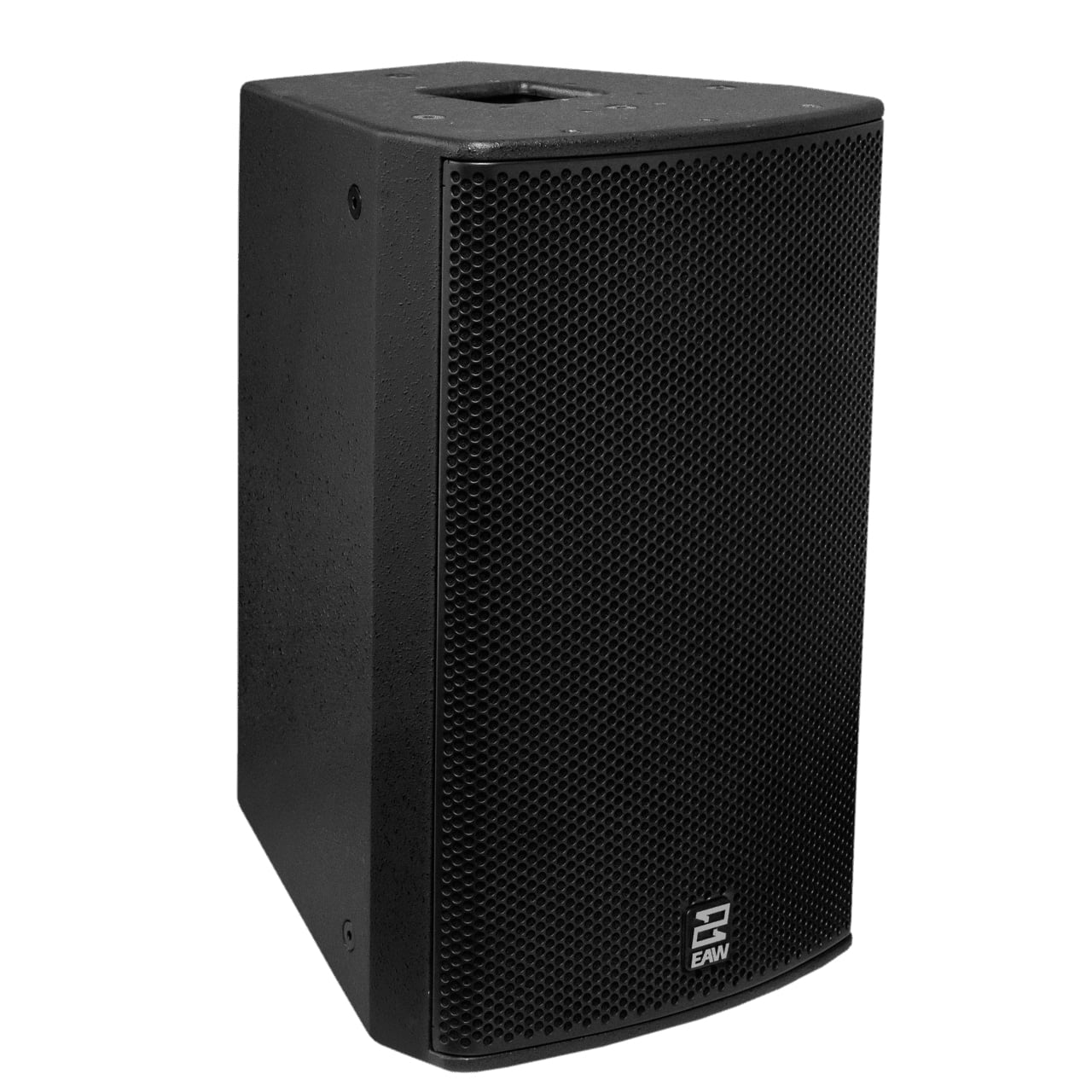

Eastern Acoustic Works' MKC120 represents a major evolution of coaxial loudspeakers. Available as standard in black or white, the MKC series offers a full-suite of driver sizes allowing the series to span a powerful index of installation applications and configurations. The enclosures can be deployed in either horizontal or vertical orientations through the use of an pan & tilt wall bracket or a U-Bracket. Other deployment options include a pole stand mount with two available tilt positions. Equipped with a CSA aperture, MKC120 takes single speaker pattern control to new levels. The technology delivers consistent tonality throughout the entire coverage, area even at high SPL levels.

  • Features:

    • High output, compact coaxial loudspeaker
    • Patented CSA coaxial horn provides superior control, fidelity and output
    • Integrated M10 mounting, handle and pole mount
    • Weather protection and transformer options
    • Companion UXA4403 amplifiers
    • Versatile accessories for a vast range of applications

  • Specifications:

      Performance
    • Max SPL:
      - 135dB (12dB Crest Factor)
      - 129dB (6dB Crest Factor)
    • Operating Range: 48Hz - 20kHz
    • Nominal Beamwidth: 90° x 60°, rotatable
    • Axial Sensitivity: 95dB
    • Calculated Axial Output: 123dB Average
    • Nominal Phase: ±15° from ideal high-pass filter
    • Input Impedance:
      - 8Ω nominal
      - 7.4Ω @ 270Hz minimum
    • Recommended HPF: 45Hz, 12dB/oct

      Accelerated Life Test
    • LF/HF: 600W @ 8Ω

      Configuration
    • LF Transducer, Loading: 1x12" cone, 2.5" VC, Vented
    • HF Transducer, Loading: 1x1-in exit, 44mm voice coil compression driver, Concentric Summation Array (CSA) loaded
    • Operating Modes: LF/HF, DSP w/ EAW Focusing & DynO

      Physical
    • Physical Rigging:
      - 11x M10 Suspension Points
      - 4x M6 Mounting pattern for wall mount bracket
    • Dimensions (HxWxD): 22.4" x 14.5" x 13.4" (569mm x 367mm x 341mm)
    • Net Weight: 36.1lbs (16.4kg)
    • Shipping Weight: Approx. 42lbs (19.1kg)

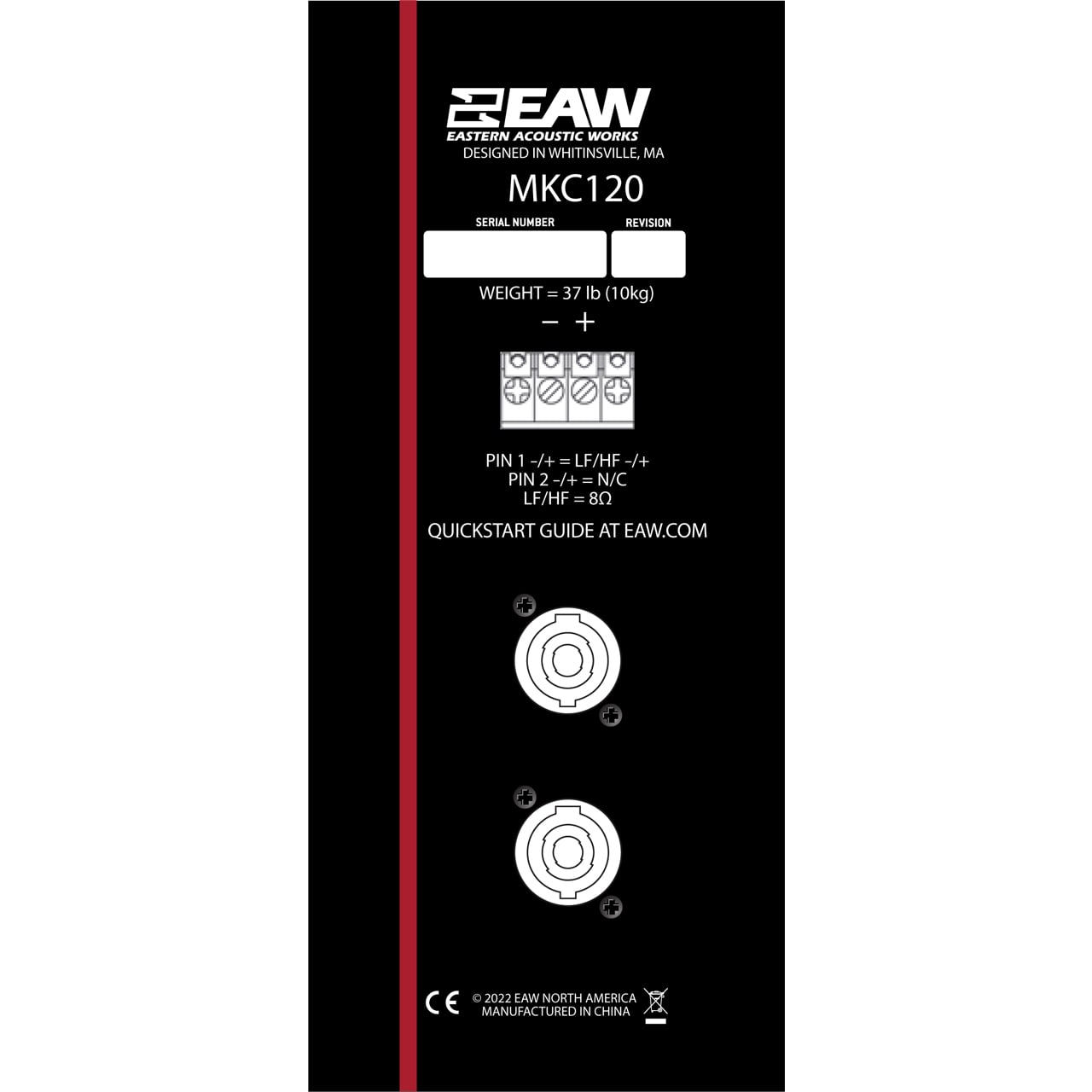

    • Input Connector: 2x Neutrik NL4, 2-pin barrier strip

  • Item Includes:

    • 1x MKC120 12" Coaxial Loudspeaker

  • Warranty:

    • 6 Year Limited Warranty
