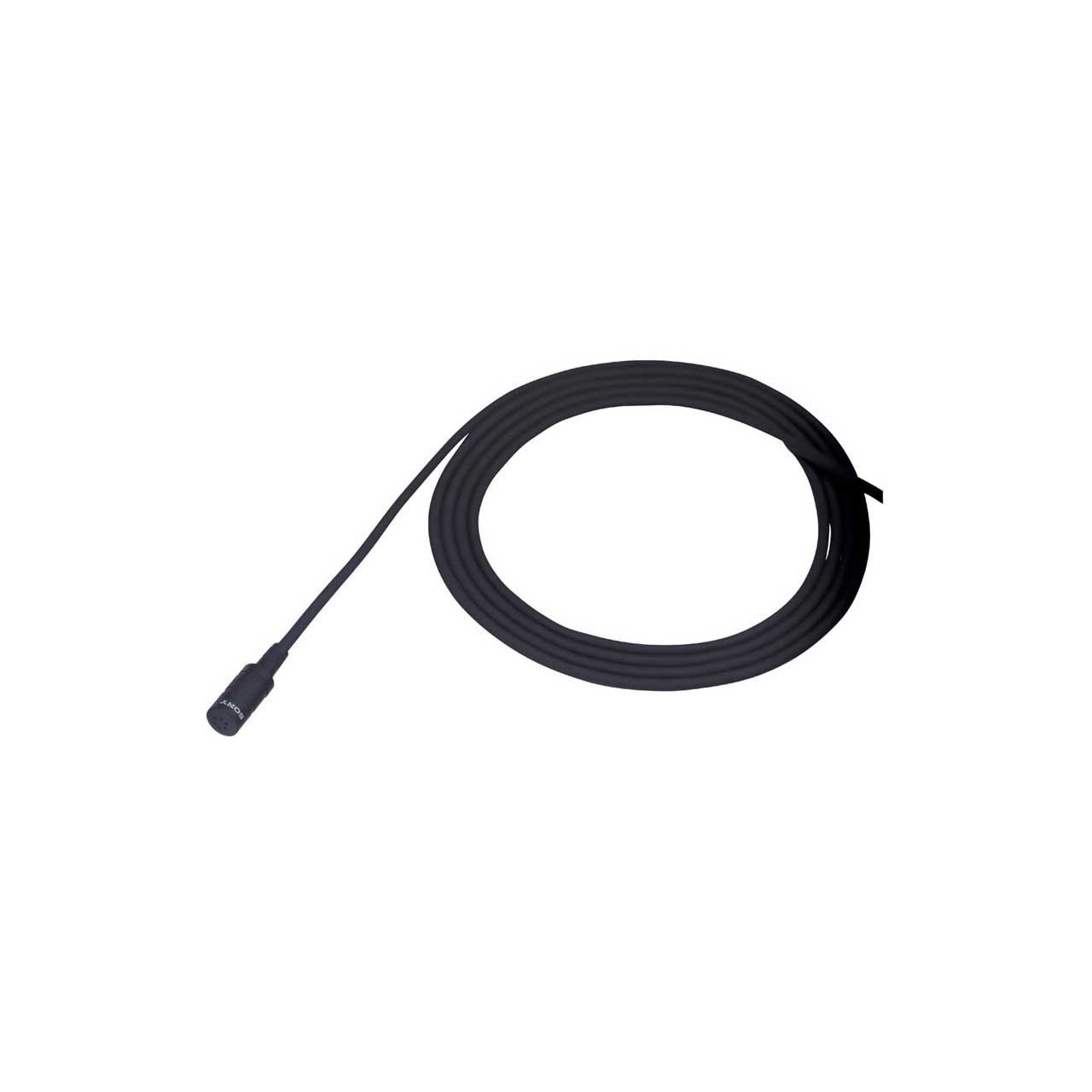

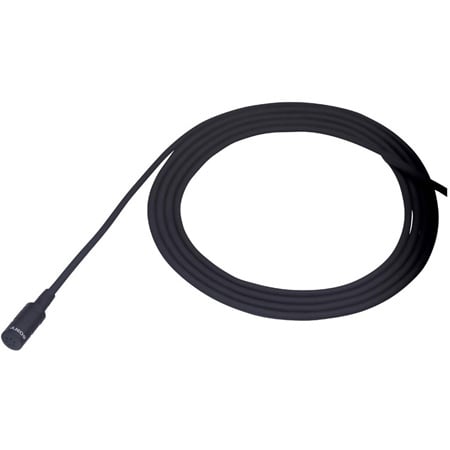

Sony ECM-77B Type Pigtail Microphone

ECM-77BPT - Overview

• Features:

  • Ultra miniature, omnidirectional electret condenser lavalier Inconspicuous design for film and TV production Also works well for musical recording of violins & violas Complete with in-line battery unit for 2-way powering High-performance frequency response: 40 -20,000 Hz Black finish Two-way powering system: AA-size battery or external power supply Very small size Includes 9.8' or 3 meter cable w/power module & XLR end, metal mesh wind screen, holder clips & carry case 1 year warranty


• Specifications:

  • Two-way powering system: AA-size battery or external power supply
  • Capsule Type: Electret Condenser
  • Frequency Response: 40 Hz to 20 kHz
  • Directivity: Omni-directional
  • Sensitivity: -36.5 dB (15mV)
  • Dynamic Range: 90 dB
  • S/N Ratio: 64 dB or more
  • Inherent Noise (0dB=20æPa): 30 dB SPL or less
  • Induction Noise from External Magnetic Field: 5 dB SPL or less
  • Wind Noise: 40 dB SPL or less (with windscreen, at 2 m/s)
  • Max SPL (dB SPL)(0dB=20æP): 120 dB SPL
  • Connector: B type. Supplied with XLR connector in power supply unit (single AA size battery)
  • Cable Length: 9.8 feet
  • Power Requirements: DC 1.5 V, AA size battery or +48V phantom power
  • Dimensions: 1/4 diameter X 1/2 inch (Microphone head)
  • Dimensions: 13/16 diameter X 5 1/4 inch (Power unit XLR type)
  • Weight: 4.3 oz (Includes Mic and Power Supply)


• Item Includes:

  • S.H. tie clip (x 1)
  • S.V. tie clip (x 1)
  • D.H. tie clip (x 1)
  • M. windscreen (x 1)
  • Operating instructions (x 1)
  • Microphone case (x1)
