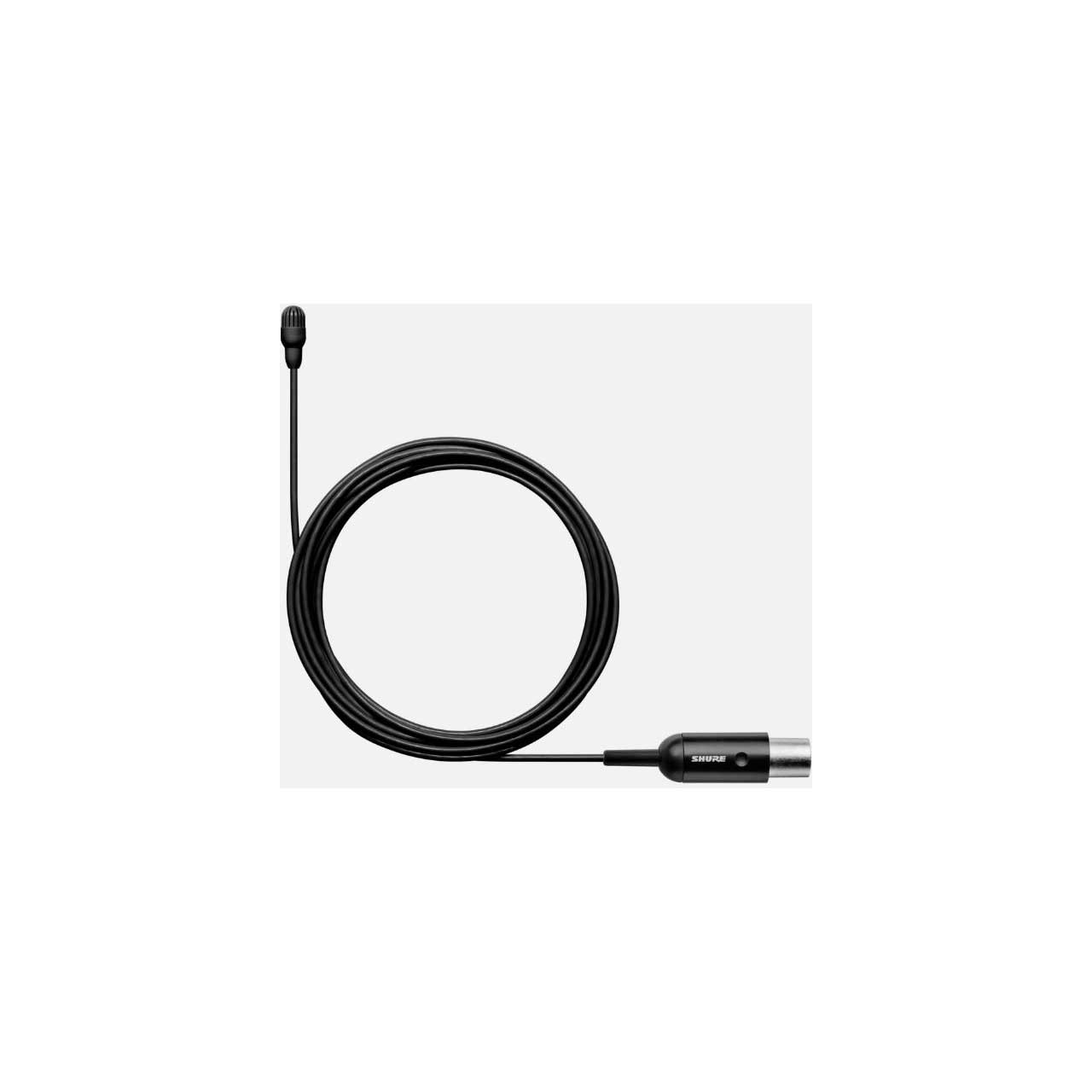

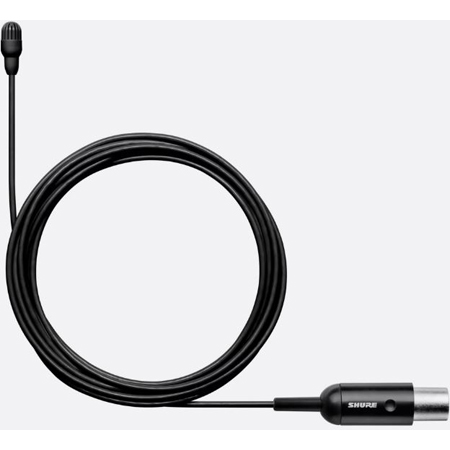

Shure TL47B/O-MTQG-A TwinPlex TL47 Subminiature Lavalier Microphone Omni - Low Sens - Mtqg - Black - Accs

TL47B-O-MTQGA - Overview

• Features:

  • With a variety of colors, mounting options, and accessories, the TL47 is ideal for nearly any lavalier application
  • Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent
  • pending dual-diaphragm design
  • Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
  • Best-in-class low self-noise and dynamic range for cleaner audio production
  • Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible superhydrophobic nanoscopic coating
  • Paintable 1.6 mm cable that is immune to memory effect and kinks
  • Dual redundant ground in cable serves as secondary shield for longevity
  • Sound signature: Natural
  • Sensitivity: Low
  • Colors: Black, Cocoa, Tan, White
  • Connectors: LEMO, MTQG/TA4F, MicroDot, XLR/Preamp, NC (bare wire)
  • Accessories: Available with or without accessories


• Specifications:

  • Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20 Hz to 20 kHz
  • Sensitivity at 1 kHz: -45.0 dBV (5.62 mV)
  • Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
  • Signal-To-Noise Ratio: 69.5 dB
  • Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
  • Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
  • Dynamic Range: 117.5 dB typical
  • Microphone Current Draw: 120 to 240 µA, typical
  • Bias Voltage Recommended Operating Voltage: 5 VDC
  • Housing Molded: ABS
  • Polarity: LEMO, NC, MDOT: Positive pressure at diaphragm leads to negative voltage with respect to ground MTQG, XLR connector: Positive pressure at diaphragm leads to positive voltage with respect to ground
  • Cable Diameter: 0.06" (1.mm)
  • Cable Length: 66" (1.67m)
  • Microphone Length: 0.53" (13.5mm)
  • Microphone Diameter: 0.22" (5.6mm)
  • Net Weight with Cable: 0.03LBs (12.0g)


• Item Includes:

  • 3 x Frequency Caps, Flat Response
  • 2 x Frequency Caps, Presence Response


• GTIN:

  0042406516600
