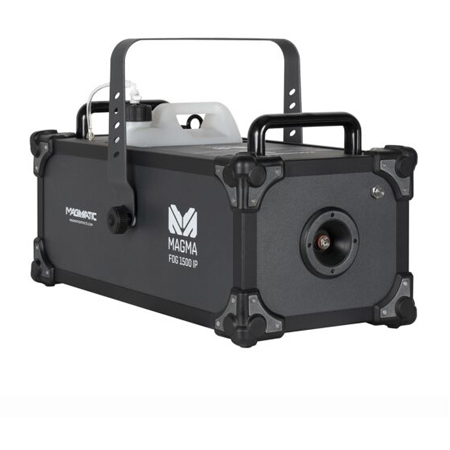

Elation Professional MAGMA FOG 1500 IP-65 Magmatic Fog Machine w/LCD Touchscreen Control - 1500W - 5-Pin XLR - 60000CFM

ITEM #: ELAT-MAGMFOG1500 MFG #: MSF038

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ELAT-MAGMFOG1500

MSF038 - Overview

The Elation Professional PROTEUS MAGMA FOG 1500 IP™ is a 1500W water based, IP65 rated fog machine with a maximum output of 60,000 CFM (cu ft/min). Features include an easy-to-use onboard LCD touch screen, an intuitive DMX-512 and RDM control, and optional wired and wireless remote-control. Each MAGMA FOG 1500 IP comes equipped with a thermally protected heat exchanger that has an initial warm up time of 14 minutes, with a fluid consumption rate of 6.76 oz (200 ml/min). This unit is designed with a durable aluminum housing, IP65 locking power in, IP65 locking 5pin XLR connectors (DMX In/Out), a 5-liter (1.32 gallon) tank, two heavy duty carry handles, and a hanging bracket for truss mounting.

  • Features:

    • 1500W IP65 water-based fogger
    • 60,000 CFM (cu ft/min) maximum output
    • Thermally protected heat exchanger
    • Intuitive DMX-512 and RDM control

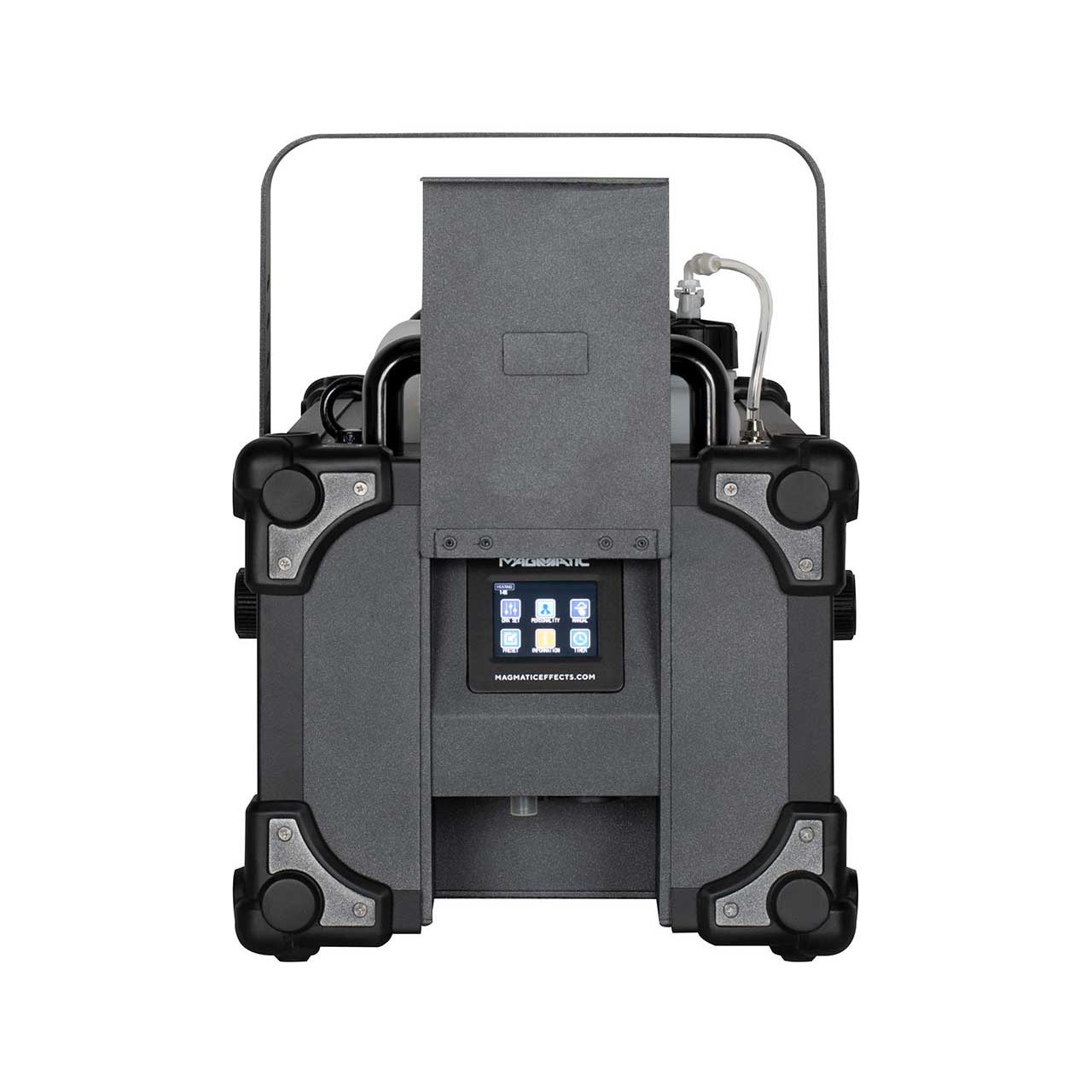

    • Onboard LCD touch screen
    • Optional wireless and wired remotes

  • Specifications:

    • Control
    • 3 DMX Channel Modes (1 / 2 / 4)
    • Onboard LCD Touch Control Panel
    • DMX-512 and RDM Protocol Support
    • Optional MAGFLY Wireless DMX Transceiver
    • Optional MAGRF Wireless and MAGREMOTE Wired Remotes

      Connections
    • Locking 5pin XLR Connector, DMX In/Out
    • IP65 Locking Power Connector In
    • With Wired Digital Communication Network

      Size / Weight
    • Length: 24.7 in (628mm)
    • Width: 13.3 in (337mm)
    • Height: 16.2 in (411mm)
    • Weight: 55.1 lbs (25kg)

      Electrical
    • AC120V 60Hz (US Version)
    • AC230V 50Hz (EU Version)
    • 20A @ 120VAC(NFB)
    • 10A @ 230VAC - 240VAC
    • Max Power Consumption: 1600W

  • Item Includes:

    • 1x MAGMA FOG 1500 IP Fog Machine
    • 1x 14 AWG Locking Power Cable
    • 1x Hanging Bracket

  • Warranty:

    • 2 Year

  • GTIN:

    0810008263402
