ESE ES-188E NTP Referenced Master Clock/Time Code Generator

Name: ESE ES-188E NTP Referenced Master Clock/Time Code Generator
Brand: ESE
SKU: ES-188
Price: 2085.49 USD
Availability: InStock

ITEM #: ES-188 MFG #: ES 188

ESE

Versions:

Versions

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

ES 188 - Overview

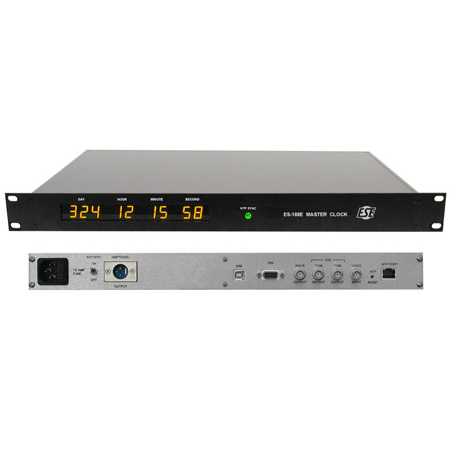

The ES-188 is an NTP referenced Master Clock and Time Code Generator. It displays nine digits (Day of Year, Hour, Minute & Second) of time as received via a user selected NTP server. Simultaneously, the ES-188 generates several types of time code (ESE-TC89, ESE-TC90, USB, RS232C/ASCII, SMPTE/EBU and IRIG-B) and a 1PPS signal. These outputs allow the ES-188 to easily interface with new or existing computer, automation and clock systems.

Software supplied with the ES-188 permits users to continuously update a computer's Windows® clock to the time available on the USB port. Other features allow the user to select SMPTE mode (DF, NDF, EBU & Real Time), offset the Time Zone displayed and output by the ES-188 and advance or delay the time output for various synchronizing purposes.

Features:
- ESE, SMPTE/EBU, IRIG-B, RS-232 & USB Time Code outputs
- NTP Ethernet Port (RJ-45)
- 1 PPS (pulse-per-second) output
- Front Panel nine digit .56" yellow LED display
- NTP Sync Indicator
- Time Zone Offset
- Automatic Daylight Saving Time Correction
- Time Advance/Retard Feature for Synchronization Purposes
- Configuration via RS-232 & USB
- PC Software Included
- 4 Hour Battery backup
- NTP Lock LED Indicator and TTL output
- 1.75" Rackmount enclosure
- Various Options available: B(4), BBU(1), Black(1), DC, HR, J(3), NPR, P(1), RS(1), UL, W(1)
  Options List
- (10nS) 10nS Accuracy: The accuracy of the unit is improved to 10nS.
- List: $300
- (Black)Black Anodized Front panel-option availabel when standard panel is clear anodized
- List: $15
- (C) Crystal Time Base (2-3 seconds per week accuracy)
- List: $60
- (ESE) ESE Serial Time Code Output
- List: $30
- (EXT{1,5 or10}) External Input of either 1 MHz, 5 MHz, or 10 MHz (for use with "in-house" Standard)
- List: $70
- (IRIG) IRIG-B or IRIG-E Time Code may be specified (not available with SMPTE/EBU)
- List: $300
- (NPR) NPR (National Public Radio) Time Code INput (excluxive) with ESE Time Code Output
- List: $135
- NTP NTP Client Display will synchronize exclusively with an NTP server
- List: $120
- (6-Digit) Six-Digit Display: A 6-Digit (Hr, Min & Sec) Front Panel Mounted Display (.55" LED) is provided. Option 'P' is required.
- List: $200
- (9-Digit) Nine-Digit Display: A 9-Digit (Days, Hr, Min & Sec) Front Panel Mounted Display (.55" LED) is provided. Option 'P' is required.
- List: $300
- (Ant) GPS Antenna: High Performance GPS Antenna for harsh RF Environments.
- List: $195
- (B) Parallel BCD Output: CMOS compatible, 5-volt logic in parallel four-line format. Specify the ES-169B.
- List: $300
- BBU Battery Back-Up: An internal Gel-Cell battery is provided capable of maintaining the unit's microprocessor for up to a 4-hour power outage.
- List: $130
- (TZ) Time Zone Offset via internal DIP Switch
- List: $30
- (Q) 9" x 3 1/2" Front Panel for Console Mount Applications (Case is 8" Deep)
- List: $80
- (RS) RS232C ASCII Computer Interface (RS422A available on a custom basis)
- List: $50
- (UL) "UL" Approve Wall Mount Power Supply
- List: $60
- (V) DC Power (12 VDC)
- List: $30
- (W) 3-Wire Line Cord (2-Wire Line Cord is Standard on many units)
- List: $16
- (Wall) Wall Mount Enclosure replaces standard enclosure
- List: $80
- (DC) DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
- List: $250
- (SMPTE/EBU)SMPTE or EBU Time Code outputs: SMPTE or EBU Time Code outputs may be specified (not available with IRIG).
- List: $300
- (HR) Relay Closure: Option "HR" provides a user programmable relay contact closure. The standard contact closure occurs on the Hour and Half Hour. If contact closures at other times are desired, the user can program up to four relay closures using the PC Software, which can be downloaded from the ESE web site. The reed relay is rated at 10 watts maximum resistive load (500 mA switching current) and is intended for control applications only. The relay contacts are accessible on the DB-9 connector.
- List: $50
- (J) 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
- List: $30
- (K)

ES 188 - Recommended Accessories

ESE ES ANT Active High Performance Dual Filtered Outdoor GPS Antenna for Harsh RF Environments
ES ANT
Our Price: $242.49
ESE CA-TNCM-TNCF-50 TNC Male to TNC Female Antenna Extension Cable - RG58 - 50 Foot
CA-TNCM-TNCF-50
Our Price: $270.00

ES 188 - Reviews

ES 188 - Attachments

See ESE ES188 Specifications (PDF)

ESE ES ANT Active High Performance Dual Filtered Outdoor GPS Antenna for Harsh RF Environments
ES ANT
Our Price: $242.49
ESE CA-TNCM-TNCF-50 TNC Male to TNC Female Antenna Extension Cable - RG58 - 50 Foot
CA-TNCM-TNCF-50
Our Price: $270.00

ES 188 - Overview

Features:
- ESE, SMPTE/EBU, IRIG-B, RS-232 & USB Time Code outputs
- NTP Ethernet Port (RJ-45)
- 1 PPS (pulse-per-second) output
- Front Panel nine digit .56" yellow LED display
- NTP Sync Indicator
- Time Zone Offset
- Automatic Daylight Saving Time Correction
- Time Advance/Retard Feature for Synchronization Purposes
- Configuration via RS-232 & USB
- PC Software Included
- 4 Hour Battery backup
- NTP Lock LED Indicator and TTL output
- 1.75" Rackmount enclosure
- Various Options available: B(4), BBU(1), Black(1), DC, HR, J(3), NPR, P(1), RS(1), UL, W(1)
  Options List
- (10nS) 10nS Accuracy: The accuracy of the unit is improved to 10nS.
- List: $300
- (Black)Black Anodized Front panel-option availabel when standard panel is clear anodized
- List: $15
- (C) Crystal Time Base (2-3 seconds per week accuracy)
- List: $60
- (ESE) ESE Serial Time Code Output
- List: $30
- (EXT{1,5 or10}) External Input of either 1 MHz, 5 MHz, or 10 MHz (for use with "in-house" Standard)
- List: $70
- (IRIG) IRIG-B or IRIG-E Time Code may be specified (not available with SMPTE/EBU)
- List: $300
- (NPR) NPR (National Public Radio) Time Code INput (excluxive) with ESE Time Code Output
- List: $135
- NTP NTP Client Display will synchronize exclusively with an NTP server
- List: $120
- (6-Digit) Six-Digit Display: A 6-Digit (Hr, Min & Sec) Front Panel Mounted Display (.55" LED) is provided. Option 'P' is required.
- List: $200
- (9-Digit) Nine-Digit Display: A 9-Digit (Days, Hr, Min & Sec) Front Panel Mounted Display (.55" LED) is provided. Option 'P' is required.
- List: $300
- (Ant) GPS Antenna: High Performance GPS Antenna for harsh RF Environments.
- List: $195
- (B) Parallel BCD Output: CMOS compatible, 5-volt logic in parallel four-line format. Specify the ES-169B.
- List: $300
- BBU Battery Back-Up: An internal Gel-Cell battery is provided capable of maintaining the unit's microprocessor for up to a 4-hour power outage.
- List: $130
- (TZ) Time Zone Offset via internal DIP Switch
- List: $30
- (Q) 9" x 3 1/2" Front Panel for Console Mount Applications (Case is 8" Deep)
- List: $80
- (RS) RS232C ASCII Computer Interface (RS422A available on a custom basis)
- List: $50
- (UL) "UL" Approve Wall Mount Power Supply
- List: $60
- (V) DC Power (12 VDC)
- List: $30
- (W) 3-Wire Line Cord (2-Wire Line Cord is Standard on many units)
- List: $16
- (Wall) Wall Mount Enclosure replaces standard enclosure
- List: $80
- (DC) DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
- List: $250
- (SMPTE/EBU)SMPTE or EBU Time Code outputs: SMPTE or EBU Time Code outputs may be specified (not available with IRIG).
- List: $300
- (HR) Relay Closure: Option "HR" provides a user programmable relay contact closure. The standard contact closure occurs on the Hour and Half Hour. If contact closures at other times are desired, the user can program up to four relay closures using the PC Software, which can be downloaded from the ESE web site. The reed relay is rated at 10 watts maximum resistive load (500 mA switching current) and is intended for control applications only. The relay contacts are accessible on the DB-9 connector.
- List: $50
- (J) 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
- List: $30
- (K)
