ESE ES-215 Horizontal Audio Level Indicator & Rack Mount In-Line VU Meter w/ 14 LEDs

ITEM #: ES-215 MFG #: ES 215

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$145.00

Our Price:

$137.95

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    ES 215 - Overview

    Audio Level Indicator

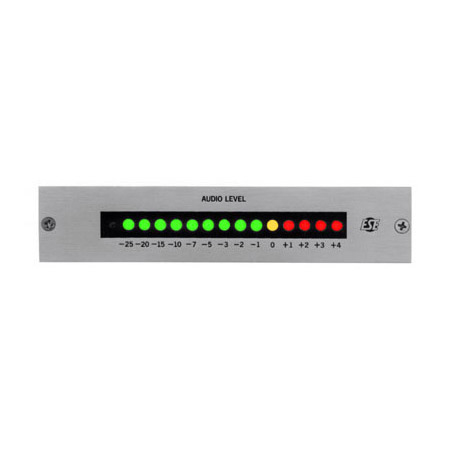

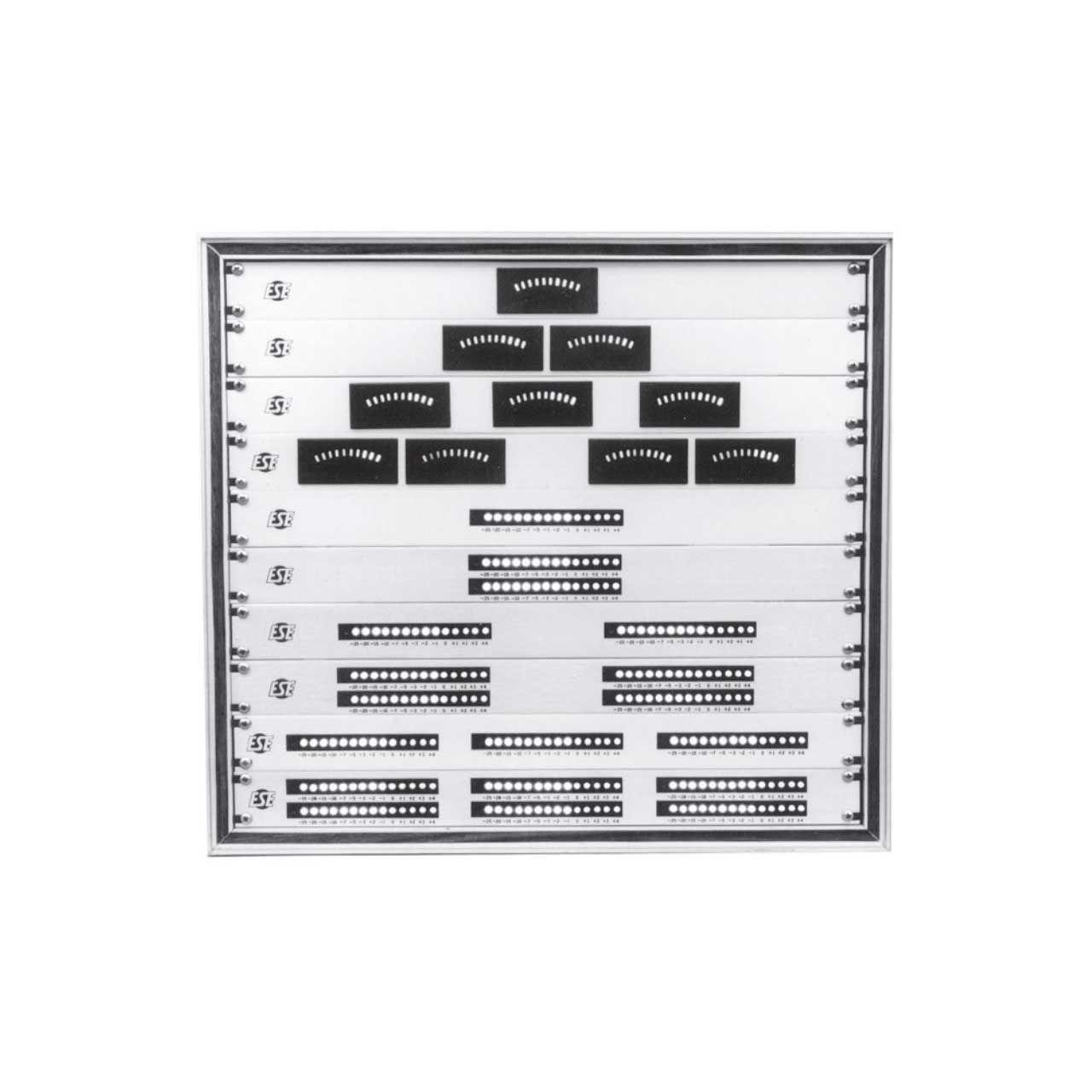

    The ES-215 is an in-line audio level indicator which provides a purely digital representation of an audio signal's loudness. The unit features fourteen LED's (nine Green, one Yellow and four Red) that display levels of -25, -20, -15, -10, -7, -5, -3, -2, -1, 0, +1, +2, +3 and +4 db. Units are shipped in Peak mode. The panel is designed for console mounting. Four pigtail leads are provided for Hard Wiring Power and Audio hookup. The unit measures 7"W x 1.5"H x 3.5"D. ESE offers two basic versions of the "Digital" Audio Level (VU) Indicator. Each version has a reference level ("0 dB") adjustment and is optionally available in a rack mount configuration with as many as six units mounted on a single 1 3/4" x 19" panel.

    • Features:

      • Accurate
      • Easy To Read
      • Peak or VU Mode
      • Simple Installation
      • Attractive & Low Cost
      • Low Power Consumption

    • Specifications:

      • Indicators: 14 10
      • Scale: +4 dB thru -25 dB
      • Reference Level "0" Adjustment: -16 dB to +30 dB
      • Input Impedance: 2200 ohms @ max. sensitivity, 6800 ohms @ +8 dBm "House Level" , 10,000 ohms @ min. sensitivity.
      • Input Circuit: Transformer isolated, balanced bridging.
      • Frequency Response: 20 - 20 Khz +/- 1 dB (all modes).
      • Rise Times: Peak Mode - < 250 uSec, Fast Averaging Mode - < 25 mSec, VU Mode - ~ 300 mSec .
      • Fall Time: 300 mSec from full scale (all modes).
      • Power Requirement: Unregulated +15 to +35 VDC .or regulated +12 VDC (220 mA max.) .
      • Modes of Operation: Peak (unless otherwise specified), Fast Averaging (Apparent Loudness) , VU (Slow Averaging)
      • Mode Selection: PCB jumper/component value change.
      • Mechanical: 7" x 1 1/2" x 3 1/2" Deep.
      • Options: P, P2, HP2, P3, P4, P6 (ES-215 only).
