NTSC/PAL Color Bar Generator

ITEM #: ES 229 MFG #: ES 229

free ship

List Price:

$295.00

Our Price:

$280.49

Availability: Direct Ship from manufacturer, contact us for availability
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ES 229 - Overview

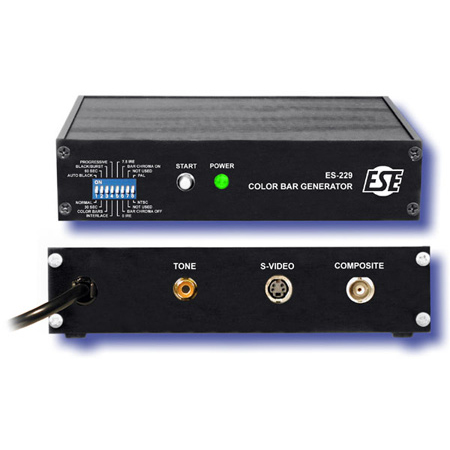

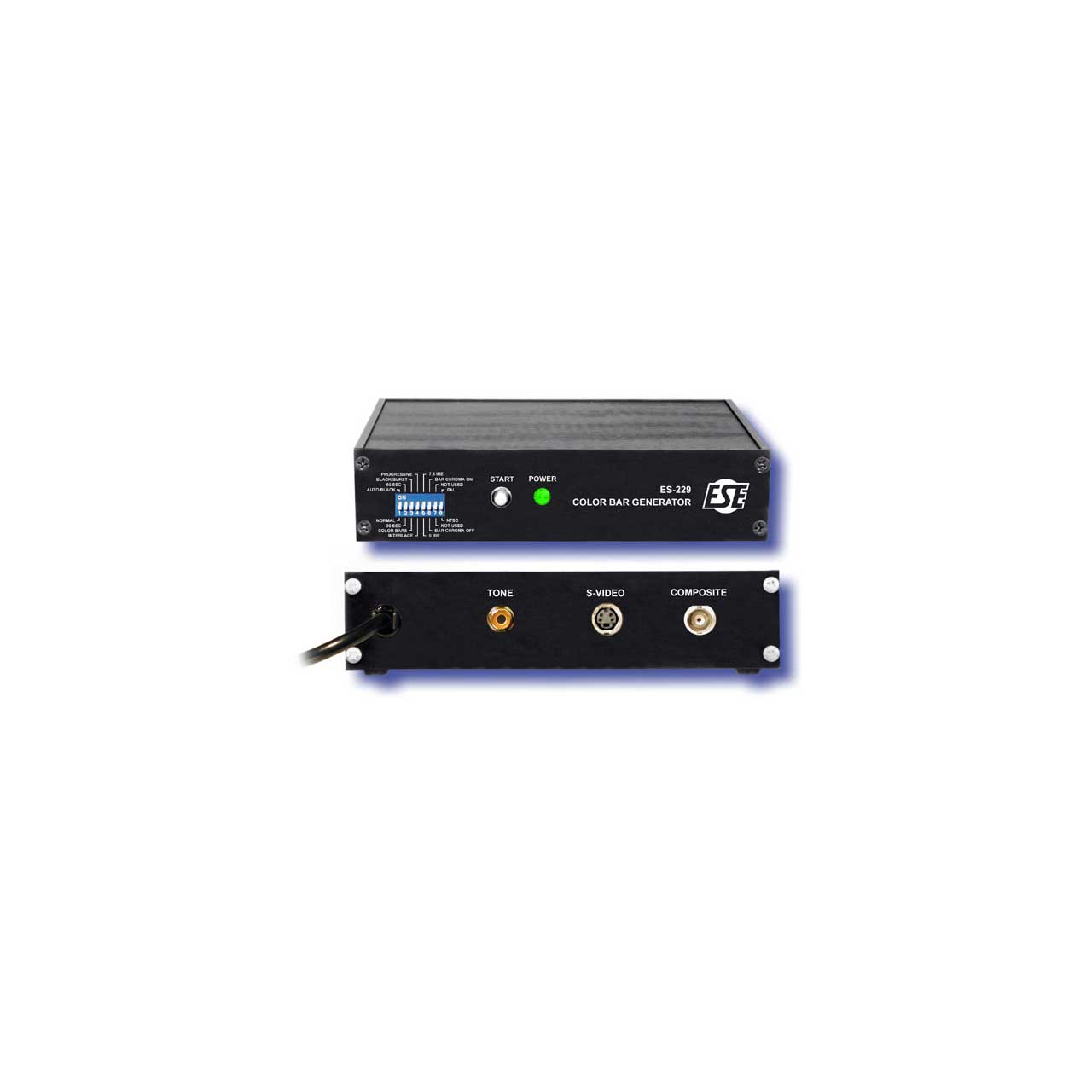

The ES-229 Color Bar Generator can be used for aligning monitors or for checking the signal fidelity of a video system. The ES-229 generates RS-170A full-field bars or black-burst. The unit provides one composite output and one S-Video output. If the TONE option is ordered, a 1 KHz tone is output from the rear-mounted RCA connector. Front-panel DIP switches allow selection of Auto-Black, Bars / Black, Interlace / Progressive, NTSC pedestal On / Off, Chroma On / Off and NTSC/PAL mode. The Auto-Black mode generates Color Bars & Tone for 30 or 60 seconds after the START button is pressed, then switches to silent Black-Burst.

ES 229 - Required Accessories
