NTI MONTEST-HD4K-PTBLC Mini 4K 60Hz HDMI Video Test Pattern Generator/Analyzer/Emulator

ITEM #: NTI-MONTESTHD4KP MFG #: MONTEST-HD4K-PTBLC

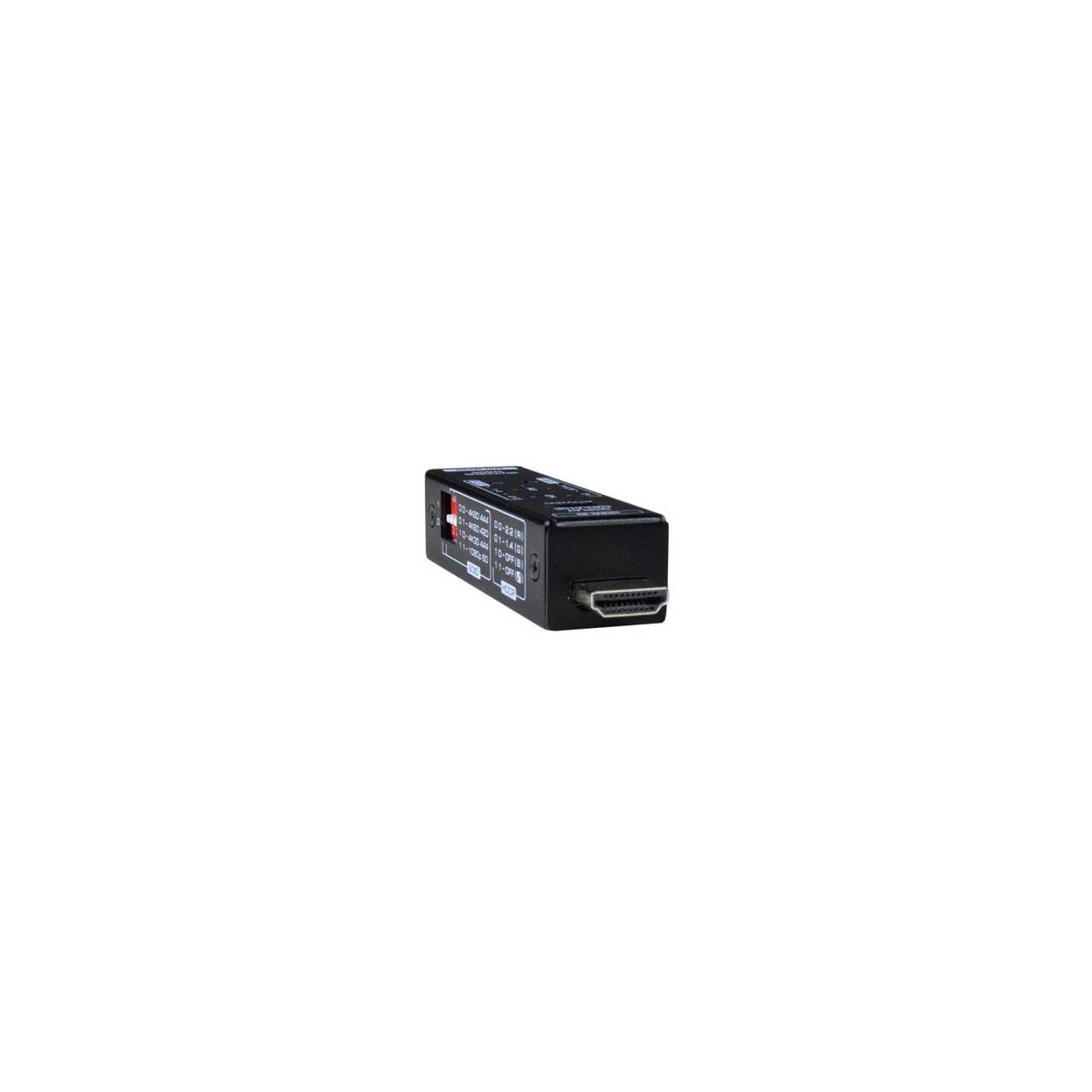

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$170.00

Our Price:

$161.50

Availability: In Stock
iAvailability Description Popup


MONTEST-HD4K-PTBLC - Overview

The NTI MONTEST-HD4K-PTBLC Mini 4K Ultra-HD Video Test Pattern Generator/Analyzer/Emulator generates video test patterns for evaluating and testing HDMI displays and components up to 4Kx2K @60Hz (4:4:4). HDMI signal status (TMDS/5V) and HDCP analysis are supported, along with EDID emulation.

Applications:
Installer/integrator diagnostic test tool
HDMI source and sink testing
Third-party equipment setup
HDCP compliance verification
Production testing
R&D design and testing
Remote desktop access to a headless computer

  • Features:

    • Two modes of operation - HDMI signal generator or display emulator (signal analyzer)

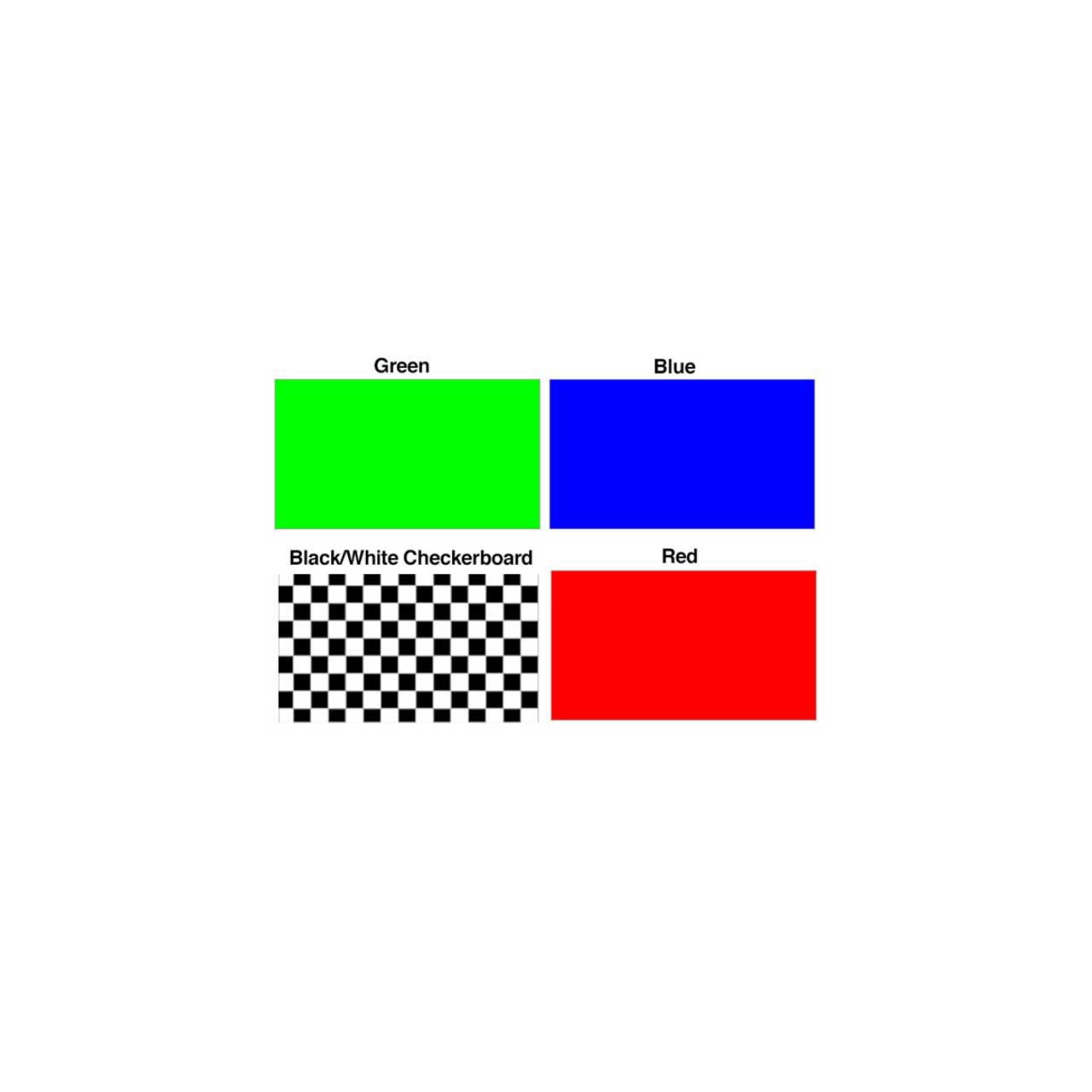

    • Generates four test patterns and features four built-in resolutions.
    • Resolutions supported: 3840x2160 @60Hz 4:4:4; 3840x2160 @60Hz 4:2:0; 3840x2160 @30Hz 4:4:4; 1920x1080p @60Hz
    • Emulation mode provides EDID to the HDMI source device from the emulator's internal memory.
    • Supports headless operation - no monitor attached to source.
    • Use to analyze the HDCP version and signal status (TMDS, 5V) of the video input.
    • Supports resolutions up to 4Kx2K (4096x2160 and 3840x2160) @60Hz 4:4:4.
    • HDCP v1.4 and v2.2 analysis.

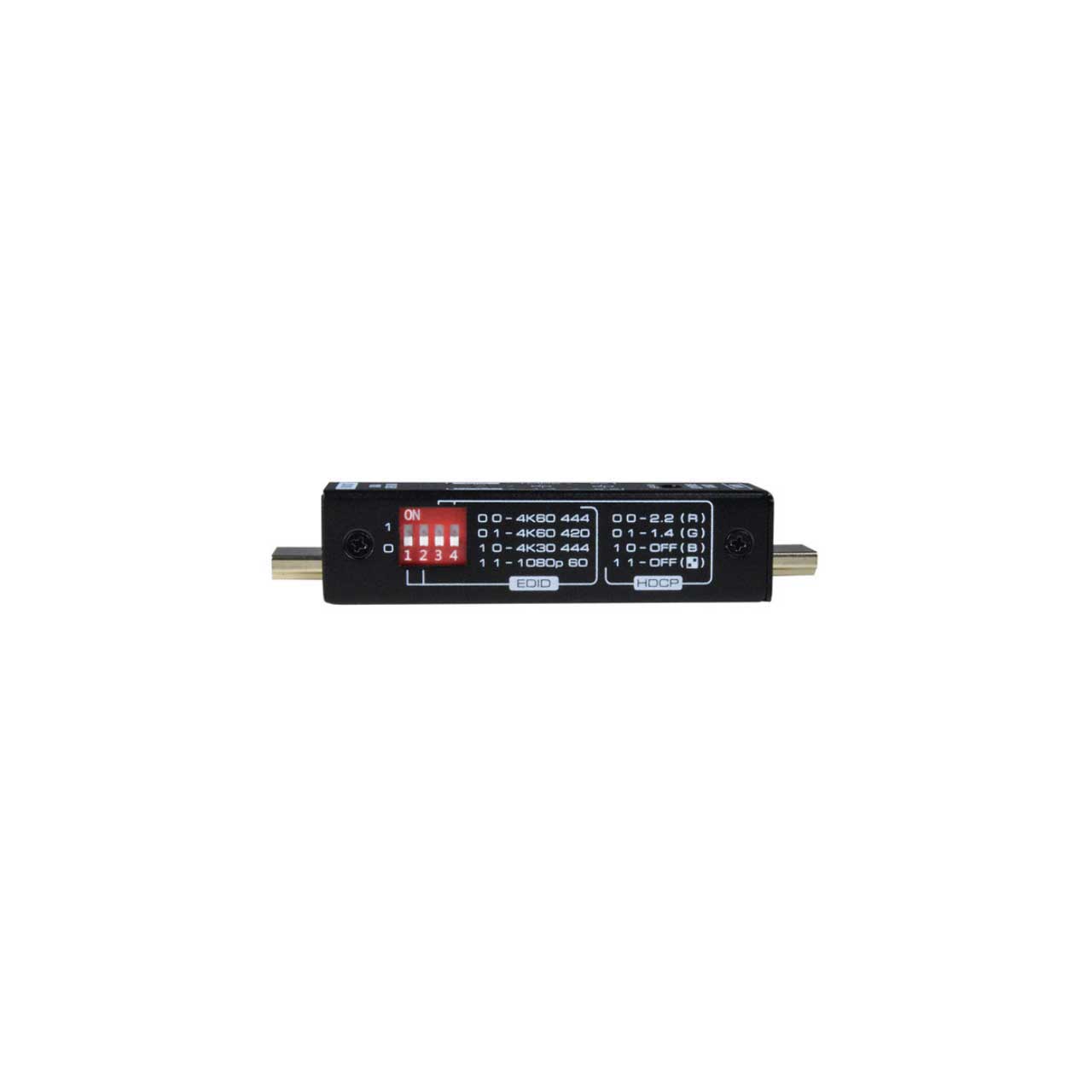

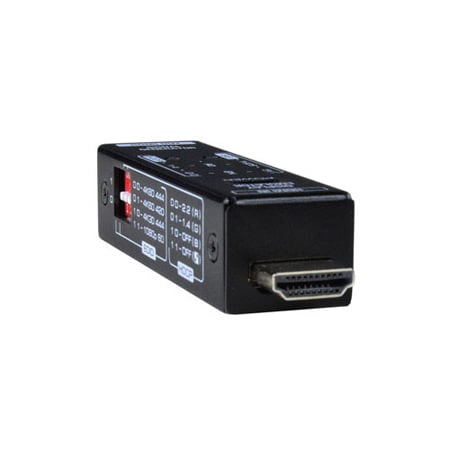

    • 4-pin DIP switch for setting video resolution and HDCP version.

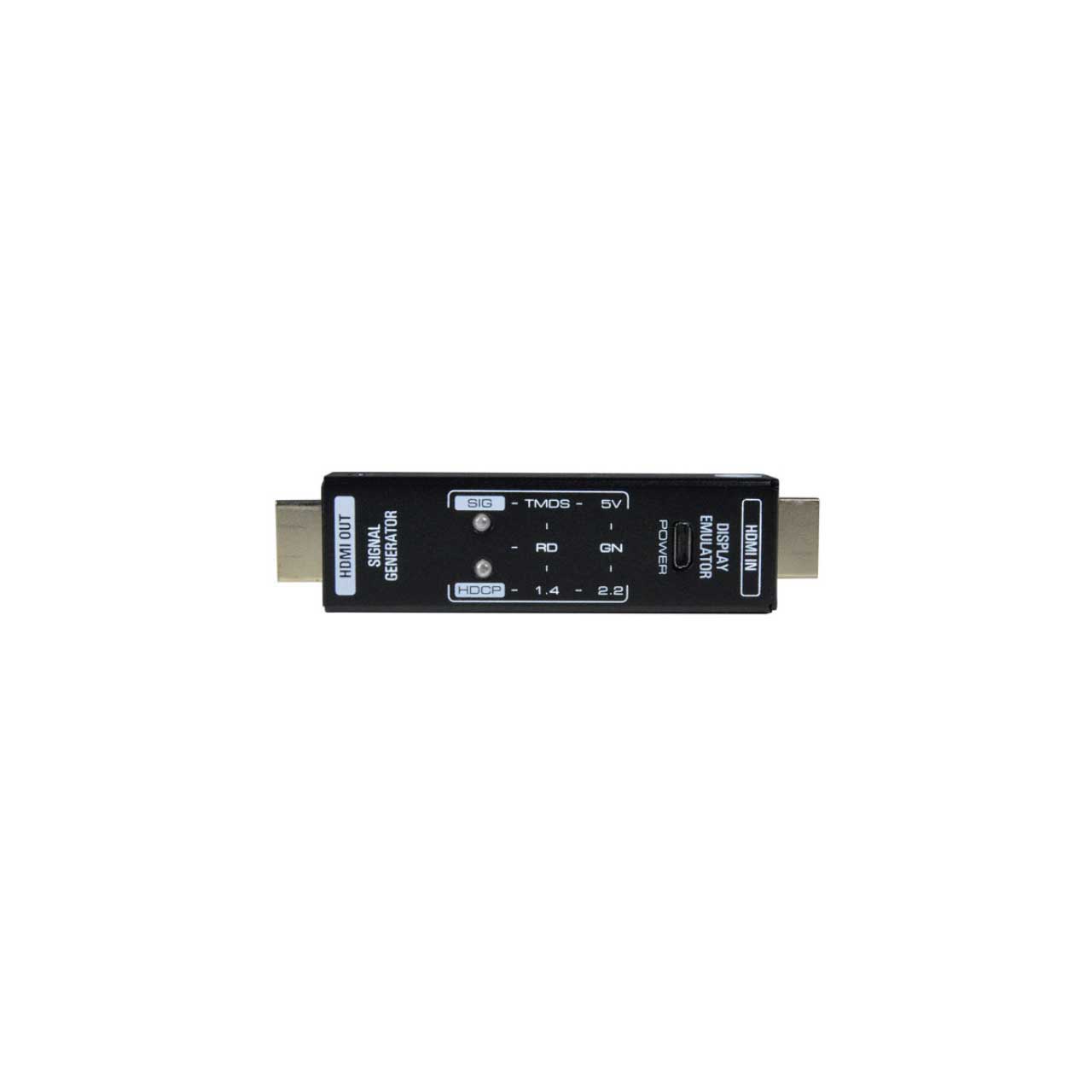

    • LED indicators provide TMDS/5V signal and HDCP status information.
    • Portable, compact design.

  • Specifications:

    • Video/Audio
    • Male HDMI Connectors for Input and Output
    • HDMI 2.0 (up to 4K@60Hz 4:4:4) Compliant
    • HDCP 1.4 and 2.2 Compliant
    • Resolutions supported:
      Signal Generator Mode: 3840x2160 @60Hz 4:4:4; 3840x2160 @60Hz 4:2:0; 3840x2160 @30Hz 4:4:4; 1920x1080p @60Hz
      Emulation Mode: 4Kx2K resolutions up to 4096x2160 and 3840x2160 @60Hz 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 @60Hz (WUXGA)
    • Video Bandwidth: 600MHz (18 Gbps)
    • Supports embedded digital audio

      Power
    • Signal generator mode: USB powered using micro USB port (5V/1A).
    • 3.4-ft USB Type A to USB Micro-B male-to-male cable included.
    • Display emulation mode: Powered by HDMI source.

      Environmental
    • Operating Temperature: 23° to 131°F (-5° to 55°C)
    • Storage Temperature: -13° to 158°F (-25° to 70°C)
    • Relative Humidity: 10 to 90% non-condensing RH

      Dimensions (WxDxH)
    • 2.95 x 0.87 x 0.75" (75 x 22 x 19mm)

      Regulatory Approvals
    • CE, FCC, RoHS

  • Warranty:

    • 2 Years
