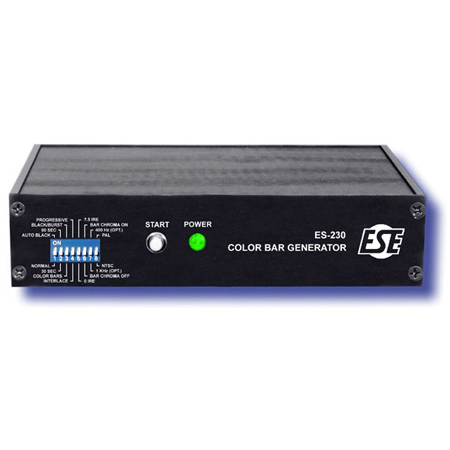

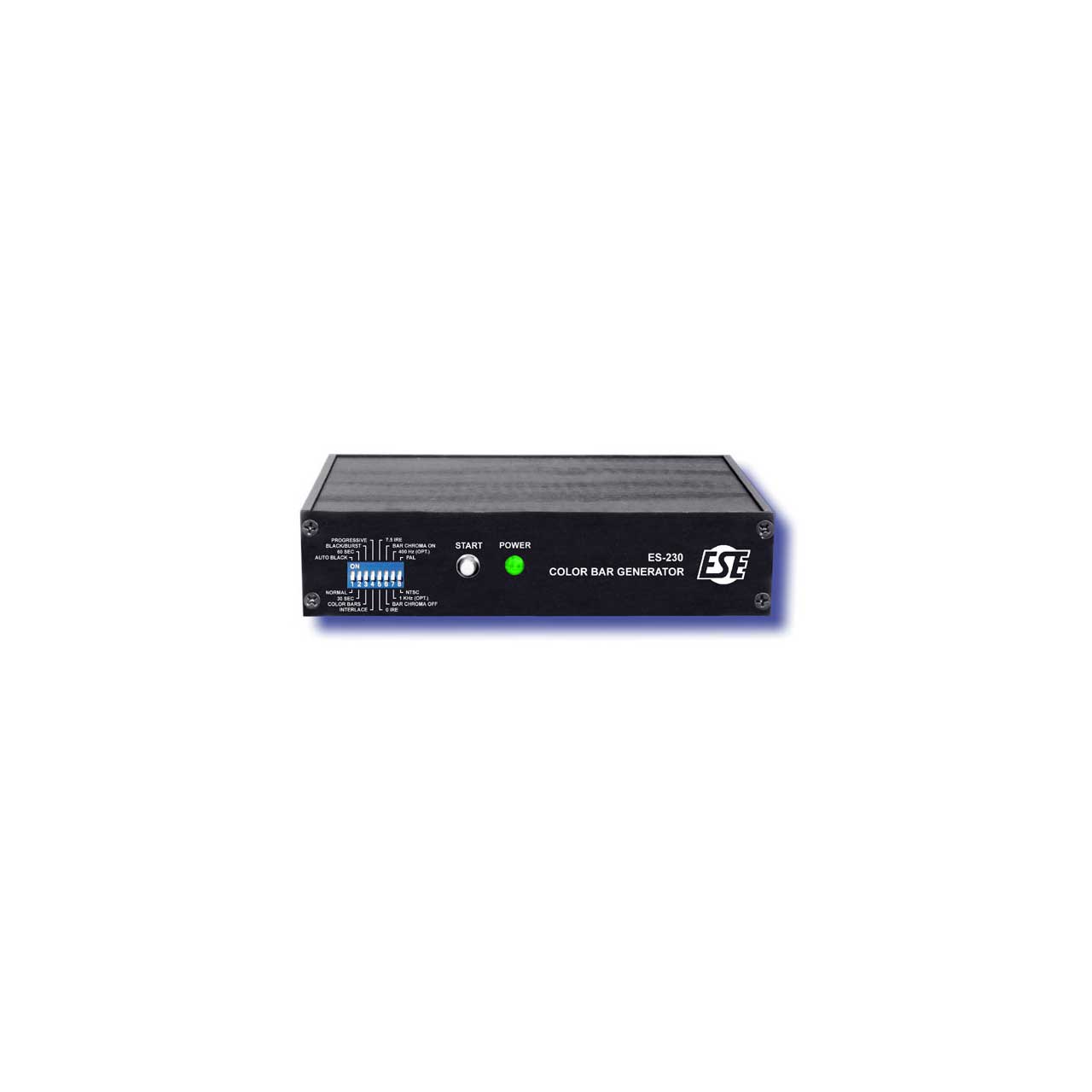

ESE ES 230 NTSC/PAL Color Bar Generator

ITEM #: ES 230 MFG #: ES 230

free ship

List Price:


Our Price:


Availability: Direct Ship from manufacturer, contact us for availability
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

ES 230 - Overview

The ES-230 Color Bar Generator can be used for aligning monitors or for checking the signal fidelity of a video system. The ES-230 generates RS-170A full-field bars or black-burst. The unit provides eight composite outputs. If the TONE option is ordered, a sinewave tone is output from the rear-mounted RCA connector at either 1 KHz or 400 Hz. Front-panel DIP switches allow selection of Auto-Black, Bars / Black, Interlace / Progressive, NTSC pedestal On / Off, Chroma On / Off, Tone Frequency and NTSC/PAL mode. The Auto-Black mode generates Color Bars & Tone for 30 or 60 seconds after the START button is pressed, then switches to silent Black-Burst.
