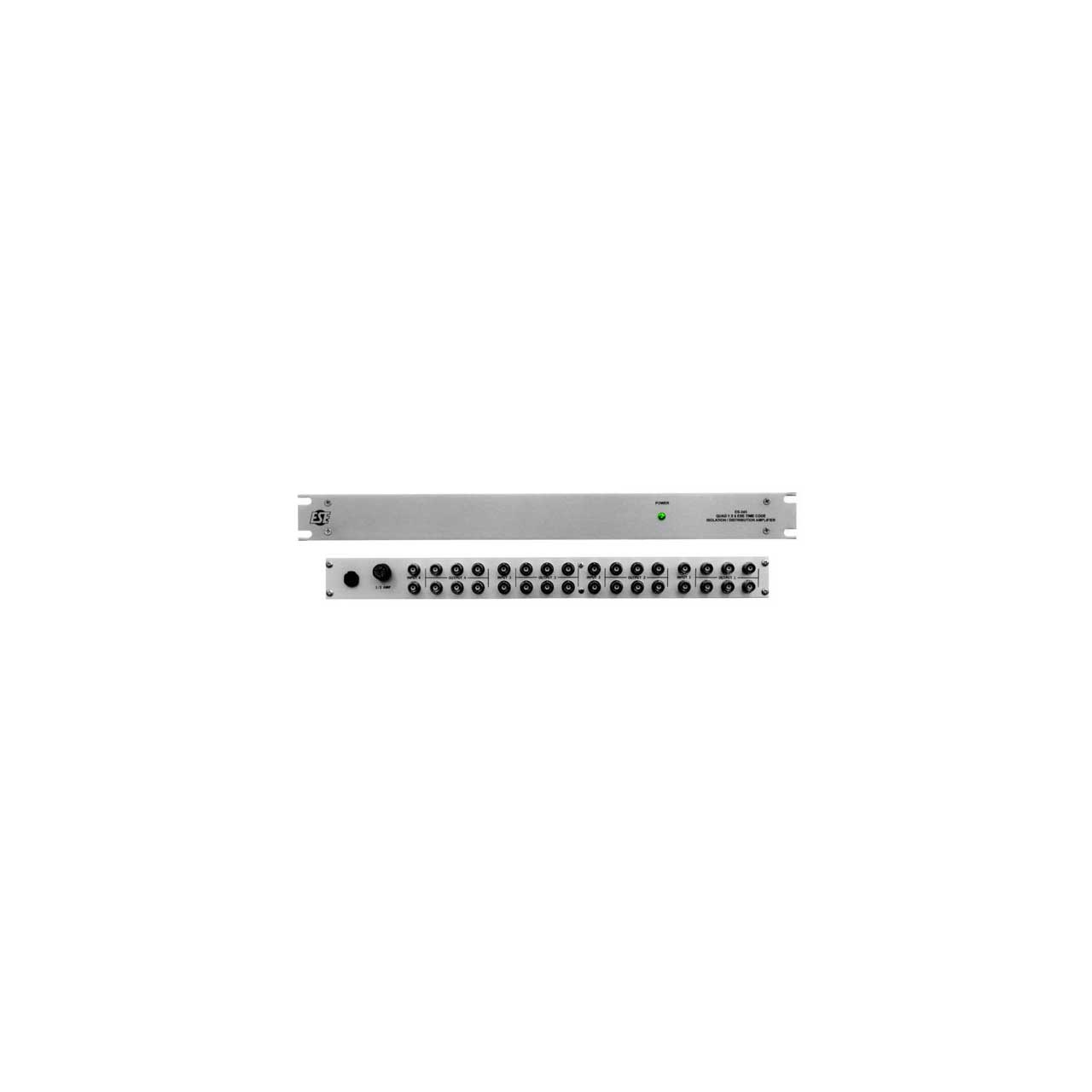

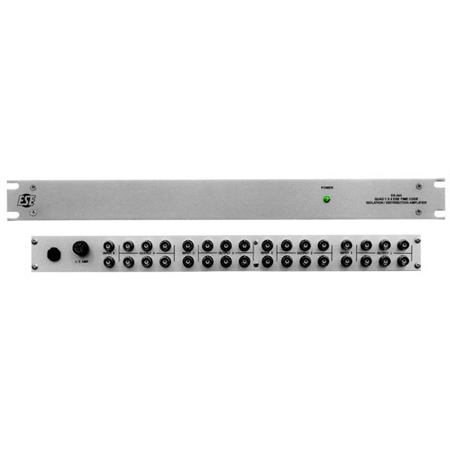

ESE ES-243 Quad 1 x 6 IRIG Distribution Amplifier

ITEM #: ES 243 MFG #: ES 243

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$595.00

Our Price:

$565.49

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ES 243 - Overview

Quad 1 x 6 IRIG Distribution Amplifier

The ES-243 is designed to accept any IRIG time code (in its "pulse width coded" form) or any ESE Time Code signal (TC76, TC89 or TC90) and output up to 24 identical copies. The unit has four separate and isolated channels, each with six available outputs. Inputs and outputs are accessible on rear-mounted BNC connectors. Each of the four channels has a loop-thru input that allows the input signal to be "looped" from one channel into the next, so that up to 24 identical copies can be created. Each ESE Time Code output is capable of driving up to 100 users at a distance of up to 4000 feet.

Available Options
Clear Clear Anodized Front Panel
J 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.

  • Features:

    • 4 independent isolated amplifiers, each with six isolated outputs
    • Each output drives 100 slave displays
    • BNC connector Input & Output
    • 220-240 VAC (110-120 VAC is standard) & UL options available
    • Options available: Black, J, P(1), UL, W(1)

  • Specifications:

    • Electrical: 117 VAC, 50/60 Hz.
    • Power: 2 Watts Maximum.
    • Mechanical: 1.75" x 19"; 5" Deep.
    • Time Code:(TC76, TC89 or TC90)
    • Input/Output: IRIG (A, B or E) In AM Form.
    • Connectors: BNC.
    • Configuration: Quad 1 x 6 (1 x 24).
    • Options: J, UL


ES 243 - Required Accessories
