ESE ES-244P Audio Level Impedance Interface w/ Option P - Front Panel Rack Mount

ITEM #: ES 244P MFG #: ES 244 W/OPT. P

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$240.00

Our Price:

$228.49

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    ES 244 W/OPT. P - Overview

    Audio Level Impedance Interface with Rack Mount

    The ESE ES-244 is a stereo, bi-directional coupling unit. Provides and easy means of connecting equipment with balanced, +4 or +8dBm inputs/outputs. Housed in a rugged, black anodized aluminum enclosure measuring 7"W x 1.6"H x 5"D. The amplifier section receives the unbalanced audio via the two RCA connectors & converts it to balanced, accessible on the two male XLR connectors. Adjustable gain from +6 to +20dB on each channel.

    Applications Include:
    Unbalanced Computer Sound Cards to Pro Audio
    Convert Unbalanced to Balanced and Vice-Versa
    Perfect for DAT, CD Recorders, and Tape Decks

    Product Options:

    J 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.

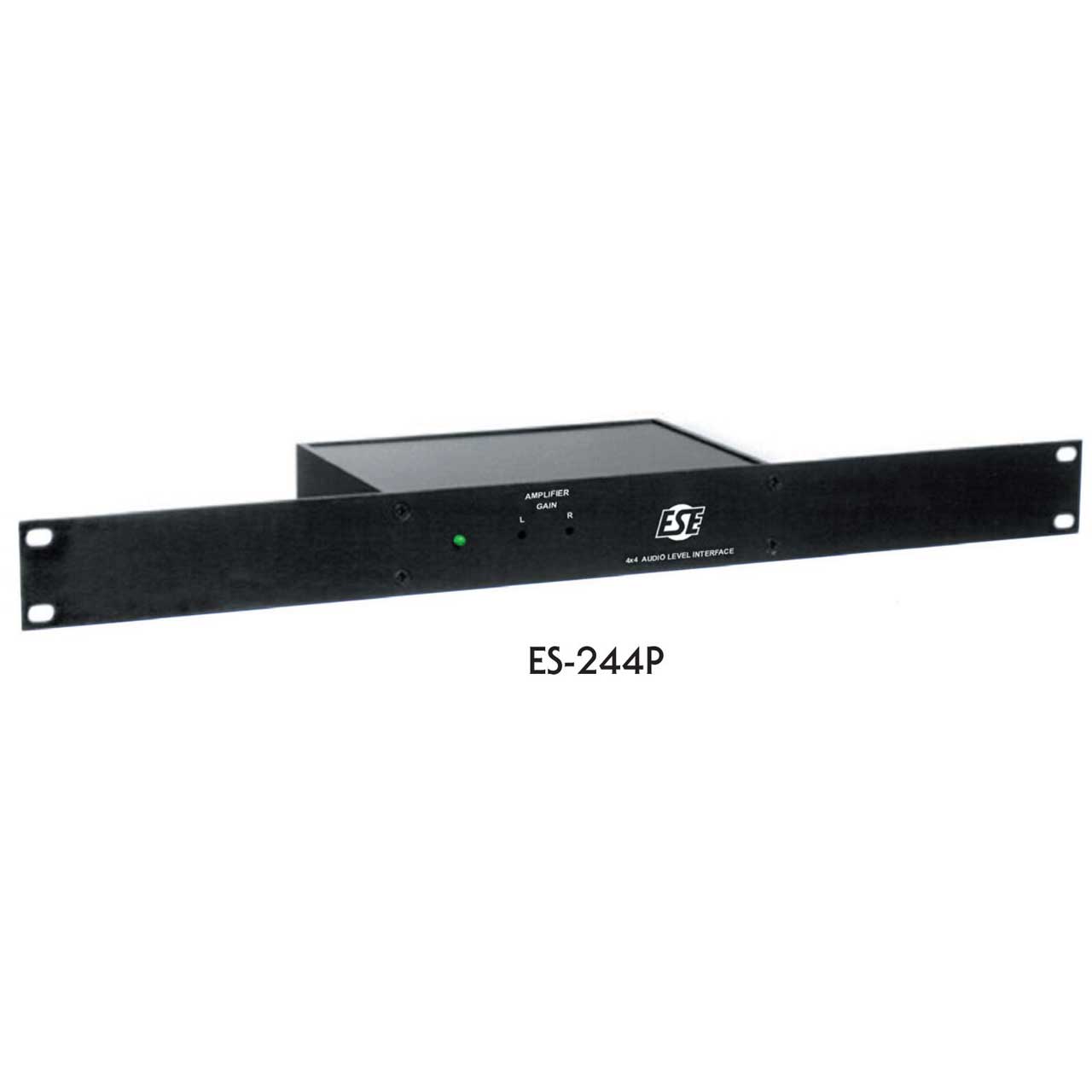

    P 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
    P2 Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
    UL "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply

    • Features:

      • Converts Balanced Audio to Unbalanced & Vice Versa
      • Stereo Operation

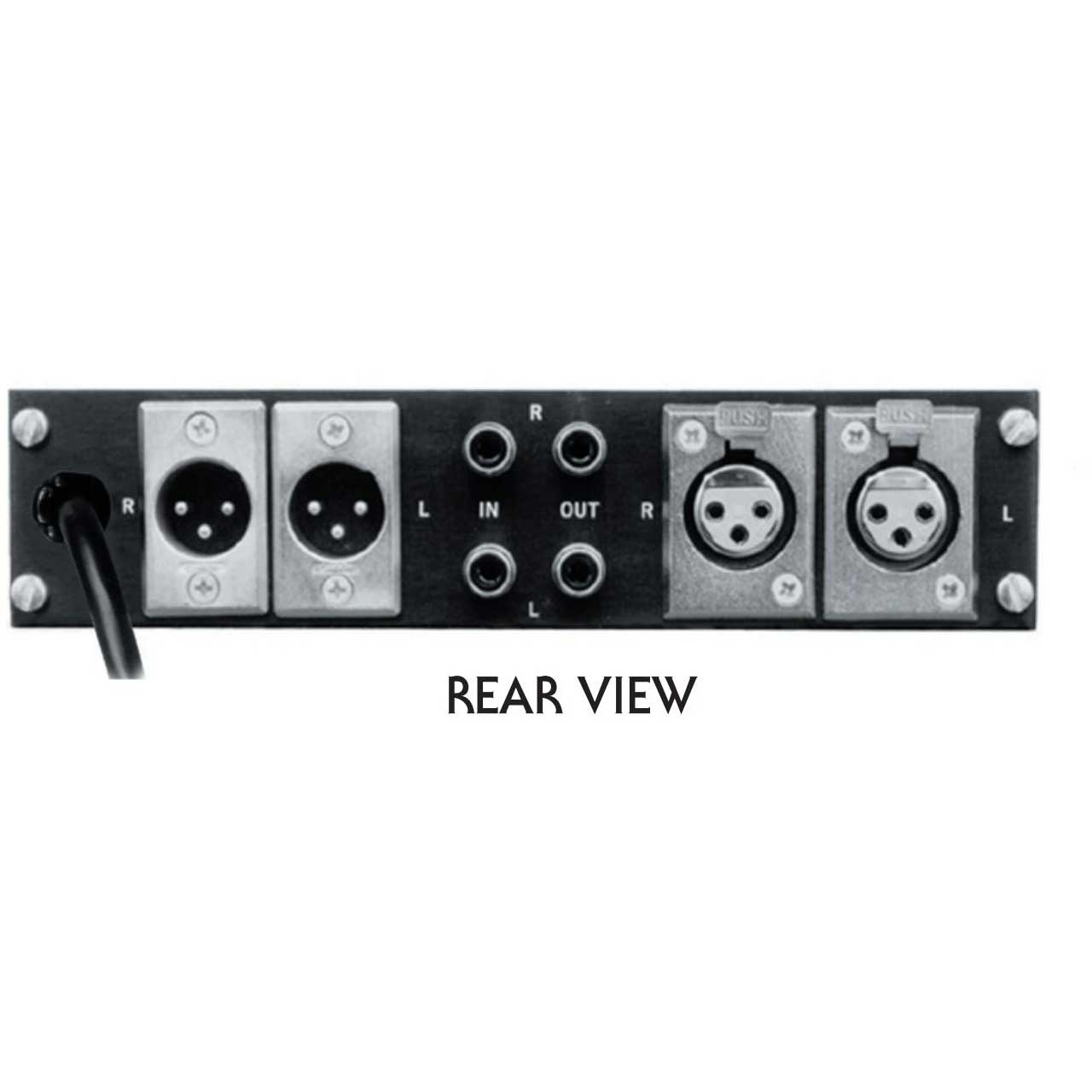

      • XLR Connectors (Balanced), RCA Connectors (Unbalanced)
      • Adjustable Gain on Balanced Output
      • Black anodized aluminum enclosure
      • Optional Single or Dual Rack Panel (one rack-unit high)
      • 220-240 VAC (110-120 VAC is standard)

    • Specifications:

      • ATTENUATOR
      • Input Level: +4 dBm nominal, +26 dBm max.
      • Input Impedance: 100K Ohms, balanced
      • Input Connectors: Female XLR
      • Output Level: -10 dBv nominal
      • Output Impedance: 70 Ohms, unbalanced
      • Output Connectors: RCA
      • Loss: 14 dB, fixed
      • Response: DC - 20,000 Hz, +/- .25 dB
        AMPLIFIER
      • Input Level: -10 dBv nominal, +26 dBv maximum
      • Input Impedance: 100K Ohms, unbalanced
      • Input Connectors: RCA Jack
      • Output Level: +4 dBm nominal, +26 dB maximum
      • Output Connectors: Male XLR
      • Gain: +6 to +20 dB, adjustable recessed controls
      • Freq. Response: DC - 20,000 Hz, +/- .25 dB
        Electrical: 117 VAC, 50/60 Hz, 2 Watts Maximum
      • Mechanical: 1.6" High x 7" Wide x 5" Deep
      • Options: J, P, P2, U
